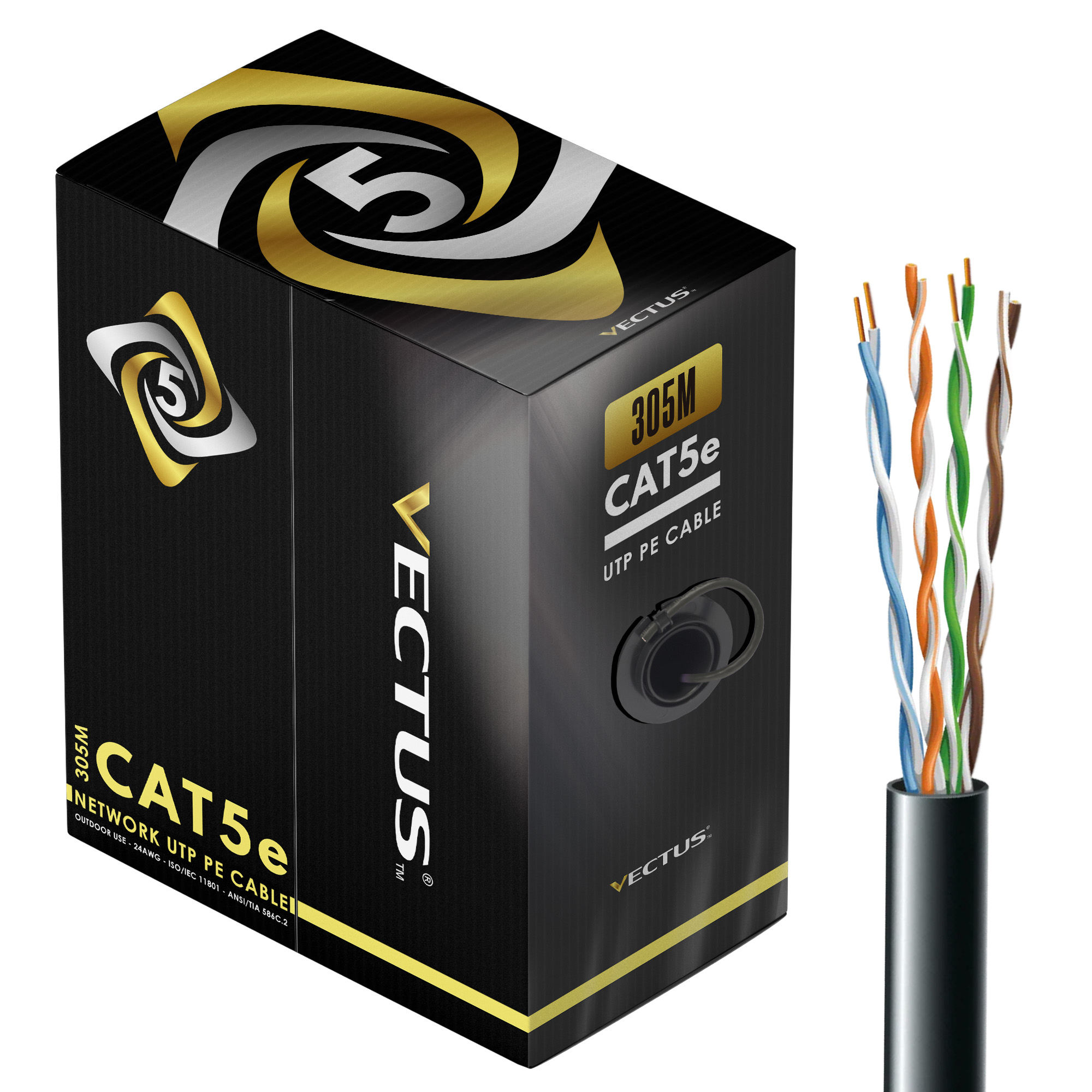

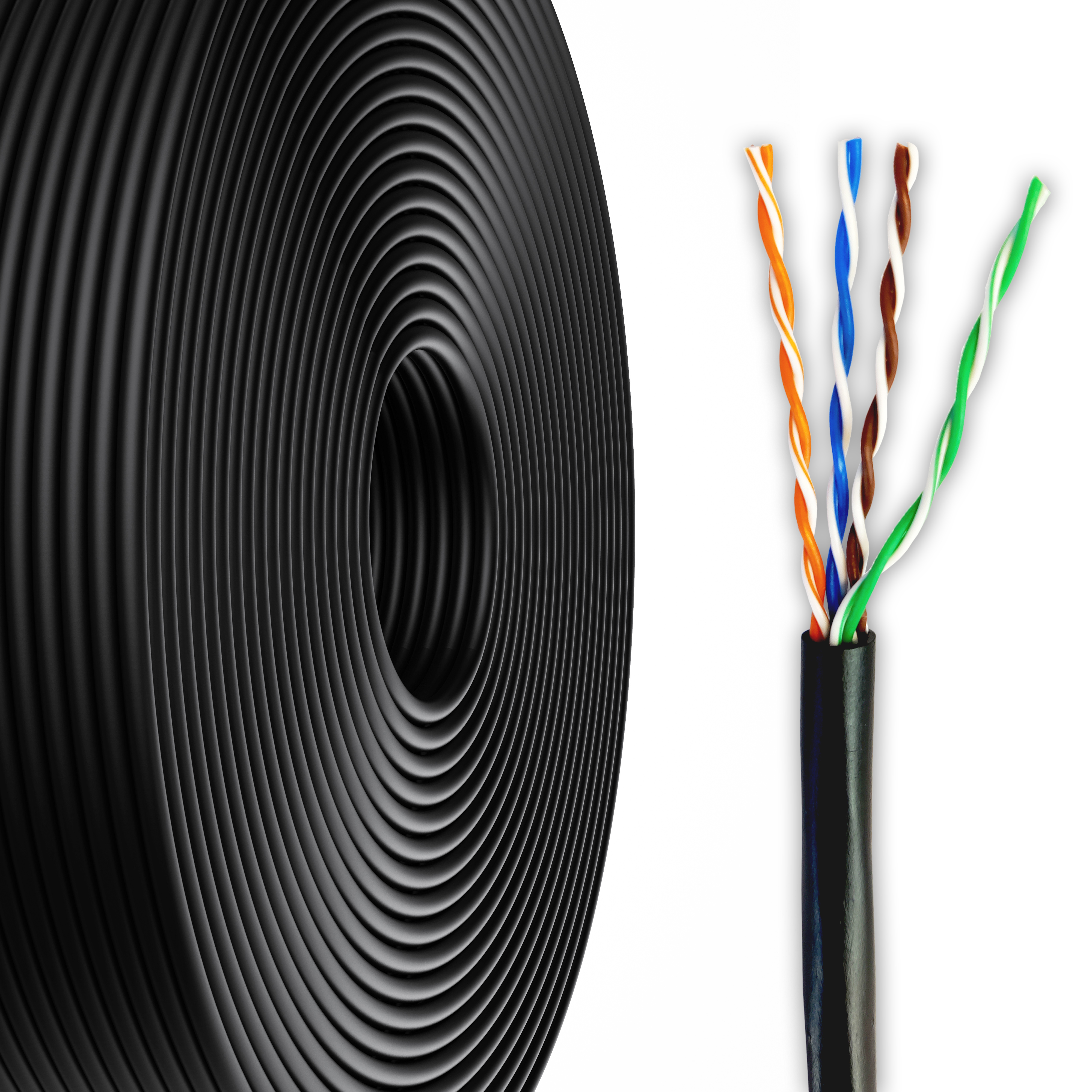

| Specifications: | |
| Model Number | CAT5CABLE-305MO |
| Material | Bare Copper |
| American Wire Gauge | 24AWG |
| Insulation | |
| Material | HDPE |
| Min. Average Thickness | 0.18 mm (0.007") |
| Diameter | 0.85 mm ± 0.08 mm (0.03"± 0.003") |
| Colour | 8-core, Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown |
| Rip Cord | |
| Material | Polyester |
| Specification | 250D |
| Wrap | |
| Material | Polyester tape (transparent) |
| Dimension | W: 12mm±2mm*T: 0.025mm±0.02mm (W: 0.47"±0.07"*T: 0.001"±0.0007") |
| Sheath | |
| Material | PE |
| Min. Average Thickness | 0.48±0.03mm (0.018”±0.001") |
| Diameter | 4.8 mm ± 0.03 mm(0.189"± 0.001") |
| Colour | Black |
| Sheath printing | VECTUS UTP CAT5E PE 24AWG 4PAIRS ISO/IEC 11801 ANSI/TIA
586C.2 2023/09 001m......305m |
| Reaction to Fire | Fca |
| Electrical | |
| Max. DC Resistance of a Single Conductor | < 108Ω/Km |
| Min. Insulation Resistance | ≥50MΩ·km/DC500V |
| Max. DC Resistance Unbalance | No breakdown with 1KV DC for 1 min |
| Dielectric Strength | No breakdown with 1KV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 ± 15Ω |
| Mechanical | |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongating at Break | ≥15% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Colour Migration Resistance of Insulation | No migration |
| Low Temperature Bending Test | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operation Temperature | –10°C to +60°C (14°F to 140°F) |
| Installation Temperature | ––5°C to +50°C (23°F to 122°F) |
| Storage Temperature and Humidity | –10°C to +40°C (14°F to 104°F), <60% (RH) |

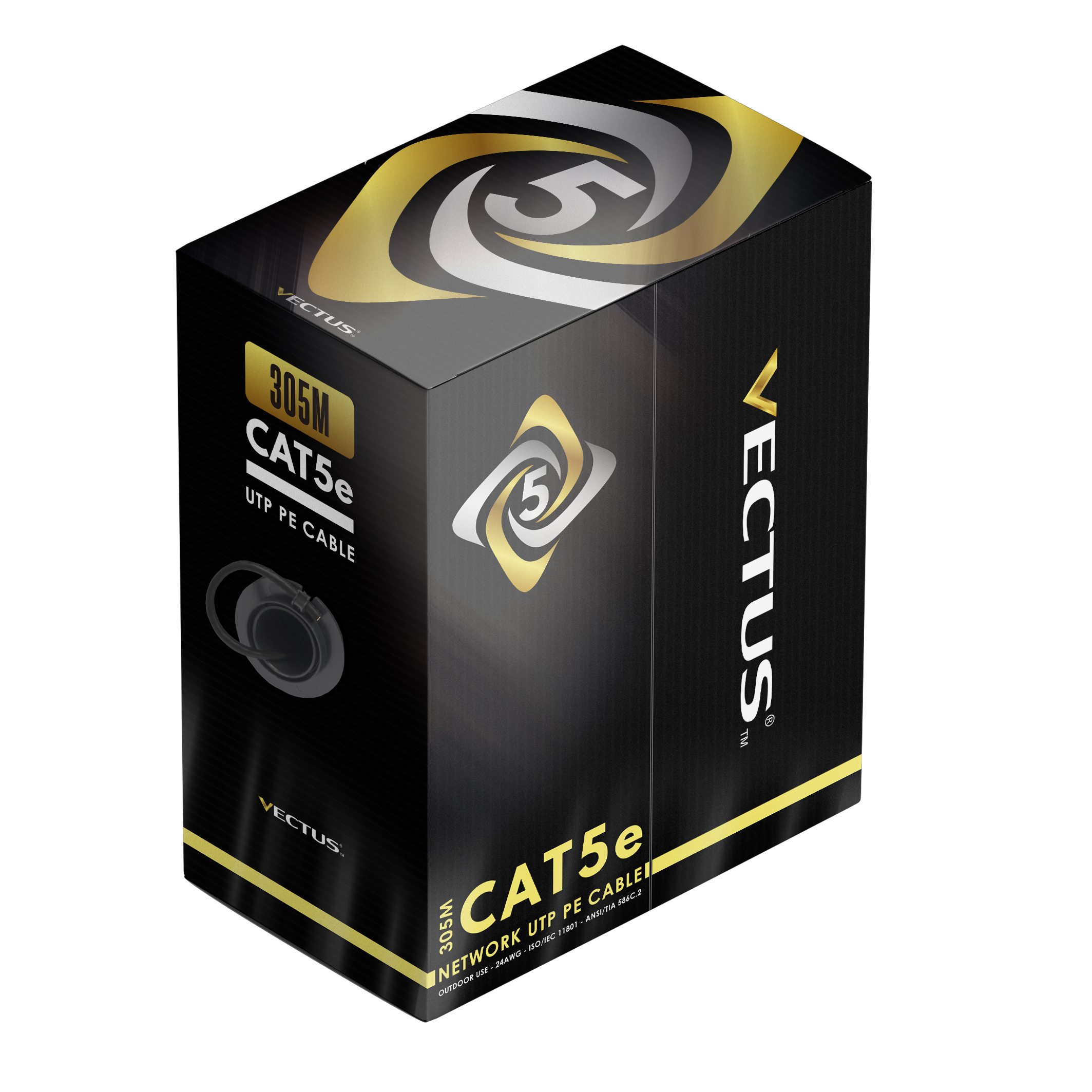

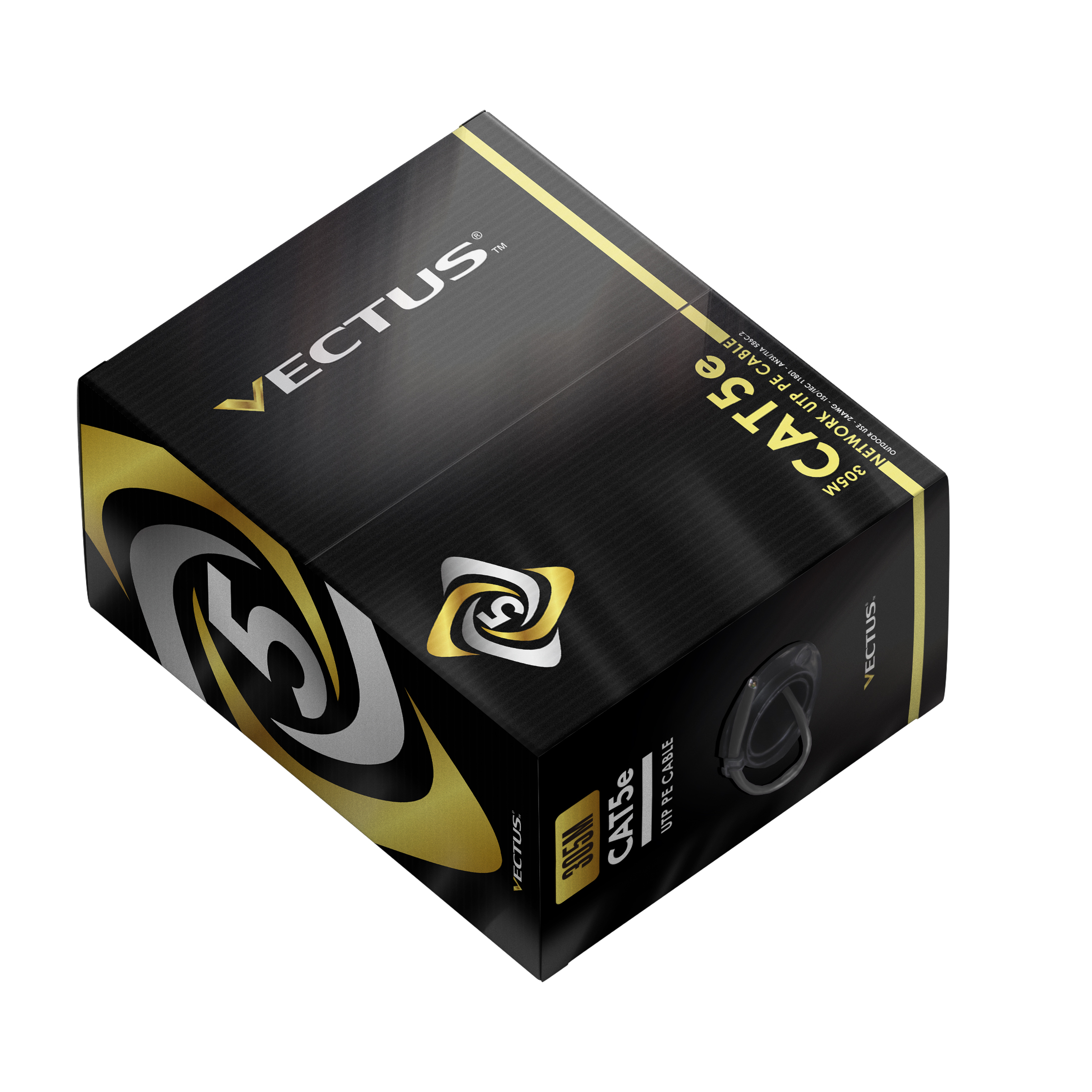

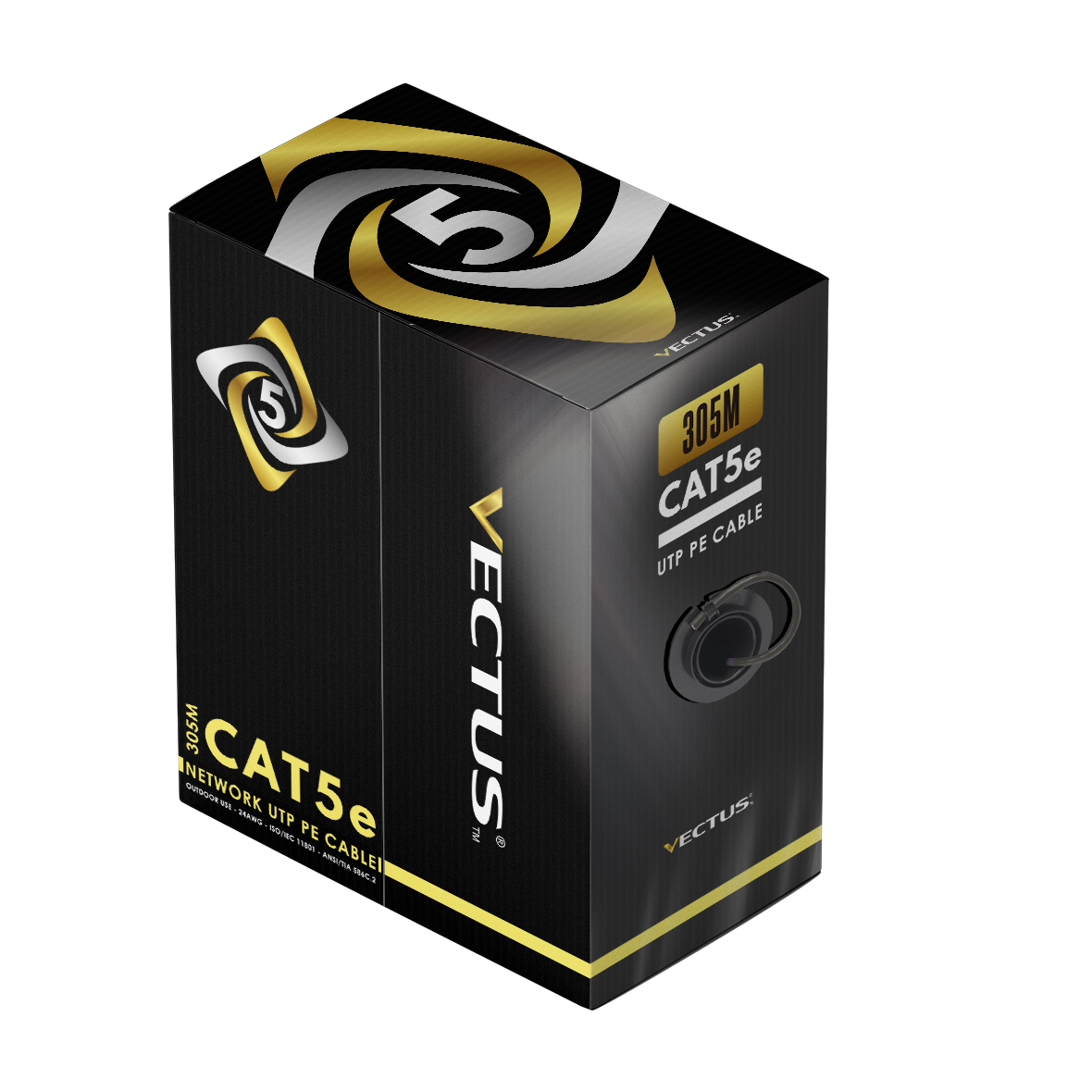

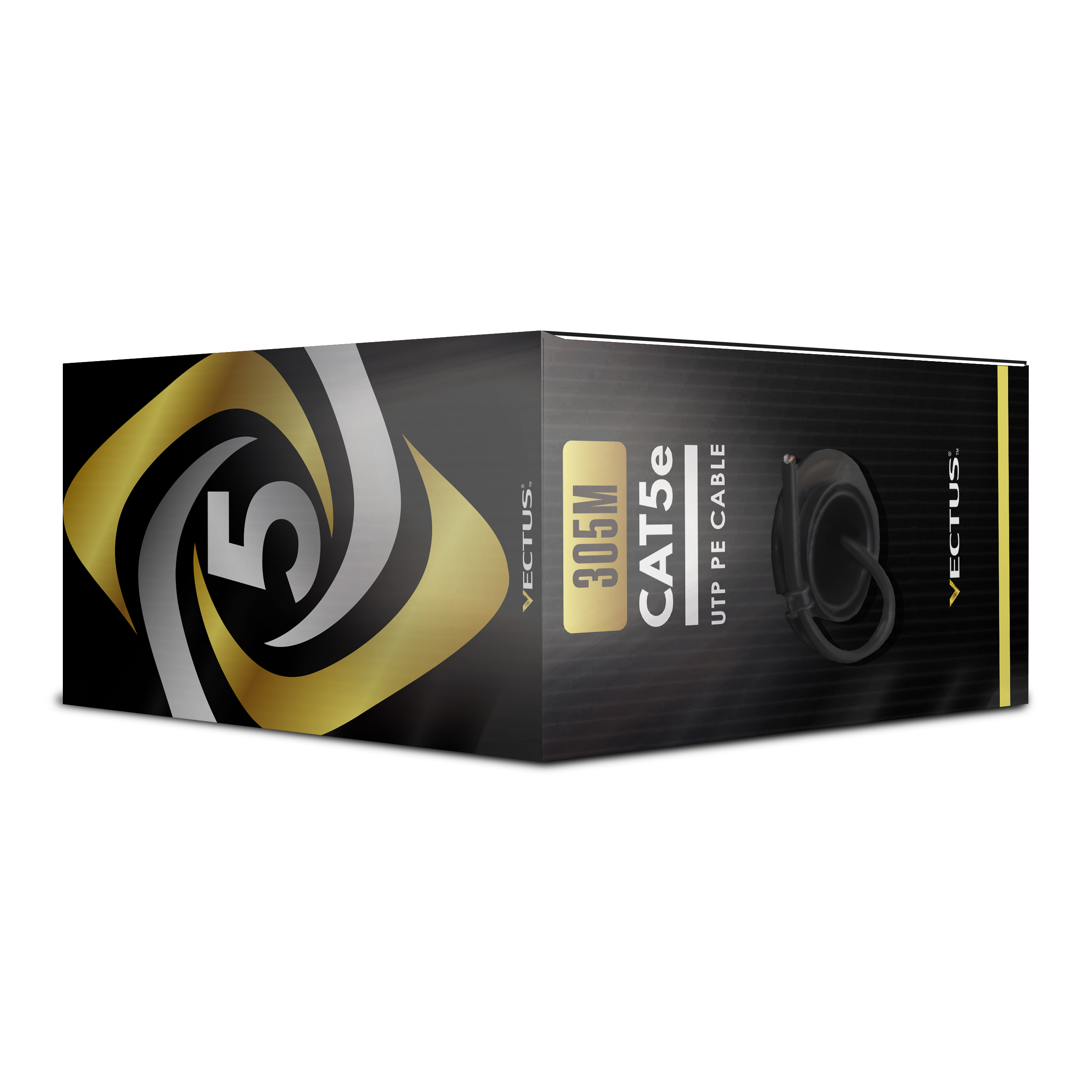

| Packaging | |
| Length | 305m (1000 ft) ± 1.5 m (4.92 ft) |
| Packaging Dimensions | 360mm × 360mm × 205mm (14.17" × 14.17" ×8.07") (L × W × H) |
| Packaging Method | 305 m (1000.66 ft) a carton one protection carton with 2 cartons inside |
| Net Weight | 7kg±0.6kg (22 lb±1.32lb) |
| Gross Weight | 7.5kg±0.6kg (24.20 lb±1.32lb) |
| Executive Standard | |
| Executive Standard | EN50575:2014+A1:2016 EN IEC62368-1:2020+A11:2020 ISO/IEC 11801； ANSI/TIA 568-C.2 |
