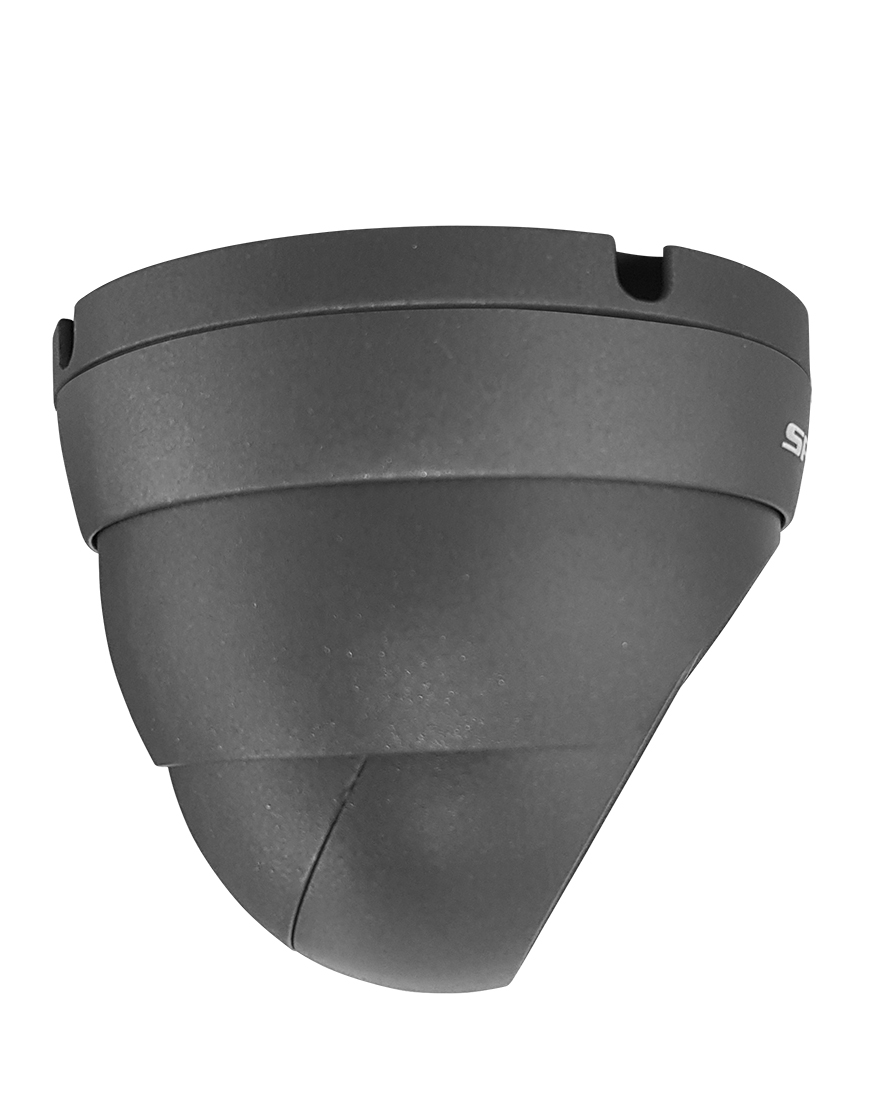

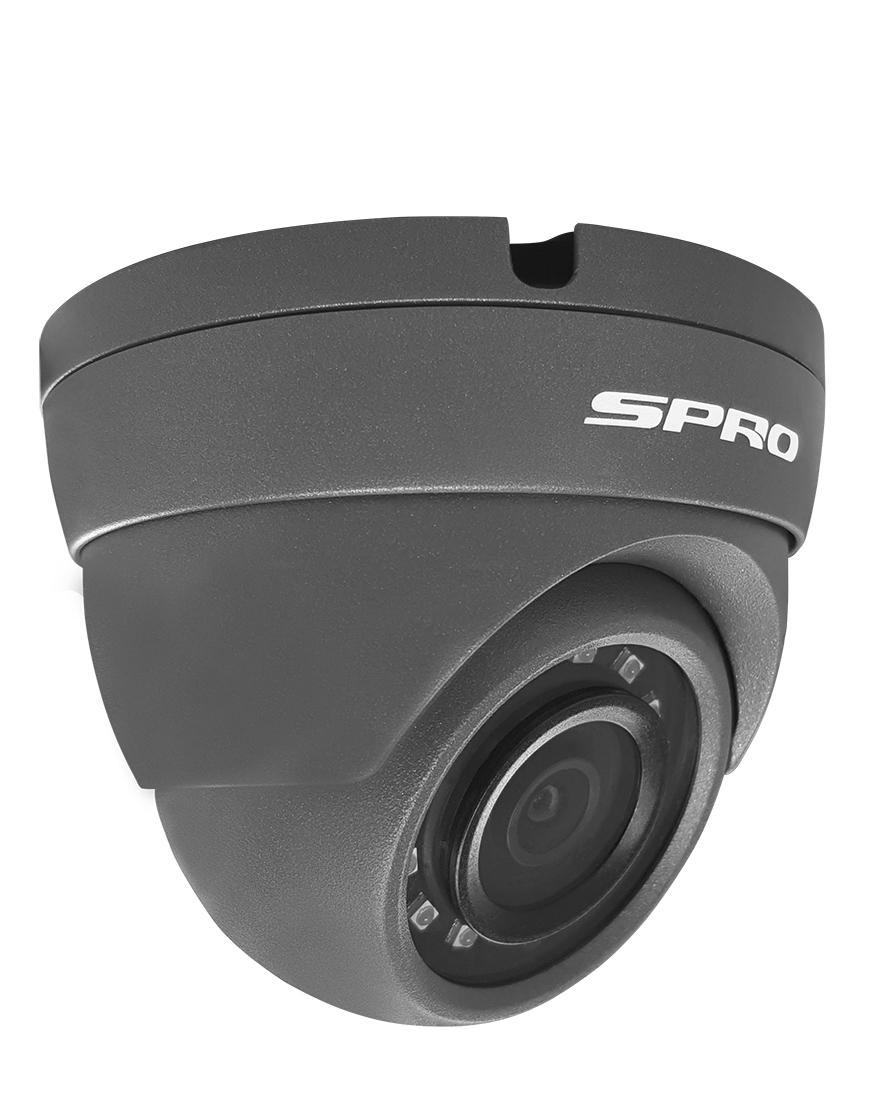

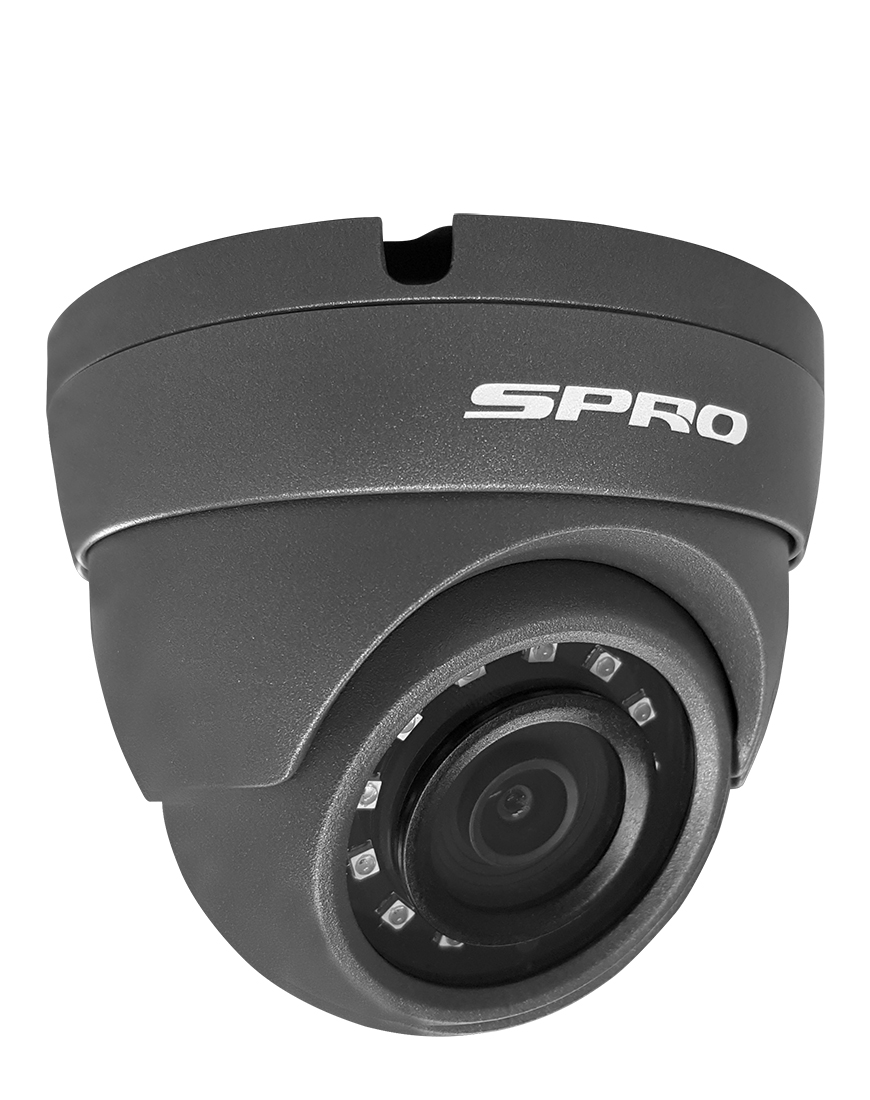

SPRO 5MP 4in1 Fixed Lens Dome

Zoom

Availability

In stock, immediate despatch

You may also like

Deep Base, Grey (IRDOMEBASE-S-G)

Wall bracket, Grey (WALLBRACKET02-G)

Part Number: DHD50/28RG/30M-4
Camera Resolution 5 Megapixels
Lens Fixed Lens
IR Distance Up to 30m IR distance
Protocol 4in1: CVI, TVI, AHD & CVBS
Style Dome

Information
Specifications
Delivery

Check out the SPRO video academy.

Untitled Document

Specifications:
Model Number	DHD50/28RG-30M-4
Image Sensor	1/2.7 inch CMOS
Effective Pixels	2592 (H) × 1944 (V), 5MP
Scanning System	Progressive
Electronic Shutter Speed	1/25~1/100000s
Min. Illumination	0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
Max. IR LEDs Length	Distance up to 30m
IR On/Off Control	Auto/ Manual
IR LEDs	12
Lens
Lens Type	Fixed lens
Mount Type	Board-in
Focal Length	2.8mm
Max Aperture	F1.85
Angle of View	H: 98°
Iris Type	Fixed iris
Close Focus Distance	900mm
DORI Distance	Detect: 63 m Observe: 25 m Recognize: 13 m Identify: 6 m
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan:0˚~360˚ / Tilt: 0° ~ 90° / Rotation: 0° ~ 360°
Video
Resolution	5MP (2592×1944)
Video Frame Rate	20fps@5MP, 25fps@4MP, 25fps@1080P
Video Output	4 in 1 : CVI / TVI / AHD / CVBS
Day/Night	Auto (ICR) / Manual
OSD Menu	Multi-language
BLC Mode	BLC / HLC / DWDR
WDR	DWDR
Gain Control	Auto / Manual
Noise Reduction	2D NR
White Balance	Auto / Manual
Smart Light	Auto / Manual
Interface
Audio Interface	N/A
General
Power Supply	DC12V±30%
Power Consumption	Max 3.6W (12V DC, IR on)
Operating Conditions	-40°C ~ +60°C / Less than 95% RH
Strorage Conditions	-40°C ~ +60°C / Less than 95% RH
Protection Grade	IP67
Casing	Aluminium

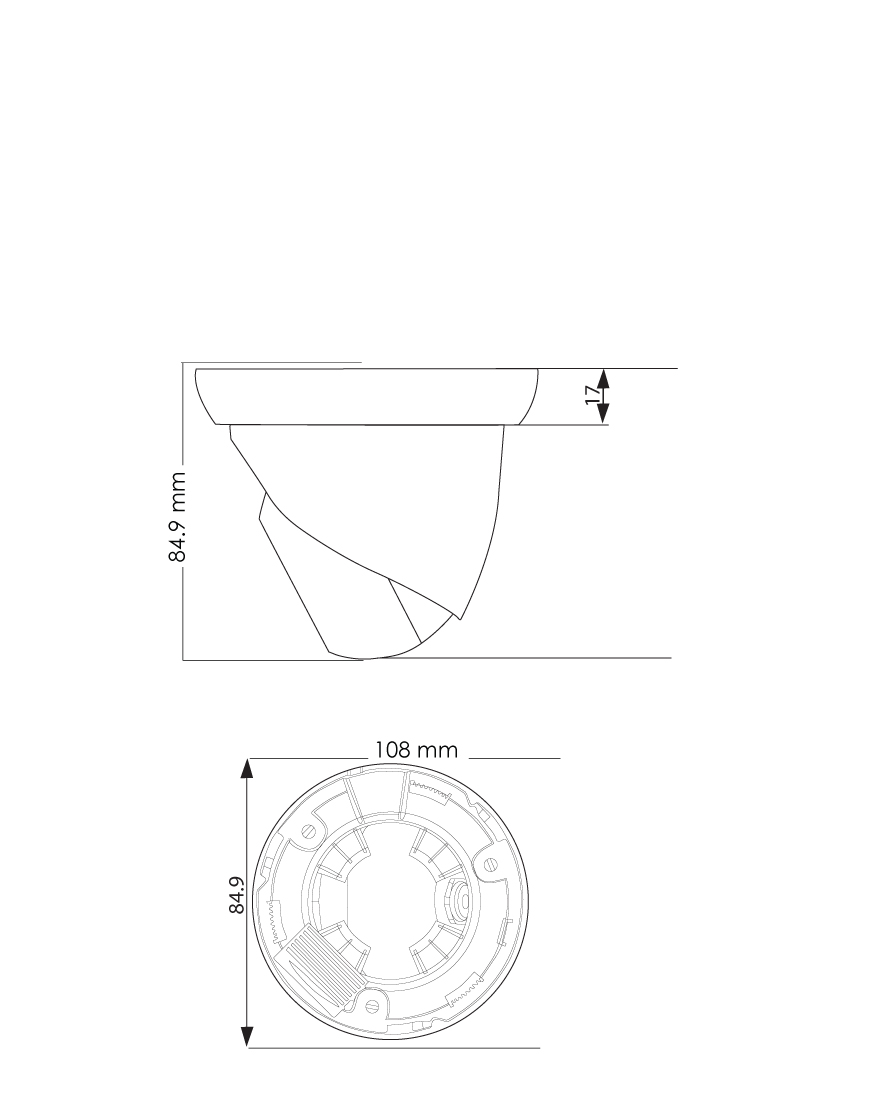

Dimensions	Φ93.4mm × 79.4mm (Φ3.68" × 3.13")
Net Weight	0.28kg
Gross Weight	0.38kg
