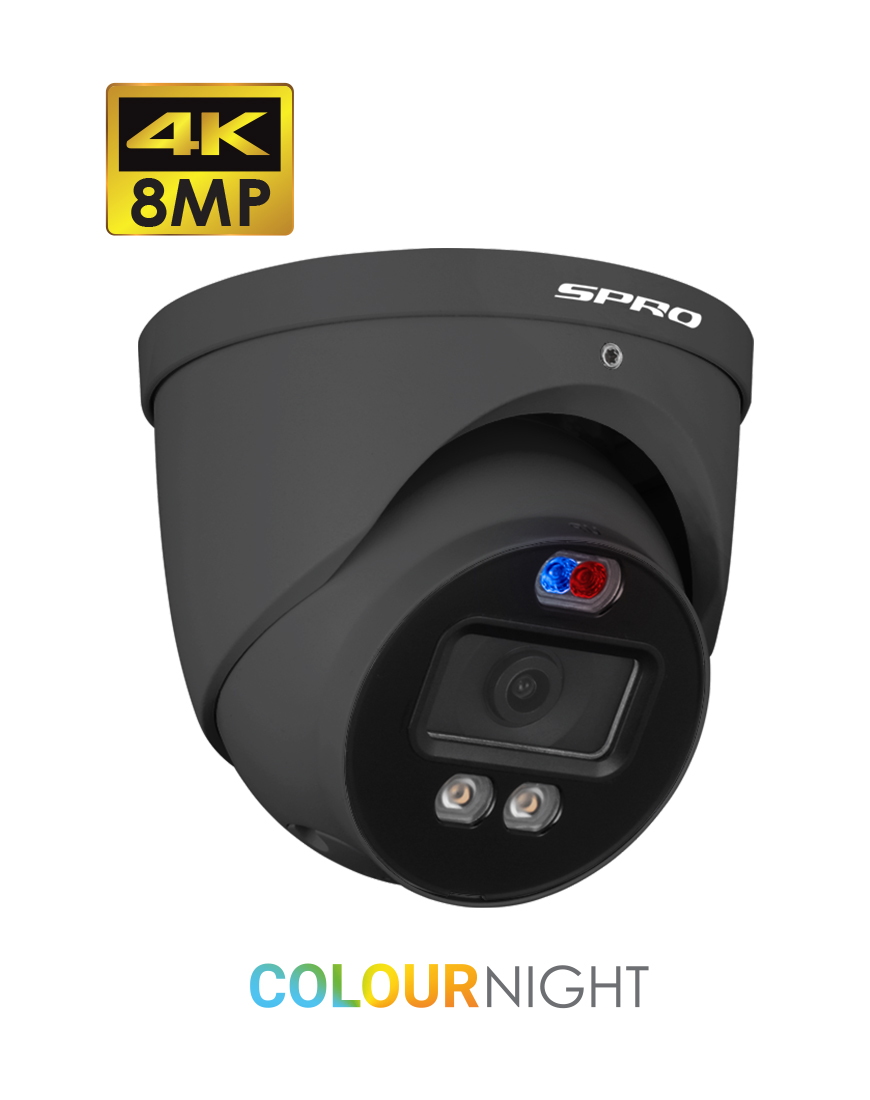

SPRO 8MP CVI Fixed Lens Turret with Active Deterrence

SPRO 8MP CVI Fixed Lens Turret with Active Deterrence
  Zoom
 SPRO 8MP CVI Fixed Lens Turret with Active DeterrenceSPRO 8MP CVI Fixed Lens Turret with Active Deterrence

Availability:



In stock, immediate despatch

Part Number:  DHD80/28LG/40-M-D
Camera Resolution:  8 Megapixels
Lens:  Fixed Lens
LED Distance:  Up to 40m LED distance
Protocol:  CVI
Built-in Mic.:  Yes
Siren Built-in:  Yes
Active Deterrence:  Yes
Colour Night:  Yes
Style:  Turret

The SPRO Analogue Active Deterrence range of cameras are designed to prevent crime before it happens. These cameras feature red and blue flashing lights and a built-in siren as well as ColourNight technology which allows the camera to see full-colour images at night.

Check out the SPRO video academy.

Specifications:
Model Number DHD80/28LG/40-M-D
Image Sensor 1/2.8” CMOS
Max. Resolution 3840 (H)×2160 (V)
Pixel 4K
Scanning System Progressive
Electronic Shutter Speed PAL:1/3s~1/100000s
NTSC:1/4s~1/100000s
S/N Ratio >65 dB
Min. Illumination 0.005 Lux/F1.6, 0 Lux warm light on
Illumination Distance 40 m (131.2 ft)
Illumination Type Warm light
Illuminator On/Off Control Auto/ Manual
Illuminator Number 2 (Warm light)
Pan/ Tilt/ Rotation Range Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Lens
Lens Type Fixed
Mount Type M12
Focal Length 2.8mm
Max. Aperture F1.6
Field of View Horizontal: 107°; vertical: 56°; diagonal: 127°
Iris Type Fixed
Close Focus Distance 1.5 m
DORI Distance Detect: 87.7 m
Observe: 35.1 m
Recognize: 17.5 m
Identify: 8.8 m
Video
Video Frame Rate CVI:4K@15fps/ 25fps/ 30fps, 4M@25fps/ 30fps;
Resolution 4K (3840×2160); 4M (2560×1440)
BLC Mode BLC/ HLC/ DWDR
WDR DWDR
White Balance Auto/ Manual
Gain Control Auto/ Manual
Noise Reduction 2D
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Port
Video Output 1 BNC output, Support CVI
Audio Input Built-in mic
Alarm out 1ch alarm out
Active Deterrence
Red/ Blue Light Warning Flash: 5 s–30 s; frequency: high/ medium/ low
Sound Warning Audio 1/2/3; Volume: high/ medium/ low; duration: 5 s–30 s; 110 dB
General
Power Supply 12V ±30% DC
Power Consumption Max 7.7W (12V DC, warm light on)
Operating Conditions -40ºC ~ +60ºC / Less than 95% RH
Storage Conditions -40ºC ~ +60ºC / Less than 95% RH
Ingress Protection IP67
Casing Metal
Dimensions φ122.0mm × 110.9mm
Net Weight 0.69 kg
Gross Weight 0.95 kg
