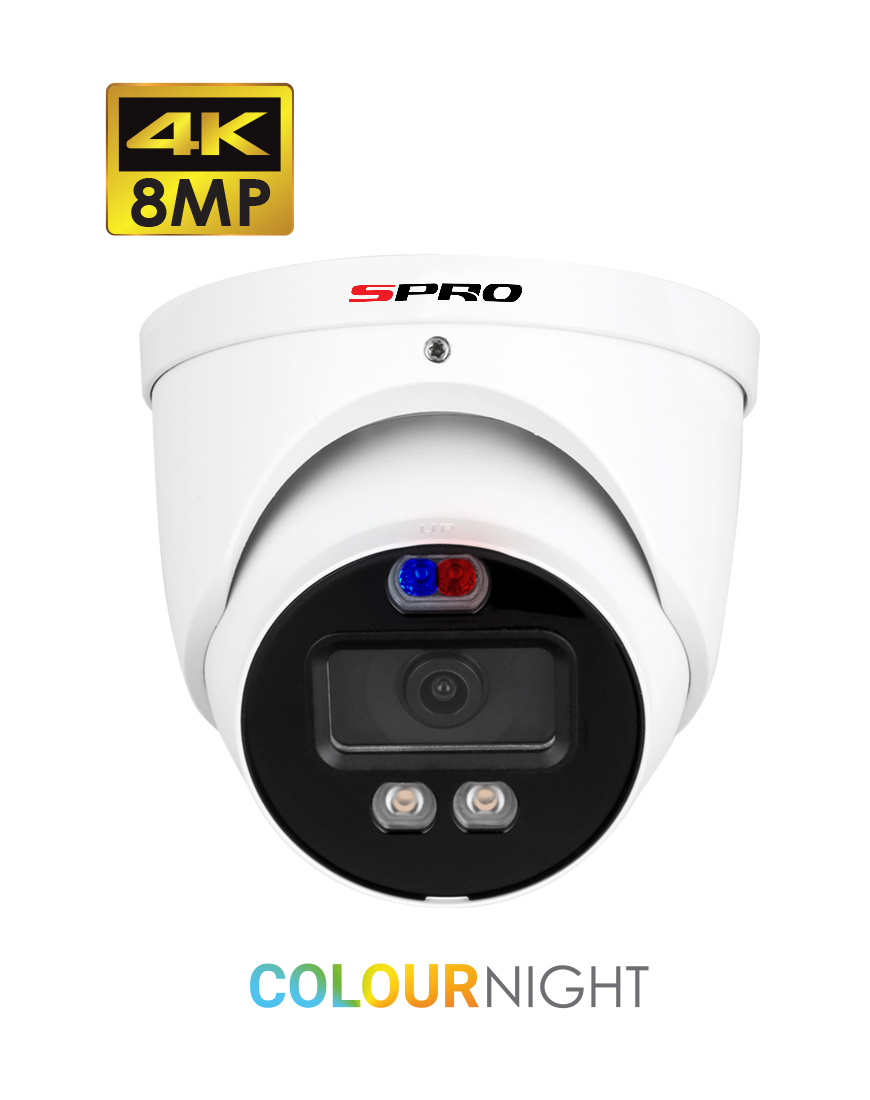

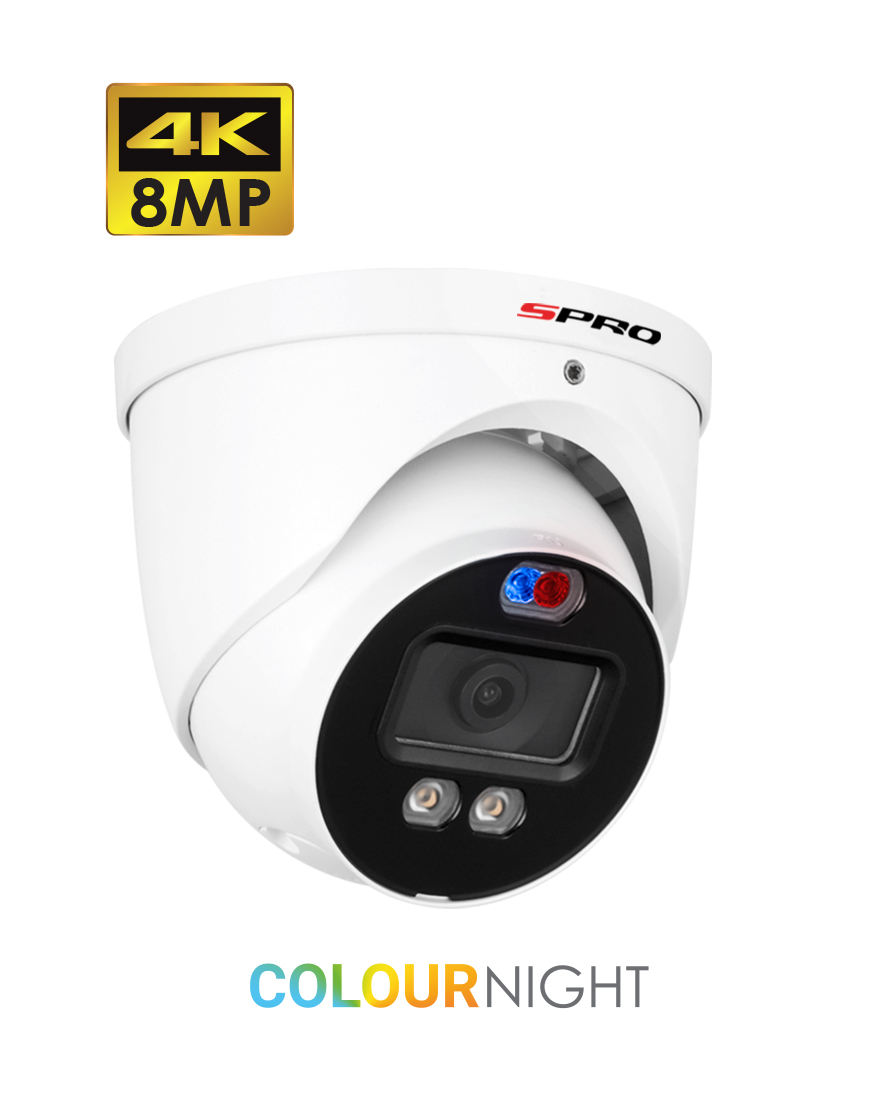

SPRO 8MP CVI Fixed Lens Turret with Active Deterrence

Availability

In stock, immediate despatch

Part Number: DHD80/28LW/40-M-D
Camera Resolution 8 Megapixels
Lens Fixed Lens
LED Distance Up to 40m LED distance
Protocol CVI
Built-in Mic. Yes
Siren Built-in Yes
Active Deterrence Yes
Colour Night Yes
Style Turret

Information
Specifications
Delivery

This Analogue, Active Deterrence Camera boasts a number of deterrent features that aim to prevent crime - before it happens. These include Red & Blue Flashing Lights, Siren Built-in. All this is in addition to its high-resolution recording capabilities of either 5mp or 8mp, audio-over-coax functionality, and full colour-at-night images.

Check out the SPRO video academy.

Specifications:
Model Number	DHD80/28LW/40-M-D
Image Sensor	1/2.8” CMOS
Max. Resolution	3840 (H)×2160 (V)
Pixel	4K
Scanning System	Progressive
Electronic Shutter Speed	PAL:1/3s~1/100000s NTSC:1/4s~1/100000s
S/N Ratio	＞65 dB
Min. Illumination	0.005 Lux/F1.6, 0 Lux warm light on
Illumination Distance	40 m (131.2 ft)
Illumination Type	Warm light
Illuminator On/Off Control	Auto/ Manual
Illuminator Number	2 (Warm light)
Pan/ Tilt/ Rotation Range	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Lens
Lens Type	Fixed
Mount Type	M12
Focal Length	2.8mm
Max. Aperture	F1.6
Field of View	Horizontal: 107°; vertical: 56°; diagonal: 127°
Iris Type	Fixed
Close Focus Distance	1.5 m
DORI Distance	Detect: 87.7 m Observe: 35.1 m Recognize: 17.5 m Identify: 8.8 m
Video
Video Frame Rate	CVI:4K@15fps/ 25fps/ 30fps, 4M@25fps/ 30fps;
Resolution	4K (3840×2160); 4M (2560×1440)
BLC Mode	BLC/ HLC/ DWDR
WDR	DWDR
White Balance	Auto/ Manual
Gain Control	Auto/ Manual
Noise Reduction	2D
Smart Light	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 Area, Rectangle)
Port
Video Output	1 BNC output, Support CVI
Audio Input	Built-in mic
Alarm out	1ch alarm out
Active Deterrence
Red/ Blue Light Warning	Flash: 5 s–30 s; frequency: high/ medium/ low
Sound Warning	Audio 1/2/3; Volume: high/ medium/ low; duration: 5 s–30 s; 110 dB
General
Power Supply	12V ±30% DC
Power Consumption	Max 7.7W (12V DC, warm light on)
Operating Conditions	-40ºC ~ +60ºC / Less than 95% RH
Storage Conditions	-40ºC ~ +60ºC / Less than 95% RH
Ingress Protection	IP67
Casing	Metal
Dimensions	φ122.0mm × 110.9mm
Net Weight	0.69 kg
Gross Weight	0.95 kg
