SPRO 8MP 4IN1 Fixed Lens Dome

SPRO 8MP 4IN1 Fixed Lens Dome
SPRO 8MP 4IN1 Fixed Lens DomeSPRO 8MP 4IN1 Fixed Lens DomeSPRO 8MP 4IN1 Fixed Lens Dome
SPRO 8MP 4IN1 Fixed Lens DomeSPRO 8MP 4IN1 Fixed Lens Dome



In stock, immediate despatch

Deep Base, White (IRDOMEBASE-S-W)
Wall bracket, White (WALLBRACKET02-W)

Part Number:  DHD80/28RW/30M-4
Camera Resolution:  8 Megapixels
Lens:  Fixed Lens
IR Distance:  Up to 30m IR distance
Protocol:  4in1: CVI, TVI, AHD & CVBS
Style:  Dome

Model Number DHD80/28RW/30M-4
Image Sensor 1/2.7 inch CMOS
Effective Pixels 3840(H)2160(V), 8MP
Scanning System Progressive
Electronic Shutter Speed 1/25s1/100000s
Min. Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
Max. IR LEDs Length Distance up to 30m
IR On/Off Control Auto/ Manual
IR LEDs 12
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8mm
Max Aperture F2.0
Angle of View 125 x 105 x 56 (diagonal x horizontal x vertical)
Iris Type Fixed iris
Close Focus Distance 1.0 m (3.3 ft)
DORI DistanceDetect: 74.7 m
Observe: 29.9 m
Recognize: 14.9 m
Identify: 7.5 m
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan:0˚~360˚ / Tilt: 0 ~ 78 / Rotation: 0 ~ 360
Resolution 4K (3840 2160); 5M (2592 1944); 4M (2560 1440);
960H (960 576/ 960 480)
Video Frame Rate CVI: 4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps;
AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H
Day/Night Auto switch by ICR
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 2D & 3D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Audio Port N/A
Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power Supply DC12V30%
Power Consumption Max 4.3W (12V DC, IR on)
Operating Conditions -40C ~ +60C / Less than 95% RH
Strorage Conditions -40C ~ +60C / Less than 95% RH
Protection Grade IP67
Casing Metal throughout the whole casing

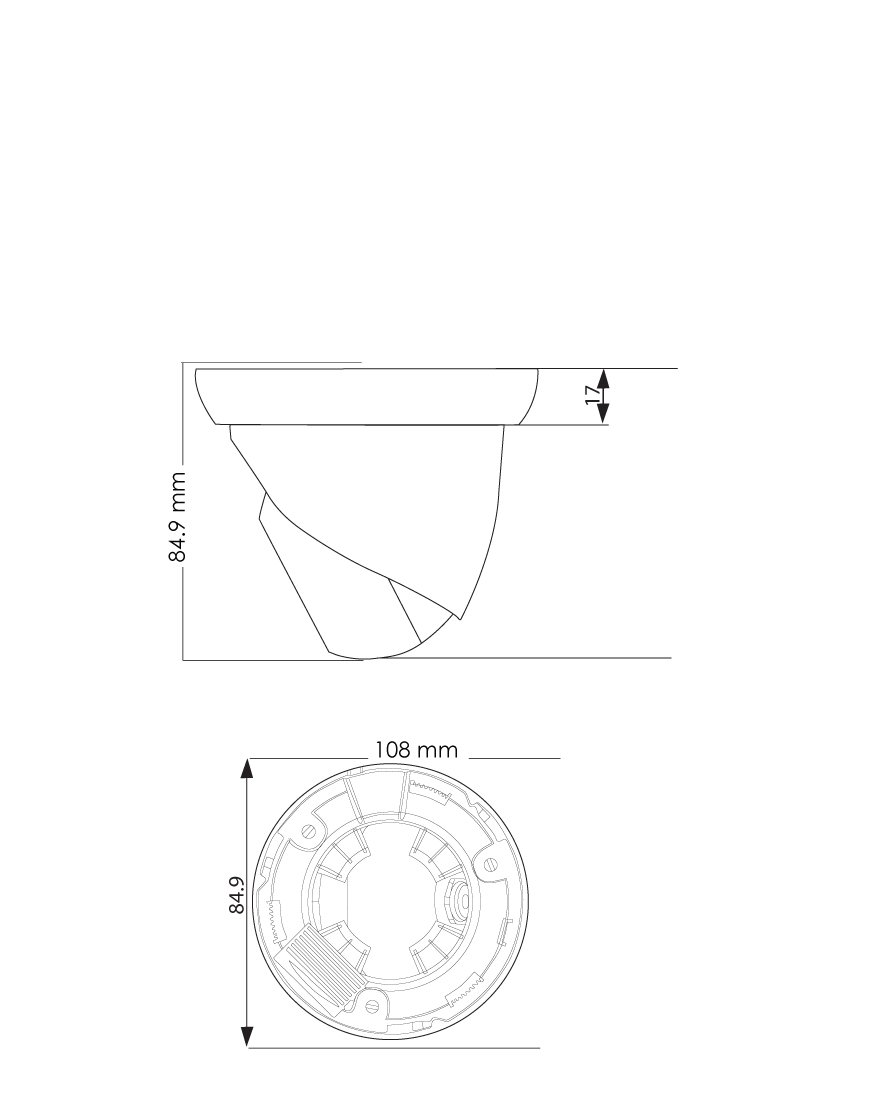

Dimensions Φ93.4mm 79.4mm (Φ3.68" 3.13")
Net Weight 0.27 Kg (0.60lb)
Gross Weight 0.35 Kg (0.77lb)
