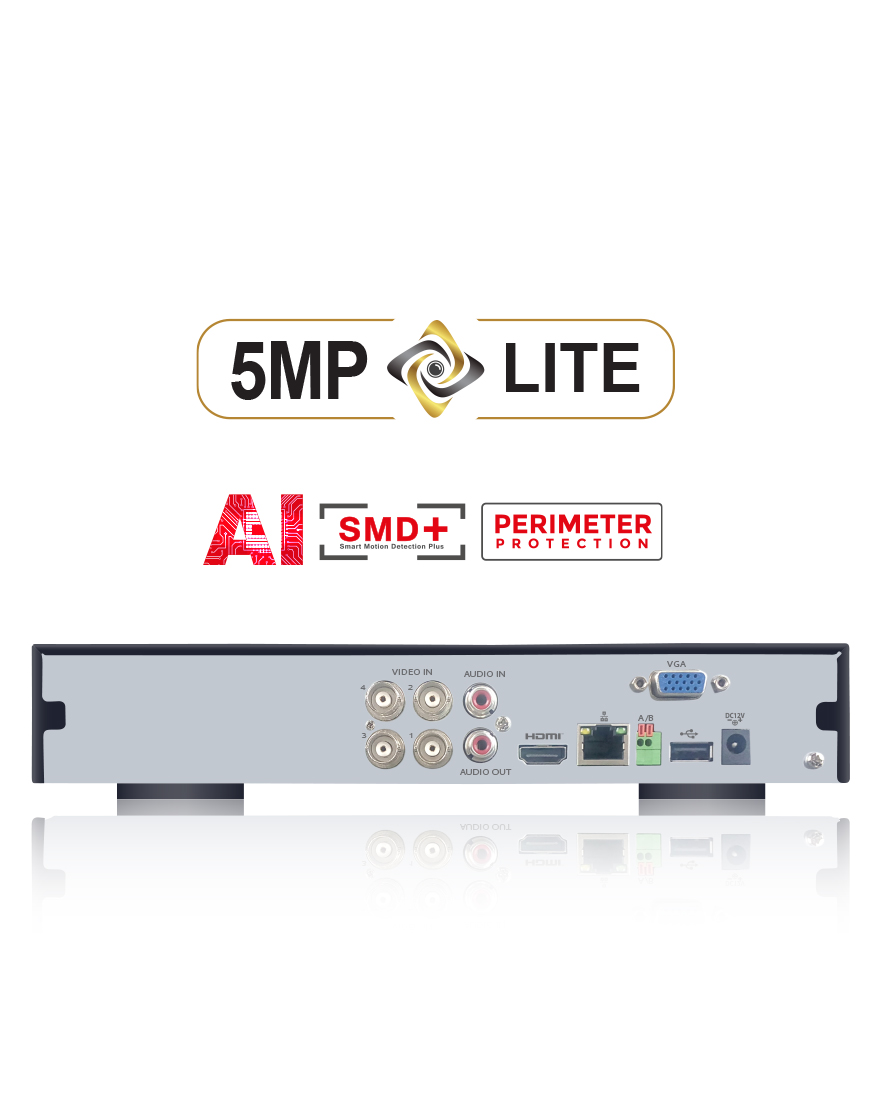

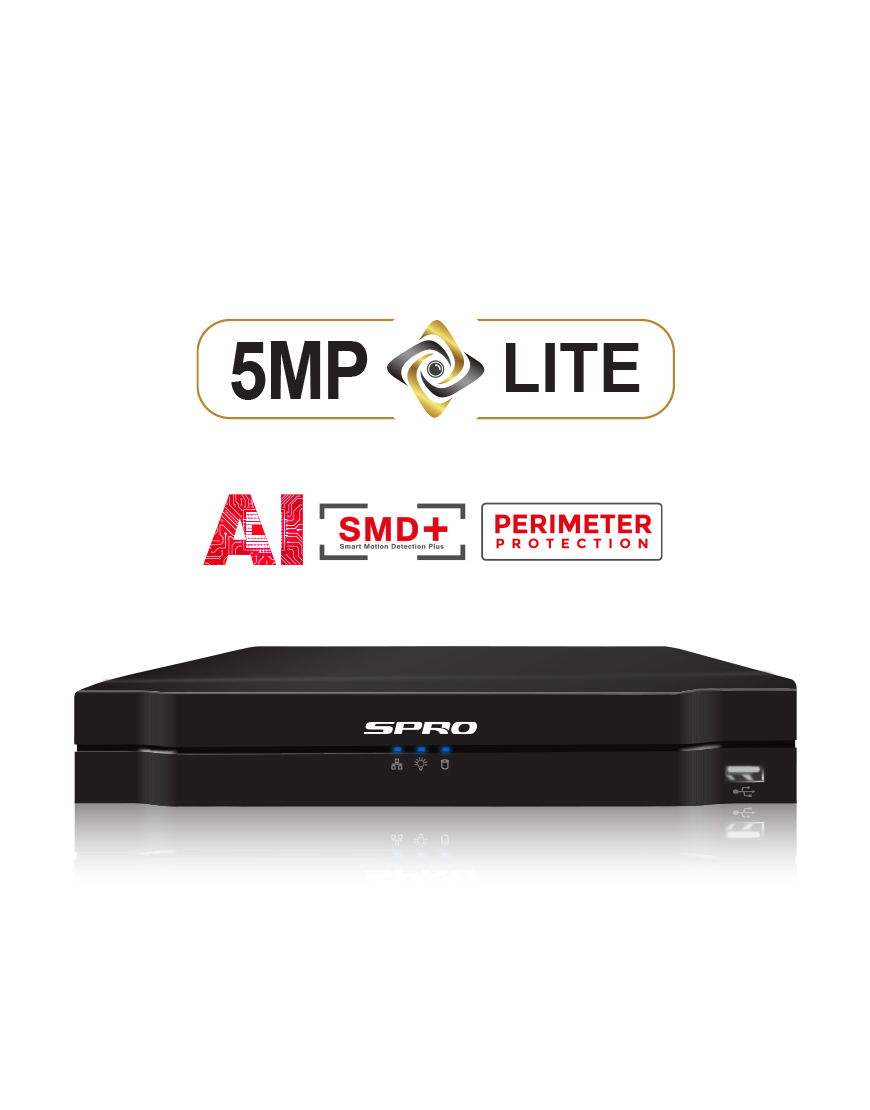

SPRO B5 5MP-Lite 4 Channels 5in1 with AI

SPRO B5 5MP-Lite 4 Channels 5in1 with AI
  Zoom
 SPRO B5 5MP-Lite 4 Channels 5in1 with AISPRO B5 5MP-Lite 4 Channels 5in1 with AI

Part Number:  DHDVR06-B5-V3-0TB
Recorder Resolution  5MP-Lite
Audio over co-ax  On each channel
SMD (Smart Motion Detection)  Yes
Perimeter Protection  Yes
Tripwire  Yes
Intrusion  Yes
Face detection 2.0  Yes
BNC Channels  4 Channel
Extra IP Channels  2 Channel

The B5 range of DVRs can record at up to 5M-N recording giving your customers better than 1080p recording. This range allows both alarm and audio over co-ax to be installed on each channel as well as giving your customers having the ability to control compatible PTZ cameras using the same BNC cable as the video. As an added bonus, each of the DVRs in the B5 range allows for additional IP cameras to be installed and they work with the audio over CAT5e feature allowing your customers to record audio on those cameras too (requires compatible cameras). As well as the extra IP channels the B5 range also accepts video signals in the CVI, TVI, AHD and CVBS formats, giving more flexibility in what cameras can be use on the installation.

Check out the SPRO video academy.

Specifications:
Model NumberDHDVR06-B5-V3
Main ProcessorEmbedded processor
Operating SystemEmbedded LINUX
Perimeter Protection
Performance2 channels, 10 IVS for each channel
Object classificationHuman/Vehicle secondary recognition for tripwire and intrusion
AI SearchSearch by target classification (Human, Vehicle)
Face Recognition
PerformanceMax 8 face pictures/sec processing
1 channels video stream face recognition, only support analog camera
Stranger ModeDetect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database ManagementUp to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries and state can be added to each face picture.
Database ApplicationEach database can be applied to video channels independently.
Trigger EventsBuzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance4 channels
AI SearchSearch by target classification (Human, Vehicle)
Video & Audio
Analog Camera Input4 channels, BNC
HDCVI Camera Input5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera InputPAL/NTSC
IP Camera Input4+2 channels, each channel up to 6MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
CompressionAI Coding/H.265+/H.265/H.264+/H.264
Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate - Main Stream5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/ 720P/ 960H/ D1/ CIF (1fps–25/30fps)
Record Rate - Sub StreamD1/CIF (1fps–15fps)
Bit Rate32Kbps~6144Kbps Per Channel
Record ModeManual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1~60 min (default: 60 min),
Pre-record: 1~30 sec, Post-record: 10~300 sec
Audio CompressionG.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel
Display
Interface1 HDMI, 1 VGA
Resolution1920×1080, 1280×1024, 1280×720
Multi-screen DisplayWhen IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
OSDCamera title, Time, Video loss, Camera lock,
Motion detection, Recording
Network
Ethernet1 RJ-45 Port (100 MB)
Network FunctionsHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android Phone
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection & Alarm
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss,
Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback & Backup
Sync Playback1/4
Search ModeTime/Date, MD & Exact search (accurate to second)
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,
Next camera, Previous camera, Full screen, Repeat, Shuffle,
Backup selection, Digital zoom
Backup ModeUSB Device/Network
Storage
Internal HDD1 SATA port, up to 6TB
Auxiliary Interface
USB Interface2 USB Ports (USB 2.0)
RS4851 port, For PTZ Control
RS232N/A
General
Power SupplyDC12V/1.5A
Power Consumption<4W (without HDD)
DimensionsCompact 1U, 260mm × 238mm × 48mm
Net Weight1.01KG(without HDD)
Gross Weight1.4KG(without HDD)
Operating Environment-10°C ~+55°C / 0%~90%RH
Storage Conditions-20°C ~+70°C / 0%~90%RH
