SPRO M3 8MP 8 Channels 5in1 with AI

Hard Drive

Part Number: DHDVR16-M3-0TB
Recorder Resolution 8MP
Audio over co-ax On each channel
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection 2.0 Yes
BNC Channels 8 Channel
Extra IP Channels 8 Channel
Alarms 8 Alarms
Smart Dual Illumination Supported No

Information
Specifications
Delivery
More Videos

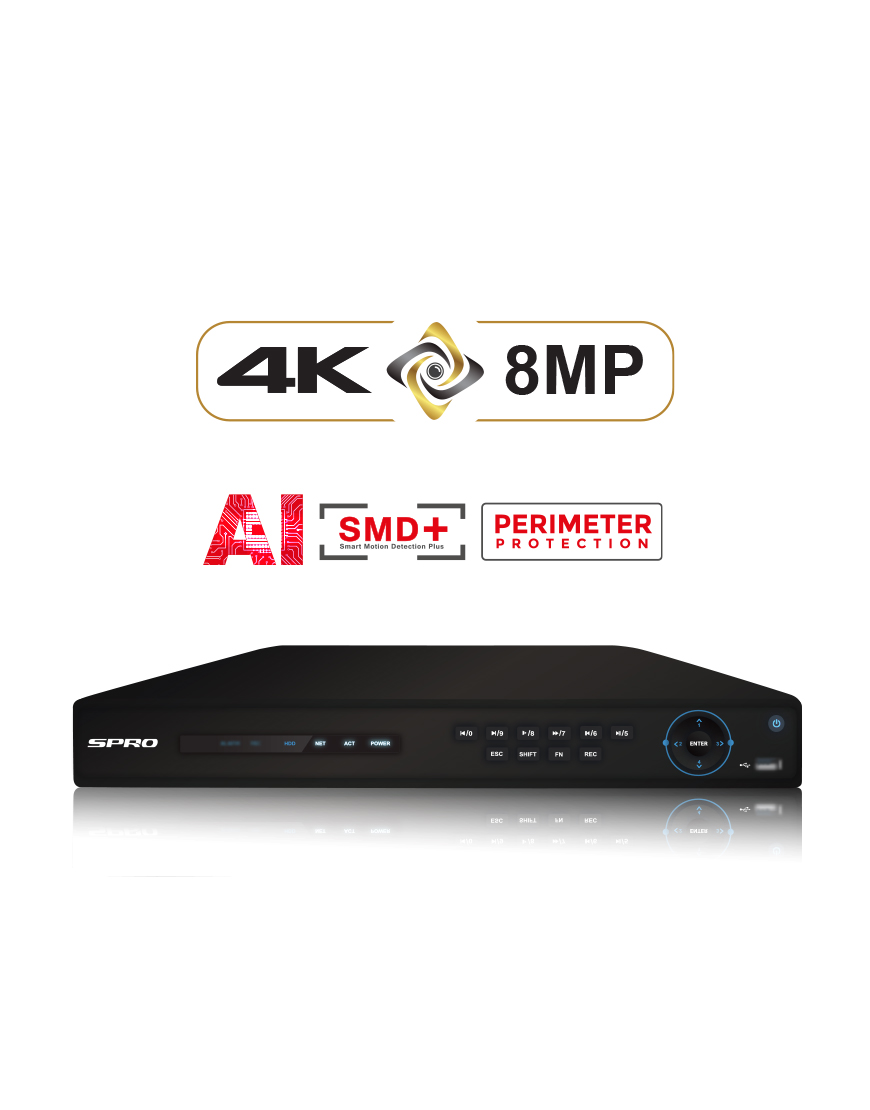

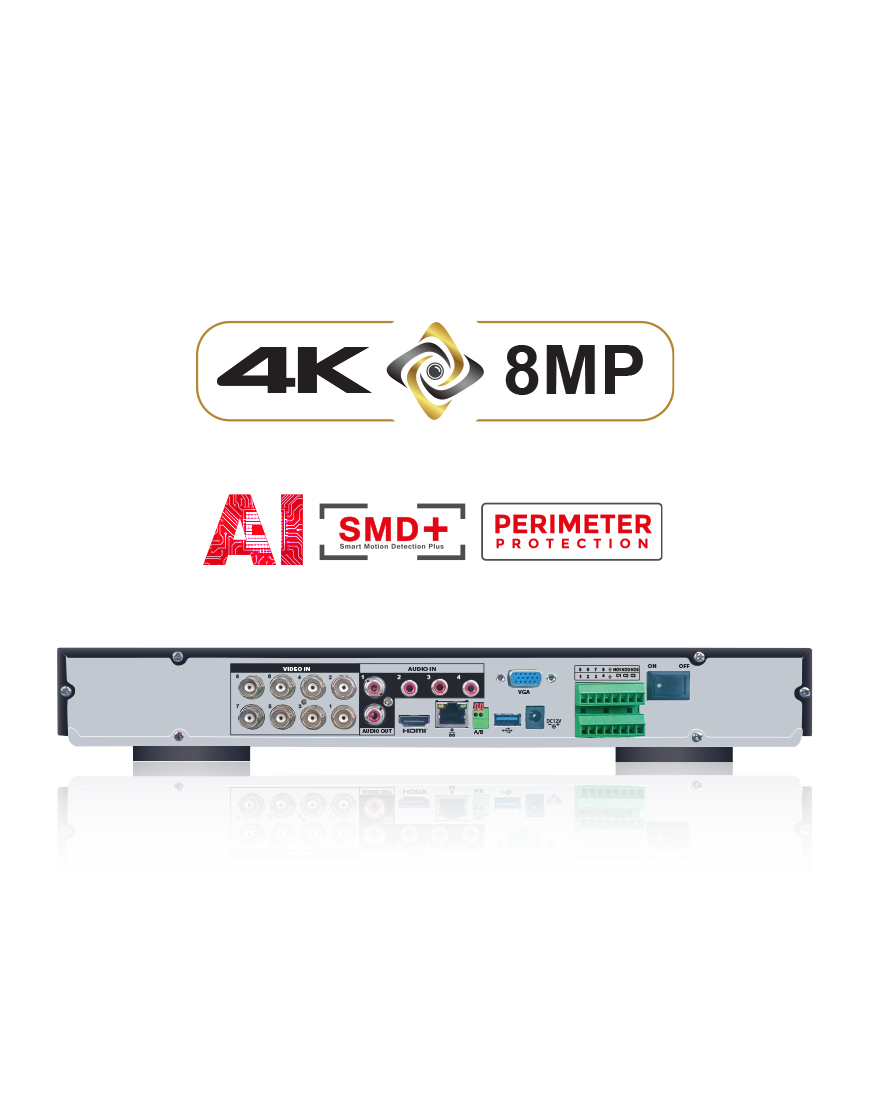

This SPRO HD DVR is designed to record at up to 4k, 8mp resolution. These recorders feature Artificial Intelligence and Perimeter Protection as well as Smart Motion Detection Plus which allows the recorder to virtually eliminate false alarms. This specific model also boasts an increased number of alarm inputs and outputs.

Check out the SPRO video academy.

Specifications:
Model Number	DHDVR16-M3
Main Processor	Embedded processor
Operating System	Embedded LINUX
Video & Audio
Input	16 channel (8 x BNC + 8 x IP)
Standard - BNC	8 channel CVI/ TVI/ AHD/ ANALOGUE
Standard - IP	8 channel (up to 8 Megapixel IP)
Analog Camera Input	8 Channel, BNC
HDCVI Camera	4K@7fps, 6MP@10fps, 4MP@15fps, 1080P/720P@ 25/50fps
AHD Camera	5MP@12fps, 4MP/ 3MP@15fps, 1080P/720P@ 25fps
TVI Camera	5MP@12fps, 4MP/ 3MP@15fps, 1080P/720P@ 25fps
CVBS Camera	PAL/NTSC
IP Camera Input	8 Channel, each channel up to 8MP
Audio In/Out	4/1 RCA, Audio over co-ax supported on all BNC Channels
Two-way Talk	Reuse audio in/out, RCA
Display
Interface	1 HDMI, 1 VGA
Resolution - HDMI	3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768
Resolution - VGA	1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display	When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression	H.265+/ H.265/ H.264+/ H.264
Resolution	4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate - Main Stream	4K (7fps), 6MP (10fps), 5MP (12fps), 4MP/3MP (15fps), 4M-N/ 1080P/ 720P/ 960H/ D1/ CIF/ QCIF (25fps)
Record Rate - Extra Stream	960H (1~15fps), D1/ CIF/ QCIF(1~25fps)
Bit Rate	32Kbps~ 6144Kb/s Per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Audio Compression	AAC (only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate	8KHz, 16 bit Per Channel
Audio Bit Rate	64Kbps Per Channel
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm Input	8
Relay Output	3
Playback & Backup
Sync Playback	1/4/9
Search Mode	Time/Date, MD & Exact search (accurate to second)
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/Network
Network
Interface	1 RJ-45 port (1000M)
Network Functions	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android Phone
Interoperability	ONVIF 16.12, CGI Conformant
Storage
Internal HDD	2 SATA port, up to 10TB capacity for each disk
Auxiliary Interface
USB Interface	2 USB ports ( 1 USB 3.0 & 1 USB 2.0)
RS485	1 port, For PTZ Control
General
Power Supply	DC12V/4A
Power Consumption	<10W (without HDD)
Working Environment	-10°C ~+55°C / 10%~90%RH
Dimensions	1U, 375mm × 287mm × 53mm
Weight	3.2KG
Perimeter Protection
Perimeter Protection	1. AI by DVR: Detection alarm for human and vehicle. Filter misinformation such as leaves and light. 2. Function configuration: Set at most 10 rules such as area intrusion and tripwire intrusion. 3. Performance: 2 channels
Live View	1. Rule box inspection: Configure the rule box and object inspection box. 2. Smart panel: Display object classification (human, vehicle), event types, triggering time, image matting and object types. Attribute is not supported. 3. Counting: Count people in Peopletotal. Count motor vehicles in Vehicle. Support exporting of associated event playback before and after 10 seconds.
Playback	1. Search conditions: According to channels, time, event types and target types. 2. Functions: Support search of associated event playback or snapshot before and after 10 seconds. 3. Snapshot capacity: 500,000
Face Recognition
Performance	1. UP to 12 face pictures/sec processing (modeling and comparing). 2. Up to 2 channels video stream (analog channel ) human face recognition. 3. Up to 10 face databases with 10,000 face images in total. 4. Up to 300,000 face detection events in total. 5. Up to 300,000 face Recognition events in total.
Stranger Mode	Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search	Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management	Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application	Each database can be applied to video channels independently.
Trigger Events	Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
SMD Plus	1. AI by DVR: Motion detection alarm for human and vehicle. Filter misinformation such as leaves and light. 2. Performance: 8 channels , AI by DVR
Preview	Preview: Configure and inspect detection box
Playback	1. Playback: Search videos through channels, time and target types. 2. Functions: Support search of associated event playback before and after 10 seconds.
