Specifications: | |
Model Number | DHIPD12/4116RW-A |
Image Sensor | 1/1.7" 12 Megapixel progressive scan CMOS |
Effective Pixels | 4000(H) x 3000(V) |
Scanning System | Progressive |
Min. Illumination | 0.02Lux/ F1.53 (Color), 0Lux/ F1.53 (IR on) |
S/N Ratio | More than 50dB |
Max. IR LEDs Length | Distance up to 30m |
IR On/Off Control | Auto/ Manual |
IR LEDs | 3 |
Lens | |
Lens Type | Motorized /Auto Iris (DC) |
Mount Type | Board-in |
Focal Length | 4.1~ 16.4mm motorized |
Max. Aperture | F1.53 |
Optical Zoom | 4x |
Focus Control | Motorized |
Angle of View | H: 85°~35°, V:63° ~26° |
Close Focus Distance | 1m (3.28ft) |
Pan / Tilt / Rotation | |
Pan / Tilt / Rotation | Pan: 0° ~ 360° / Tilt: 0° ~ 65° / Rotation: 0° ~ 360° |
Intelligence | |
IVS | Tripwire, Intrusion, Object Abandoned/ Missing |
Advanced Intelligent Functions | Face Detection, People Counting, Heat Map |
Video | |
Compression | H.265/ H.264H |
Streaming Capability | 3 Streams |
Resolution | 12M (4000x3000)/ 4K (3840x2160)/ 6M (3072x2048)/ 5M (2560x1920)/ 3M (2048x1536)/ 3M (2304x1296)/ 1080P (1920×1080)/ 1.3M (1280x960)/ 720P (1280×720)/ D1 (704×576/ 704×480) /VGA (640×480)/ CIF (352×288/ 352×240) |
Frame Rate-Main Stream | 12M (1~20fps)/ 4K (1~25fps) |
Frame Rate-Sub Stream | D1 (1~25fps) |
Frame Rate-Third Stream | 1080P (1~25fps) |
Bit Rate Control | CBR/ VBR |
Bit Rate | HH.265: 256K ~ 8704Kbps / H.264: 768K~ 14592Kbps |
Day/Night | Auto(ICR) / Color / B/W |
BLC Mode | BLC / HLC / DWDR/ SSA |
White Balance | Auto/ Natural/ Street Lamp/ Outdoor/ Manual |
Gain Control | Auto/ Manual |
Noise Reduction | 3D DNR |
Motion Detection | Off / On (4 Zone, Rectangle) |
Region of Interest | Off / On (4 Zone) |
Smart IR | Support |
Digital Zoom | 16x° |
Flip | 0°/ 90°/ 180°/ 270° |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Audio | |
Compression | G.711a/ G.711Mu/ AAC/ G.726 |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Interoperability | ONVIF, PSIA, CGI |
Streaming Method | Unicast / Multicast |
Max. User Accessr | 10 Users |
Edge Storage | Local PC for instant recording |
Web Viewer | IE, Chrome, Firefox, Safari |
Management Software | SPRO CSS |
Smart Phone | iPhone, iPad & Android |
Interface | |
Audio Interface | 1/1 channel In/Out |
Alarm | 2/1 channel In/Out |
General | |
Power Supply | DC12V, AC24V, PoE (802.3at) (Class 4) |
Power Consumption | < 18W |
Working Environment | -30ºC ~ 60ºC / Less than 90% RH |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Casing | Metal |

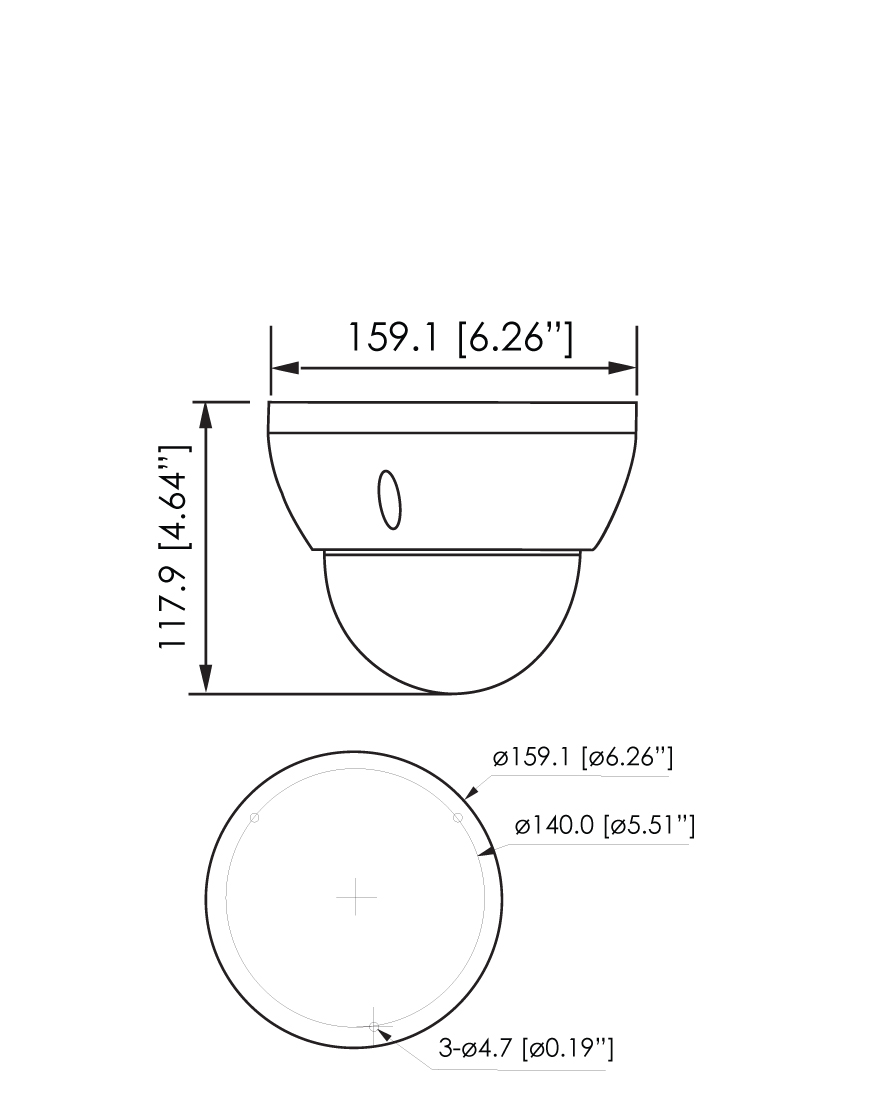

Dimensions | ø159.1mm × 117.9mm (ø6.26"× 4.64") |
Weight | 1.75 kg (3.56lb) |
