SPRO 4MP IP Smart Dual Illumination Turret with COLOUR NIGHT 2.0

SPRO 4MP IP Smart Dual Illumination Turret with COLOUR NIGHT 2.0
  Zoom
SPRO 4MP IP Smart Dual Illumination Turret with COLOUR NIGHT 2.0SPRO 4MP IP Smart Dual Illumination Turret with COLOUR NIGHT 2.0SPRO 4MP IP Smart Dual Illumination Turret with COLOUR NIGHT 2.0SPRO 4MP IP Smart Dual Illumination Turret with COLOUR NIGHT 2.0

Availability



In stock, immediate despatch

Pole Bracket
Deep Base, Grey
Wall Bracket, White
Deep Base, Grey

Part Number:  DHIPD40/28LRG-M
Camera Resolution  4 Megapixels
Lens  Fixed Lens
Codec recording  H.265
IR Distance  Up to 30m IR distance
LED Distance  Up to 30m LED distance
Built-in Mic.  Yes
Colour Night  Yes
SMD (Smart Motion Detection)  Yes
Perimeter Protection  Yes
Tripwire  Yes
Intrusion  Yes
WDR  120dB
Style  Turret

The SPRO ColourNight range of cameras are designed to allow the camera to see full colour images at night. These cameras feature white light LEDs that illuminate the scene.

The second generation SPRO ColourNight cameras also have built-in IR. This IR can produce standard black and white night images throughout the night, freeing up the white light LED to only activate when it detects motion - causing a security light effect. However, the cameras can still be used in the same way as the previous generation - with its white light on continuously throughout the night - if needed.

Specifications:
Model Number DHIPD40/28LRG-M
Image Sensor 1/3" 4 Megapixel progressive CMOS
Effective Pixels 2688 (H)×1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.008 lux@F1.6 (Color, 30 IRE)
0.0008 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto/ Manual
Illuminator Number 1 (IR LED); 1 (Warm light)
Pan/Tilt/Rotation Range Horizontal: 0°–360°, Vertical: 0°–78°, Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8mm
Max. Aperture F1.6
Field of View Horizontal: 95°; Vertical: 52°; Diagonal: 114°
Iris Type Fixed
Close Focus Distance 0.9 m (2.95 ft)
DORI Distance Detect: 63.6 m
Observe: 25.4 m
Recognize: 12.7 m
Identify: 6.4 m
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream: 2688 × 1520 @1-20 fps, 2560 × 1440 @1-25 fps
Sub stream: (704 × 576 @1-25 fps/704 × 480 @ 1-20fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 Streams
Resolution 4M (2688 × 1520 / 2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
Bit Rate Control CBR / VBR
Video Bit Rate H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/Night Auto(ICR) / Color/ B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/ Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Rotation 0°/ 90°/ 180°/ 270° (Support 90°/270° with 2688×1520 resolution and lower.)
Mirror Yes
Privacy Masking 4 Areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception
Network
Network RJ-45 (10/100Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone;
User/Host 6 (Total bandwidth: 36 M)
Storage FTP; SFTP; Micro SD Card (support max. 256 G); Cloud; NAS
Browser IE: IE8, IE9, IE11, Chrome, Firefox
Management Software SPRO CSS
Mobile Phone iPhone, iPad & Android
Cyber Security Configuration encryption; Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot;Firmware encryption; Generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
General
Power Supply 12V DC/PoE
Power Consumption Basic: 2.1 W (12 VDC); 2.7 W (PoE)
Max. (H.265 + intelligence + WDR + warm light): 6 W (12 VDC); 6.7 W (PoE)
Operating Conditions -40ºC ~ +60ºC (-40ºF ~ +140ºF)/ Less than 95% RH
Storage Conditions -40ºC ~ +60ºC (-40ºF ~ +140ºF)
Ingress Protection IP67
Casing Metal
Dimensions 89.2 mm × Φ105.0 mm
Net Weight 0.365 kg
Gross Weight 0.527 kg

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.

Related Products

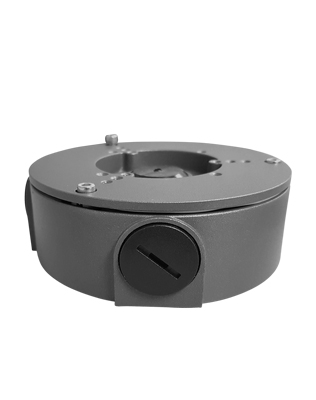

Deep Base, Grey
Deep Base, Grey

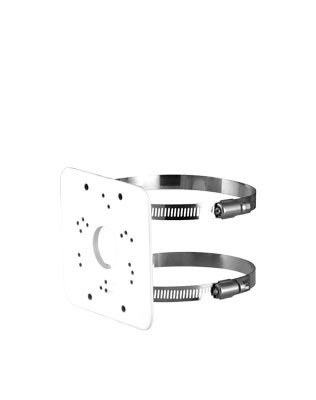

Pole Bracket
POLEBRACKET01

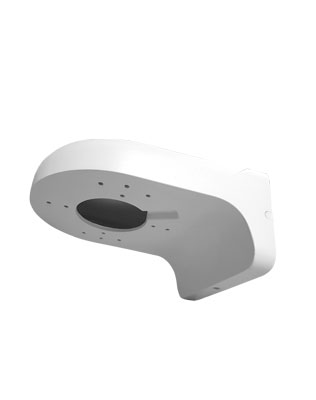

Wall Bracket, White
