| Specifications: | |
|---|

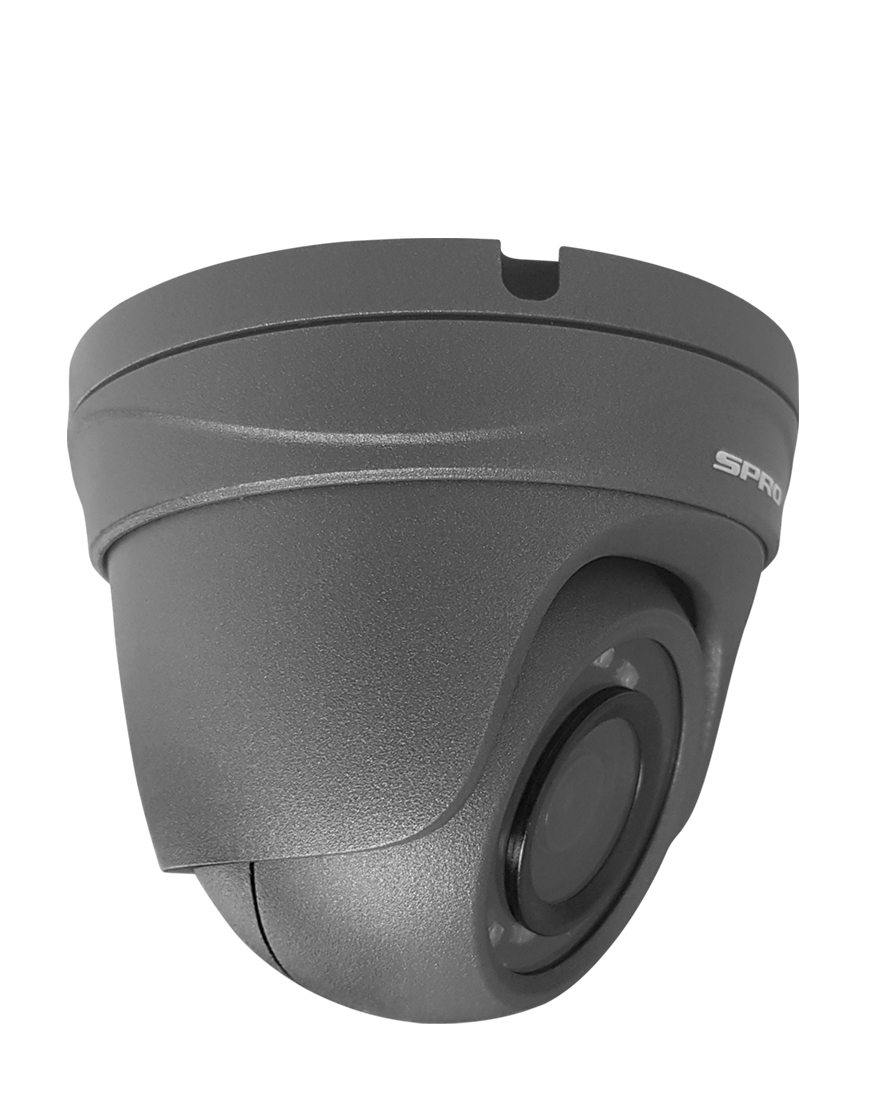

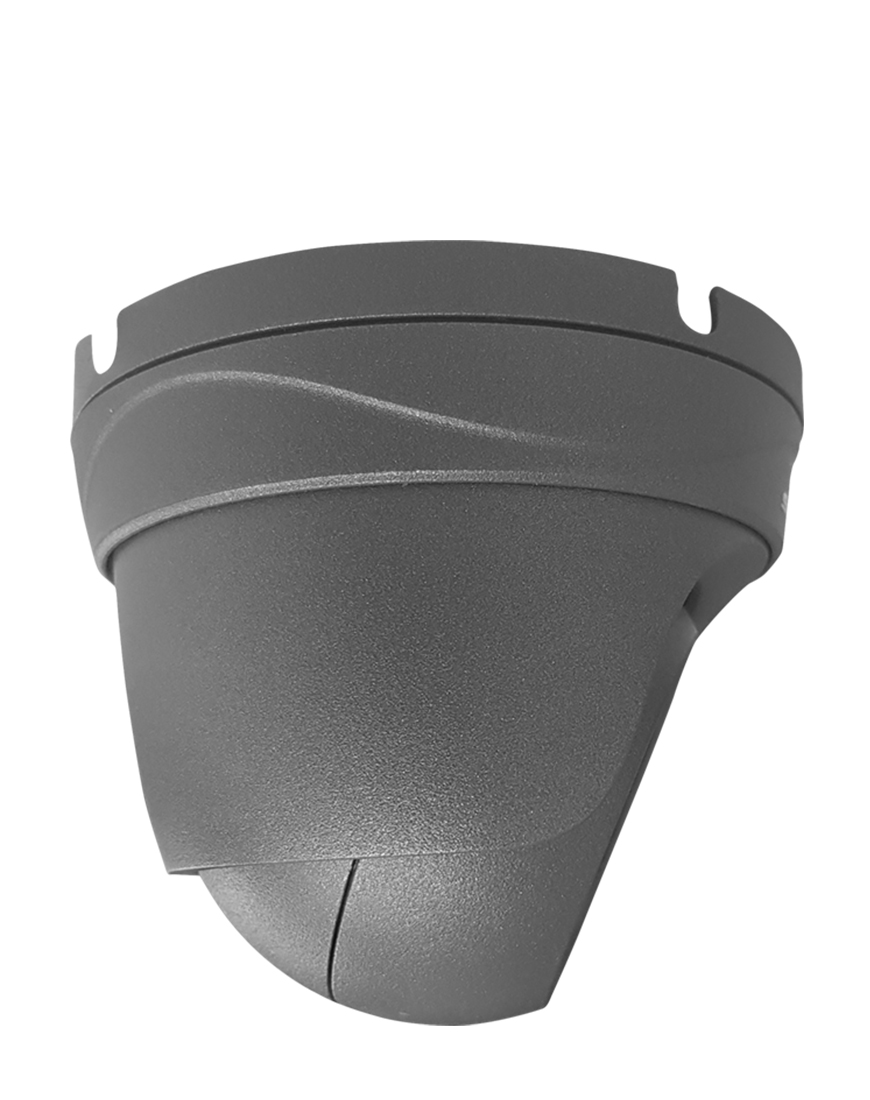

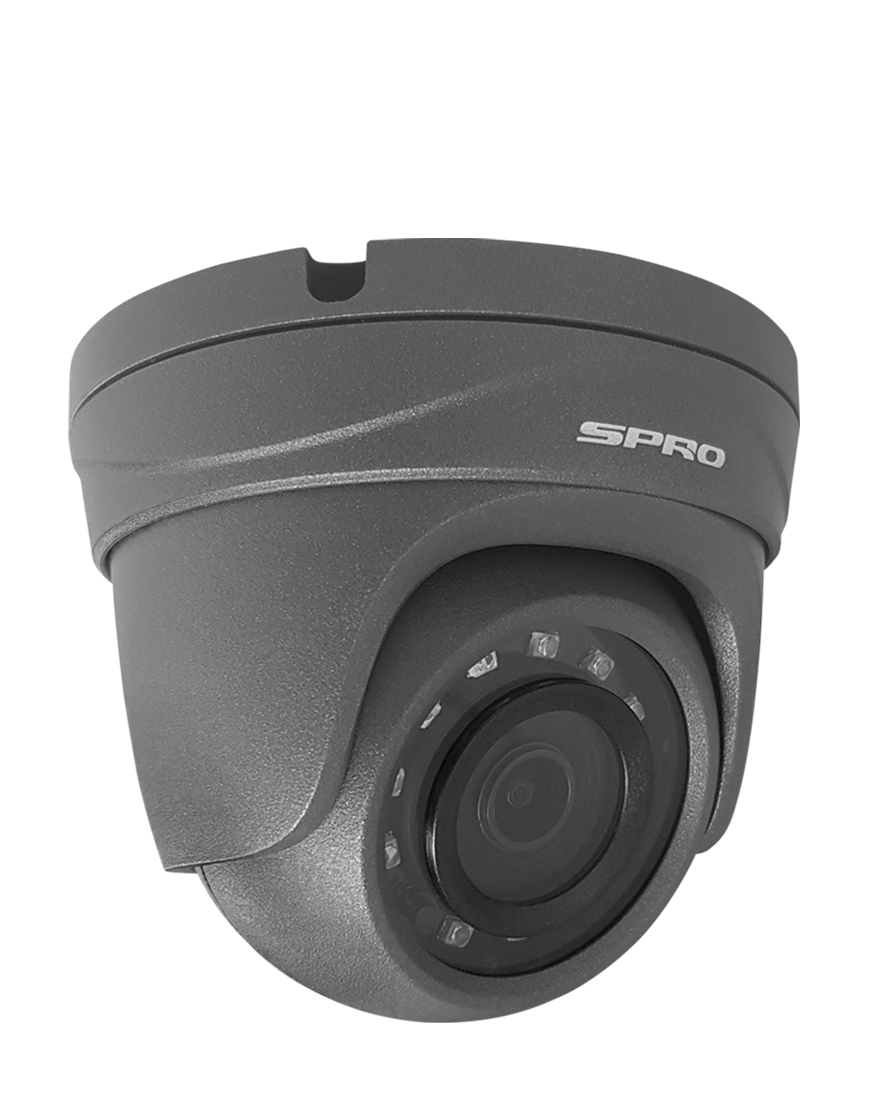

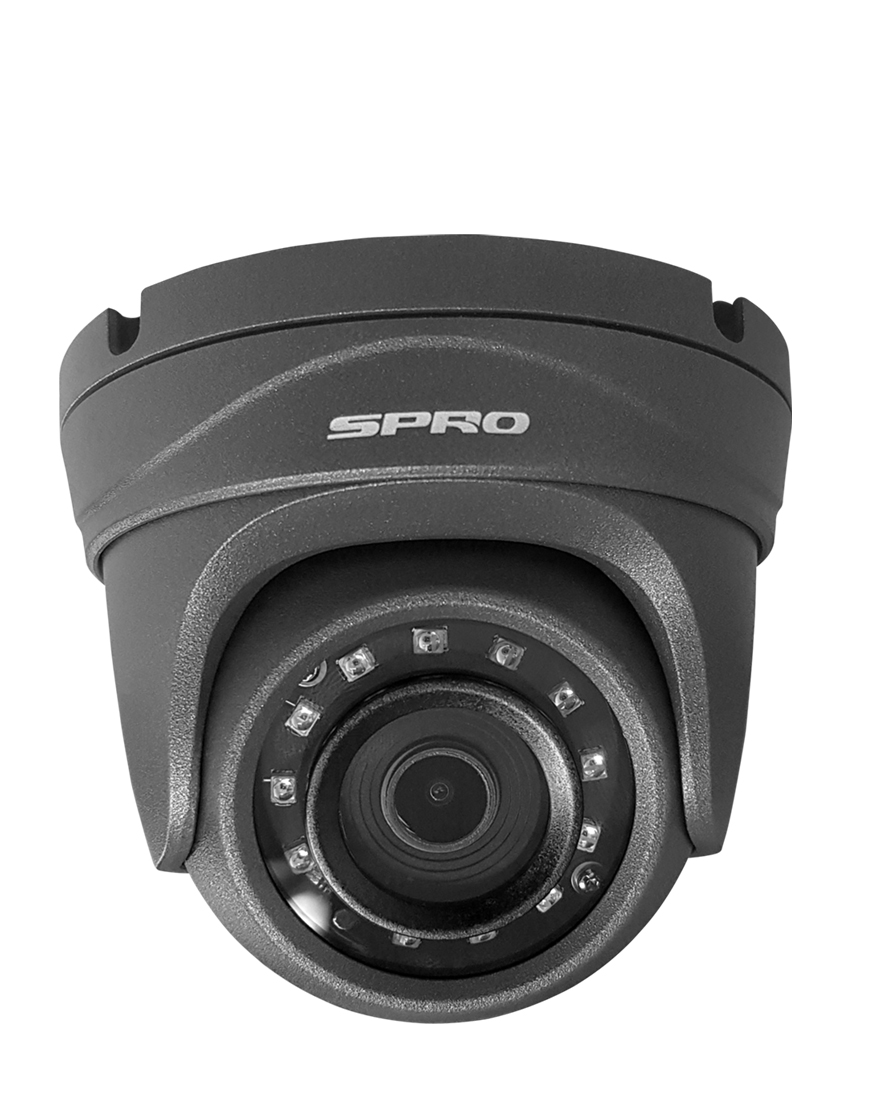

| Model Number | DHIPD40/28RG/30M |
| Image Sensor | 1/3” 4Megapixel progresive CMOS |
| Effective Pixels | 2688(H)x1520(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Min. Illumination | 0.08Lux/ F2.0( Color, 1/3s, 30IRE), 0Lux/ F2.0 (IR on) |
| S/N Ratio | More than 50dB |
| Max. IR LEDs Length | Up to 30m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 12 |
| Lens | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Field of View | Horizontal: 104°; vertical: 57°; |
| Focus Control | Fixed |
| DORI Distance | Detect: 63 m
Observe: 25 m
Recognize: 13 m
Identify: 6 m |
| Pan/ Tilt/ Rotation | |
| Pan/ Tilt/ Rotation Range | Pan:0˚~360˚, Tilt:0˚~90˚, Rotation:0˚~360˚ |
| Intelligence | |
| IVS | Tripwire, Intrusion |
| Advanced Intelligent Functions | N/A |
| Video | |
| Compression | H.265+/ H.265/ H.264+/ H.264 |
| Streaming Capability | 2 Streams |
| Resolution | 4M (2688 × 1520) / 3M (2304 × 1296) / 1080P (1920 × 1080)
720P (1280 × 720) / VGA (640 × 480)
D1( 704 × 576 / 704 × 480 ) CIF( 352 × 288 / 352 × 240 ) |
| Frame Rate-Main Stream | 4M(1 ~ 20fps)/ 3M (1 ~ 25/30fps) |
| Frame Rate-Sub Stream | D1 (1 ~ 25fps) |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.265: 12 Kbps– 8448 Kbps
H.264: 32 Kbps– 10240 Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB) |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor /Manual |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Areas, Rectangle) |
| Region of Interest | Off / On (4 Zone)Support |
| Smart IR | Support |
| Region of Interest | Off / On (4 Zone) |
| Digital Zoom | 16x |
| Image Rotation | 0°/ 90°/ 180°/ 270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Audio Compression | N/A |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP;NTP; Bonjour;IEEE 802.1X; Multicast; ICMP; IGMP; TLS |
| Interoperability | |
| Streaming Method | Unicast / Multicast |
| Max. User Accessr | 10 Users |
| Edge Storage | NAS / Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | SPRO CSS |
| Smart Phone | iPhone, iPad & Android |
| General | |
| Power Supply | DC12V, POE |
| Power Consumption | <5.5W |
| Operating Conditions | -30ºC ~ +60ºC / Less than 95% RH |
| Storage Conditions | -30ºC ~ +60ºC |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | φ108mm × 84.9mm |
| Net Weight | 0.23Kg(0.51lb) |
| Gross Weight | 0.387Kg(0.85lb) |
