SPRO 4MP IP Fixed Lens Vandal Resistant Dome

Zoom

Availability

In stock, immediate despatch

You may also like

Deep Base, White (BASE06-W)

Wall bracket, White (WALLBRACKET03-W)

Part Number: DHIPD40/28RV-W
Camera Resolution 4 Megapixels
Lens Fixed Lens
Codec recording H.265
IR Distance Up to 30m IR distance
Tripwire Yes
Intrusion Yes
Style Vandal Resistant Dome

Information
Specifications
Delivery

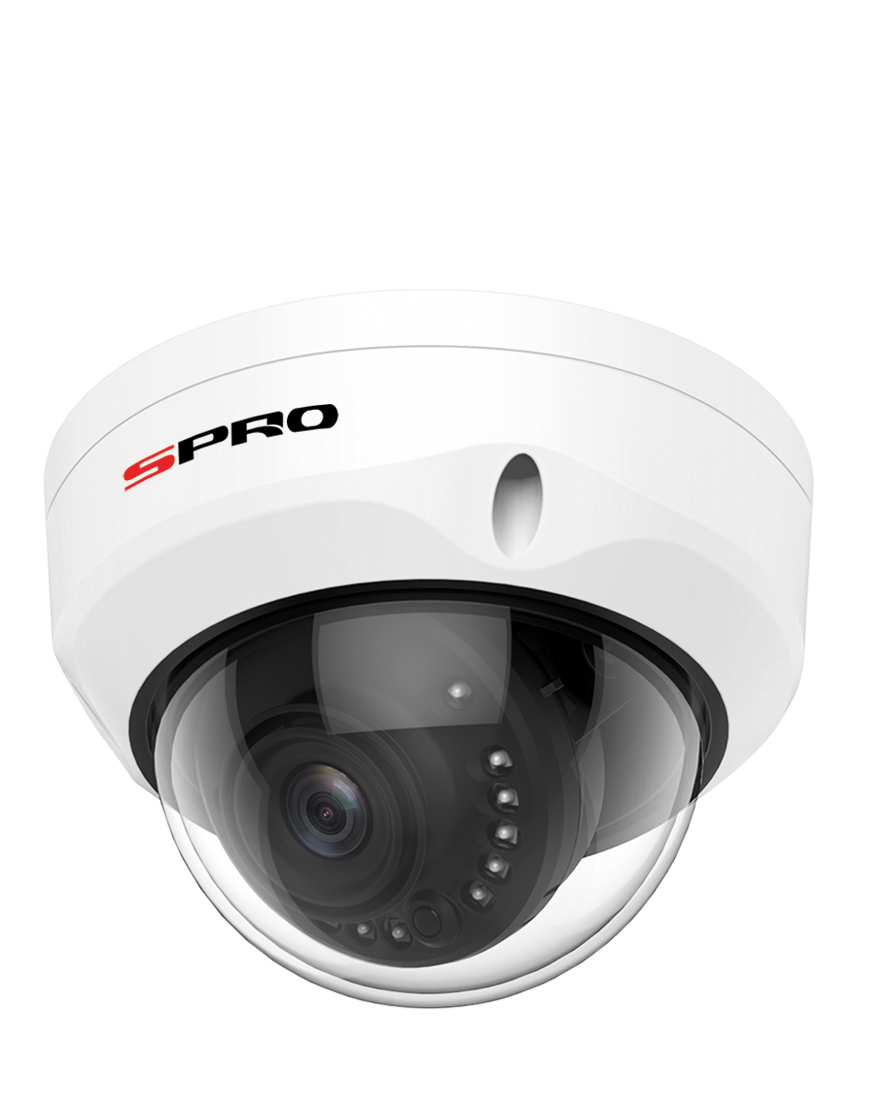

The DHIPD40/28RV-W is a white 4MP IP vandal resistant camera. Also available in grey.

Check out the SPRO video academy.

Specifications:
Model Number	DHIPD40/28RV-W
Image Sensor	1/3" 4 Megapixel progressive scan CMOS
Effective Pixels	2688(H) x 1520(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~ 1/100000s
Min. Illumination	0. 1Lux/ F1.4 (Color), 0Lux/ F1.4 (IR on), 0Lux/ F2.0 (IR on)
S/N Ratio	More than 50dB
Max. IR LEDs Length	Distance up to 30m
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8mm
Max. Aperture	F2.0
Focus Control	Fixed
Angle of View	H:104°, V:57°
Intelligence
IVS	Tripwire, Intrusion
Event Trigger	Motion detection, Video tampering, Scene changing, Network, disconnection, Ip address conflict, Illegal access, Storage anomaly
Video
Compression	H.265/ H.264H/ MJPEG (Sub Stream)
Smart Codec	Support H.265+/ H.264+
Streaming Capability	2 Streams
Resolution	4M (2688x1520)/ 3M (2304×1296)/ 1080P (1920×1080)/ 720P (1280×720)/ VGA (640×480)/ D1 (704×576/ 704×480)/ CIF(352×288/ 352×240)
Frame Rate-Main Stream	4M (1 ~ 20fps)/ 3M (1 ~ 25fps)
Frame Rate-Sub Stream	D1 (1 ~ 25fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 12K ~ 8448Kbps / H.264: 32K ~ 10240Kbps
Day/Night	Auto (ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR (120dB)
White Balance	Auto/ Natural/ Street Lamp/ Outdoor/ Manual
Gain Control	Auto/ Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Smart IR	Support
Digital Zoom	16x°
Flip	0°/ 90°/ 180°/ 270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Network
Ethernet	RJ-45 (10/ 100Base-T)
Protocol	HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Accessr	10 Users
Edge Storage	Local PC for instant recording
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	SPRO CSS
Smart Phone	iPhone, iPad & Android
Interface
Audio Interface	N/A
General
Power Supply	DC12V, POE (IEEE 802.3af) (Class 0)
Power Consumption	< 5.5W
Working Environment	-30ºC ~ 60ºC / Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10
Casing	Metal

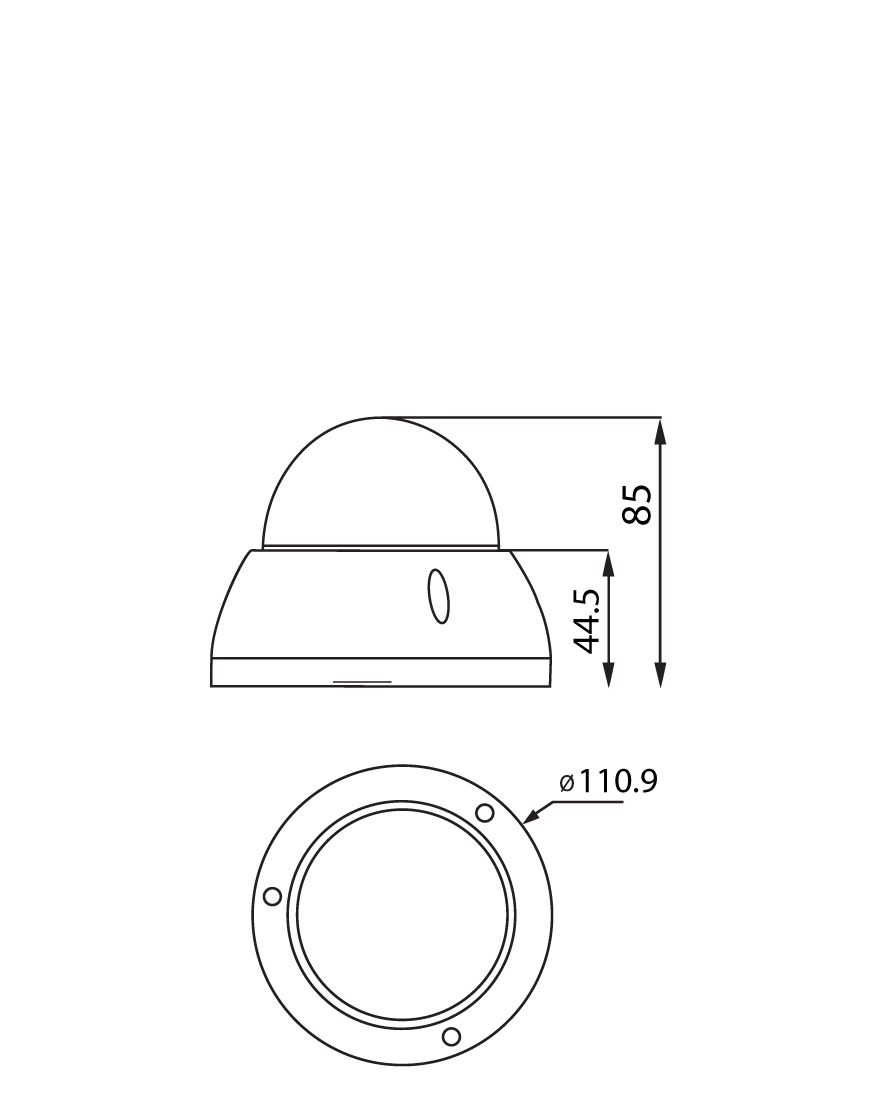

Dimensions	Φ109.9mm × 81mm (4.33" x 3.19")
Net Weight	0.34Kg
Gross Weight	0.47Kg
