| Specifications: | |
|---|

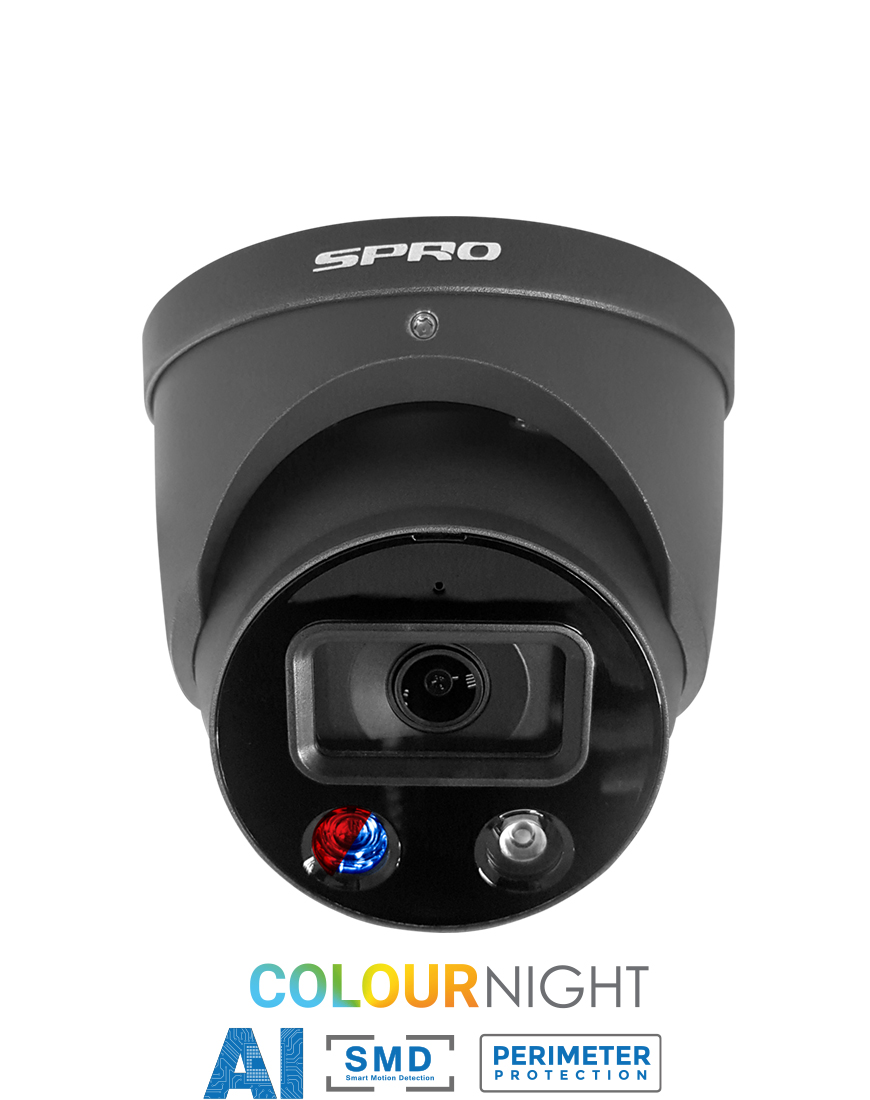

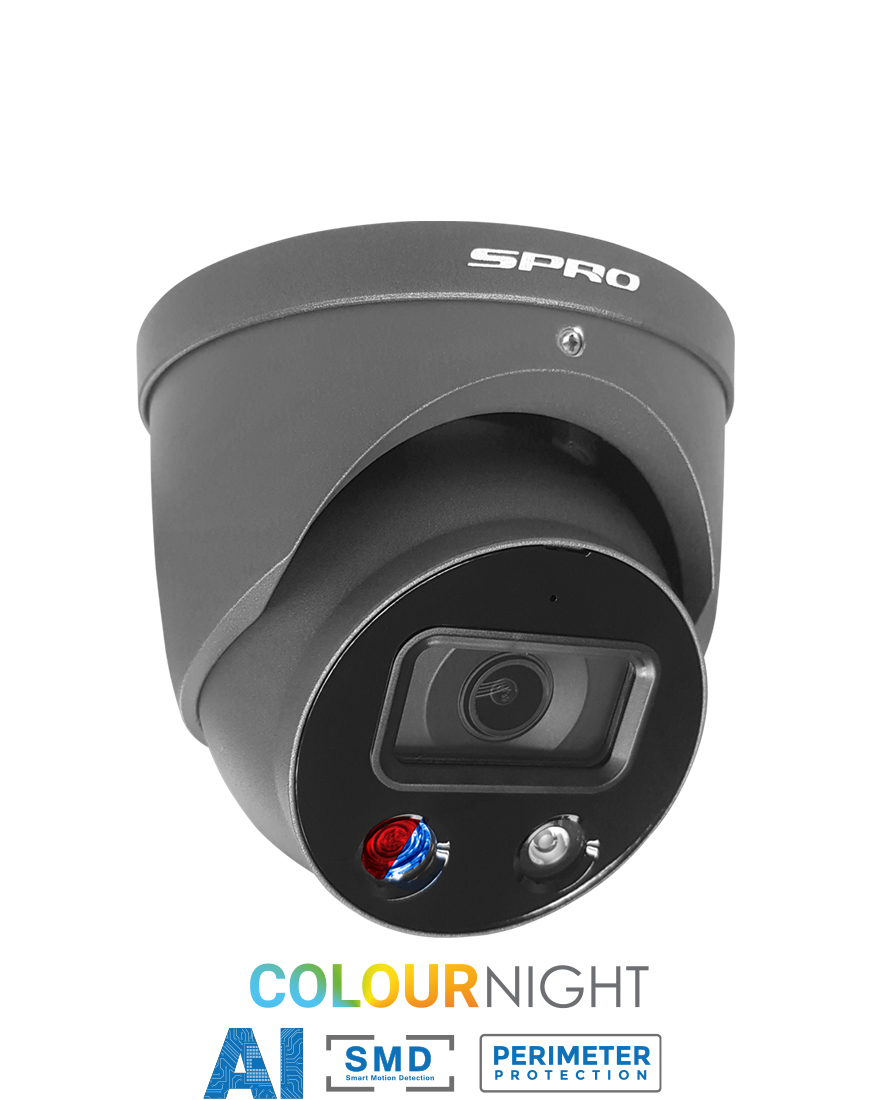

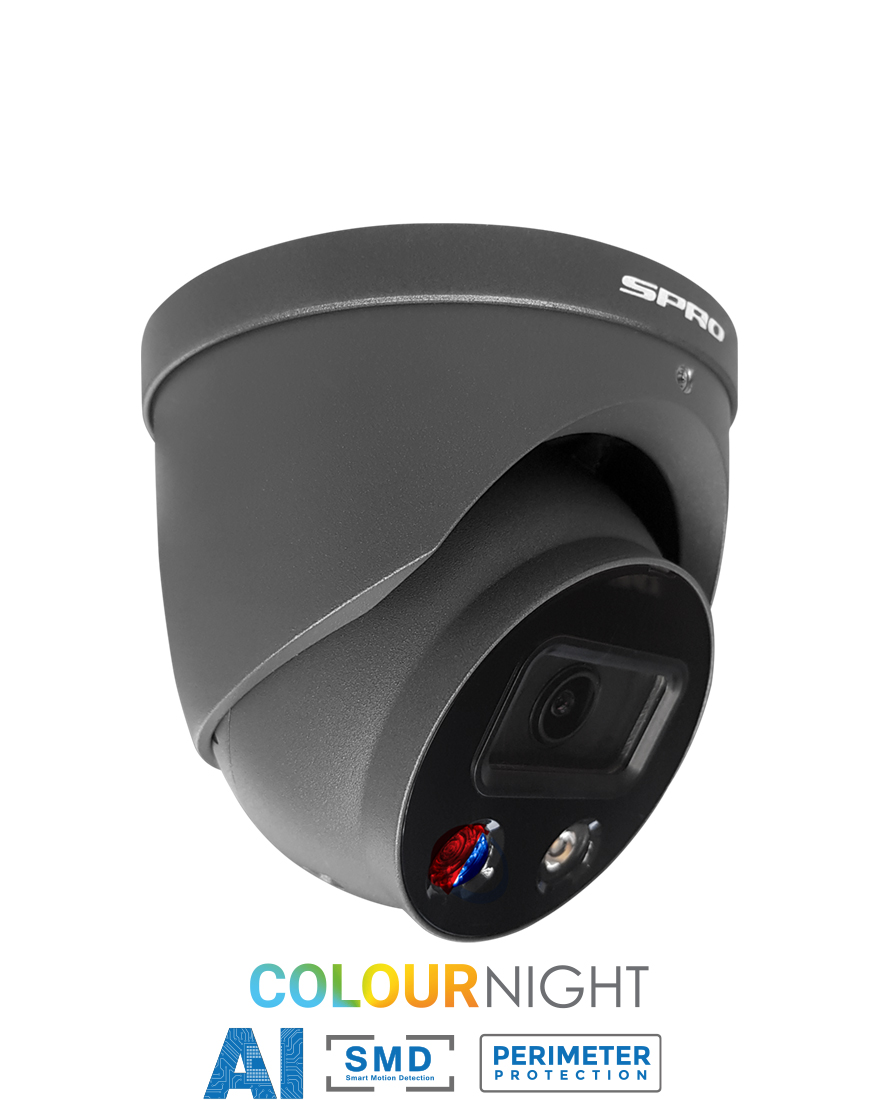

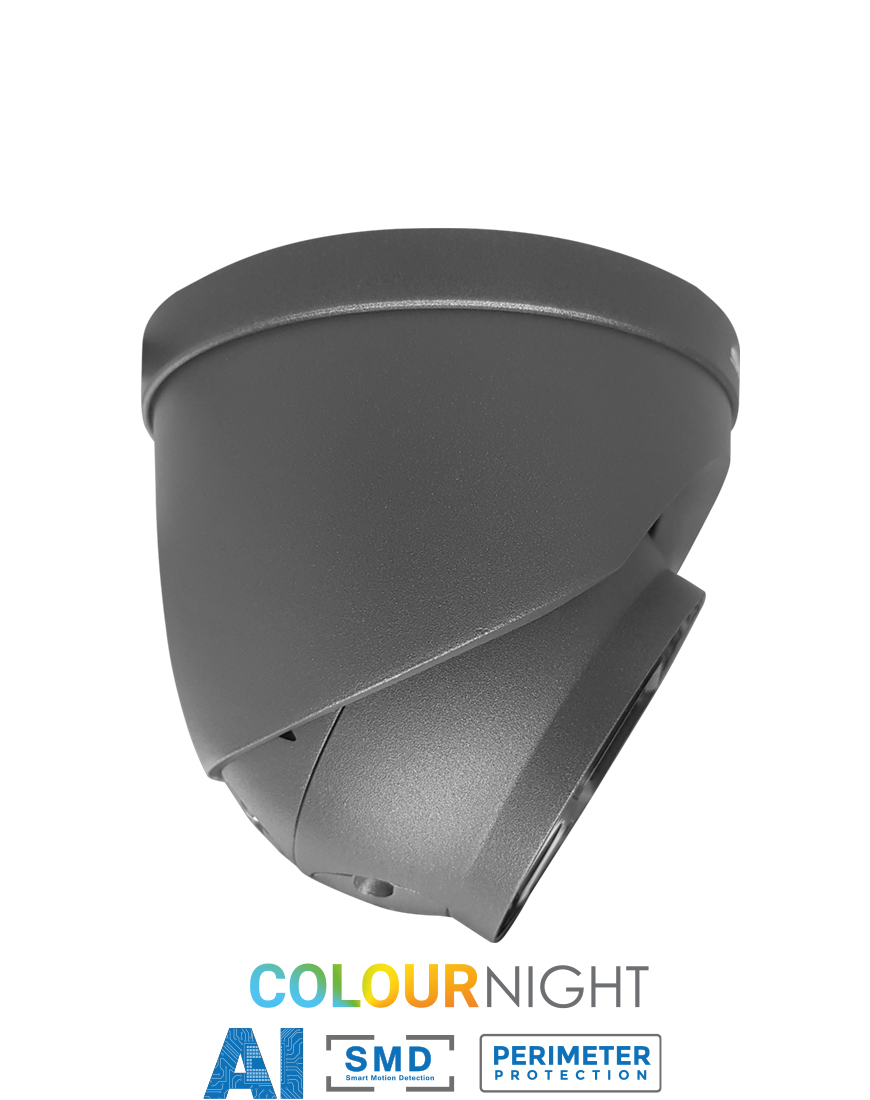

| Model Number | DHIPD50/28LG/30-M-I-D |
| Image Sensor | 1/2.7” 5Megapixel progressive CMOS |
| Effective Pixels | 2592 (H)×1944 (V), 5MP |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 Lux @ F1.0 |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 30 m |
| Illuminator On/Off Control | Auto/ Manual |
| Illuminator Number | 1 (Warm light) |
| Pan/ Tilt/ Rotation Range | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.0 |
| Field of View | Horizontal: 103°; vertical: 53°; diagonal: 122° |
| Iris Type | Fixed |
| Close Focus Distance | 1.2 m |
| DORI Distance | Detect: 67.4 m
Observe: 27 m
Recognize: 13.5 m
Identify: 6.7 m |
| Professional, intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 2592 × 1944 @1-20 fps, 2688 × 1520 @1-25/30 fps
Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps
Third stream: 1920 × 1080 @1-25/30 fps |
| Streaming Capability | 3 Streams |
| Resolution | 5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps
H.265: 12 Kbps–8192 Kbps |
| Day/Night | Colour / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor /Manual |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/ 90°/ 180°/ 270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 |
| Alarm | |
| Alarm Event | motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; |
| Max. User Access | 20 Users |
| Storage | NAS / Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | SPRO CSS |
| Smart Phone | iPhone, iPad & Android |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| General | |
| Power Supply | DC12V, POE |
| Power Consumption | Basic power consumption: 2.5W (12V DC); 3.0W (PoE)
Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.3W (12V DC); 8.0W (PoE) |
| Operating Conditions | -40ºC ~ +60ºC / Less than 95% RH |
| Storage Conditions | -40ºC ~ +60ºC |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | φ122.0mm × 110.9mm |
| Net Weight | 754g |
| Gross Weight | 915g |
