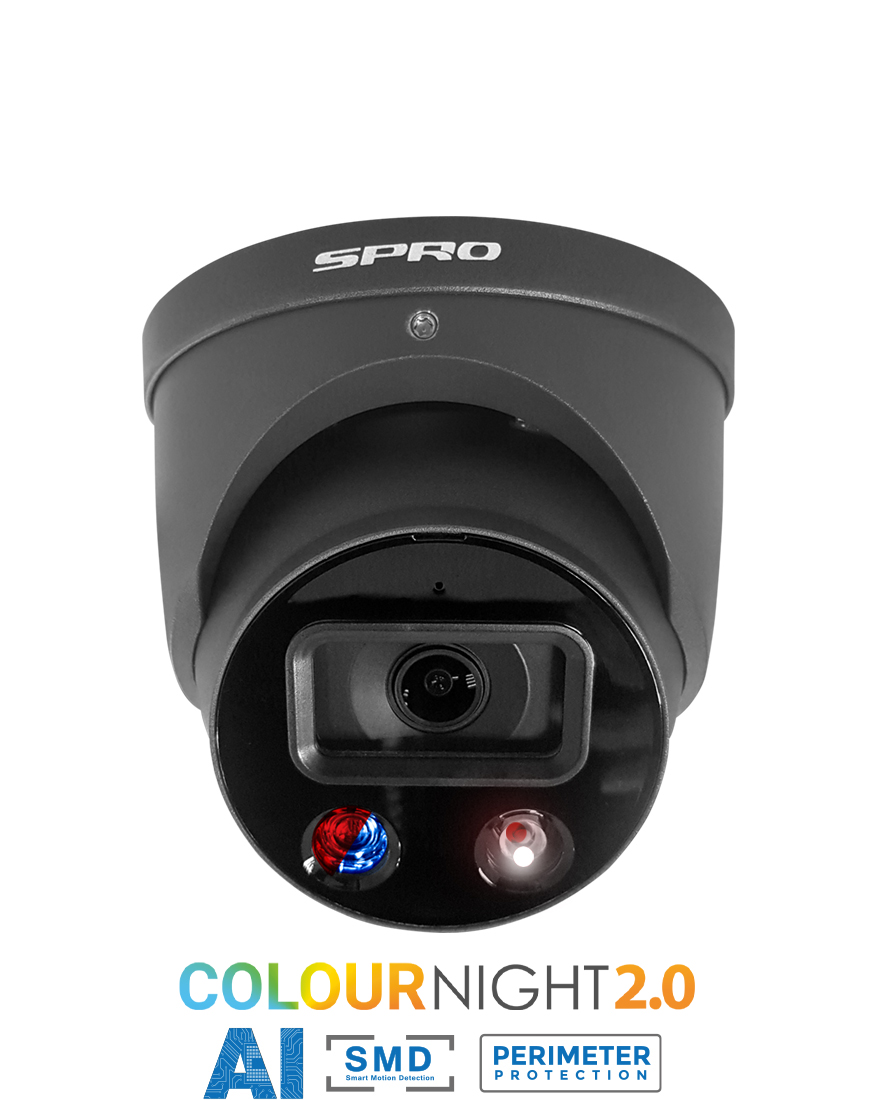

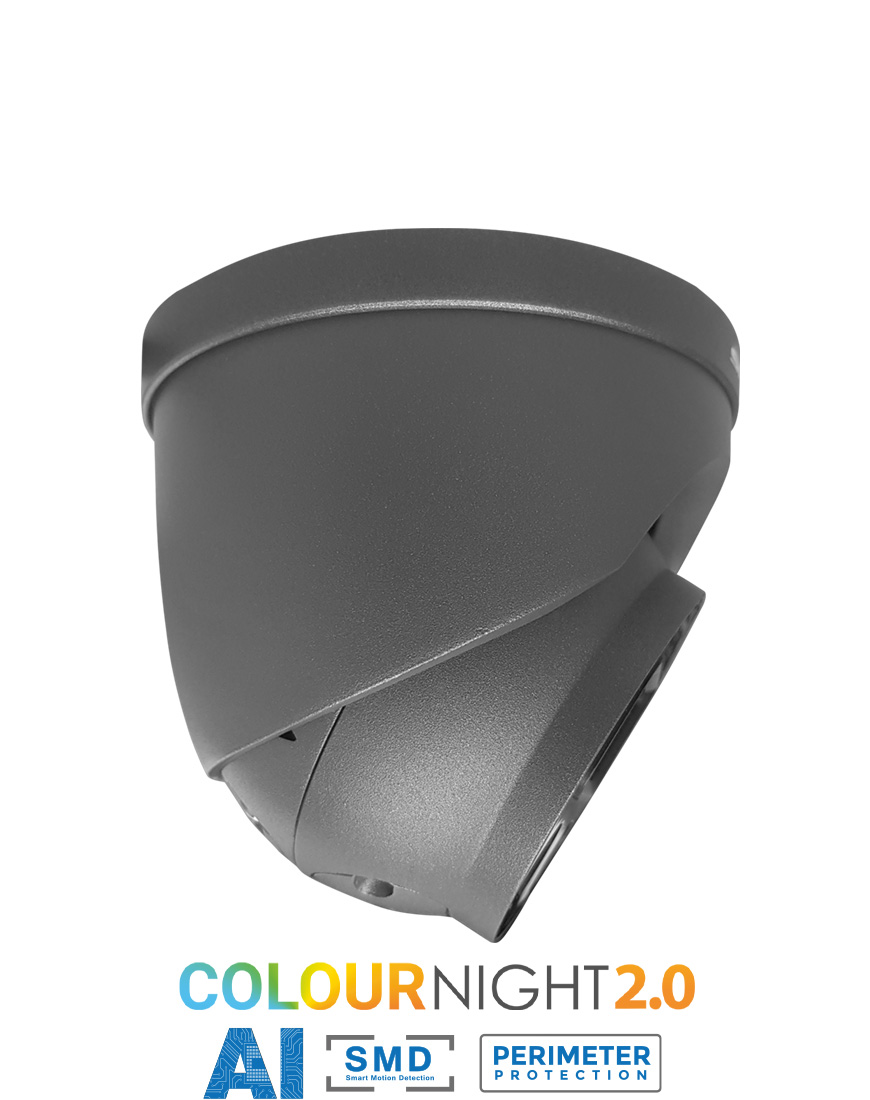

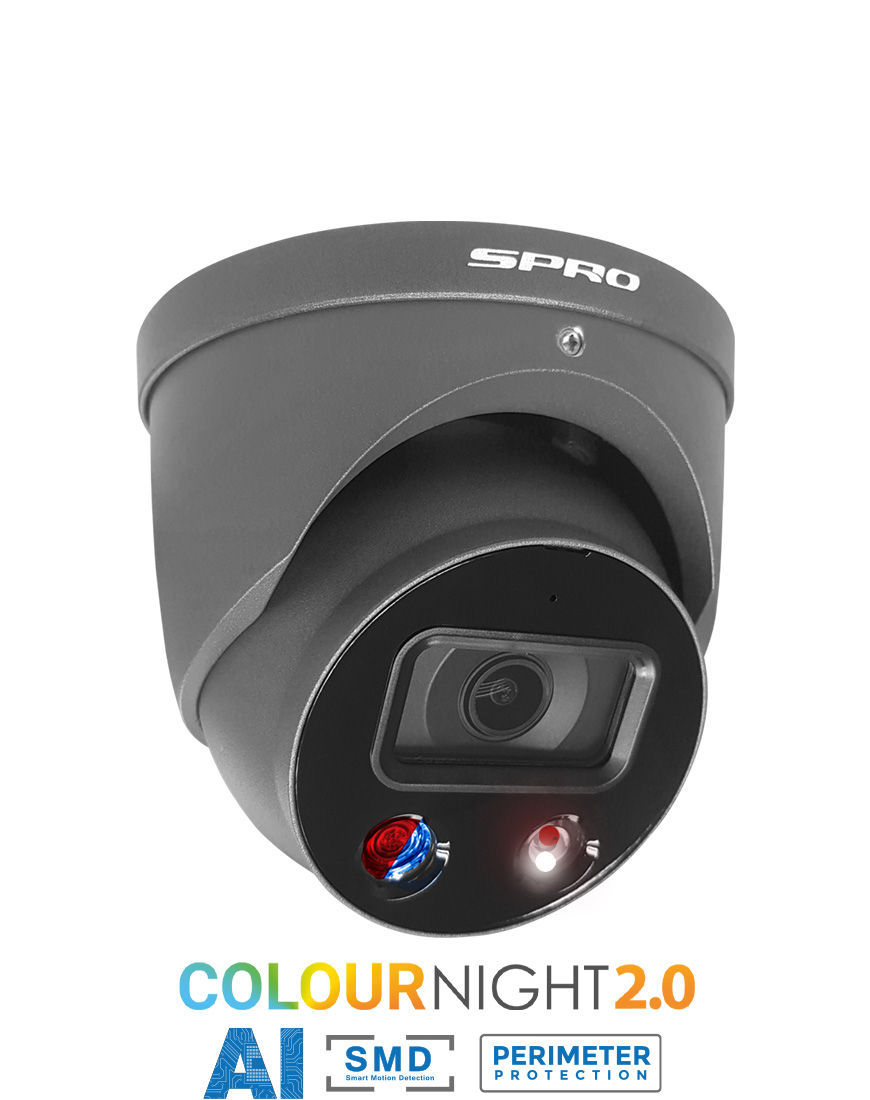

SPRO 5MP IP Smart Dual Illumination Turret with Active Deterrence

SPRO 5MP IP Smart Dual Illumination Turret with Active Deterrence
  Zoom
SPRO 5MP IP Smart Dual Illumination Turret with Active DeterrenceSPRO 5MP IP Smart Dual Illumination Turret with Active DeterrenceSPRO 5MP IP Smart Dual Illumination Turret with Active DeterrenceSPRO 5MP IP Smart Dual Illumination Turret with Active Deterrence

Availability



In stock, immediate despatch

Pole Bracket
Deep Base, Grey (BASE05-G)
Wall bracket, Grey (WALLBRACKET05-G)

Part Number:  DHIPD50/28LRG/30-D-V2
Camera Resolution  5 Megapixels
Lens  Fixed Lens
Codec recording  H.265
IR Distance  Up to 30m IR distance
LED Distance  Up to 30m LED distance
Built-in Mic.  Yes
Speaker Built-in  Yes
2 Way Audio  Microphone & Speaker Built-in
Audio over CAT5e  Yes
Active Deterrence  Yes
Colour Night  Yes
SMD (Smart Motion Detection)  Yes
Perimeter Protection  Yes
Tripwire  Yes
Intrusion  Yes
WDR  120dB
Style  Turret

The SPRO Smart Dual Illumination Active Deterrence range of cameras are designed to prevent crime before it happens. These cameras feature red and blue flashing lights, a built in speaker for 2-way audio and pre-recorded messages as well as ColourNight technology which allows the camera to see full colour images at night.

Check out the SPRO video academy.

Specifications:
Model NumberDHIPD50/28LRG/30-D-V2
Image Sensor1/2.7” 5Megapixel progressive CMOS
Effective Pixels2592 (H)×1944 (V), 5MP
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s1/100,000 s
Min. Illumination0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio>56 dB
Illumination Distance30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off ControlAuto/ Manual
Illuminator Number1 (IR LED)
1 (warm light)
Pan/ Tilt/ Rotation RangePan: 0360, Tilt: 078, Rotation: 0360
Lens
Lens TypeFixed
Mount TypeM12
Focal Length2.8mm
Field of ViewHorizontal: 97°; vertical: 70°; diagonal: 128°
Iris TypeFixed
Close Focus Distance2.8 mm: 1.5 m (4.92 ft)
DORI DistanceDetect: 66 m
Observe: 26.4 m
Recognize: 13.2 m
Identify: 6.6 m
Professional, intelligent
IVS (Perimeter Protection)Tripwire; intrusion (Recognition of human and vehicle)
SMD 3.0Less false alarm, longer detection distance.
Intelligent SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart CodecSmart H.265+/ Smart H.264+
AI CodingAI H.265; AI H.264
Video Frame RateMain stream: 2592 1944 @1-20 fps, 2688 1520 @1-25/30 fps
Sub stream: 704 576 @1-25 fps/704 480 @ 1-20fps
Third stream: 1920 1080 @1-25/30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability3 Streams
Resolution5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
Bit Rate ControlCBR / VBR
Video Bit RateH.264: 3 Kbps–20480 Kbps
H.265: 3 Kbps–20480 Kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptationYes
White BalanceAuto/ Natural/ Street Lamp/ Outdoor /Manual / regional custom
Gain ControlAuto/ Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Areas)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
DefogYes
Image Rotation0°/ 90°/ 180°/ 270° (Support 90/270 with 2688 1520 resolution and lower)
MirrorYes
Privacy Masking8 Areas
Audio
Built-in MICYes
Audio CompressionPCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception.
Network
EthernetRJ-45 (10/100Base-T)
SDK and APIYes
Cyber SecurityVideo encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade.
ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
Max. User Access20 (Total bandwidth: 72 M)
StorageNAS / Local PC for instant recording
Web ViewerIE, Chrome, Firefox
Management SoftwareSPRO CSS
Smart PhoneiPhone, iPad & Android
Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channel in: 5mA 3V5V DC
Alarm Output1 channel out: 300mA 12V DC
General
Power SupplyDC12V, POE
Power ConsumptionBasic: 1.86 W (12 VDC); 4.18 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 6.5 W (12 VDC) 8.8 W (PoE)
Operating Conditions-40ºC ~ +60ºC / Less than 95% RH
Storage Conditions-40ºC ~ +60ºC
Ingress ProtectionIP67
CasingMetal
Dimensionsφ122.0mm × 110.9mm
Net Weight754g
Gross Weight915g
