| Specifications: | |
|---|

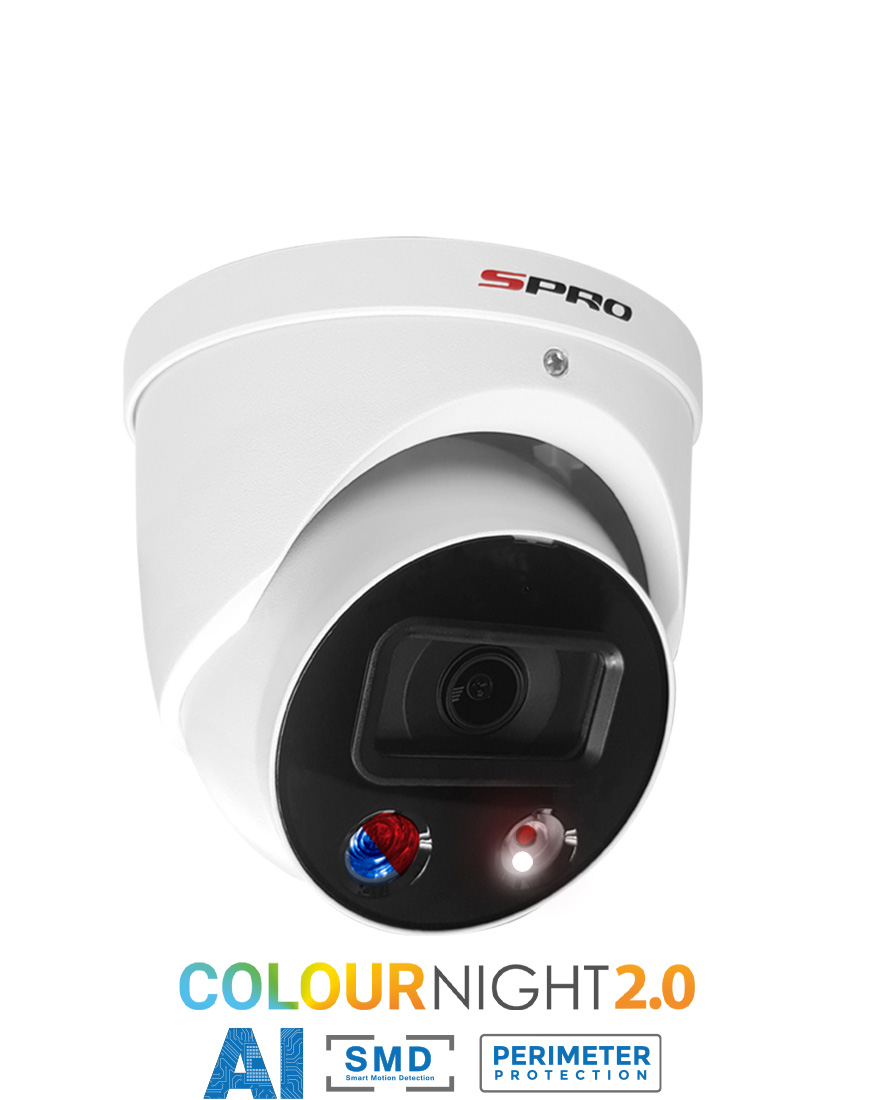

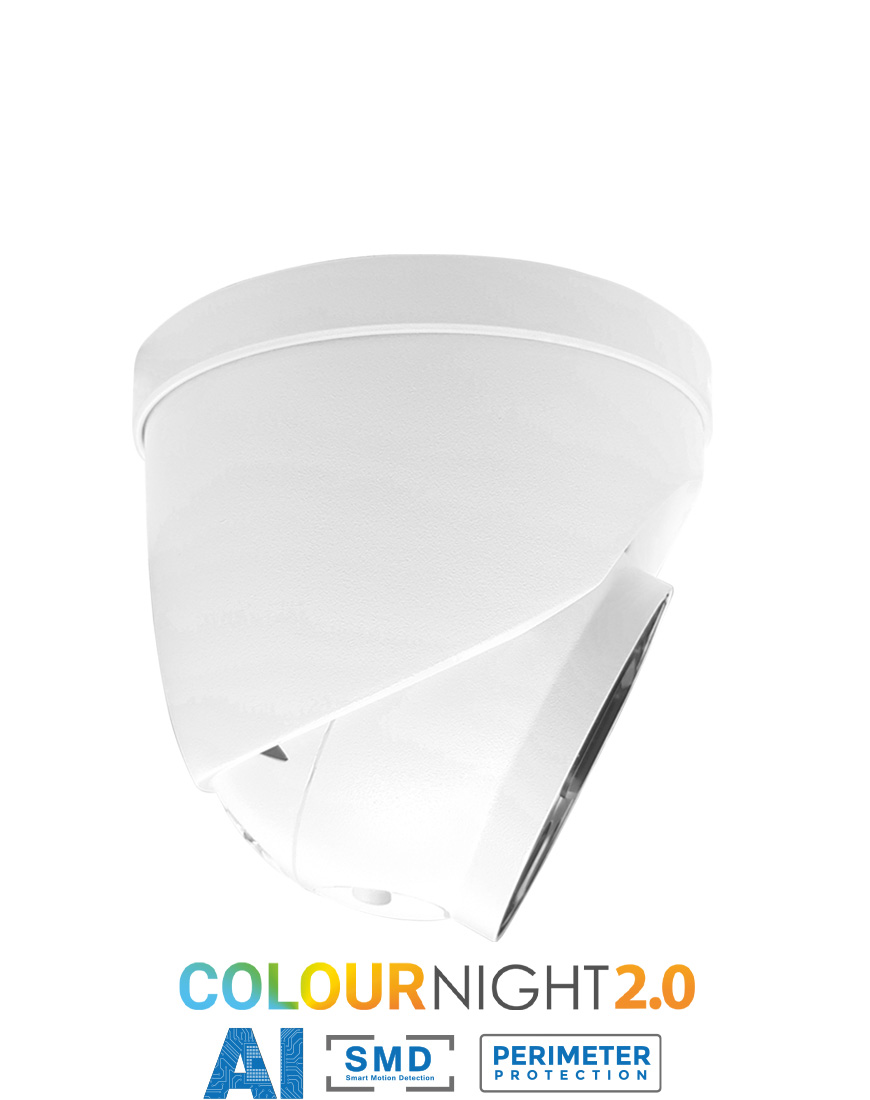

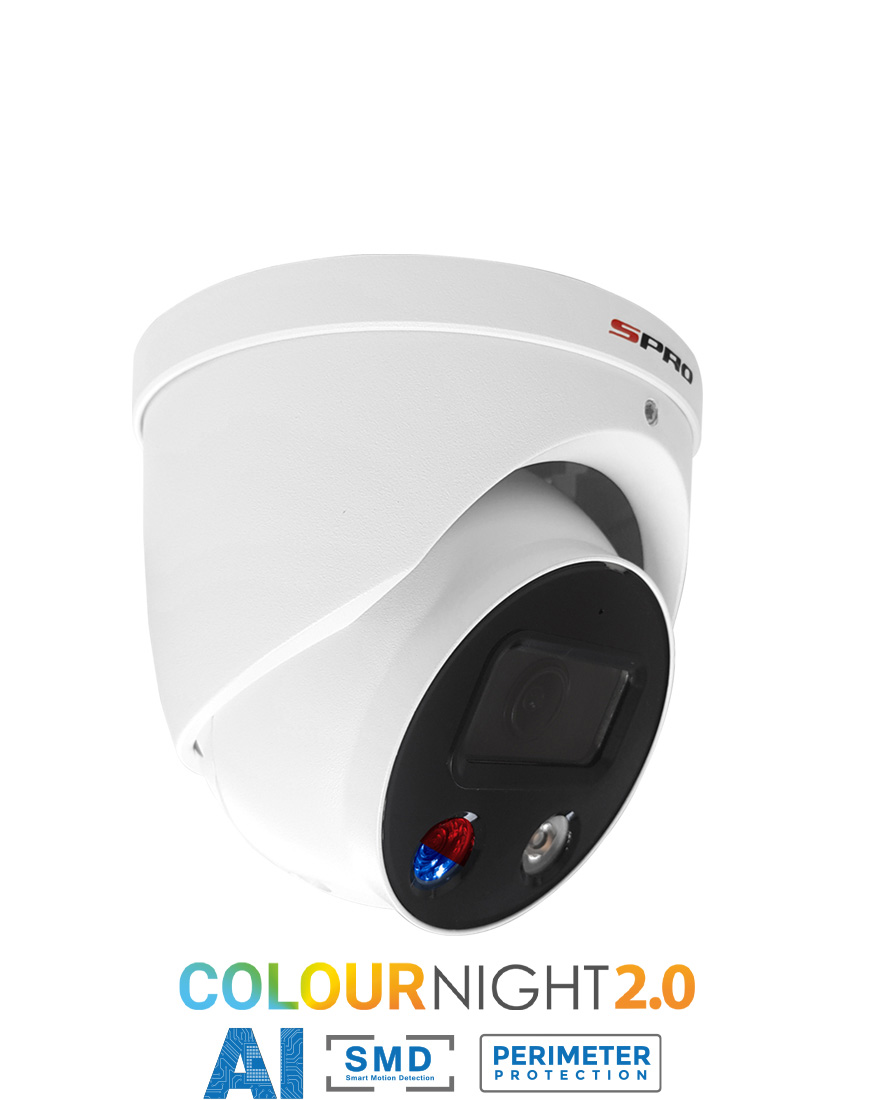

| Model Number | DHIPD50/28LRW/30-D-V2 |
| Image Sensor | 1/2.7” 5Megapixel progressive CMOS |
| Effective Pixels | 2592 (H)×1944 (V), 5MP |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on) |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light) |
| Illuminator On/Off Control | Auto/ Manual |
| Illuminator Number | 1 (IR LED)
1 (warm light) |
| Pan/ Tilt/ Rotation Range | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Field of View | Horizontal: 97°; vertical: 70°; diagonal: 128° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) |
| DORI Distance | Detect: 66 m
Observe: 26.4 m
Recognize: 13.2 m
Identify: 6.6 m |
| Professional, intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| SMD 3.0 | Less false alarm, longer detection distance. |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 2592 × 1944 @1-20 fps, 2688 × 1520 @1-25/30 fps
Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps
Third stream: 1920 × 1080 @1-25/30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 Streams |
| Resolution | 5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 3 Kbps–20480 Kbps
H.265: 3 Kbps–20480 Kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor /Manual / regional custom |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/ 90°/ 180°/ 270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 Areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception. |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade. |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| Max. User Access | 20 (Total bandwidth: 72 M) |
| Storage | NAS / Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | SPRO CSS |
| Smart Phone | iPhone, iPad & Android |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| General | |
| Power Supply | DC12V, POE |
| Power Consumption | Basic: 1.86 W (12 VDC); 4.18 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 6.5 W (12 VDC) 8.8 W (PoE) |
| Operating Conditions | -40ºC ~ +60ºC / Less than 95% RH |
| Storage Conditions | -40ºC ~ +60ºC |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | φ122.0mm × 110.9mm |
| Net Weight | 754g |
| Gross Weight | 915g |
