SPRO 6MP IP Fixed Lens Vandal Resistant Dome

Availability

In stock, immediate despatch

You may also like

Deep Base, Grey (BASE06-G)

Part Number: DHIPD60/28RV-G
Camera Resolution 6 Megapixels
Lens Fixed Lens
Codec recording H.265
IR Distance Up to 30m IR distance
Tripwire Yes
Intrusion Yes
Face detection Yes
Missing object Yes
Abandoned object Yes
Style Vandal Resistant Dome

Information
Specifications
Delivery

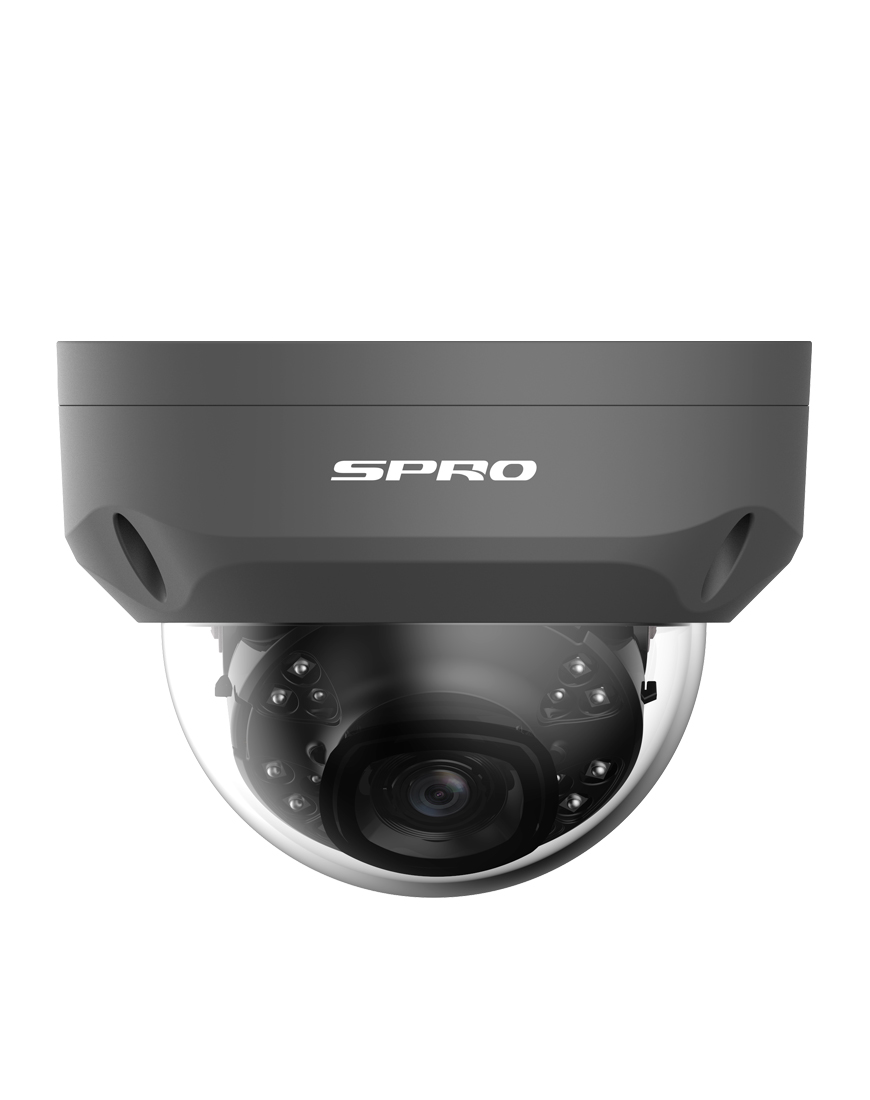

The DHIPD60/28RV-G is a grey 6MP IP vandal resistant camera. Also available in white.

Check out the SPRO video academy.

Specifications:
Model Number	DHIPD60/28RV-G
Image Sensor	1/2.9” 6 Megapixel progressive scan CMOS
Effective Pixels	3072(H) X 2048(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~ 1/100000s
Min. Illumination	0.04Lux/ F1.6 ( Color, 1/3s, 30IRE), 0.4Lux/ F1.6 ( Color, 1/30s, 30IRE) 0Lux/ F1.6 (IR on)
S/N Ratio	More than 50dB
Lens
Lens Type	Fixed lens
Mount Type	Board-in
Focal Length	2.8mm
Max. Aperture	F1.6
Focus Control	Fixed
Angle of View	H:98°, V:67°
Intelligence
IVS	Tripwire, Intrusion, Object Abandoned/ Missing
Advanced Intelligent Functions	Face Detection
Video
Compression	H.265+/ H.265/ H.264+/ H.264
Streaming Capability	3 Streams
Resolution	(3072×2048)/ (3072×1728)/ (2592×1944)/ (2688×1520)/ (2560×1440)/ (2304×1296)/ 1080P (1920×1080)/ SXGA (1280×1024)/ 1.3M (1280× 960)/ 720P (1280×720)/ D1 (704×576/ 704×480)/ CIF (352×288/ 352×240)
Frame Rate-Main Stream	6MP (1~20fps), 4MP (1~25fps)
Frame Rate-Sub Stream	D1 (1 ~ 25fps)
Frame Rate-Third Stream	1080P (1~25fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 14K ~ 9984Kbps / H.264: 24K ~ 10240Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR (120dB)
White Balance	Auto/ Natural/ Street Lamp/ Outdoor/ Manual
Gain Control	Auto/ Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Digital Zoom	16x°
Flip	0°/ 90°/ 180°/ 270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Accessr	10 Users
Edge Storage	Local PC for instant recording
Web Viewer	IE, Chrome, Firefox, Safari
Smart Phone	iPhone, iPad & Android
General
Power Supply	DC12V, PoE (802.3af) (Class 0)
Power Consumption	< 5.5W
Working Environment	-30ºC ~ 60ºC / Less than 90% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Casing	Metal
Dimensions	Φ109.9mm × 81mm (4.33" x 3.19")
Net Weight	0.41Kg
Gross Weight	0.53Kg
