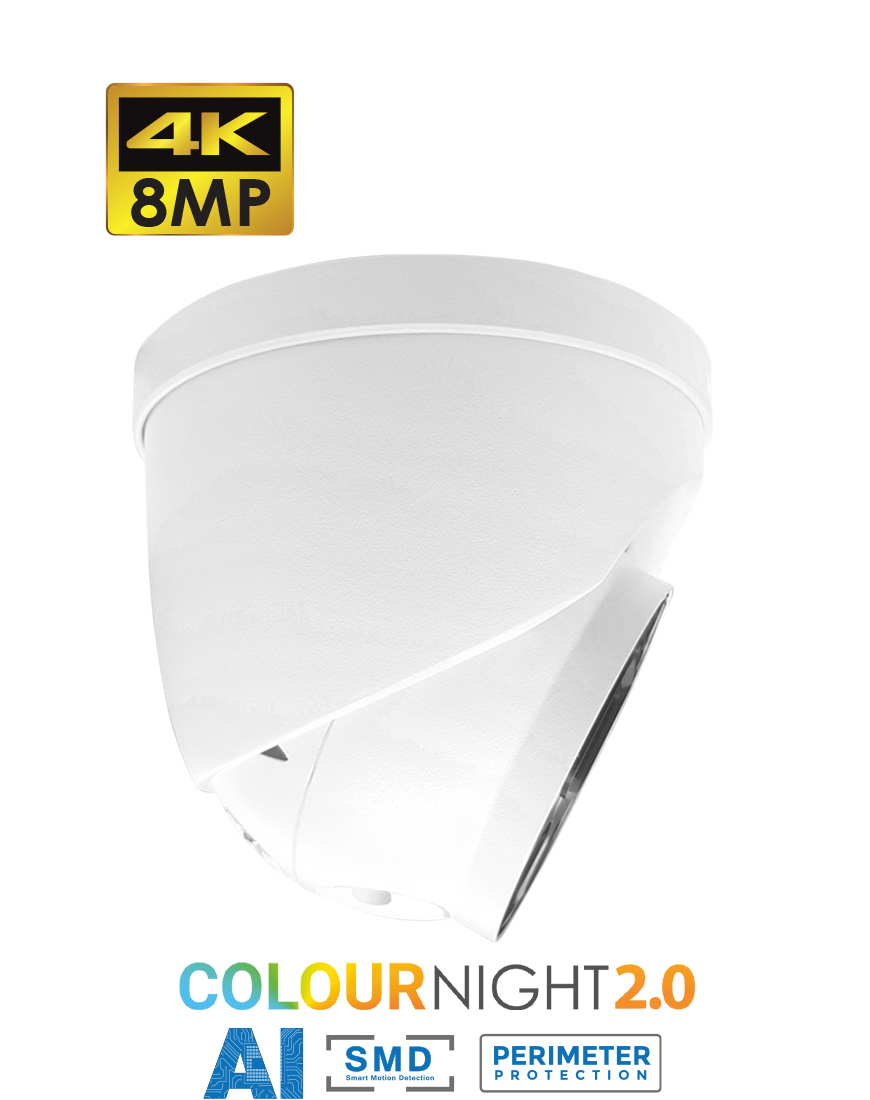

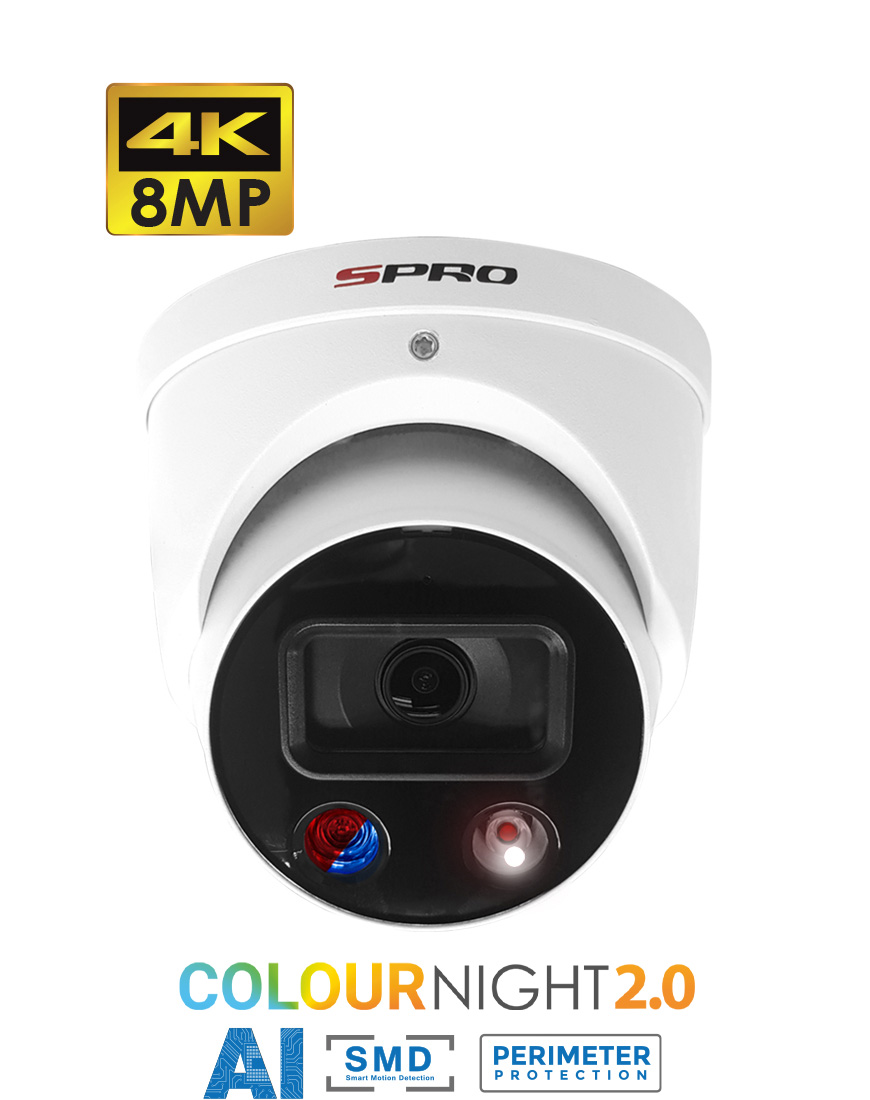

SPRO 8MP IP Smart Dual Illumination Turret with Active Deterrence

SPRO 8MP IP Smart Dual Illumination Turret with Active Deterrence
  Zoom
SPRO 8MP IP Smart Dual Illumination Turret with Active DeterrenceSPRO 8MP IP Smart Dual Illumination Turret with Active DeterrenceSPRO 8MP IP Smart Dual Illumination Turret with Active DeterrenceSPRO 8MP IP Smart Dual Illumination Turret with Active Deterrence

Availability:



In stock, immediate despatch

Part Number:  DHIPD80/28LRW/30-D-V2
Camera Resolution:  8 Megapixels
Lens:  Fixed Lens
Codec recording:  H.265
IR Distance:  Up to 30m IR distance
LED Distance:  Up to 30m LED distance
Built-in Mic.:  Yes
Speaker Built-in:  Yes
2 Way Audio:  Microphone & Speaker Built-in
Audio over CAT5e:  Yes
Active Deterrence:  Yes
Colour Night:  Yes
SMD (Smart Motion Detection):  Yes
Perimeter Protection:  Yes
Tripwire:  Yes
Intrusion:  Yes
Face detection 2.0:  Yes
WDR:  120dB
Style:  Turret

The SPRO Smart Dual Illumination Active Deterrence range of cameras are designed to prevent crime before it happens. These cameras feature red and blue flashing lights, a built in speaker for 2-way audio and pre-recorded messages as well as ColourNight technology which allows the camera to see full colour images at night.

Check out the SPRO video academy.

Specifications:
Model Number DHIPD80/28LRW/30-D-V2
Image Sensor 1/2.8” 8Megapixel progressive CMOS
Effective Pixels 3840 (H) × 2160 (V), 8MP
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto/ Manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/ Tilt/ Rotation Range Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Lens
Lens Type Fixed
Mount Type M12
Focal Length 2.8mm
Field of View Horizontal: 106°; vertical: 55°; diagonal: 125°
Iris Type Fixed
Close Focus Distance 2.0 m (6.56 ft)
DORI Distance Detect: 91 m
Observe: 36.4 m
Recognize: 18.2 m
Identify: 9.1 m
Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Recognition of human and vehicle)
SMD 3.0 Less false alarm, longer detection distance.
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080 @1-25/30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability 3 Streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR / VBR
Video Bit Rate H.264: 3 Kbps–20480 Kbps
H.265: 3 Kbps–20480 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/ Natural/ Street Lamp/ Outdoor /Manual / regional custom
Gain Control Auto/ Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/ 90°/ 180°/ 270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 Areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception.
Network
Ethernet RJ-45 (10/100Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade.
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
Max. User Access 20 (Total bandwidth: 72 M)
Storage Micro SD card (Support max. 256 G) / Local PC for instant recording
Web Viewer IE, Chrome, Firefox
Management Software SPRO CSS
Smart Phone iPhone, iPad & Android
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
General
Power Supply DC12V, POE
Power Consumption Basic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
Operating Conditions -40ºC ~ +60ºC / Less than 95% RH
Storage Conditions -40ºC ~ +60ºC
Ingress Protection IP67
Casing Metal
Dimensions φ122.0mm × 110.9mm
Net Weight 754g
Gross Weight 915g
