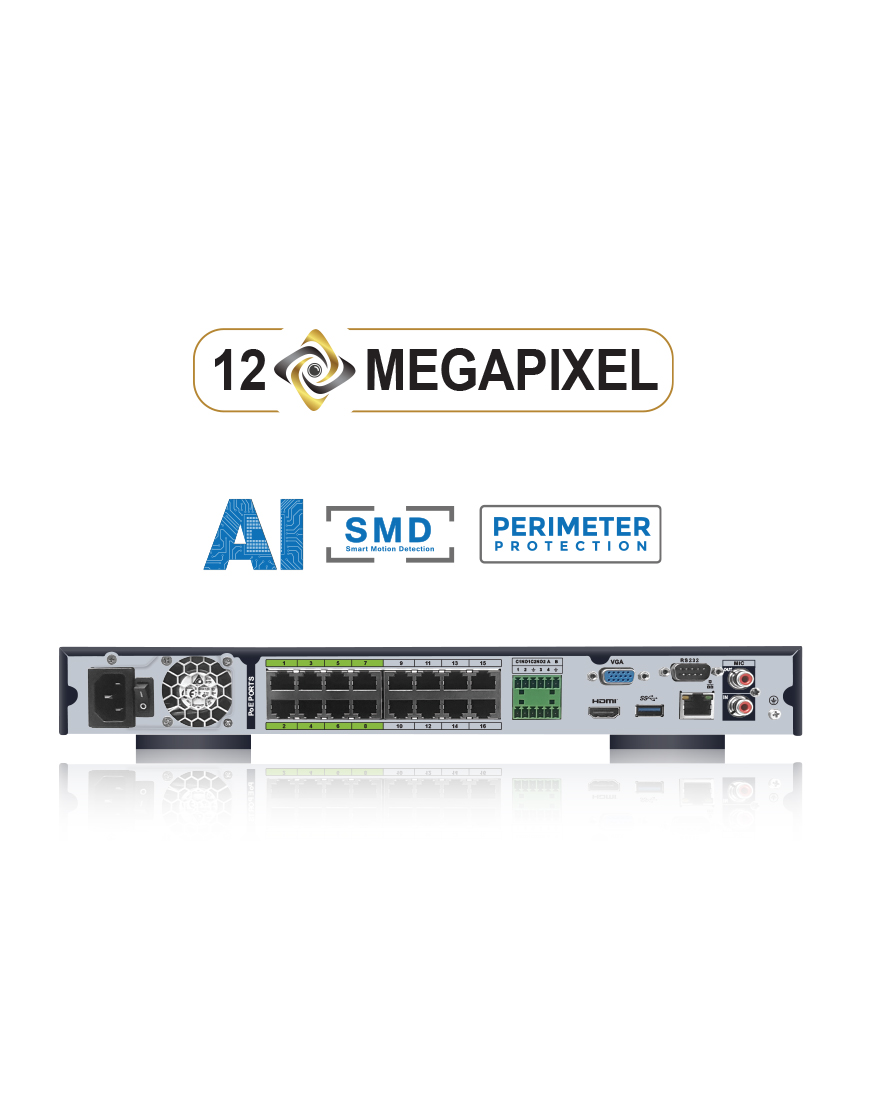

SPRO 4K 16 Channel 12MP IP NVR

SPRO 4K 16 Channel 12MP IP NVR
SPRO 4K 16 Channel 12MP IP NVRSPRO 4K 16 Channel 12MP IP NVRSPRO 4K 16 Channel 12MP IP NVR

Check out the SPRO video academy.

Part Number:  DHIPNVR16-4K-V3-0TB
Recorder Resolution:  12 Megapixel
Channels:  16
Codec recording:  H.265
Audio over CAT5e:  Yes
Tripwire:  Yes
Intrusion:  Yes
SMD (Smart Motion Detection):  Yes
Perimeter Protection:  Yes
Face detection:  Yes
Missing object:  Yes
Abandoned object:  Yes
Alarms:  6 Alarms

The DHIPNVR16-4K-V3 is a 16 channel 4k (12mp) NVR that has face detection, intrusion and tripwire. It's also fully compatible with the SPRO ANPR camera and the Sentinel and Immix remote monitoring platforms.

Model NumberDHIPNVR16-4K-V3
Operating SystemEmbedded LINUX
Audio and Video
IP Camera Input16 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Interface1 HDMI, 1 VGA
Resolution-HDMI3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Resolution-VGA1920×1080, 1280×1024, 1280×720, 1024×768
Decoding Capability4-ch@8MP(30fps), 16-ch@1080P(30fps)
Multi-screen Display16CH: 1/4/8/9/16
OSDCamera title, Time, Camera lock, Motion detection, Recording
CompressionSmart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Bit Rate16Kbps ~ 20Mbps Per Channel
Record ModeManual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP,
Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input4 Channel
Relay Output2 Channel
Playback & Backup
Sync Playback1/4/9/16
Search ModeTime/Date, Alarm, MD & Exact search (accurate to second)
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,
Next camera, Previous camera, Full screen, Backup selection, Digital zoom
Backup ModeUSB Device/ Network
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,
Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony,
Videotec, and more.
Interface1 RJ-45 port (10/ 100/ 1000Mbps)
PoE16 ports (IEEE802.3af/at)
1-8 ports support ePoE & EoC
Network FunctionsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.), Easy4IP
Max. User Access128 users
Smart PhoneiPhone, iPad & Android
InteroperabilityONVIF 2.4, SDK, CGI
Internal HDD2 SATA III Ports, up to 10TB capacity for each HDD
Auxiliary Interface
USB2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
RS4851 Port, for PTZ control
RS2321 Port, for PC Communication and Keyboard
Power SupplySingle, AC 100~240V, 50/60 Hz
Power Consumption-NVR<15.2W (Without HDD)
Power Consumption-PoEMax 25.5W for single port 130W total rated power, 80% control for protection
FanSmart fan, automatically adjust running speed
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Dimensions1U, 375mm× 326.5mm× 53mm (14.8" x 12.9" x 2.1")
Net Weight2.7kg (6.0 lb) (without HDD)
Gross Weight4kg(8.8 lb) (without HDD)

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.

Please login or register to Download the latest firmware.


Related Products
SPRO 8MP IP Fixed Lens Vandal Resistant Dome

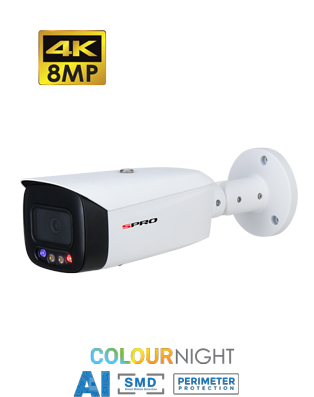

SPRO 8MP IP Fixed Lens Bullet with Active Deterrence
