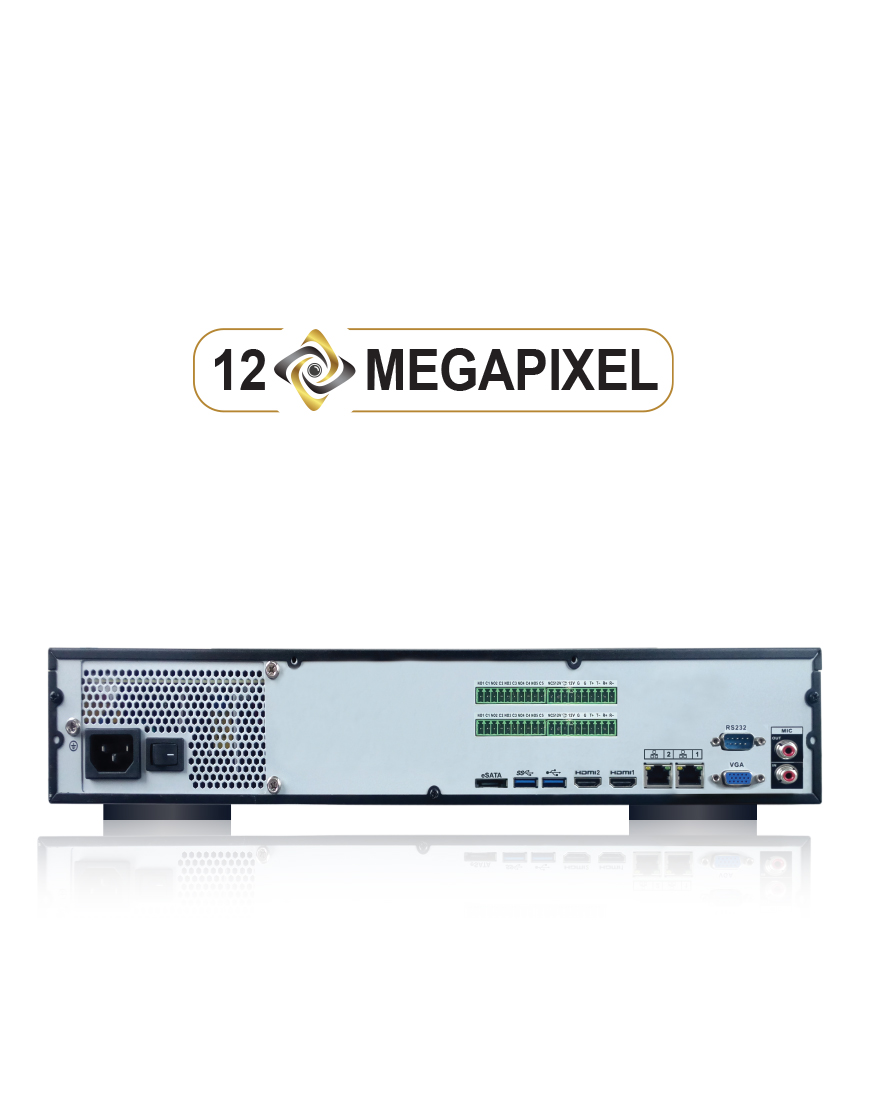

SPRO 4K 64 Channel 12MP IP NVR

Hard Drive

Part Number: DHIPNVR64-4K-V2-0TB
Recorder Resolution: 12 Megapixel
Channels: 64
Codec recording: H.265
Audio over CAT5e: Yes
Tripwire: Yes
Intrusion: Yes
Face detection: Yes
Smart Tracking: Yes
People Counting: Yes
Alarms: 16 Alarms

Information
Specifications

The DHIPNVR64-4K-V2 is a 64 channel 4K (12mp) NVR that boasts plenty of features. It has analytical features such as people counting, smart tracking, face detection, intrusion detection and tripwire. It has audio over Cat5e on all channels allowing you to record audio on each channel and it's fully compatible with the SPRO ANPR camera.

This NVR does not have dedicated ports for channels, instead all cameras are connected via the local network.

Specifications:
Model Number	DHIPNVR64-4K-V2
Main Processor	Intel Quad-core Processor
Operating System	Embedded LINUX
Display
Interface	2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA
Resolution	3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display	1st screen: 1/ 4/ 8/ 9/ 16/ 25/ 36 - 2nd screen: 1/ 4/ 8/ 9/ 16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input	16 Channel, Low Level Effective, Green Terminal Interface
Relay Output	8 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event	N/A
Playback & Backup
Sync Playback	1/4/9/16
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/ Network/ eSATA Device
Storage
Internal HDD	8 SATA III Ports, up to 8TB capacity for each HDD
HDD Mode	Single, Raid 0/ 1/ 5/ 6/ 10/ 50/ 60 (Support Global HDD Hot-spare)
eSATA	1 eSATA port
Auxiliary Interface
Front Cover	Support Hot-swap
USB	4 ports (2 Rear USB3.0, 2 Front USB2.0)
RS232	1 Port, for PC Communication and Keyboard
RS485	1 Port, for PTZ Control
Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more.
Audio and Video
IP Camera Input	64 channel
Two-way Talk	1 Channel Input, 1 Channel Output, RCA
Intelligence
Intelligent Functions	Tripwire, Intrusion, Face detection, Smart tracking, People counting
Recording
Compression	H.265/ H.264/ MJPEG
Resolution	12Mp/ 8Mp/ 6Mp/ 5Mp/ 4Mp/ 3Mp/ 1080P/ 720P/ D1&etc.
Record Rate	384Mbps
Bit Rate	16Kbps ~ 20Mbps Per Channel
Record Mode	Manual, Schedule (Regular (Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Network
Interface	2 RJ-45 port (10/ 100/ 1000Mbps)
Ethernet Port	2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports
PoE	N/A
Network Functions	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
Max. User Access	128 users
Smart Phone	iPhone, iPad & Android
Interoperability	ONVIF 2.4, CGI Conformant
Electrical
Power Supply	Single, AC 100~240V, 50/60 Hz
Power Consumption	NVR: <20W (without HDD)
Environmental
Operating Conditions	-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions	-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions	2U, 440mm x 451.5mm x 95mm ; (17.3" x 17.8" x 3.7")
Net Weight	9kg (19.8 lb) (without HDD)
Gross Weight	10.5kg (23.1 lb)
Installation	Rack-mounted
