| Specifications: | |

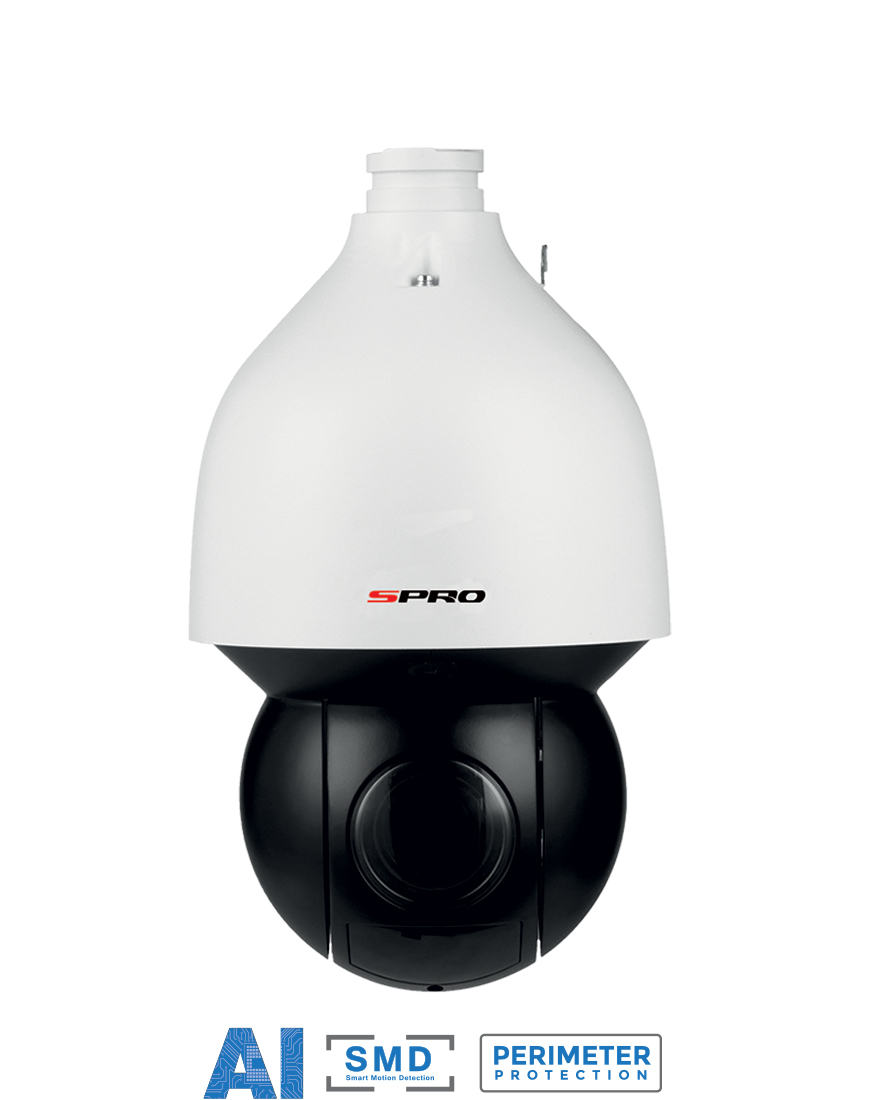

| Model Number | DHIPPTZ20/25XR-AI |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2Megapixels |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/3 ~ 1/30,000s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6
0 Lux (IR light on) |
| Illumination Distance | 150 m (492.13 ft) |
| Illuminator On/Off Control | Zoom Prio/ Manual/ Off |
| Illuminator Number | 4 |
| Lens | |
| Focal Length | 5.4 mm – 135 mm |
| Max Aperture | F1.6– F3.5 |
| Field of View | H: 58.7°–3.1°; V: 33.2°–1.7°; D: 67.3°–3.9° |
| Optical Zoom | 25x |
| Focus Control | Auto/ Semi-Auto/ Manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto/ Manual |
| DORI Distance | Detect: 1655m-Observe: 657m-Recognize: 331m-Identify: 166m |
| PTZ | |
| Pan/Tilt/Rotation | Pan: 0°–360°; Tilt: -15°–+90° |
| Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s Speed Adjustment |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Support |
| Idle Motion | Preset/ Tour/ Pattern/ Scanning |
| Protocol | DH-SD, Pelco-P/D (auto recognition) |
| General Intelligence | |
| Event Trigger | Motion detection, video tampering, scene changing, Network
disconnection, IP address conflict, illegal access, and storage anomaly. |
| IVS | Object Abandoned/ Missing |
| Artifical Intelligence | |
| Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. |
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle).
Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| SMD PLUS | Support |
| Auto Tracking | Support |
| Face Detection | Support |
| Video | |
| Compression | H.265/ H.265+/ H.264+/ H.264/ MJPEG (Sub Stream) |
| Streaming Capability | 3 streams |
| Resolution | 1080P (1920×1080)/ 720P (1280×720) / D1 (704×576/ 704×480)/
CIF(352×288/352×240) |
| Frame Rate - Main Stream | 1080P/ 1.3 M/ 720P (1–50/60 fps) |
| Frame Rate - Sub Stream 1 | D1/CIF (1–25/30 fps) |
| Frame Rate - Sub Stream 2 | 1080P/1.3M/720P/D1/CIF (1–25/30 fps) |
| Bit Rate Control | Variable/ constant |
| Bit Rate | H.265/H.264: 3 kbps–20480 kbps |
| Day/Night | Auto (ICR)/ Color/ B/W |
| BLC | Support |
| WDR | 120 dB |
| HLC | Support |
| White Balance | Auto/ Indoor/ Outdoor/ Tracking/ Manual/ Sodium lamp/ Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Image Stabilization | Electronic |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
| Audio | |
| Compression | G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP;
RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-2); RTCP; RTMP |
| Interoperability | ONVIF (Profile S/Profile G); CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth 64M) |
| Storage | FTP; Micro SD card (256G); NAS |
| Browser | IE7 and later versions / Chrome 42 and earlier versionsFirefox 52 and earlier versions / Safari |
| Management Software | SPRO CSS |
| Smart Phone | iPhone, iPad & Android |
| Certification | |
| Certification | CE: EN55032/EN55024/EN50130-4, FCC: Part15 subpartB,ANSI C63.4- 2014
UL:UL60950-1+CAN/CSA C22.2,No.60950-1 |
| Port | |
| Audio In | 1 (LINE IN; bare wire) |
| Audio Out | 1 (LINE OUT; bare wire) |
| Alarm I/O | 2/1 |
| General | |
| Power Supply | AC24V/ 3A±25%, POE+ |
| Power Consumption | 8W, 20W (IR light on) |
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | ≤95% RH |
| Protection | IP67; IK10; TVS 6000V lightning protection; surge protection |
| Casing | Metal |
| Dimensions | Φ190 mm×332 mm |
| Net Weight | 4.7Kg |
| Net Weight | 8Kg |
