| Specifications: | |
|---|

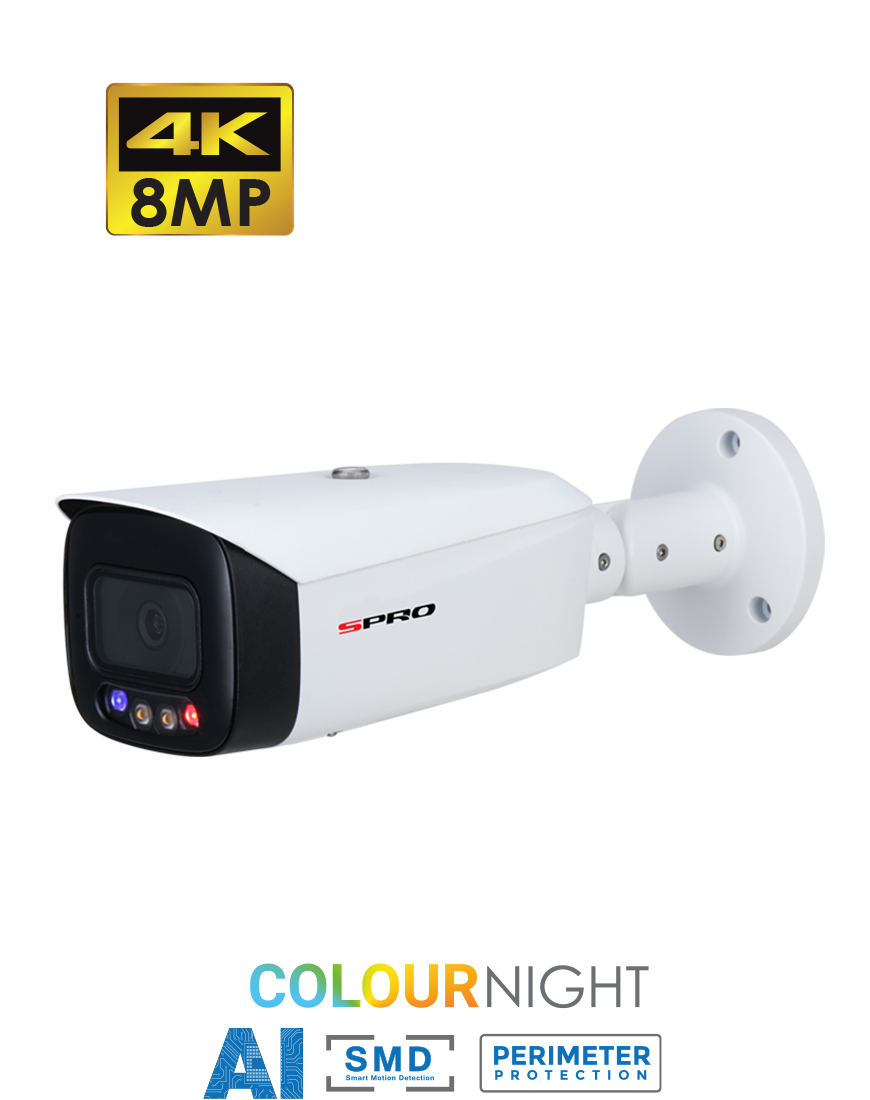

| Model Number | DHIPQ80/28LW/30-M-I-D |
| Image Sensor | 1/2.8” 8Megapixel progressive CMOS |
| Effective Pixels | 3840 (H)×2160 (V), 8MP |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.007 Lux @ F1.4 |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 30 m |
| Illuminator On/Off Control | Auto/ Manual |
| Illuminator Number | 2 (Warm light) |
| Pan/ Tilt/ Rotation Range | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.4 |
| Field of View | Horizontal: 107°; vertical: 56°; diagonal: 127° |
| Iris Type | Fixed |
| Close Focus Distance | 1.5 m |
| DORI Distance | Detect: 87.7 m
Observe: 35.1 m
Recognize: 17.5 m
Identify: 8.8 m |
| Professional, intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160 @(1–20 fps by default), 3840 × 2160 @(1–25/30 fps with AI function disabled)
Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-30fps
Third stream: 1920 × 1080 @1-25/30 fps |
| Streaming Capability | 3 Streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps
H.265: 12 Kbps–8192 Kbps |
| Day/Night | Colour / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/ natural/ street lamp/ outdoor/ manual/ regional custom |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/ 90°/ 180°/ 270° (Support 90°/270° with 1920 × 1080 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | PCM, G.711a, G.711Mu, G726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing) |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability | ONVIF (Profile S/ Profile G/ Profile T); CGI; Milestone; Genetec; P2P |
| Max. User Access | 20 Users |
| Storage | Micro SD card (support max. 256 G) / NAS / Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | SPRO CSS |
| Smart Phone | iPhone, iPad & Android |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| General | |
| Power Supply | DC12V, POE |
| Power Consumption | Basic power consumption: 3.2W (DC12V); 4.2W (POE) Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + max. sound alarm): 8.2W (DC12V); 9.7W (POE) |
| Operating Conditions | -40ºC ~ +60ºC / Less than 95% RH |
| Storage Conditions | -40ºC ~ +60ºC |
| Ingress Protection | IP67 |
| Casing | Metal + plastic |
| Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (L × W × H) |
| Net Weight | 1.0 kg |
| Gross Weight | 1.23 kg |
