| Specifications: | |
| Model Number | DHIPQ80/36RW/80M |
| Image Sensor | 1/2.7” 8Megapixel progressive CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| S/N Ratio | More than 56dB |
| Min. Illumination | 0.009 Lux@F2.0 |
| IR Distance | Distance up to 80m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 4 |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 3.6mm |
| Max. Aperture | F2.0 |
| Angle of View | Pan 87° × Tilt 47° × Diagonal 104° |
| Iris Type | Fixed |
| Close Focus Distance | 1.9 m |
| DORI Distance | Detect: 106.7 m | Observe: 42.7 m | Recognize: 21.3 m | Identify: 10.7 m |
| Pan/Tilt/Rotation | |
| Pan/Tilt/Rotation Range | Pan:0˚~360˚, Tilt:0˚~90˚, Rotation:0˚~360˚ |
| Intelligence | |
| IVS | Tripwire, Intrusion |
| Advanced Intelligent Functions | No |
| Video | |
| Compression | H.265; H.264; H.264B; MJPEG (only supported by sub stream) |
| Streaming Capability | 2 Streams |
| Resolution | 4K (3840×2160)/ 6M (3072×2048)/ 5M (2560×1920)/ 3M (2048x1536)/ 3M (2304×1296)
/1080P (1920×1080)/ 1.3M (1280x960)/ 720P (1280×720)/ D1 (704×576/ 704×480)
/VGA (640×480)/ CIF (352×288/ 352×240) |
| Frame Rate-Main Stream | 3840 × 2160 (1 fps–15 fps); 2688 × 1520 (1 fps–25fps) |
| Frame Rate-Sub Stream | 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps) |
| Bit Rate Control | CBR/ VBR |
| Bit Rate | H.265: 12 Kbps–8192 Kbps / H.264: 32 Kbps–8192 Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR (120dB) |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor/ Manual |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Audio Compression | G.711a; G.711Mu; G.726; AAC |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| SDK and API | Yes |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP;
DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x;
Multicast; ICMP; IGMP; SNMP |
| Interoperability | ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| Max. User Accessr | 20 Users |
| Edge Storage | NAS / Local PC for instant recording / Micro SD Card (support max. 256 GB) |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | SPRO CSS |
| Smart Phone | iPhone, iPad & Android |
| General | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 8.4W |
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH |
| Ingress Protection | IP67 |
| Casing | Metal |

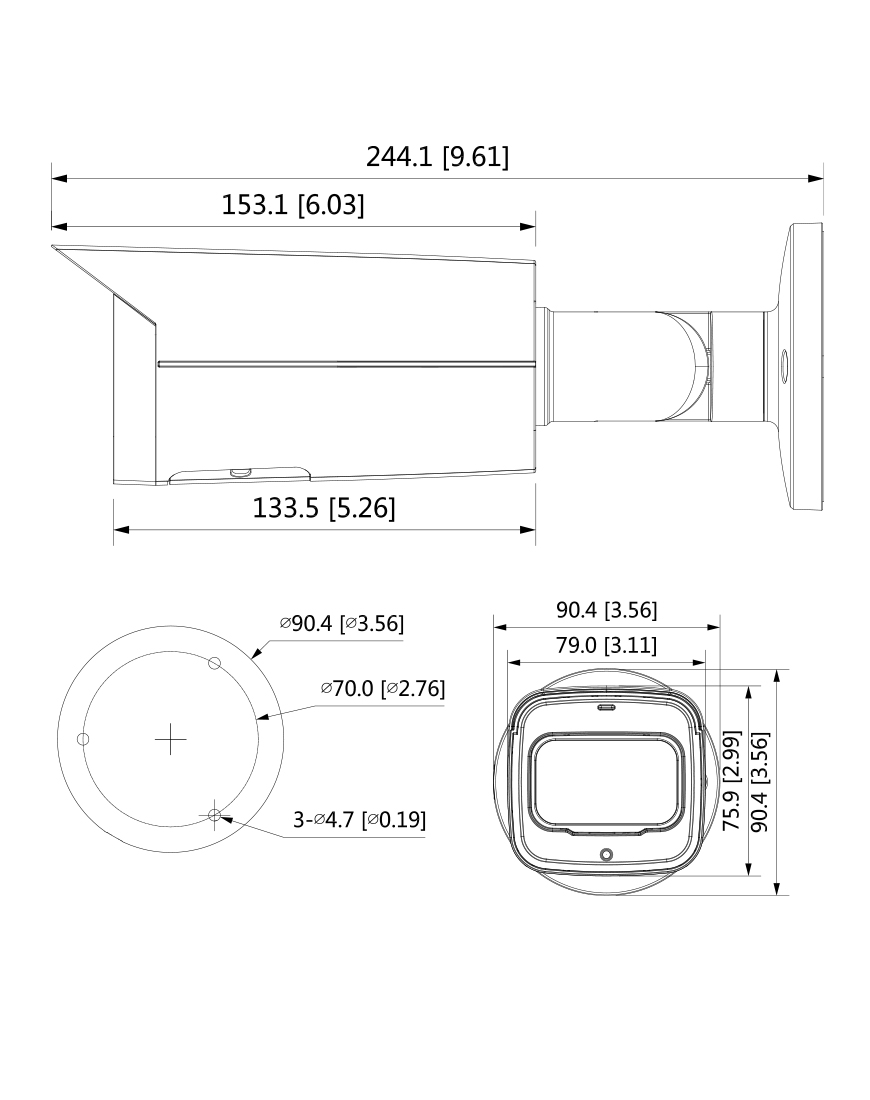

| Dimensions | Φ244.1 mm × 90.4 mm |
| Net Weight | 0.86Kg |
| Gross Weight | 1.10Kg |
