| Specifications: | |
|---|

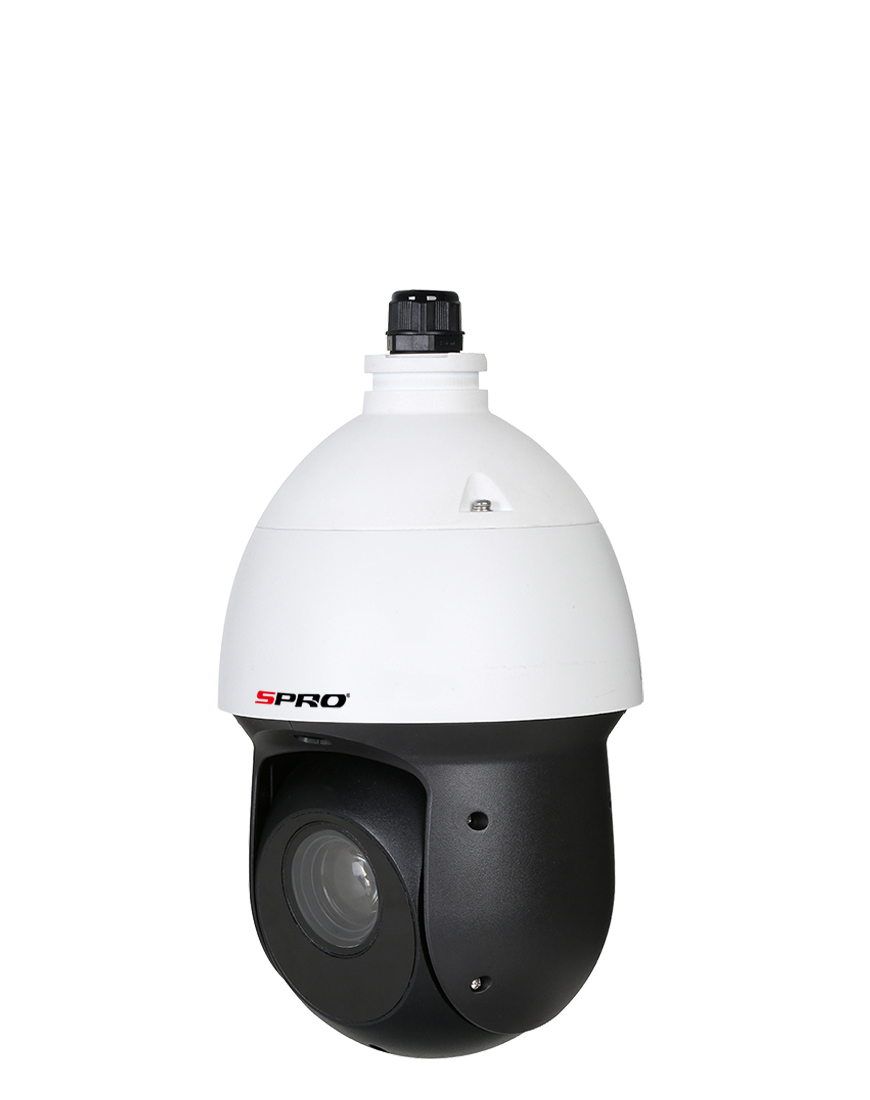

| Model Number | DHPTZ20/25XR-V3 |
| Image Sensor | 1/2.8" 2Megapixel STARVIS CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2Megapixels |
| ROM | 16 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s–1/100000 s |
| Min. Illumination | Color: 0.005 Lux@F1.6, B/W: 0.0005 Lux@F1.6, 0 Lux@F1.6 (IR on) |
| Illumination Distance | 100 m (328.08 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 6 |
| Lens | |
| Focal Length | 4.8mm~120mm (25x Optical zoom) |
| Max Aperture | F1.6~ F3.5 |
| Field of View | H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2° |
| Optical Zoom | 25x |
| Focus Control | Auto/ Semi-Auto/ Manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto/ Manual |
| DORI Distance | Detect:1655.2m / Observe:656.8m / Recognize:331.0m / Identify:165.5m |
| PTZ | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1° ~ 200°/s; Tilt: 0.1° ~120°/s |
| Preset Speed | Pan: 240°/s; Tilt:300°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Support |
| Power-off Memory | Support |
| Idle Motion | Preset/ Tour/ Pattern/ Scanning |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| Video | |
| Resolution | 1080P (1920 × 1080); 720P (1280 × 720);D1 (704 × 576/704 × 480) |
| Frame Rate | 1080P (25/30 fps), 720P (25/30/50/60 fps) |
| Day/Night | Support |
| BLC | Support |
| WDR | 120 dB |
| HLC | Support |
| White Balance | Auto/ Indoor/ Outdoor/ Tracking/ Manual/ Sodium lamp/ Natural light/ Street lamp |
| Gain Control | Auto/ Manual |
| Noise Reduction | 2D/3D |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 0°/180° |
| Privacy Masking | Up to 24 areas |
| CVI Product Output Mode | CVI; TVI; AHD; CVBS |
| Audio | |
| Compression | G.711a; G.711Mu |
| Port | |
| Audio Input | 1 (LINE IN; bare wire)u |
| Alarm Input | 2 |
| Alarm Output | 1 |
| General | |
| Power Supply | DC 12V/3A ± 10% |
| Power Consumption | 9.6 W, 23.2 W (IR light on, PTZ) |
| Operating Temperature | –40°C to +70°C |
| Operating Humidity | ≤ 95%RH |
| Ingress Protection | IP66; TVS 6000V lightning protection; surge protection |

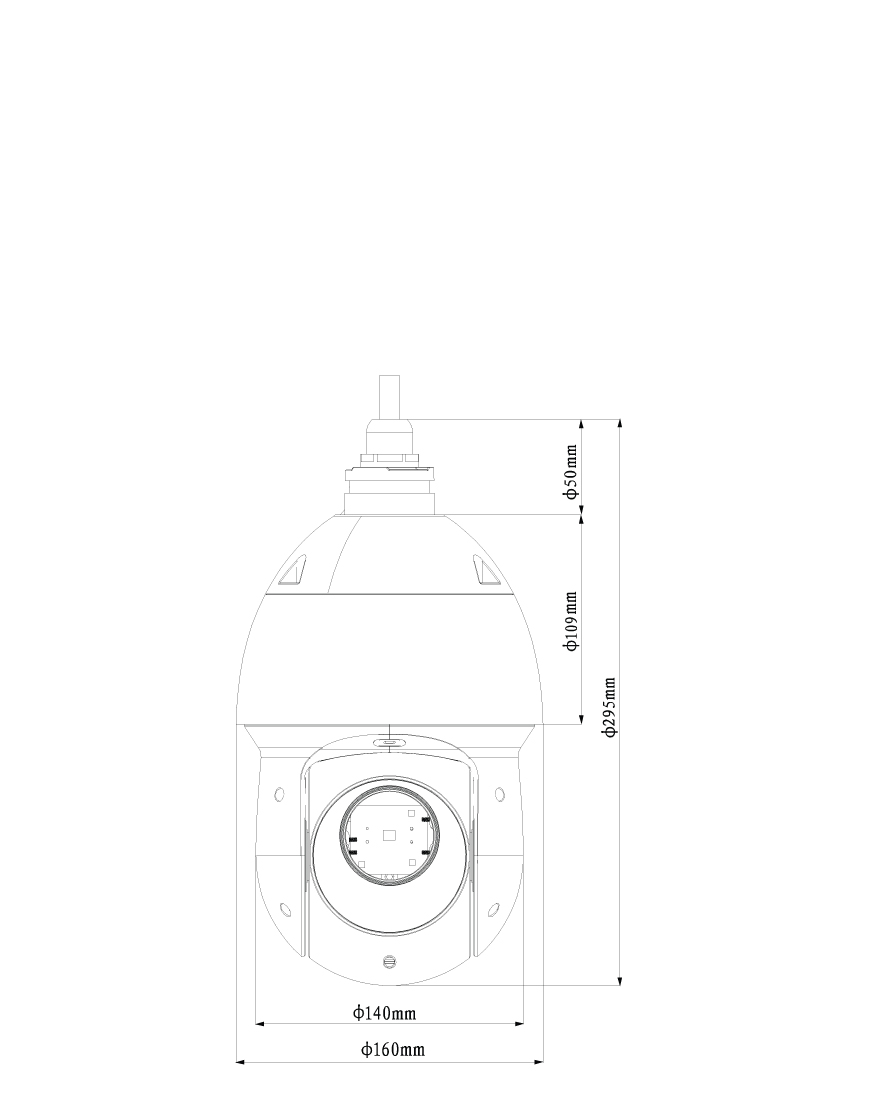

| Dimensions | 295.4 mm × Φ160.0 mm |
| Net Weight | 3Kg |
| Gross Weight | 4.2Kg |
