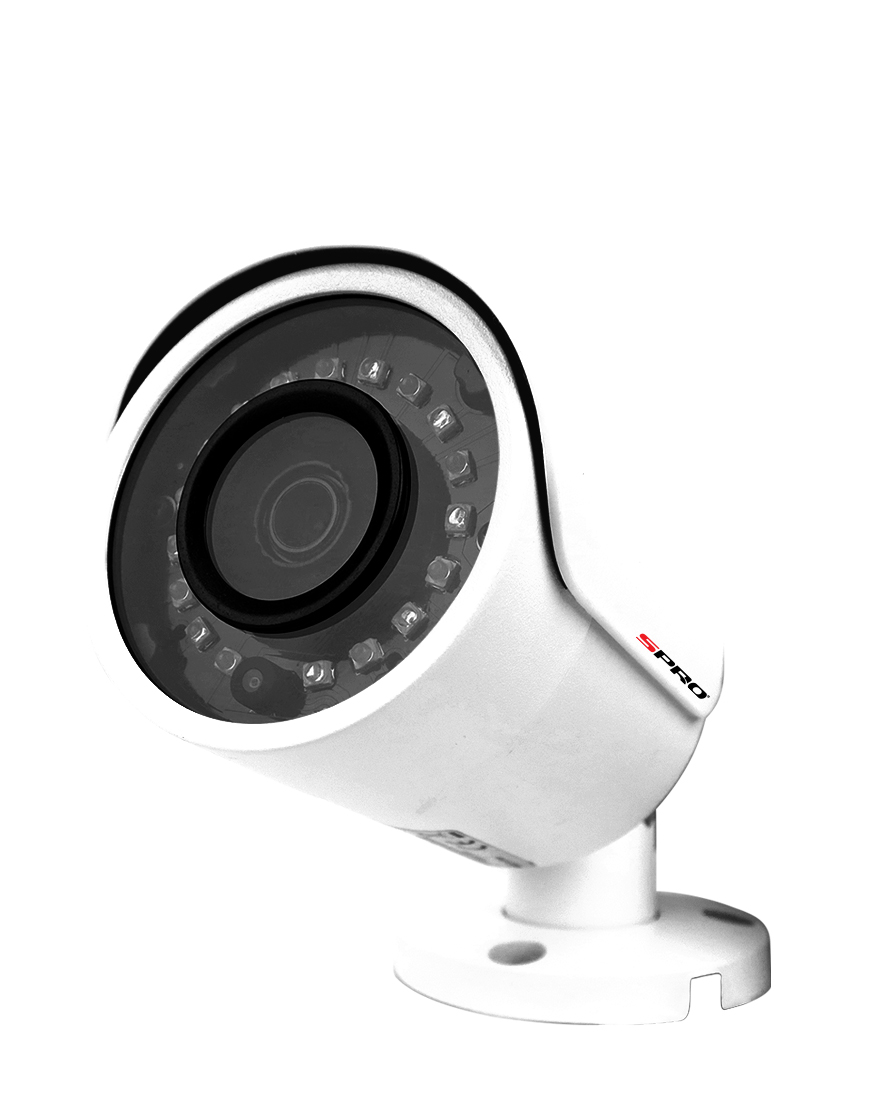

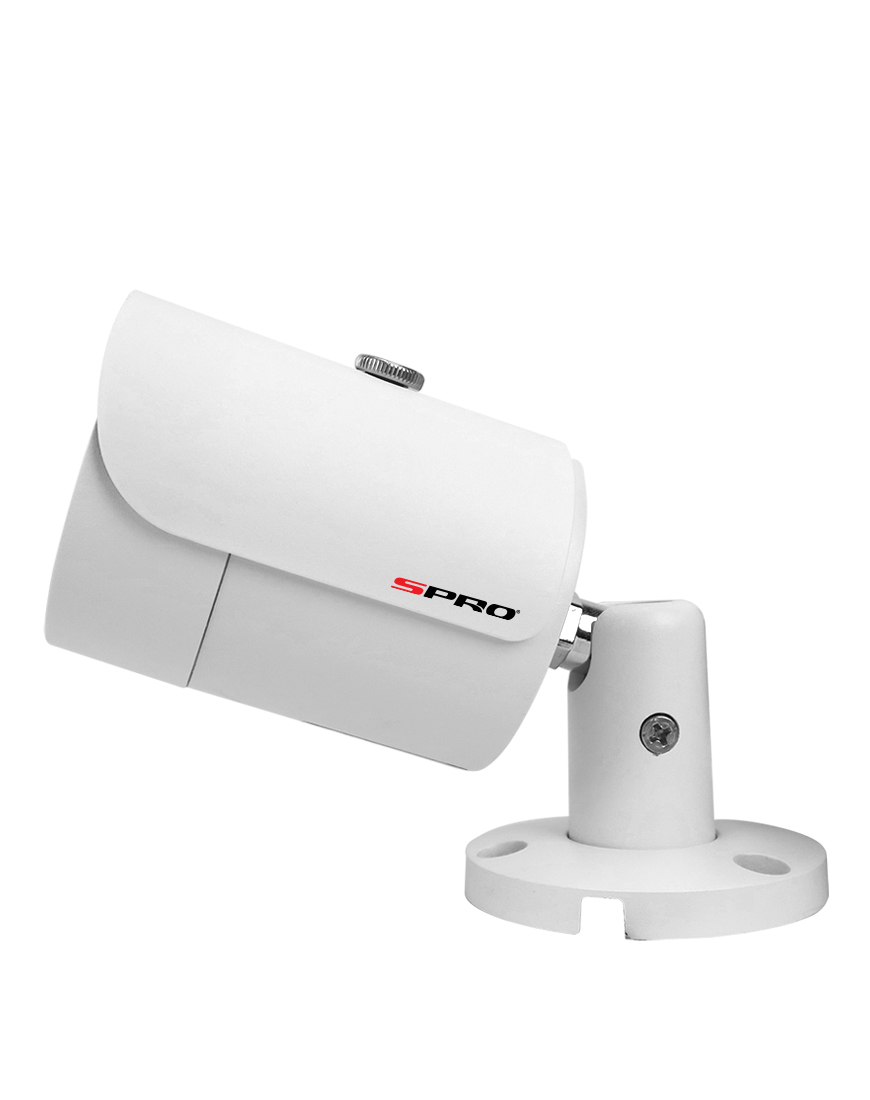

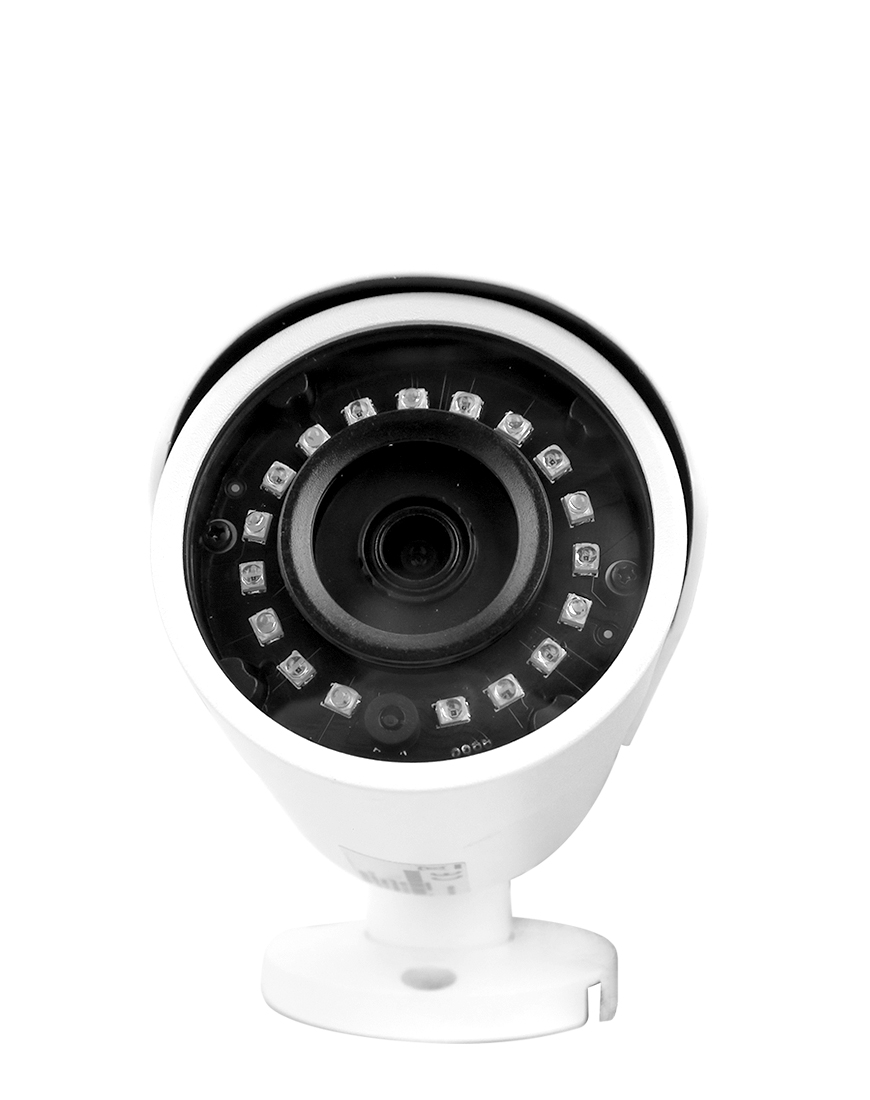

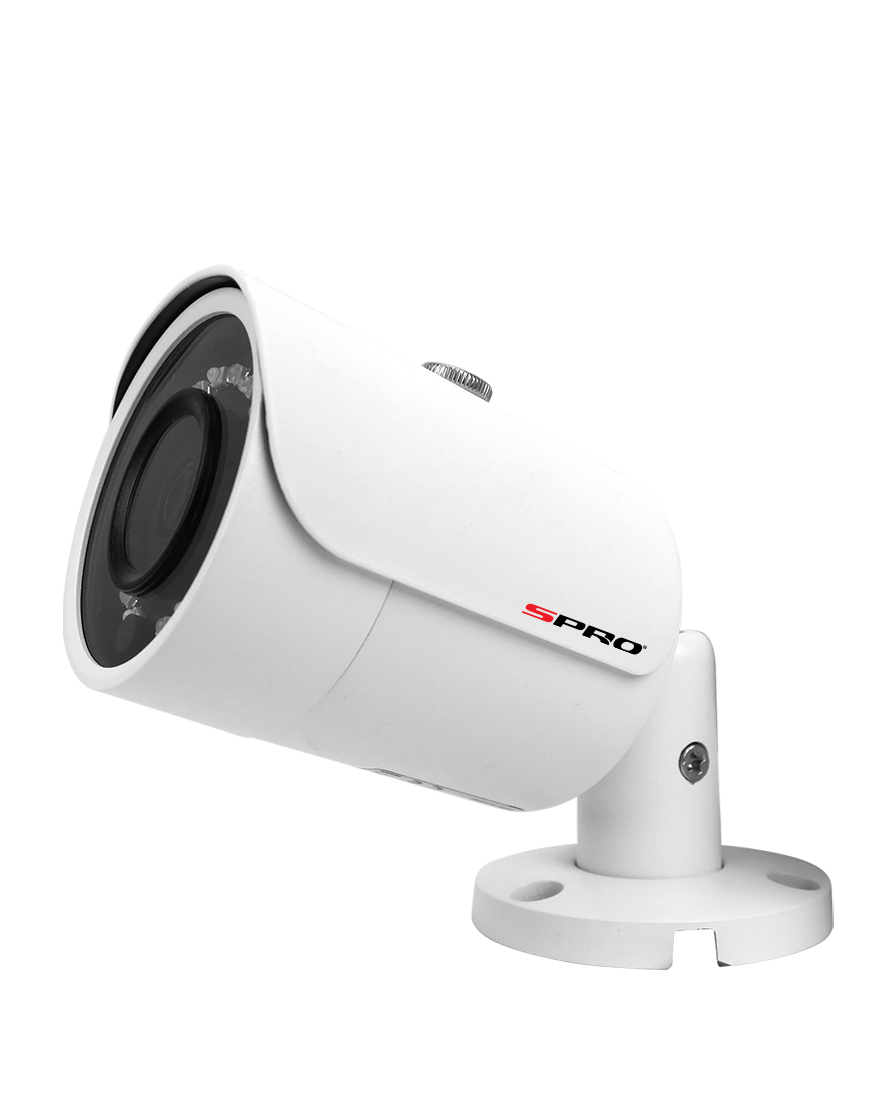

SPRO 4MP HDCVI Fixed Lens Bullet with POC

Zoom

Availability

In stock, immediate despatch

You may also like

Deep Base, White (BASE05-W)

Pole Bracket

Part Number: DHQ40/28RW-POC
Camera Resolution 4 Megapixels
Lens Fixed Lens
IR Distance Up to 15m IR distance
Protocol CVI
POC Yes
Style Bullet

Information
Specifications
Delivery

Check out the SPRO video academy.

Specifications:
Model Number	DHQ40/28RW-POC
Image Sensor	1/3" CMOS
Effective Pixels	2688(H)×1520(V), 4MP
Scanning System	Progressive
Electronic Shutter Speed	1/25~1/100000s
Min. Illumination	0.03Lux/F1.9, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
Max. IR distance	Up to 15m
IR On/Off Control	Auto/ Manual
IR LEDs	1
Lens
Lens Type	Fixed lens / Fixed iris
Mount Type	Board-in
Focal Length	2.8mm
Max Aperture	F1.9
Angle of View	H:78°
Focus Control	N/A
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan: 0° ~ 360° / Tilt: 0° ~ 78° / Rotation: 0° ~ 360°
Video
Resolution	4MP (2560x1440)
Frame Rate	25@4MP, 25fps@1080P, 25fps@720P
Video Output	1-channel BNC high definition video output / CVBS video output
Day/Night	Auto (ICR) / Manual
OSD Menu	Multi-language
BLC Mode	BLC / HLC / DWDR
WDR	DWDR
Gain Control	AGC
Noise Reduction	2D
White Balance	Auto / Manual
Smart IR	Auto / Manual
Interface
Audio Interface	N/A
General
Power Supply	DC12V±25%
Power Consumption	Max 4.6W (12V DC, IR on)
Operating Conditions	-40°C ~ +60°C / Less than 90% RH
Strorage Conditions	-40°C ~ +60°C / Less than 90% RH
Ingress Protection	IP66
Casing	Aluminium

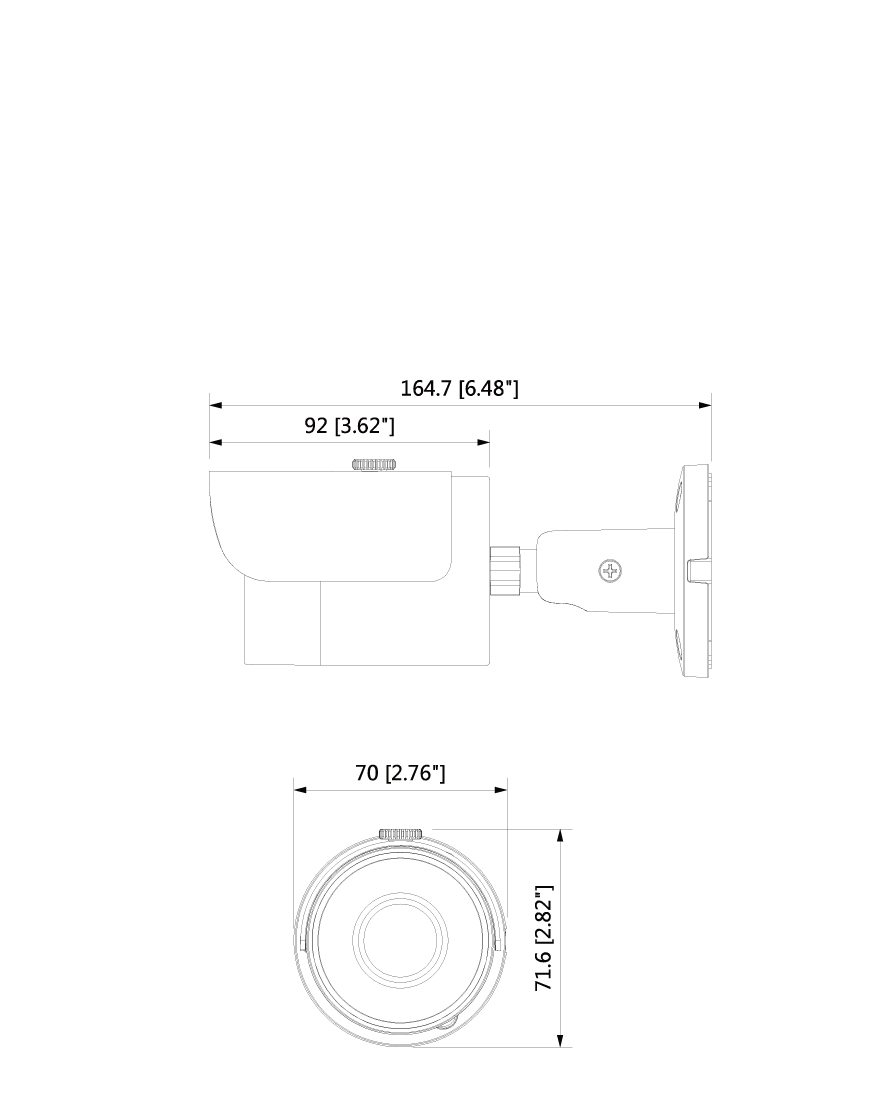

Dimensions	164.7mm×70mm×71.6mm (6.48"×2.76"×2.82")
Net Weight	0.38kg (0.84lb)
Gross Weight	0.47kg (1.04lb)
