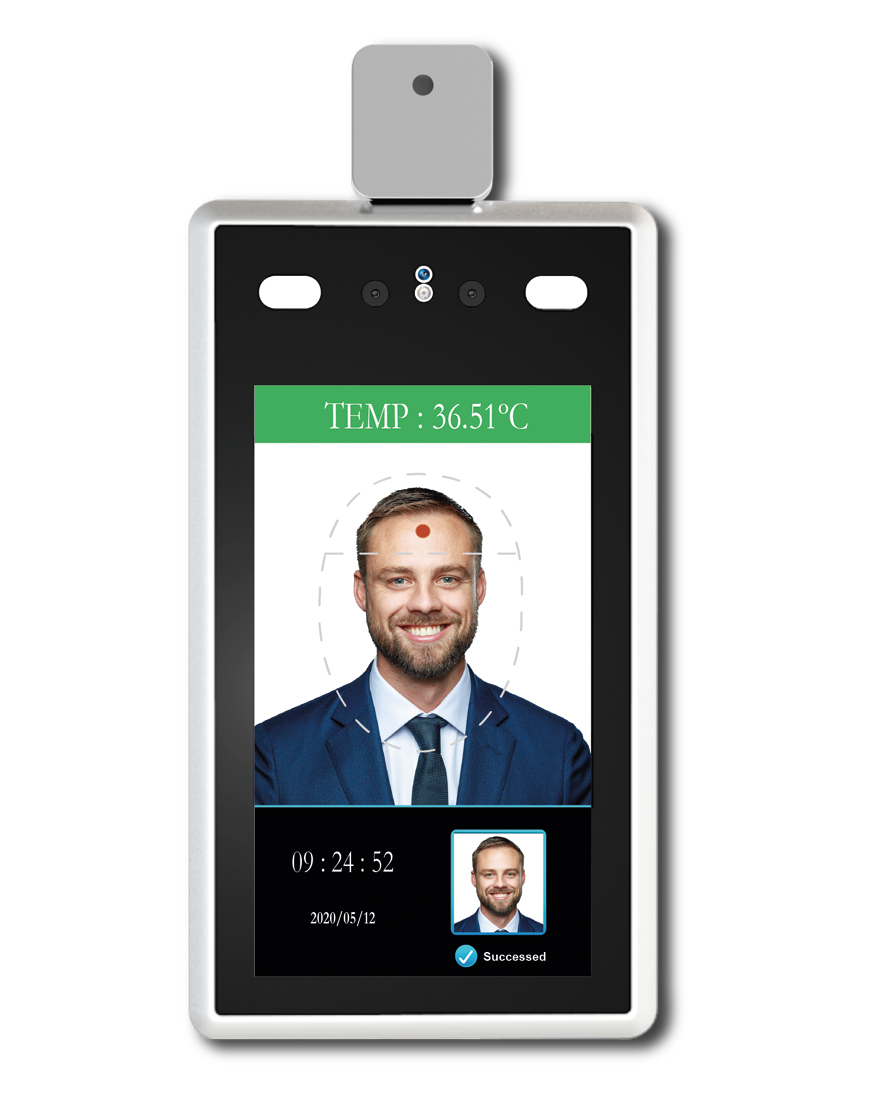

Body Temperature Door Release System (WALL MOUNT)

Body Temperature Door Release System (WALL MOUNT)



No stock, call for alternative model

Part Number:  SPTEMP01-W

A wall mountable solution with non-contact body temperature detection and facial recognition. Features include real-time high temperature alerts, a 7-inch IPS HD display, support for a database of 22,400 faces and 1,000,000 records, and an IP34 rating for durability. Ensure safety and seamless entry.


Key features

  • Standalone system
  • Non-contact automatic body temperature detection and facial recognition.
  • Temperature measurement range 30-45 (℃) Accuracy ± 0.3 (℃).
  • Automatically identify unmasked personnel and provide real-time warning.
  • 1080P (1920x1080).
Key Features:
- Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and highly effective.
- Temperature measurement range 30-45 (℃) Accuracy 0.3 (℃)
- Automatically identify unmasked personnel and provide real-time warning.
- Support mid-range temperature measurement and real-time warning of high temperature.
- Support temperature data SDK and HTTP protocol docking.
- Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information.
- Support binocular live detection.
- Unique face recognition algorithm to accurately recognize faces, face recognition time 500ms.
- Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB.
- Adopt Linux operating system for better system stability.
- Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux.
- 7-inch IPS HD display.
- IP34 rated dust and water resistant.
- MTBF 50000 H.
- Support 22400 face comparison library and 100,000 face recognition records.
- Support one Wiegand input or Wiegand output.
- Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for various fields.
- Scene demand.
- Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results).
Model Number SPTEMP01-W
Chipset Hi3516DV300
System Linux operation system
Image sensor 1/2.7" CMOS
Lens 4.5mm
Camera Parameters
Camera Binocular camera supports live detection
Effective pixel 2Mega pixel,1920*1080
Min. lux Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
SNR ≥50db(AGC OFF)
WDR ≥80db
Face Recognition
Height 1.2-2.2 M, angle adjustable
Distance 0.5-2 Meters
View angle Vertical 40 degree
Reco. Time <500ms
Function Support 22400 faces database and 100000 records
Range 30-45(℃)
Accuracy 0.3(℃)
Distance 0.3-0.8米
Response time <300ms
Internet interface RJ45 10M/100M Ethernet
Weigand port Support input/output 26 and 34
Alarm output 1channel relay output
USB port 1USB port (Can be connected to ID identifier)
Power input DC 12V/3A
Power consumption 20W (MAX)
Working temperature -0C~+50C
Humidity 5~90%, no condense
Dimensions 123.5(W) * 45.5(H) *266(L)mm
Weight 1.9 kg
- The temperature measuring device should be used in a room with a room temperature between 10C - 40C. Do not install the temperature measuring device under a vent, and ensure that there is no heating source within 3 meters;
- Personnel entering the room from a cold outdoor environment will affect the temperature measurement accuracy. The forehead temperature test should be performed after the forehead is unobstructed for three minutes and the temperature is stable;
- The temperature read by the temperature measuring device is the temperature in the forehead area. When there is water, sweat, oil or thick makeup on the forehead or the elderly have more wrinkles, the read temperature will be lower than the actual temperature. Make sure there is no hair or clothing covering this area.
