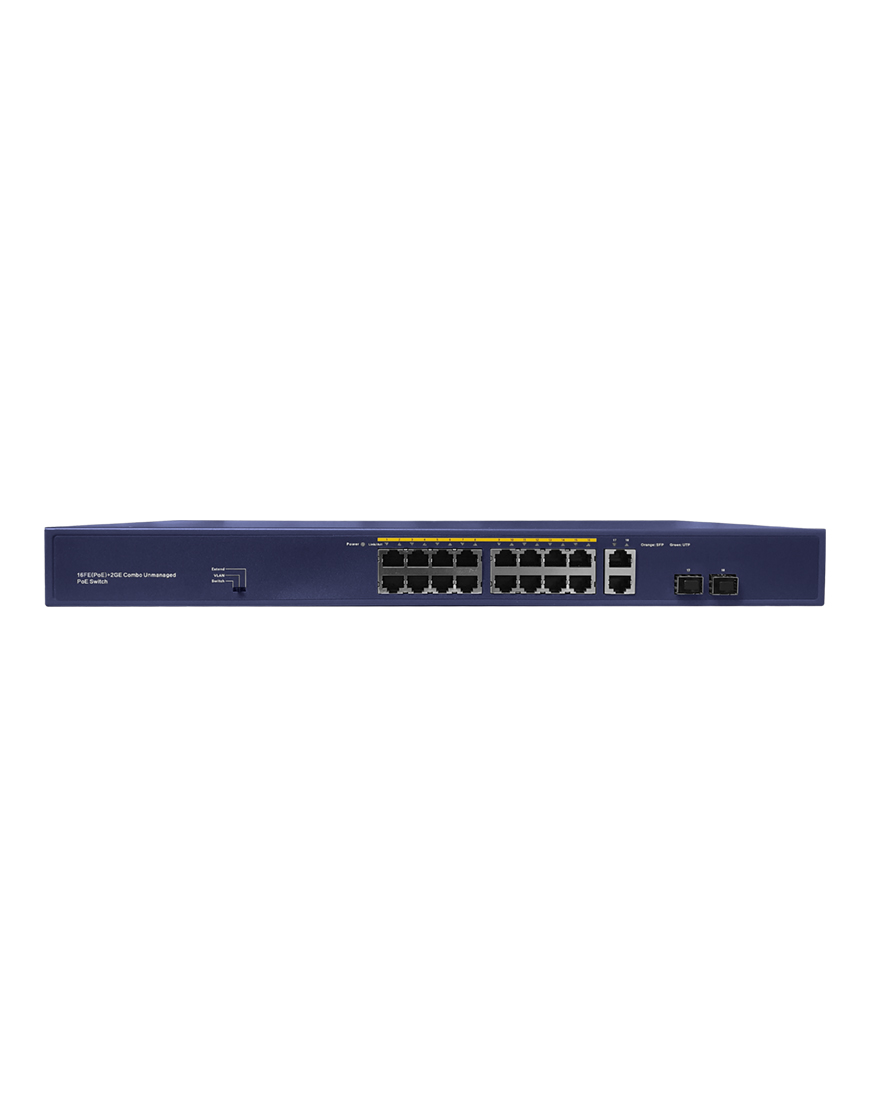

16 Port POE Switch

16 Port POE Switch
  Zoom
 16 Port POE Switch16 Port POE Switch

Availability



In stock, immediate despatch

Part Number:  SWITCH-16P
IP Accessories  POE Switch

This 16 Port POE Switch offers 16 POE ports with 10/100Mbps and 2 uplink ports at 10/100/1000Mbps. Fully IEEE802.3af compliant, each port can support up to 15.4W with a total power capacity of 250W. This plug & play device comes with a power supply and rackmount brackets.

Key Features

  • Total power budget : 250W
  • PSU included
Specifications:
Model NumberSWITCH-16P
Type16 Port Switch
Interface
Downlink ports1-16: 10/100Mbps RJ45 Ports
Uplink port17 -18 : 2 GE RJ45+2GE SFP (Combo)
POE Power Supply
Max PoE output30W
Total power supply250W
Priority FunctionSupport
LEDsPower Link/activity
Transfer MethodStore-and-Forward
Advanced FeatureIEEE802.3x Flow Control for Full- Duplex Mode and
Backpressure for Half-Duplex Mode
Performance
Switching Capacity7.2 Gbps
Packet Forwarding Rate5.36 Mbps
Mac Address Table8K
Standards and ProtocolsIEEE802.3i 10 BASE-T
IEEE802.3u 100 BASE-TX
IEEE802.3ab 1000 BASE-T
IEEE802.3z 1000 BASE-LX
IEEE802.3x Flow Control
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3az EEE
Power InputAC 100-240V 50/60HZ
Dimensions440mm(L) *285mm(W) *44mm(H)
CablesUTP category 5 or above cable
Operating Temperature0 – 40 °C
Operating Humidity10% ~ 90% RH non-condensing
Storage Temperature-20 – 75 °C
Storage Humidity5% ~ 95% RH non-condensing

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.

Related Products

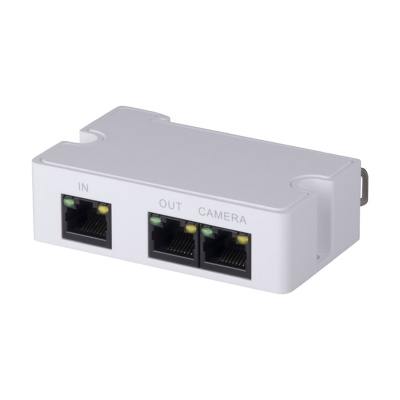

SPRO POE Extender
