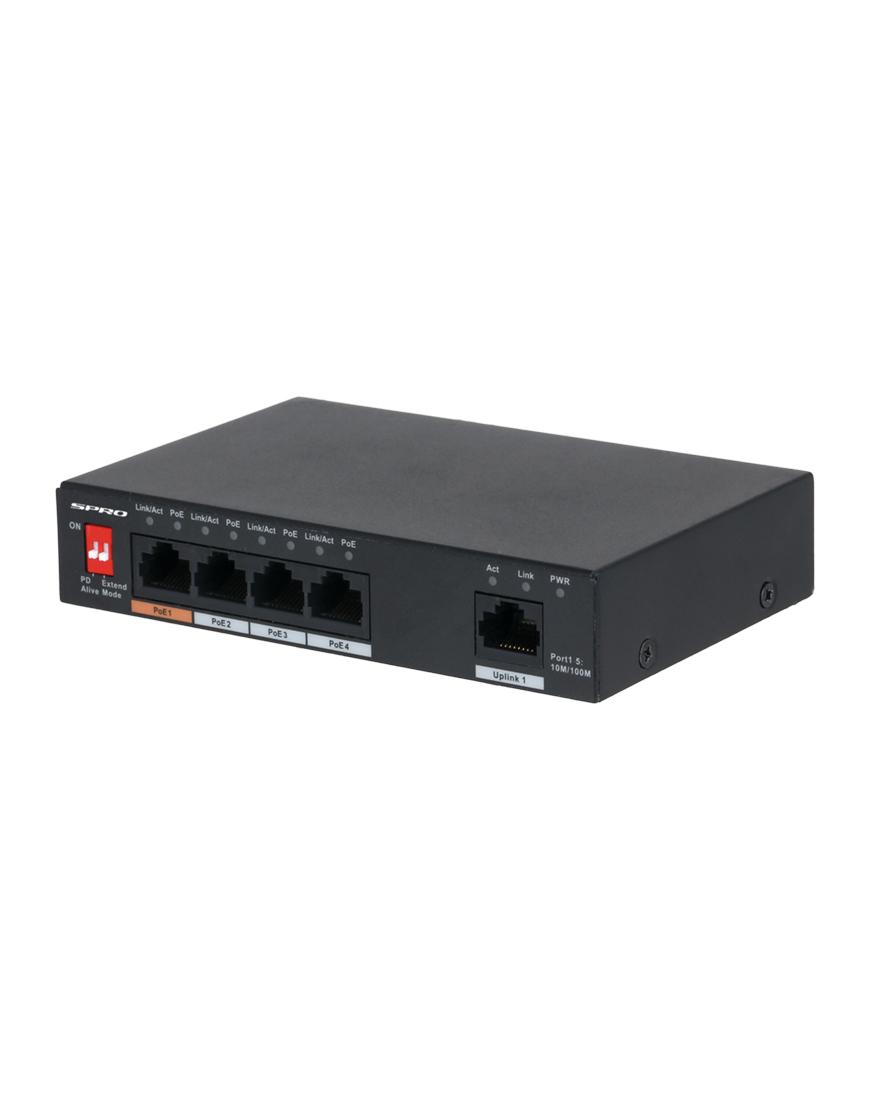

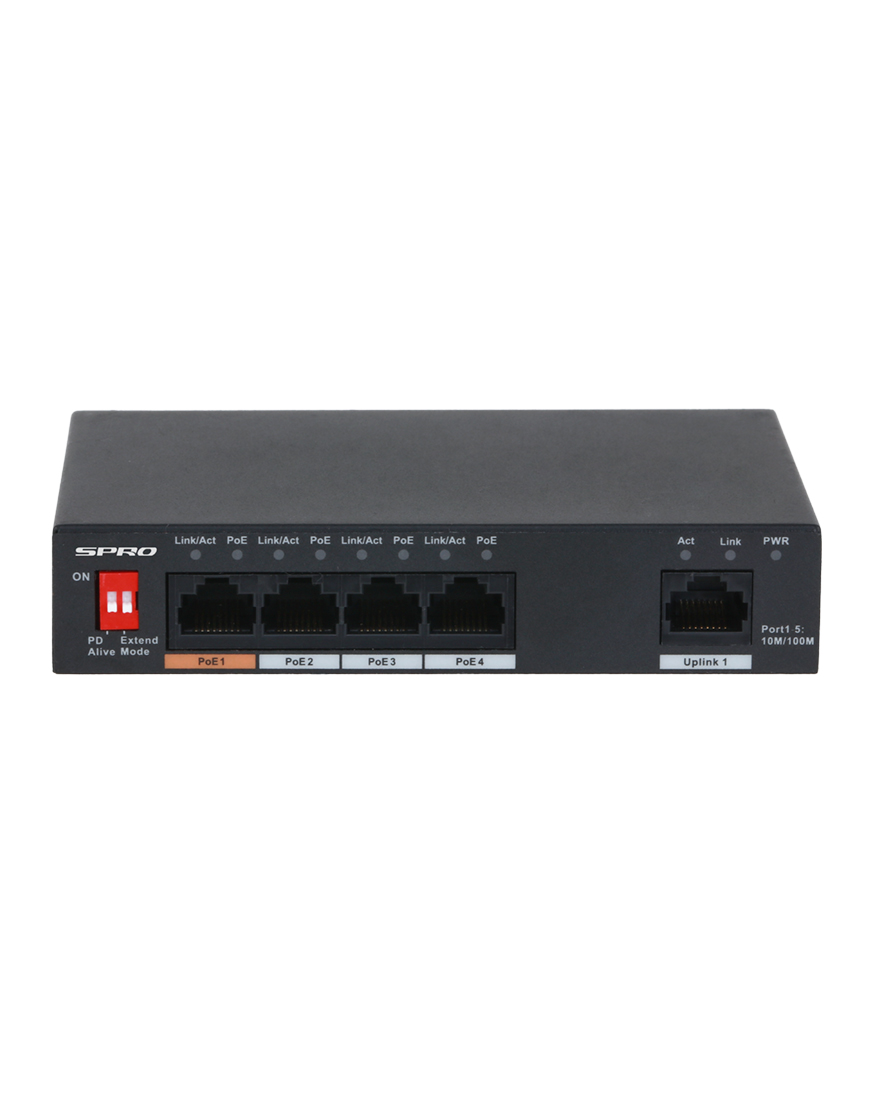

4 Port POE Switch

Availability

In stock, immediate despatch

Part Number: SWITCH-4P
IP Accessories POE Switch

Information
Specifications
Delivery

• 4 port POE with 1 uplink port
• 10/100Mbps
• Support up to 15.4W per output
• Total power budget : 60W
• Plug & play
• Status LEDs
• PSU included

Specifications:
Model Number	SWITCH-4P
Ethernet Port	Port 1-4: 4 × RJ-45 10/100M (PoE) Port 5: 1 × RJ-45 10/100M (uplink)
PoE Power Consumption	Port1 ≤60W, Port 2-4≤30W, Total ≤60W
Power Consumption	Idling: 0.8 W / Full load: 60 W
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
PoE:
PoE Protocol	IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
PoE PIN Assignment	1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance	250 m long distance PoE transmission
PoE Power Management	Yes
PoE Watchdog	Yes
Performance:
Switching Capacity	1.8 Gbps
Packet Forwarding Rate	744Kpps
Packet Buffer Memory	1 Mbit
Flow Control	Enable
Working Temperature	-10°C ~55°C
Application Humidity	5% ~ 95%
General:
Power Input	DC48~57V power adapter
Lightning Protection	Common Mode 4KV Differential mode: 2 kV
ESD Protection	Air discharge: 8 kV Contact discharge: 6 kV
Weight	290g
Wall-mount Installation	Yes
Anti-theft Lock Hole	Yes
Dimension(W×D×H)	130mm × 85mm × 26mm
