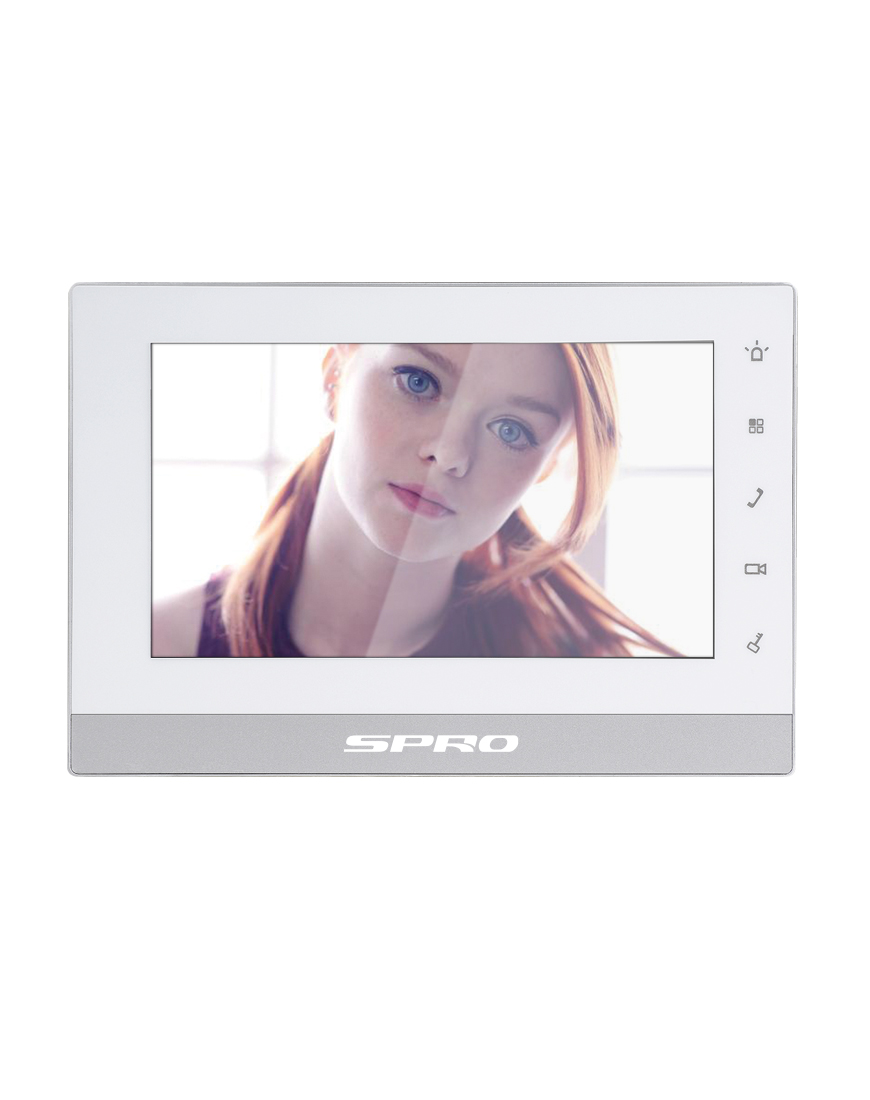

7" TFT Touch Screen Monitor, Wired

7'' TFT Touch Screen Monitor, Wired
  Zoom

Availability



In stock, immediate despatch

Part Number:  VI-MTR01-7
Mount & Accessories  Monitor
Touchscreen  Yes

Compatible only with the outdoor station VI-STN01 and the VI-MODULE01-A.

• 7" TFT touch screen - Resolution 800 x 480
• Microphone & speaker built-in
• Alarm : 6 inputs & 1 output
• Fully compatible with SPRO CCTV systems
• 1 channel self-adaptive ethernet (10/100Mbps)
• Power supply from VI-SWITCH01
• Dimension : 200.5×136.5×22.0mm

Specifications:
Model NumberVI-MTR01-7
Main ProcessorEmbedded Micro Processor
Operating SystemEmbedded LINUX OS
Video
Video CompressionH.264
Audio
Audio CompressionG.711
Audio InputOmnidirectional Mic
Audio OutputBuilt-in Speaker
Bidirectional TalkSupport Dual-way Bidirectional talk
Display
LCD Screen7“ 800x480, Capacitive
Operation Mode
InputTouch buttons / Touch Screen
Interface
Alarm In 6
Alarm Out 1
RS4851
Network
Ethernet 10M/100Mbps Self-adaptive
Network ProtocolTCP/IP
General
InstallationSurface
PowerDC 12V/ POE provided by VI-SWITCH01
Power ConsumptionStandby ≤1.5W, Work ≤7W
Working Temperature-10°C~+55°C
Relative Humidity10%~90%RH
Dimensions200.5mm × 136.5mm × 22.0mm
Weight0.8Kg

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.

Related Products

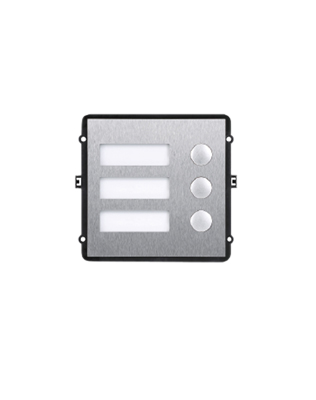

3 Button Module
