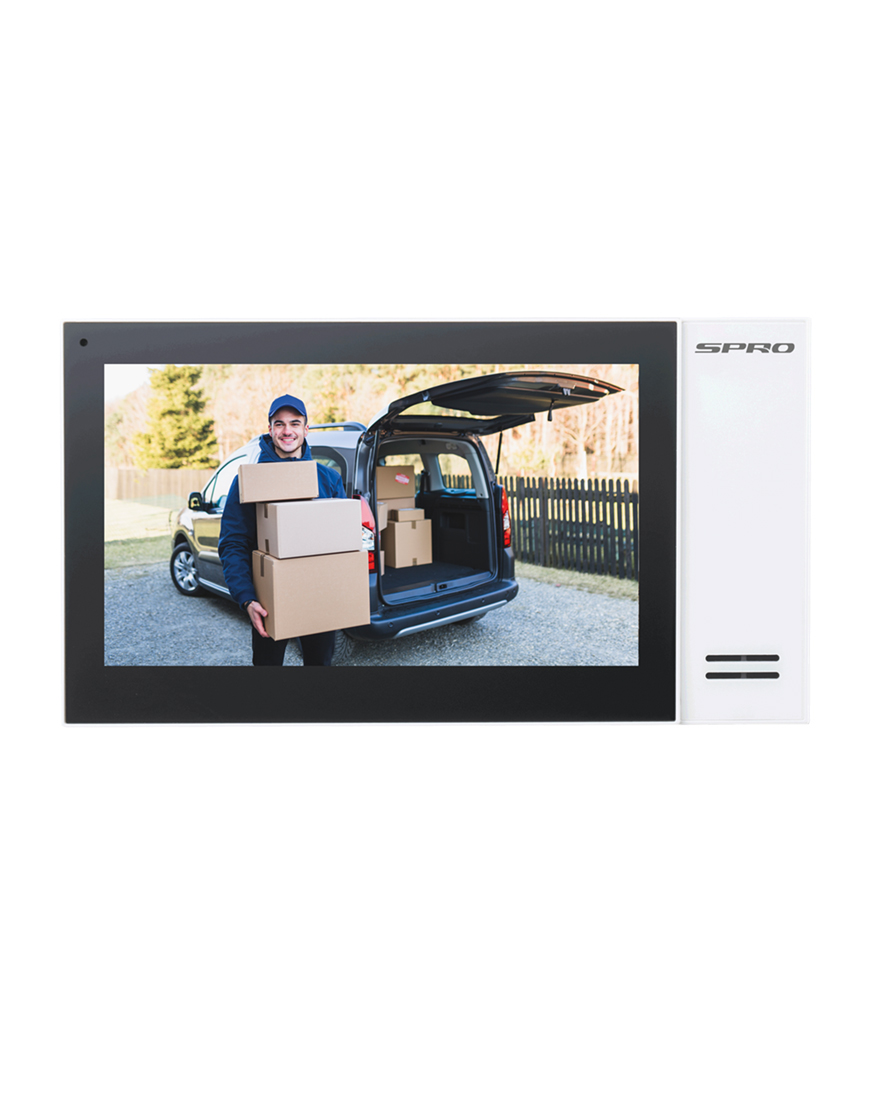

7" Touch Screen Monitor

7'' Touch Screen Monitor



No stock, call for alternative model

Part Number:  VI-MTR02-7-W

Key Features
- 7" TFT touch screen
- H.264
- 1024 x 600
- 8GB SD card embedded
- Alarm: 6 inputs & 1 output
- Compatible with SPRO CCTV
- Dimension: 120 x 222 x 22mm

Model NumberVI-MTR02-7-W
Main ProcessorHigh performace embedded processor
Operating SystemEmbedded LINUX OS
Screen TypeCapacitive screen
Display7-inch TFT screen
Resolution1024 600
Video CompressionH.264
Audio CompressionG.711A/G.711U/PCM
Audio Input1 channel all-direction microphone
Audio OutputBuilt-in 1.5W loudspeaker
Audio ModeSupport dual-way bidirectional talk
Audio EnhancementSupport echo cancellation/DNR
Audio Bit Rate16 kbps
Communication ModeFull digital
Information ReleaseSupport to receive and view notifications issued by center
Leave Videos or Text MessagesSupport
DND ModeSupport to set DND period
Sub-station Quantity9
Alarm Input6 channel (switch quantity)
Alarm Output1 channel
Network1 RJ-45
SOS AlarmSupport
Appearance ColorAppearance Color
Power SupplyStandard PoE DC 12V 1A
InstallationWall mount
AccessoriesDefault bracket / Default alarm cable
Dimensions119.6 mm 221.5 mm 21.5 mm
Operating Temperature-10C to +55C (+14F to +131F)
Operating Humidity-10C to +55C (+14F to +131F)
Power ConsumptionStandby≤4W, work≤6W
Gross Weight0.35 Kg (0.77 lb)
Power supply modePoE
StorageSupport Micro SD, maximum memory capacity 32 G,
standard memory capacity 8 G
