Wireless Station, Single Unit

Availability

In stock, immediate despatch

Part Number: WIRELESS01
IP Accessories Wireless Station

Information
Specifications
Delivery

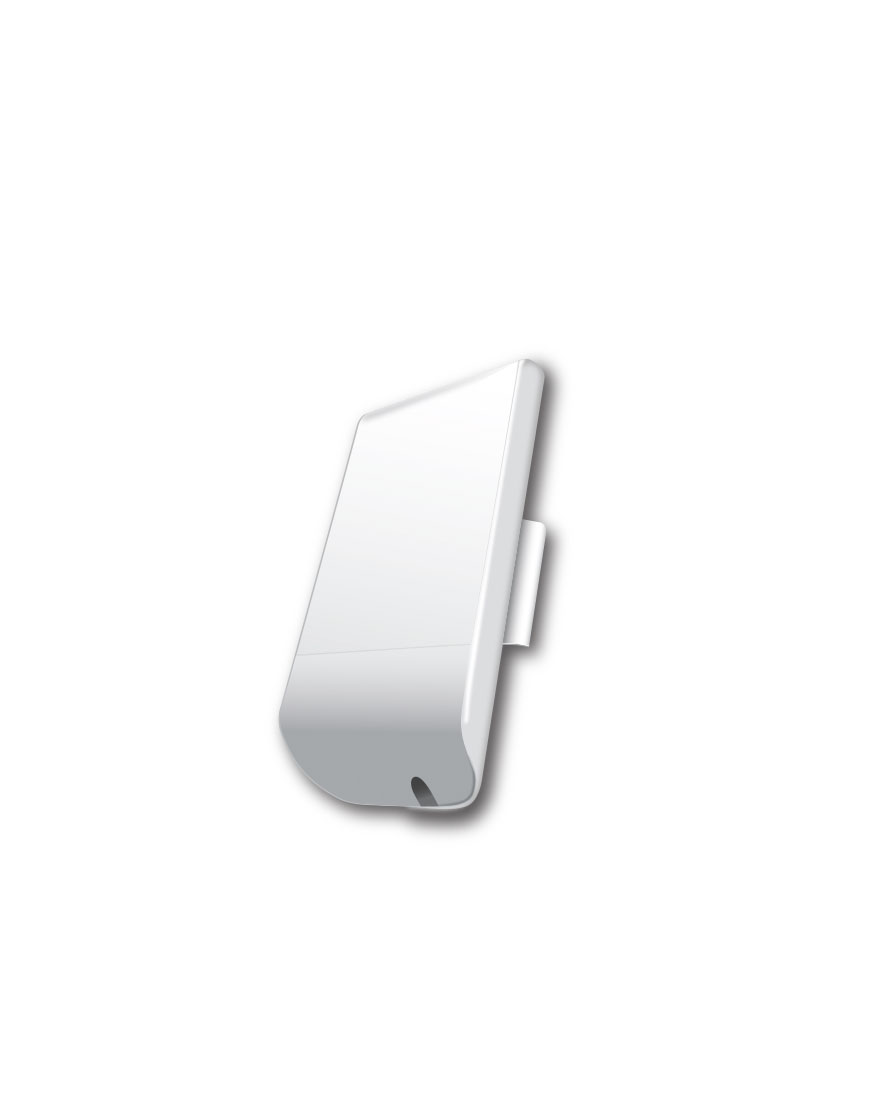

Wireless Station

• AP Mode, Bridge Mode
• On-Board LED Signal strength indicator
• Powerful Air O/S Software
• Up to 10 Km L.O.S Distance (Line of sight)
• QoS is given to Video and Data

Specifications:
Model Number	WIRELESS01
Dimensions	161 x 31 x 80 mm (6.31 x 1.22 x 3.15")
Weight	180 g (6.35 oz)
Power Supply (PoE)	24V, 0.5A
Max. Power Consumption	5.5W
Power Method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency	5170-5875 MHz
Gain	13 dBi
Networking Interface	(1) 10/100 Ethernet Port
Processor Specs	Atheros MIPS 74Kc, 560 MHz
Memory	64 MB DDR2, 8 MB Flash
Frequency	5 GHz
Cross-pol Isolation	20 dB Minimum
Max. VSWR	1.4:1
Beamwidth	45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization	Dual Linear
Enclosure	Outdoor UV Stabilized Plastic
Mounting	Pole-Mount (Kit Included)
Operating Temperature	-30 to 75° C (-22 to 167° F)
Operating humidity	5 to 95% Noncondensing
Wireless Approvals	FCC Part 15.247, IC RS210, CE
RoHS Compliance	Yes
Shock & Vibration	ETSI300-019-1.4
