| Specifications: | |
| Model Number | DHDVR06-B6-V2 |
| Main Processor | Embedded Processor |
| Operating Interface | Embedded LINUX |
| Perimeter Protection | |
| Performance | Advanced Model: 2 channels, 10 IVS for each channel
General Model: 4 channel, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
Face Detection Performance
AI by Recorder | 1 channel (up to 8 face image/ ) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20 000 images |
Face Recognition Performance
AI by Recorder | 1channels |
| SMD Plus | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle,
reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analogue Camera Input | 4 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 4K, 6 MP, 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps. |
| IP Camera Input | Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analogue channels are converted to IP channels)
incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
| Encoding Capacity | Main stream: All channel 4K@ (1 fps–7 fps); 6MP@ (1 fps–10 fps); 5MP@ (1 fps–12 fps);
4K-N, 4MP, 3MP@ (1 fps–15 fps); 4M-N, 1080p, 720p, 960H, D1, CIF@ (1 fps–25/30 fps);
Sub stream: 960H@ (1 fps–15 fps); D1,CIF@ (1 fps–25/30 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32kbps-6144kbps |
| Audio Sampling | 8kHz, 16 bit |
| Audio Bit Rate | 64kbps |
| Video Output | 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 21.12; CGI Conformant |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS 1/4 |
| Record Playback | 1/4 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback,
smart playback (face and motion detection) |
| Alarm | |
| General Alarm | Motion detection; video loss; tampering; local alarm |
| Anomaly Alarm | No disk, disk error, low space, offline, IP conflict, MAC conflict |
| Intelligent Alarm | Face detection, face recognition, perimeter protection |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |

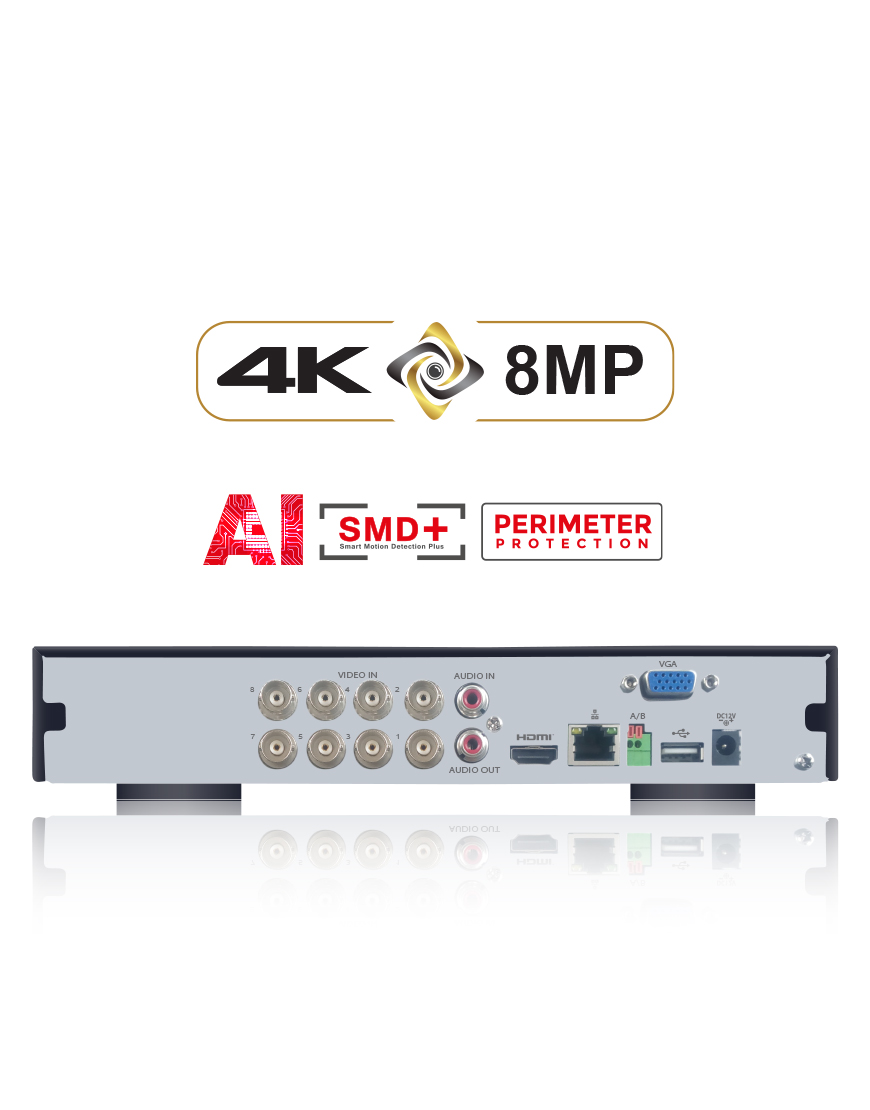

| Ports | |
| TV Output | 1-channel RCA 4-channel BNC (Coaxial Audio) |
| Audio Input | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 2 SATA ports, up to 16TB capacity for each disk. The Maximum HDD capacity varies with environment temperature. |
| RS-485 | 1 port, for PTZ control |
| USB | 2 USB ports (USB 2.0) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1(10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <7W |
| Net Weight | 0.53kg (1.17lb) |
| Gross Weight | 1.07kg (2.36lb) |
| Product Dimensions | 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'') (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 0%–90% (RH) |
| Installation | Desktop |
| Certification | |
| Certifications | FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 |
