| Specifications: | |
| Model Number | DHDVR24-B6-2H-V2 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Performance | Advanced Model:2 channels, 10 IVS for each channel
General Model: 8 channel, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance | 2 channels (up to 12 face images/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20 000 face images in total.
Name, gender, birthday, address, certificate type, certificate No.,
countries & regions and state can be added to each face picture |
| Face Recognition Performance | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 16 channel : Secondary filtering for human and motor vehicle SMD Plus,
reducing false alarms cause by leaves, rain and lighting condition change |
| Audio and Video | |
| Analogue Camera Input | 16 channel BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS
access can be configured. |
| Camera Input | 1. CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps.
2. TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps.
3. AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps. |
| IP Camera Input | Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analogue channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing
bandwidth: 128 Mbps *After IP channels are added beyond the existing channels,
the AI Function (IVS, SMD, FACE) will be disabled. |
| Dual-stream | Yes |
| Video Frame Rate | PAL: 1 fps - 25 fps
NTSC: 1 fps - 30 fps |
| Video Bit Rate | 32 kbps-6144kbps per channel |
| Audio Sampling | 8kH, 16 bit |
| Audio Bit Rate | 64 kbps |
| Bit Rate Type | Video stream and composite stream. |
| Video Output | 1 HDMI ,1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | When IP extension mode not enabled: 1 / 4 / 8 / 9 / 16
When IP extension mode enabled: 1 / 4 / 8 / 9 /16 / 25 / 36 |
| Third-Party Camera Access | Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung |
| Compression Standard | |
| Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Audio Compression | G.711A; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS: TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 21.06, CGI |
| Browser | Chrome, IE9 or above, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Frame Rate | General, motion detection; intelligent; alarm; POS |
| Recording Playback | When AI Function (IVS, FACE) is not enabled: 1 / 4 / 9 / 16
When the AI Function (IVS, FACE) is enabled: 1 / 4 / 9 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart
playback (face and motion detection) |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection, video loss, tampering |
| Anomaly Alarm | No disk, storage error, low space, offline, IP conflict, MAC conflict |
| Intelligent Alarm | Face detection, face recognition, perimeter protection |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |

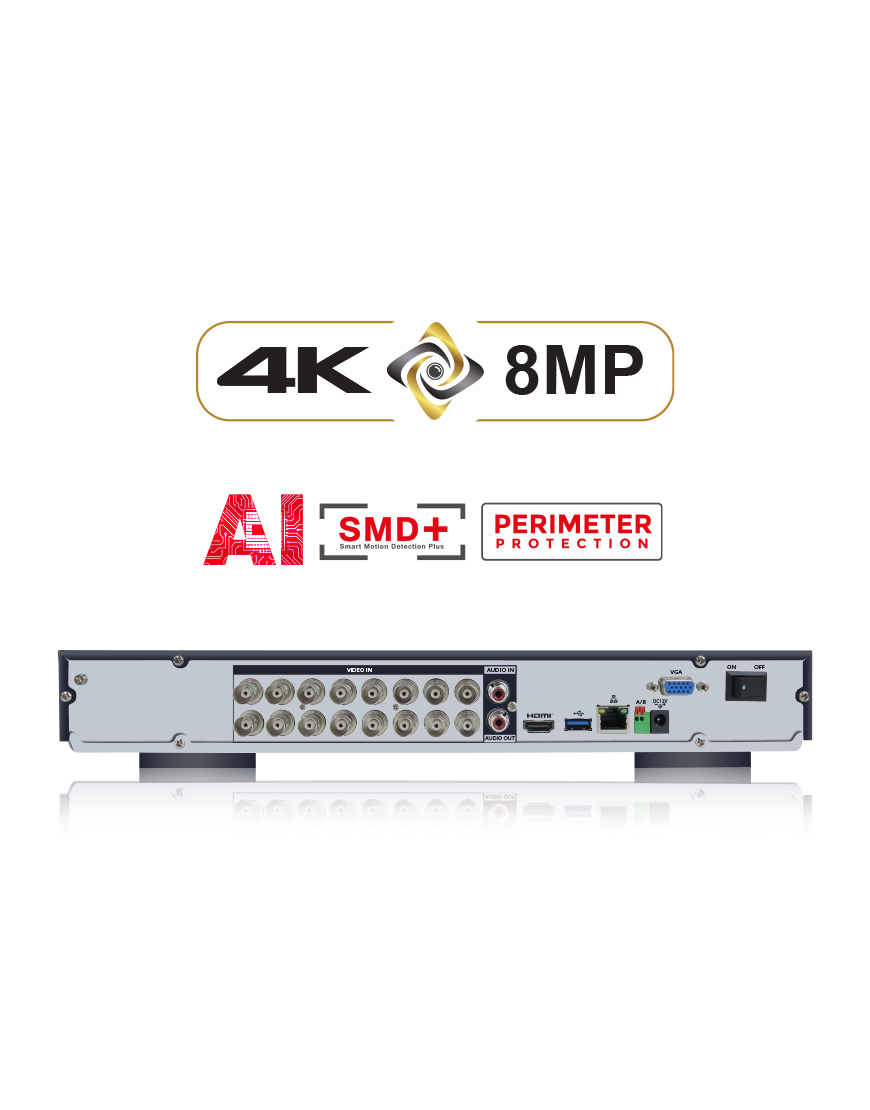

| Ports | |
| Audio Input | 1-channel RCA (External)
16-channel BNC (coaxial audio) |
| Audio Output | 1, RCA |
| Two-way talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 2 SATA ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature |
| RS-485 | 1 |
| USB | 2 ( 1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC. 5 A |
| Power Consumption | Lower than 15W (without HDD) |
| Net Weight | 1.77 kg (3.90lb) |
| Gross Weight | 2.94 (6.48 lb) |
| Product Dimensions | 1U, 375.0mm x 289.4mm x 53.0mm |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10% - 90% (RH) |
| Installation | Desktop |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2,
EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
