| Specifications: | |

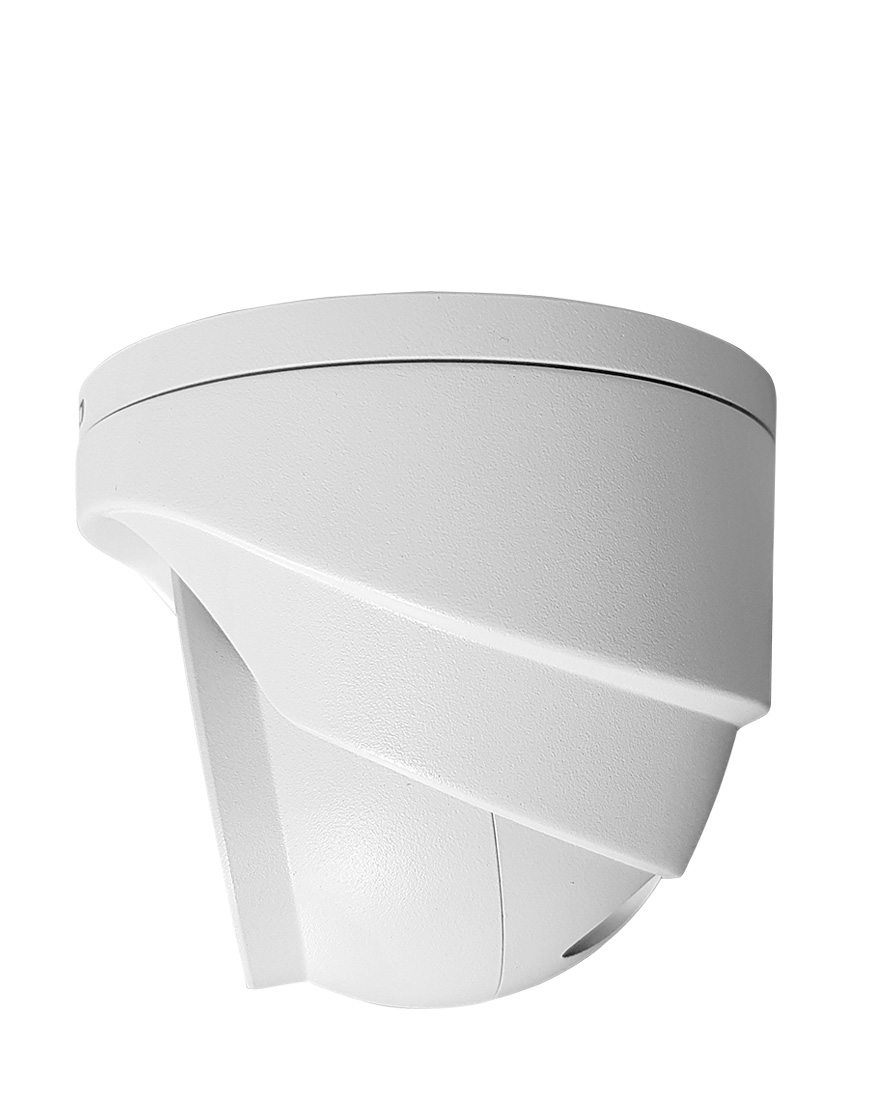

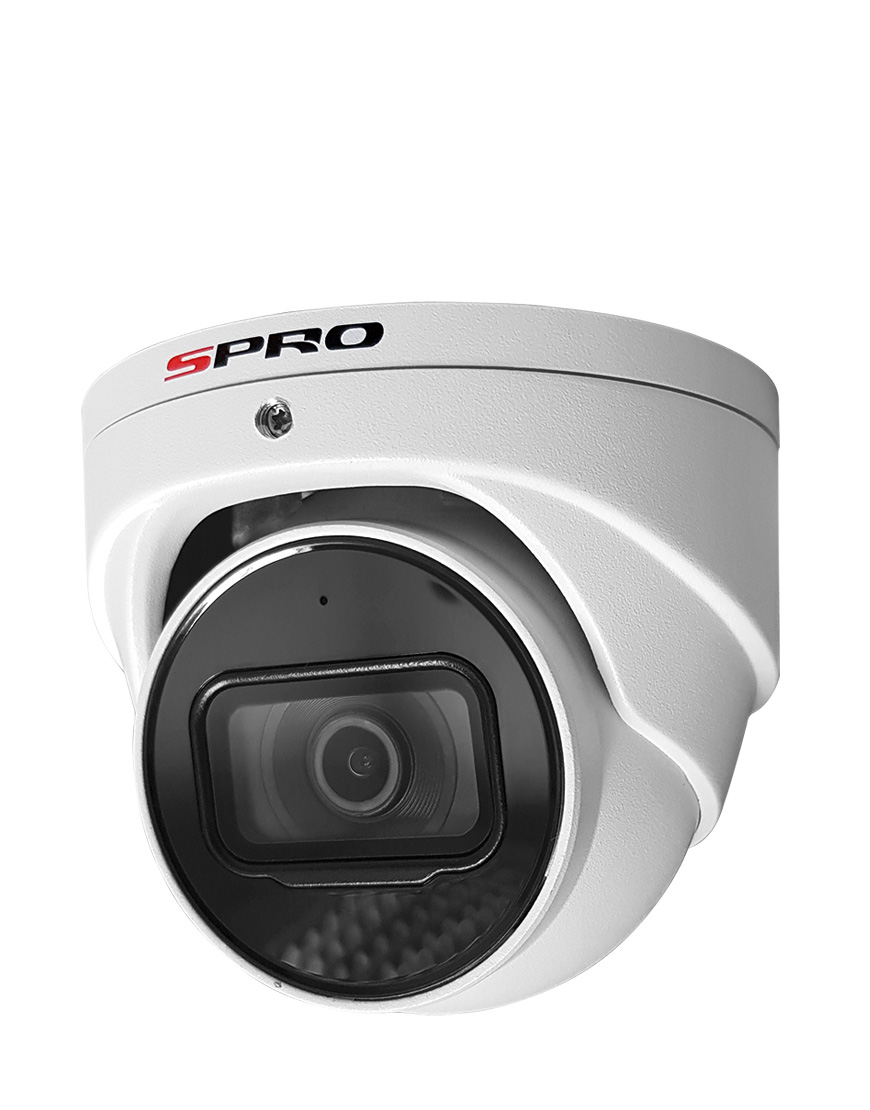

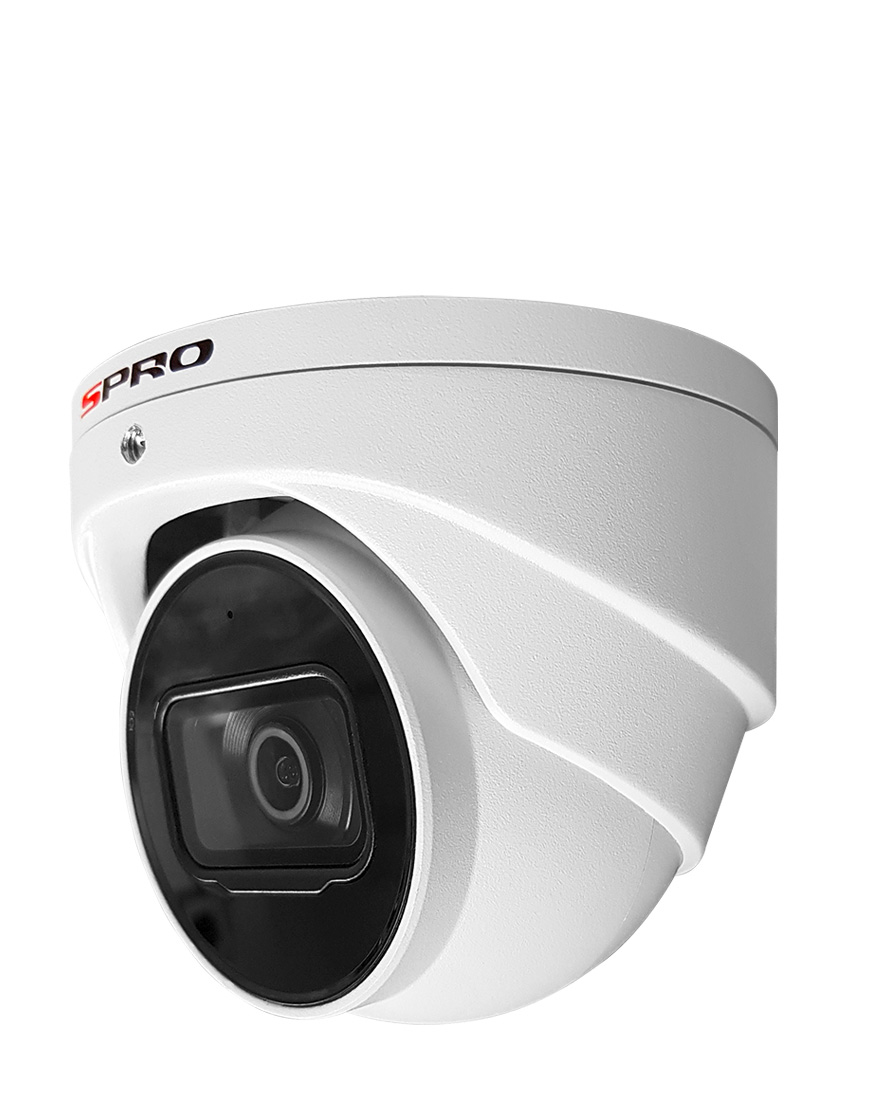

| Model Number | DHIPD50/28RW/30-M-I |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2960 (H) × 1688 (V) |
| RAM | 128 MB |
| ROM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| S/N Ratio | > 56 dB |
| Min. Illumination | 0.007 lux@F1.6 (Colour, 30IRE)
0.0007 LUX@F1.6 (B/W, 30 IRE)
0 lux (illuminator on) |
| Illumination Distance | 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 111°; V: 58°; D: 132° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.1 m (3.61 ft) |
DORI
Distance | Lens: 2.8mm
Detect: 63.6 m
Observe: 25.4 m
Recognise: 12.7 m
Identify: 6.4 m |
| Intelligence | |
| IVS | Intrusion, tripwire (the two functions support the classification and
accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search,
event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for
multiple streams, the values will be subjected to the total encoding
capacity. |
| Stream Capability | 2 streams |
| Resolution | 2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620);
2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296);
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720);
D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps |
| Day / Night | Auto (ICR)/Colour/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON ( 4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP
conflict; illegal access; motion detection; video tampering; tripwire;
intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User / Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD Card (support max.256 GB); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android; |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP;
SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
NFS; PPPoE; Boujour; P2P |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs;
WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC
filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption;
generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.2 W (12 VDC); 2.9 W (PoE)
Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS):
4.1 W (12 VDC); 5.0 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 89.2 mm × Φ105.0 mm |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.68 kg (1.50 lb) |
