SPRO 32 Channel 24MP IP NVR

SPRO 32 Channel 24MP IP NVR
  Zoom

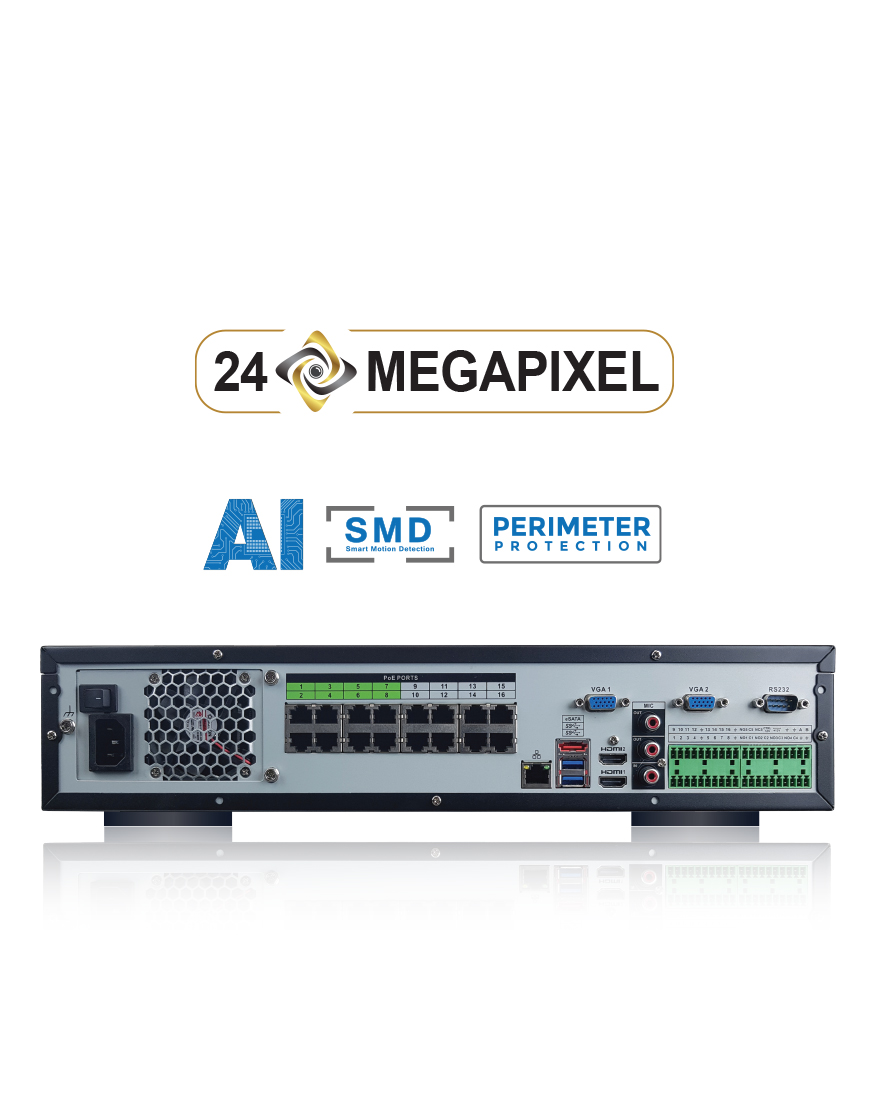

 SPRO 32 Channel 24MP IP NVRSPRO 32 Channel 24MP IP NVR

Part Number:  DHIPNVR32-4K-V4-0TB
Recorder Resolution  24 Megapixel
Channels  32
Codec recording  H.265
Audio over CAT5e  Yes
SMD (Smart Motion Detection)  Yes
Perimeter Protection  Yes
Tripwire  Yes
Intrusion  Yes
Face detection  Yes
Missing object  Yes
Abandoned object  Yes
Alarms  16 Alarms
Smart Dual Illumination Supported  Yes

The SPRO 32 Channel 24MP IP NVR (DHIPNVR32-4K-V4) is a powerful and reliable network video recorder that offers enhanced surveillance capabilities. With its 32 channel capacity, you can connect and record footage from up to 32 IP cameras, providing comprehensive coverage for large areas or multiple locations.

This SPRO IP NVR is designed to to record at up to 24MP resolution. These recorders feature Artificial Intelligence and Perimeter Protection as well as Smart Motion Detection which allows the recorder to virtually eliminate false alarms. This specific model also boasts ANPR capability.

Check out the SPRO video academy.

Specifications:
Model Number DHIPNVR32-4K-V4
Operating System Embedded LINUX
Display
Interface 2 HDMI, 2 VGA
Resolution 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 1st screen: 1/ 4/ 8/ 9/ 16/ 25/ 36 - 2nd screen: 1/ 4/ 8/ 9/ 16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 6 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event N/A
Playback & Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/ Network/ Internal SATA burner/ eSATA Device
Storage
Internal HDD 4 SATA III Ports, up to 10TB capacity for each HDD
HDD Mode Single, Raid 0/ 1/ 5/ 6/ 10
eSATA 1 eSATA port
Auxiliary Interface
Front Cover N/A
USB 4 ports (2 Rear USB3.0, 2 Front USB2.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more.
Audio and Video
IP Camera Input 32 channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Intelligence
Intelligent Functions Tripwire, Intrusion, Face detection, Object Abandoned/Missing
Recording
Compression H.265/ H.264/ MJPEG
Resolution 24MP/12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 720P/ D1&etc.
Record Rate 320Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec,
Post-record: 10~300 sec
Network
Interface 1 RJ-45 port (10/ 100/ 1000Mbps)
PoE 16 ports (IEEE802.3af/at)
1-8 ports support ePoE
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
Max. User Access 128 users
Smart Phone iOS & Android
Interoperability ONVIF 2.4, CGI Conformant
Electrical
Power Supply Single, AC 100~240V, 50/60 Hz
Power Consumption NVR: <20W (without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions 2U, 440mm × 450.1mm × 95mm (17.3" x 17.7" x 3.7")
Net Weight 7kg (15.4 lb) (without HDD)
Gross Weight 9.5kg (20.94 lb)

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.



Related Products

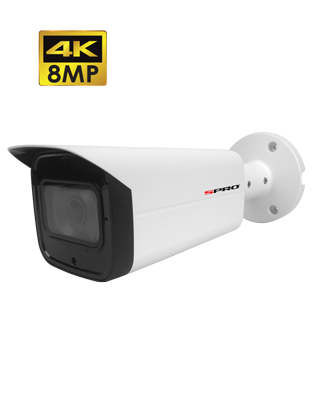

SPRO 8MP IP Motorised Lens Bullet
