| Specifications: | |
| Model Number | DHIPPTZ40/25XR-V2 |
| Image Sensor | 1/2.8" CMOS |
| ROM | 256 MB |
| RAM | 512 MB |
| Effective Pixels | 2560 (H) × 1440(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s |
| Min. Illumination | Colour: 0.005 Lux@F1.6;
B/W: 0.005 Lux@F1.6;
0 Lux |
| Illumination Distance | 100 m (328.08 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual, Smart IR; Off |
| Illuminator Number | 4 (IR) |
| Lens | |
| Focal Length | 4.8 mm - 120 mm |
| Max Aperture | F1.6 - F3.8 |
| Field of View | H: 56.2°–2.6°; V: 32.5°–1.5°; D: 63.2°–3° |
| Optical Zoom | 25x |
| Focus Control | Auto; Semi-Auto; Manual |
| Close Focus Distance | 1.5m (4.92 ft) |
| Iris Control | Auto; |
| DORI Distance | Detect: 2,400m; Observe: 948m; Recognize: 480m; Identify: 240m |
| PTZ | |
| Pan / Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–200°/s;
Tilt: 0.1°/s–100°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| Protocol | DH-SD, Pelco-P/D (auto recognition) |
| Intelligence | |
| IVS (Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| Face Detection | Yes |
| SMD | Yes |
| Video | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H;
MJPEG (Sub Stream 1) |
| Stream Capability | 3 Streams |
| Resolution | 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960);
720p (1280 × 720); D1 (704 × 576/704 × 480);
CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 4M/1080p/1.3M/720p (25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 720p (1–25/30 fps) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps; H.265: 32 Kbps–8192 Kbps |
| Day / Night | Auto (ICR); Colour; B/W |
| BLC | Yes |
| WDR | 120dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | Electronic |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥ 55 dB |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6;
802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2);
IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP |
| Interoperability | ONVIF Profile S&G&T; CGI |
| Streaming Method | Unicast / Multicast |
| User / Host | 20 ( total bandwidth: 64 M ) |
| Storage | FTP; Micro SD card (512 GB); NAS |
| Browser | IE 7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari |
| Management Software | SPRO CSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014 |
| Port | |
| Alarm Linkage | Capture; preset; tour; pattern; recordings on SD card; alarm digital input; sending email |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detect |
| Two-way Audio | 2/1 |
| Power | |
| Power Supply | 12 VDC, 3 A (± 10%)
PoE+ (802.3at) |
| Power Consumption | Basic: 12 W
Max.: 21 W (illuminator + PTZ working) |
| Environment | |
| Operating Conditions | –40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity | ≤ 95% RH |
| Protection | IP66; TVS 6000 V lightning proof; surge protection; voltage
transient protection |
| Structure | |
| Casing | Aluminum alloy ADC12 |

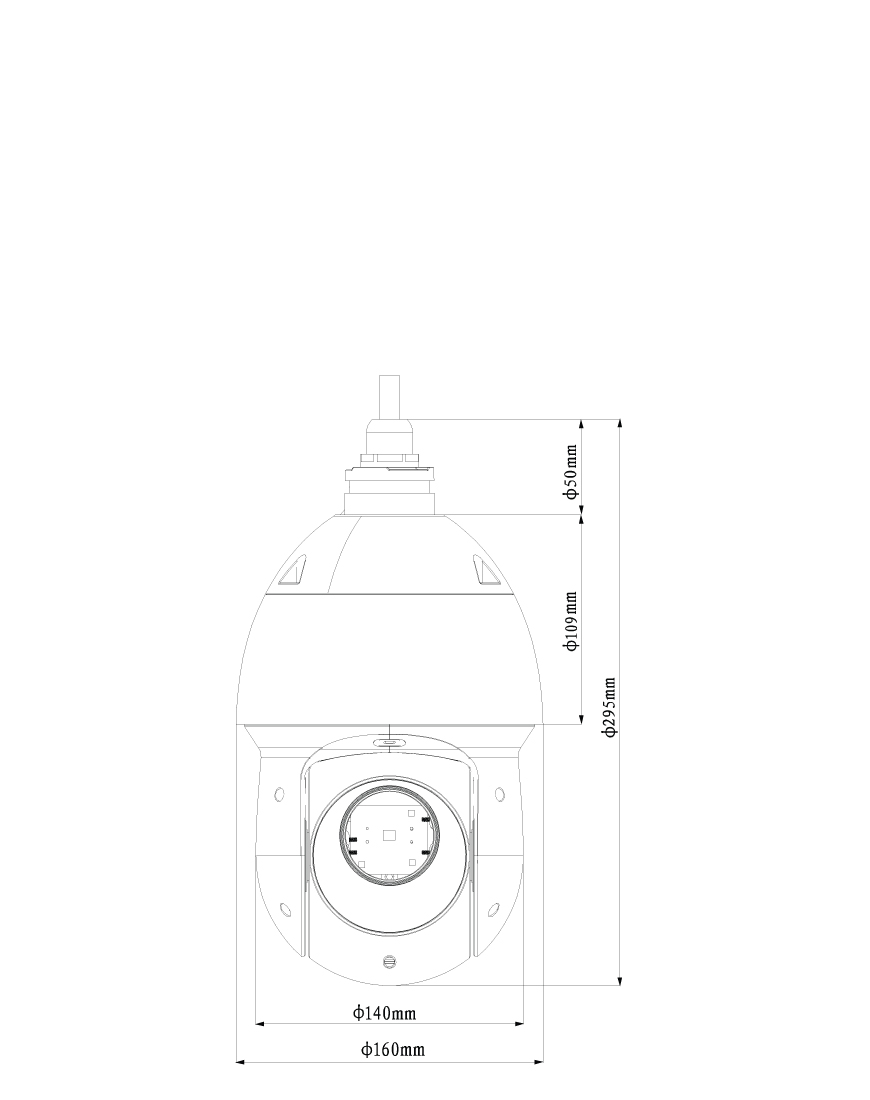

| Product Dimensions | 295 mm × Φ160 mm (11.61" × Φ6.30") |
| Net Weight | 2.8 kg (6.17 lb) |
| Gross Weight | 4.3 kg (9.48 lb) |
