| Specifications: | |
| Model Number | DHIPPTZ80/25XR-AI-V2 |
| Image Sensor | 1/1.8" CMOS |
| Effective Pixels | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30000 s |
| Scanning System | Progressive |
| Min. Illumination | Colour: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux@F1.6 (IR light on) |
| Illumination Distance | 150 m (492.13 ft) |
| Illuminator On/Off Control | Zoom Prio/ Manual/ Off |
| Illuminator Number | 4 (IR Light) |
| Lens | |
| Focal Length | 5.4 mm–135 mm |
| Max Aperture | F1.6 – F4.0 |
| Field of View | H: 61.6°–3.6°; V: 35.7°–2°; D: 66.6°–4° |
| Optical Zoom | 25x |
| Focus Control | Auto/ Semi-Auto/ Manual |
| Close Focus Distance | 0.1 m- 2m |
| Iris Control | Auto; Semi-Auto; Manual |
| DORI Distance | Detect: 2700m-Observe: 1066m-Recognize: 540m-Identify: 270m |
| PTZ | |
| Pan/Tilt/Rotation | Pan: 0°–360° endless, Tilt: –15° to +90°, auto flip 180 |
| Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–140°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset/ Tour/ Pattern/ Scan |
| Protocol | DH-SD, Pelco-P/D (auto recognition) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection;
abandoned/missing object; fast moving; parking detection;
people gathering; vehicle/human alarm classification; linkage tracking
Object Abandoned/Missing |
| Face Detection | Supports face detection, face bounding box, capturing snapshots,
uploading face snapshots, enhancing face images, and selecting
a preferred image among a group of snapshots. Attribute Extraction
is also supported, where 6 attributes and 8 expressions can be
detected. The attributes are gender, age, glasses, mask, mustache
and expressions. The expressions are angry, sad, hate, scared,
Surprised, calm, happy and confused. Face cut out is also offered,
where you can cut out one face at a time and customize the size
to be a one-inch photo. The supported methods for capturing
snapshots are real-time capturing, quality first, and selecting a
preferred image among a group of snapshots. |
| Alarm tracking | Yes |
| Quick Pic | With AI NVR, quickly pick up the human/vehicle targets that users are
interested in from SMD events. |
| SMD | Yes |
| Video | |
| Compression | H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; MJPEG; H.264M |
| Streaming Capability | 3 streams |
| Resolution | 4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536);
1080p (1920 × 1080); 960p (1920 × 960); 720p (1280 × 720);
D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240);
VGA (640 × 480) |
| Video Frame Rate | Main stream: 8M/4M/3M/1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/CIF/VGA (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 128 kbps–16,384 kbps
H.265: 51 kbps–12,288 kbps |
| Day/Night | Auto (ICR)/ Colour/ B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; Indoor; Outdoor; Tracking; Manual; Sodium lamp;
Natural light; Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D NR; 3D NR; |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view;
multiple colours available |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x;
HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL;
DHCP; SMTP; Qos; RTSP; ARP |
| Interoperability | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Streaming Method | Unicast / Multicast |
| User/Host | 20 (total bandwidth 64M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | IE9 and later versions ; Chrome 41 and earlier versions Firefox 50 and earlier versions ; Safari 10 and earlier versions ; |
| Management Software | SPRO CSS |
| Smart Phone | iOS; Android |
| Certification | |
| Certification | CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
| Port | |
| Audio In | 1 (LINE IN; bare wire) |
| Audio Out | 1 (LINE OUT; bare wire) |
| Alarm | |
| Alarm Linkage | Capture; recordings; send email; preset; tour; pattern; alarm
digital input |
| Alarm Event | Motion/tampering detection; audio detection; network
disconnection detection; IP conflict detection; memory card
status detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 24 VDC/2.5 A ± 25%
PoE+ (802.3at) |
| Power Consumption | Basic: 12 W
Max.: 21 W (IR light + PTZ) |
| Environment | |
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection. |

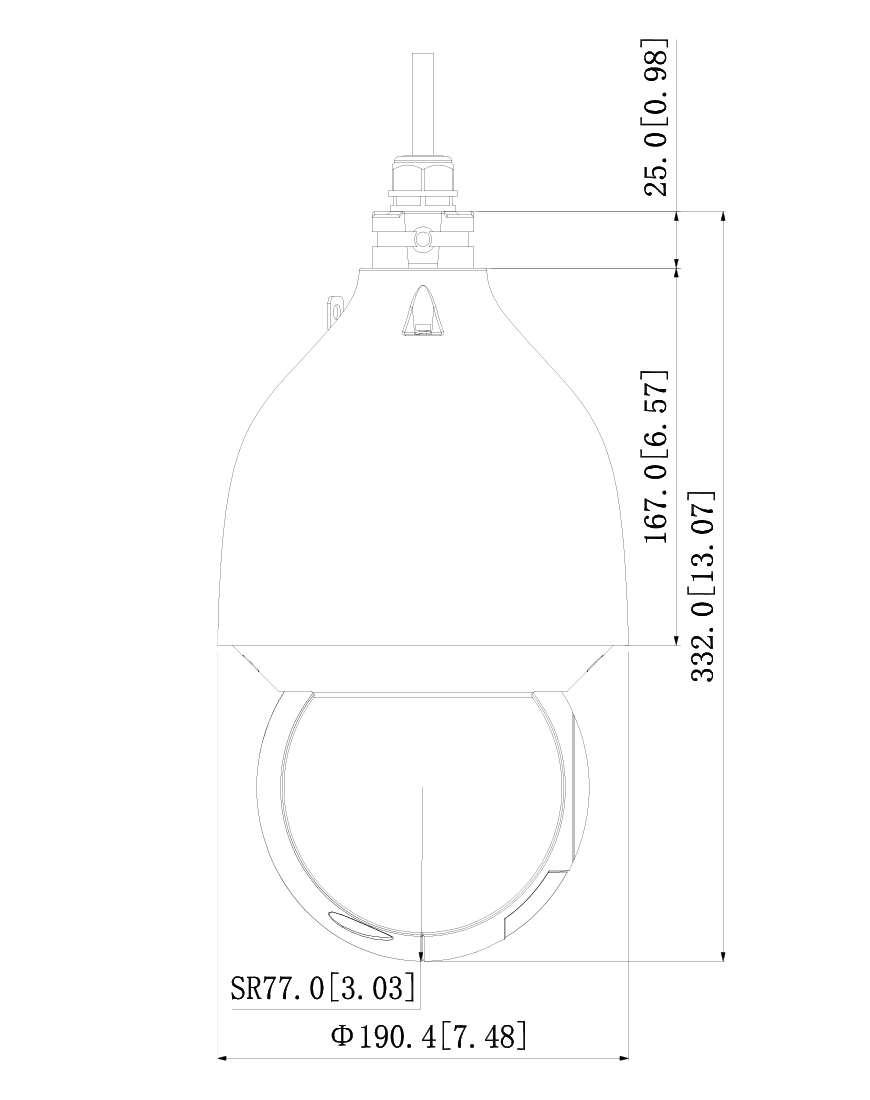

| Dimensions | Φ190 mm×332 mm |
| Net Weight | 4.7Kg |
| Net Weight | 8Kg |
