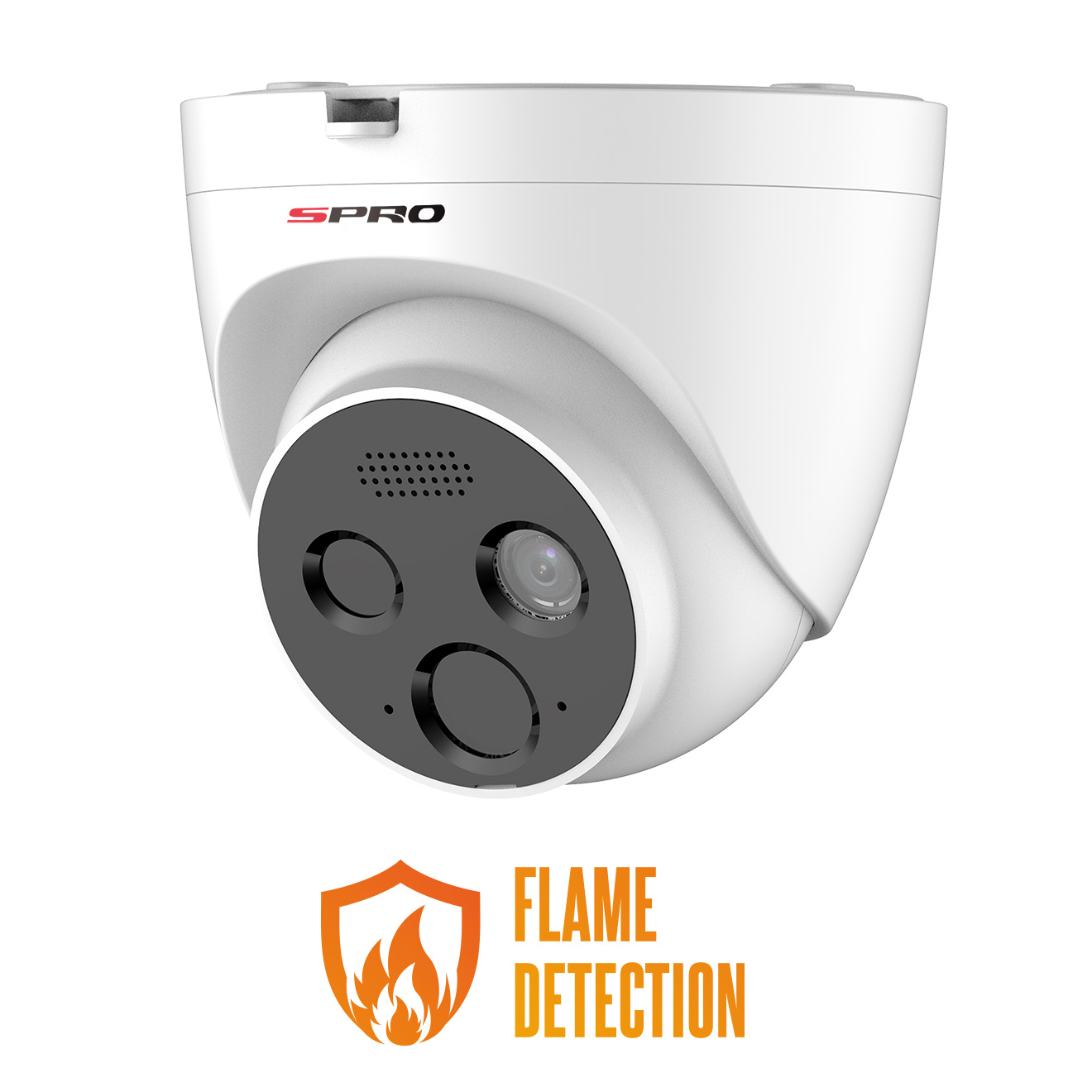

SPRO 2MP Flame Detection Camera

SPRO 2MP Flame Detection Camera
 SPRO 2MP Flame Detection CameraSPRO 2MP Flame Detection Camera

Availability



In stock, immediate despatch

SPRO 8MP IP NVR with AI PRO Technology
SPRO 8MP IP NVR with Flame Detection & AI PRO Technology
Pole Bracket
Wall Bracket, White

Part Number:  DHIPFD20/15R-T12L4
Brand:  SPRO
Camera Resolution  2 Megapixels
Lens  Fixed Lens
IR Distance  Up to 15m IR distance
Flame Detection  Yes
Built-in Mic.  Yes
Speaker Built-in  Yes
2 Way Audio  Microphone & Speaker Built-in

SPRO

SPRO’s Flame Detection Camera is a powerful tool in next generation fire prevention.

Using advanced AI Technology, the camera can detect the smallest flicker of a flame, giving advanced warning even before most conventional fire alarm systems have sounded.

This camera is a comprehensive safety tool effective in high risk of fire environments such as warehouses handling highly flammable materials, server rooms, recycling centres, libraries and archive rooms, shopping malls, etc.

The full flame detection functionality on this camera will only work with SPRO A6, A7 and A8 NVRs.

Key Features

  • 2 megapixel
  • 4mm visible focal length
  • 1.2mm thermal focal length
  • Up to 15m IR distance
  • Flame detection with adjustable sensitivity
  • Flame detection distance: 10m x 10m
  • Alarm siren
  • Tracking flame position
  • Alarm: 1 in & 1 out
  • 2 way audio
  • IP66 waterproof
  • DC 12V/POE



Specifications:
Model Number DHIPFD20/15R-T12L4
Thermal Lens
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 120 (H) × 90 (V)
Pixel Pitch 17 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) < 60mK@f/1.0
Focal Length 1.2 mm
Close Focus Distance 0.4m 1.31 ft
Field of View Horizontal: 90°; Vertical: 67.5°
Thermal Focus Control       Fixed-focal
Field of Depth >3 cm
Aperture F1.1
Flame Detection Distance 10m²: 10m x 10m
Visible Lens
Image Sensor 1/2.7" CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2 MP
Min. Illumination Colour: 0.05 lux; B/W: 0.005 lux; 0 lux (IR on)
Visible AGC Auto; Manual
Visible Noise Reduction 2D NR; 3D NR
S/N Ration ≥ 55 dB
Electronic Shutter Speed 1 s–1/30,000 s (manual/auto)
BLC Yes
WDR DWDR
HLC Yes
Day/Night Auto (ICR); Colour and B/W
Iris Control Fixed
Image Flip 90°; 180°; 270°
Exposure Compensation Yes
Visible Focus Control Fixed-focal
Focal Length 4 mm
Field of View H: 86°; V: 46°; D: 101°
Close Focus Distance 1 m (3.28 ft)
Aperture F1.6
Illuminator IR
Illuminator On/Off Control Auto; Manual
Illumination Distance 15m (49.21ft)
Illumination Angle 100°
Audio and Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Resolution Visible:
Main stream: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576);
1920×1080 by default Sub stream: 720p (1280 × 720); D1 (704 × 576);
CIF (352 × 288); 352 × 288 by default
Video Frame Rate Visible:
Main stream: 1 fps–25 fps adjustable, 25 fps by default Sub stream:
1 fps–25 fps adjustable, 15 fps by default
Audio Compression G.711a; G.711mu; AAC; PCM
Image Encoding Format JPEG
Function
Two-way Audio Yes
Visible and Audible Alarm Yes
Network Protocol HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS;
DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Interoperability ONVIF; GB/T28181; CGI;
Browser IE: IE 9 and later (Edge is not supported)
Chrome: 42 and earlier
Firefox: 42 and earlier
User / Host Up to 10 (total bandwidth: 100 MB)
Security Authorized username and password; attached MAC address;
encrypted HTTPS; IEEE 802.1x; controlled network access
Intelligence
Flame Detection Yes
Cold / Hot Spot Trace N/A
Port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 1 channel
Alarm Output 1 channel
Alarm Linkage Relay output / Email / Snapshot
Alarm Event Local audible and visual alarm notification
Power
Power Supply 12 VDC ± 20%; PoE
Power Consumption Basic: 4.5 W (12 VDC, LED off)
Max.: 10.1 W (12 VDC, LED on, heat on)
Environment
Operating Temperature –20°C to +60°C (–4°F to +140°F)
Operating Humidity ≤ 95%
Storage Temperature –20°C to +70°C (–4°F to +158°F)
Construction
Protection IP66, anti-surge 2 kV; anti-electrostatic 6 kV ; anti-electrostatic 8 kV
Product Dimensions φ110mm × 88.6mm (φ4.33" × 3.49")
Net Weight –≤ 0.85 kg (1.87 lb)
Gross Weight ≤ 1 kg (2.20 lb)
Installation Ceiling/Pole/Wall mount
