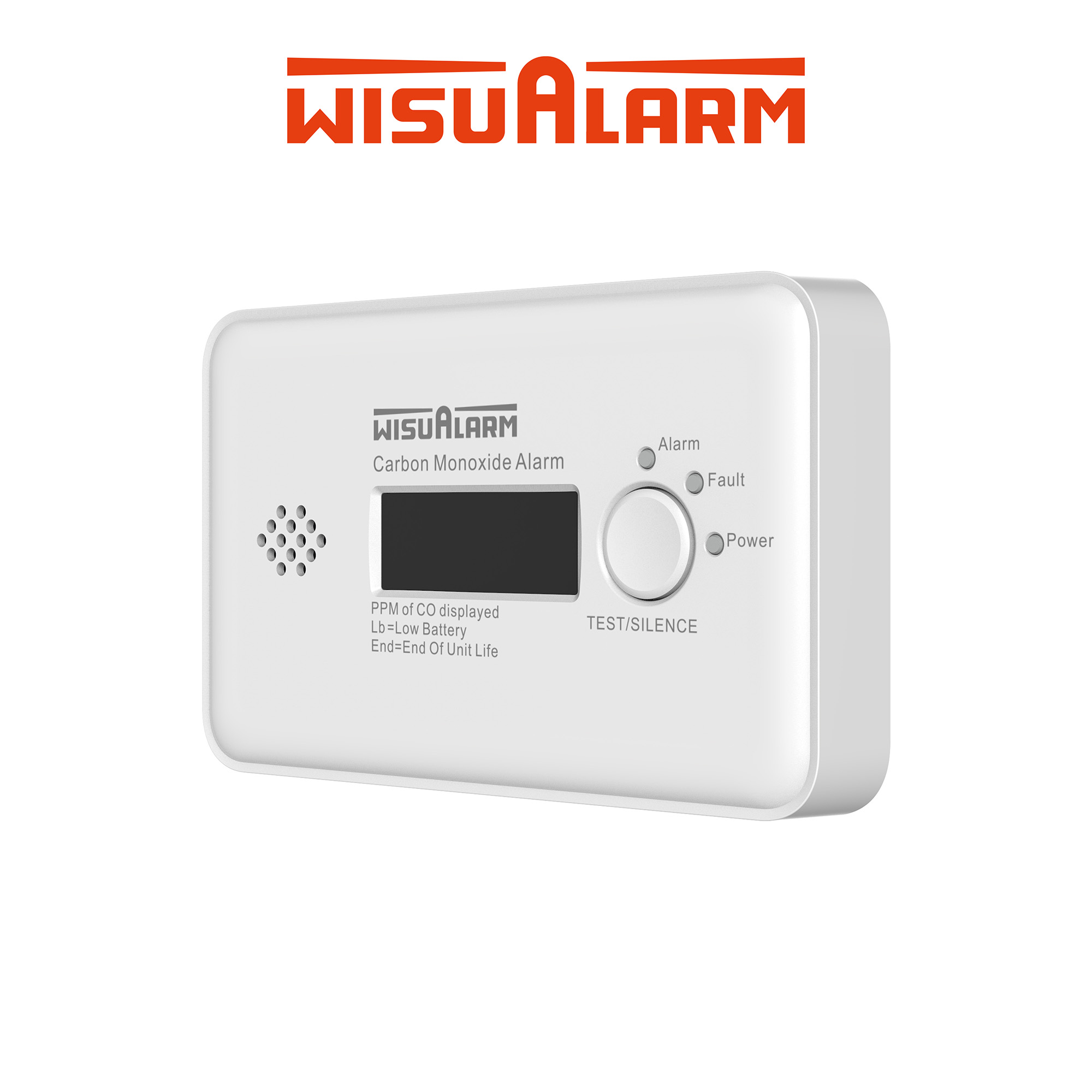

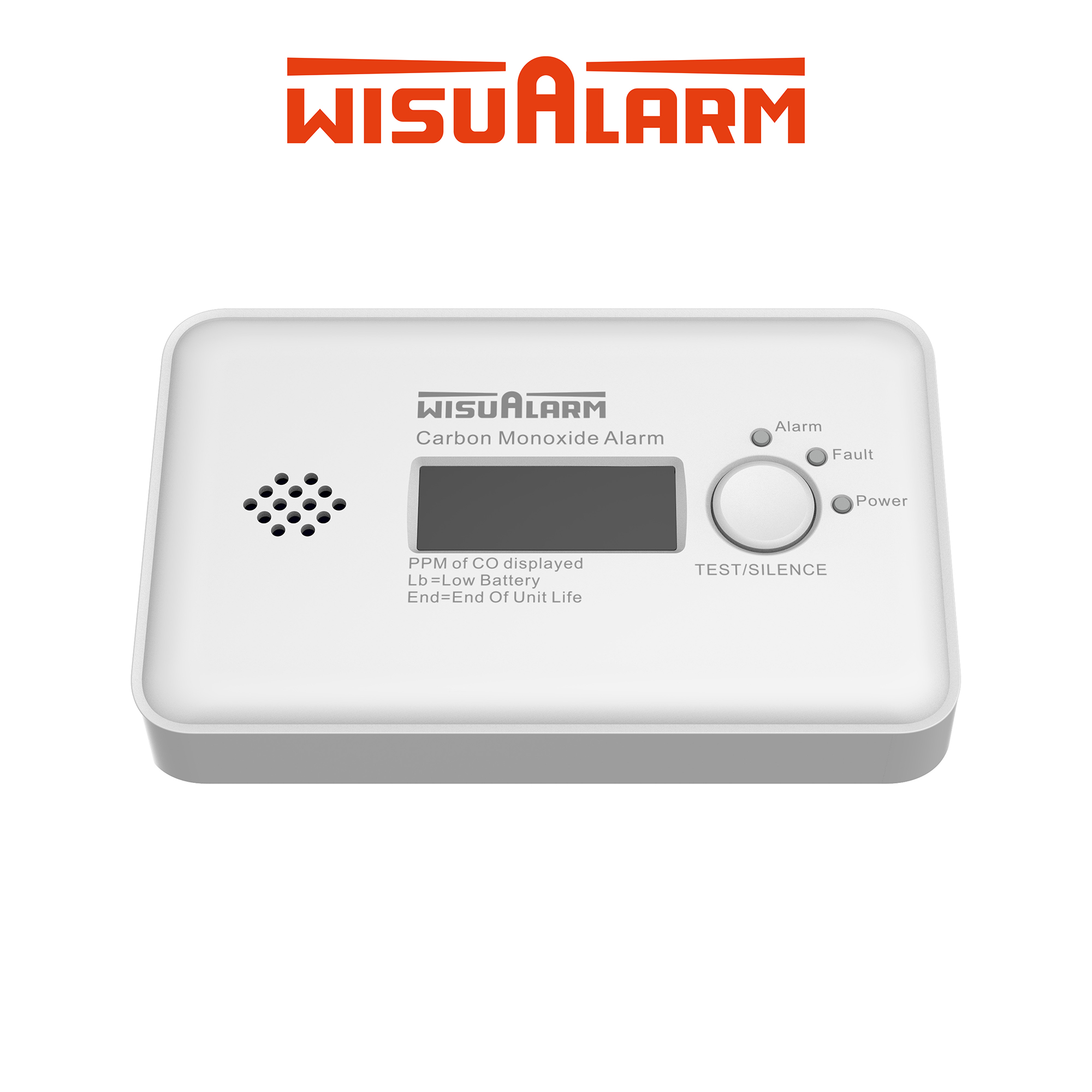

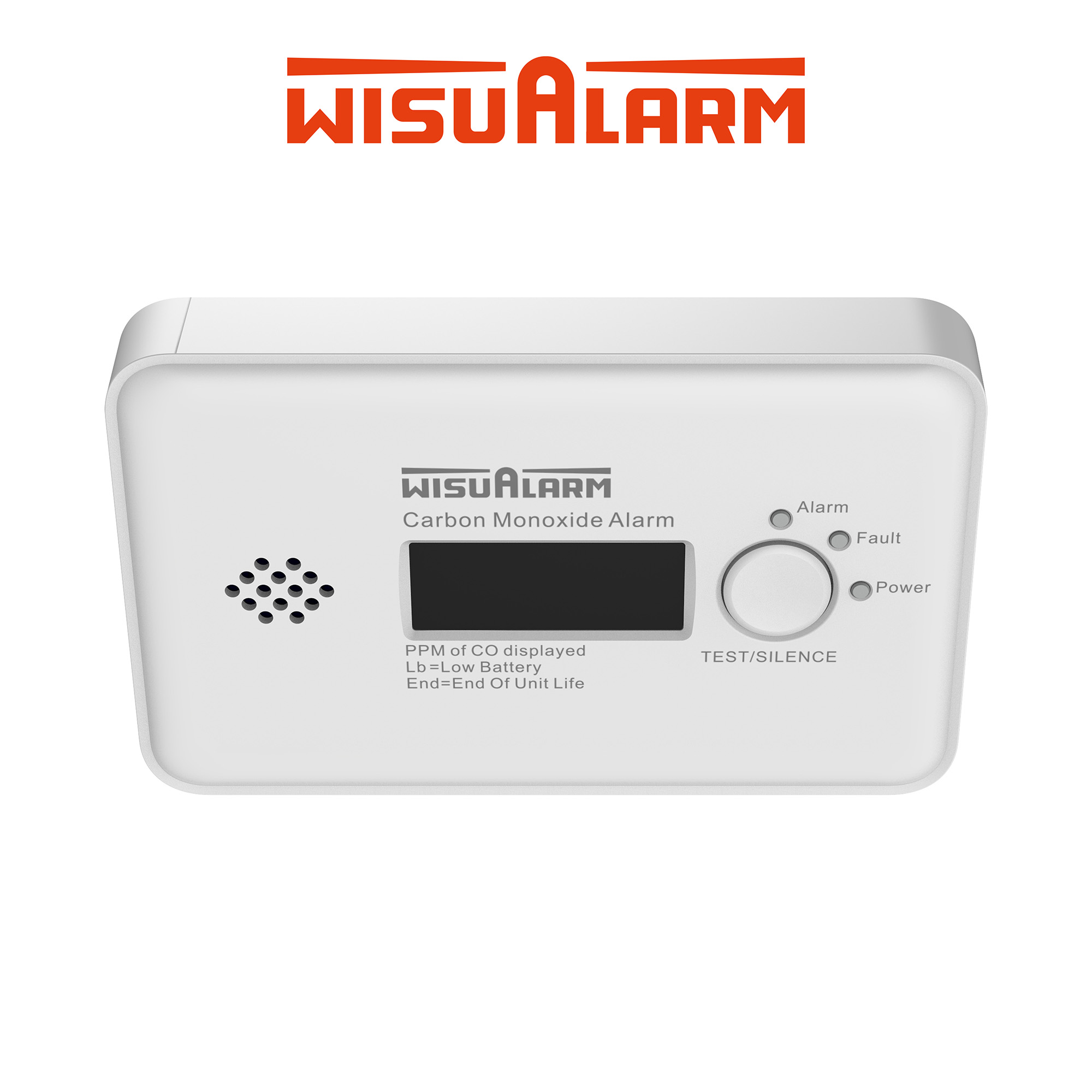

WisuAlarm Standalone Carbon Monoxide Alarm ( WA-HY-GC20B )

Zoom

Availability

No stock, call for alternative model

Part Number: WA-HY-GC20B

Information
Specifications
Delivery

The Wisualarm Standalone Carbon Monoxide Alarm is designed to continuously monitor Carbon Monoxide concentration. Adopting advanced electrical technology, a built-in high-volume buzzer, it responds quickly and becomes highly sensitive with stable performance and low false alarm. Once the surrounding Carbon Monoxide concentration reaches the alarm value, it will promptly send out an audible and visual alarm signal to remind the user to take immediate

TECHNICAL SPECIFICATION:
Model Number	DHI-HY-GC20B
Collection Type	Carbon Monoxide (CO)
Sensor Type	Electrochemical
Alarm
Alarm Type	CO alarm, fault alarm, low battery warning
Alarm Volume	Over 85dB (A) at 3 m (9.84 ft)
Alarm Mode	Visual and audible alarm
Silence Function	Support
Silence Duration	About 45 seconds
Alarm Response Threshold	50 ppm: 60 min - 90min 100 ppm:10 min - 40 min 300 ppm: <3 min
Basic Parameters
Display	LCD
Indicator Light	LED ( red/yellow/green )
LED Instructions	Alarm: Red indicator Fault: Yellow indicator Power: Green Indicator
Power Supply
Battery Life	10 Years
Power Source	3V CR123A Lithium battery (replaceable)
Operating Current	Monitor Current: ≤ 20uA Alarm Current: ≤ 10mA
Operating Ambient
Operating Environment	Indoor use only
Operating Temperature	–10°C to +40°C (+14°F to +104°F)
Operating Humidity	≤95% RH (non condensing)
Appearance
Colour	White
Material	PC + ABS
Dimensions	116.4 mm × 71.7 mm × 28.3 mm (4.58" × 2.82" × 1.11")
Weight	125 g
Installation	Wall Mount
Certification
Certifications	TÜV and CE listed
Compliance Standard	CEN 50291-1:2018
