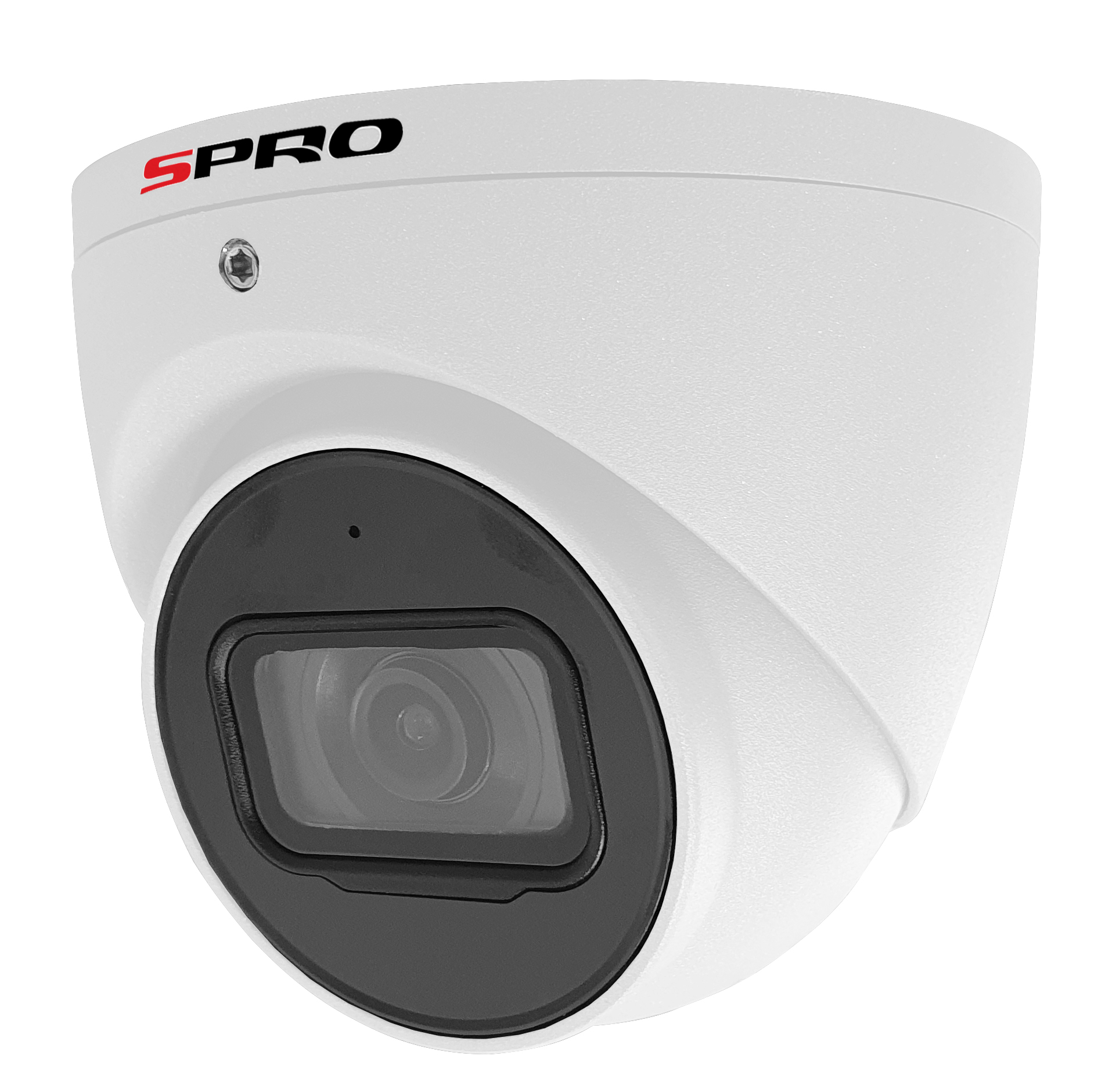

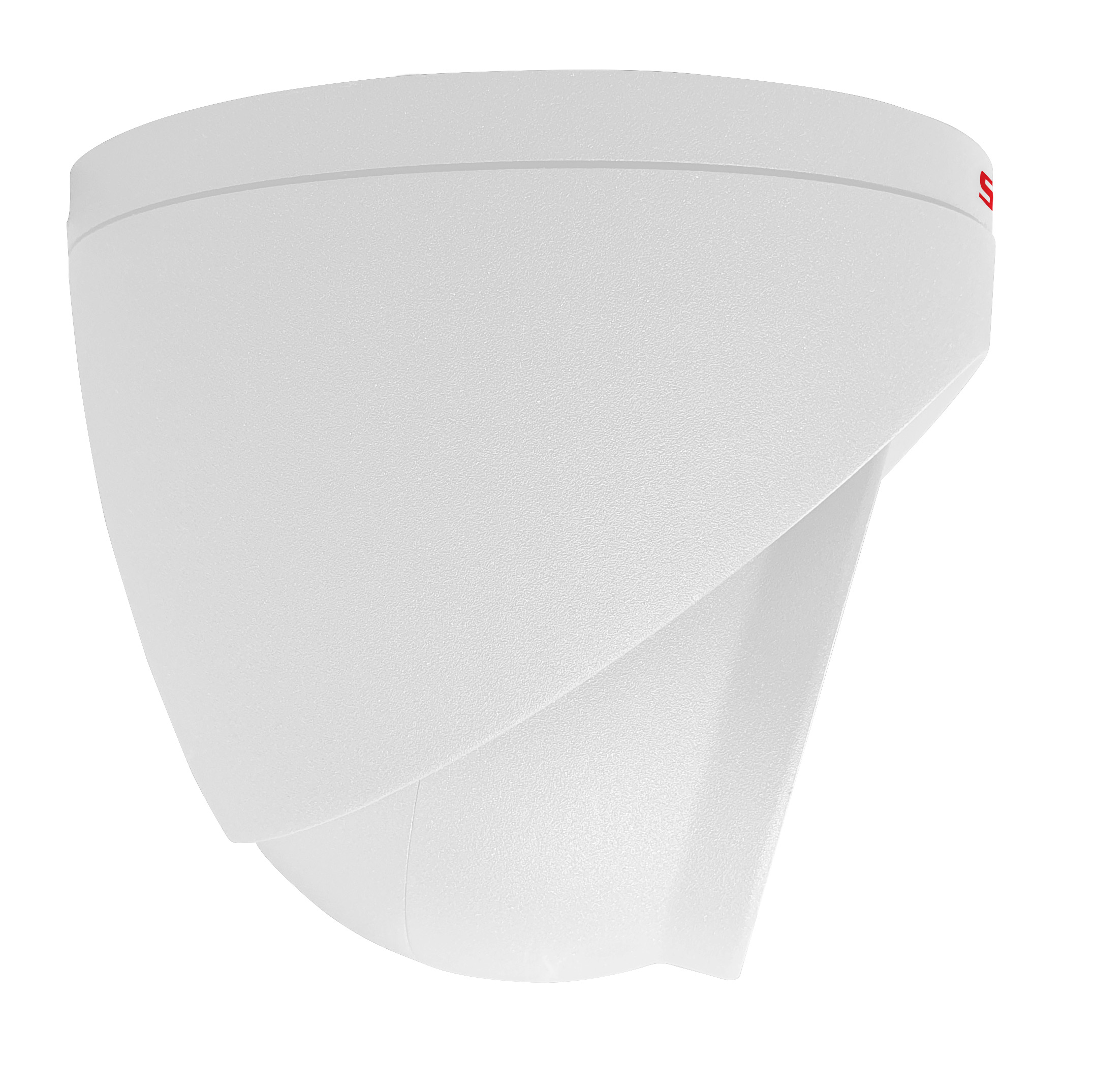

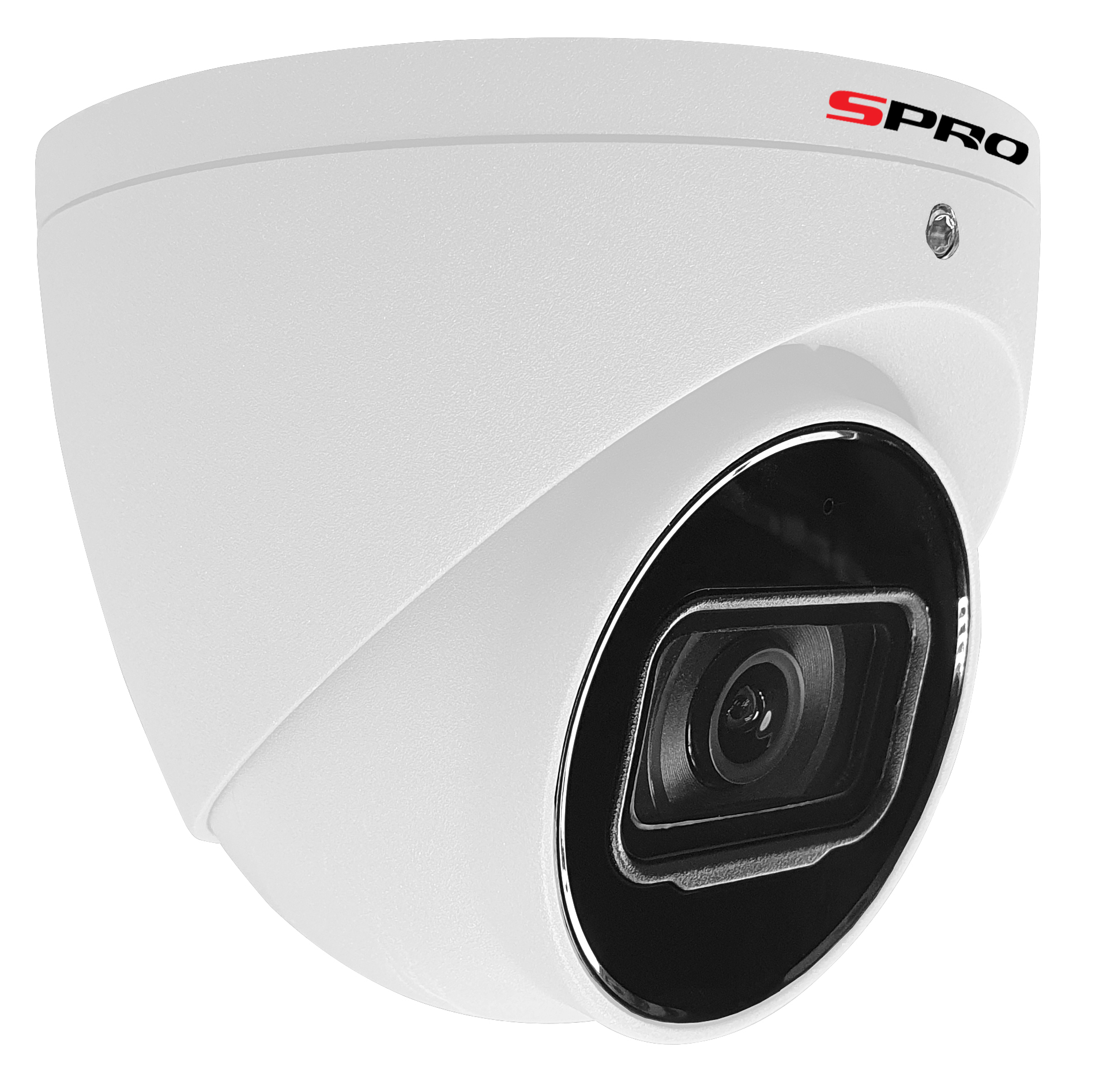

SPRO 5MP HDCVI Fixed Lens Turret With Built-In Microphone and POC

SPRO 5MP HDCVI Fixed Lens Turret With Built-In Microphone and POC
  Zoom
SPRO 5MP HDCVI Fixed Lens Turret With Built-In Microphone and POCSPRO 5MP HDCVI Fixed Lens Turret With Built-In Microphone and POCSPRO 5MP HDCVI Fixed Lens Turret With Built-In Microphone and POCSPRO 5MP HDCVI Fixed Lens Turret With Built-In Microphone and POC

Availability



In stock, immediate despatch

Deep Base, White
Wall Bracket, White

Part Number:  DHD50/28RW-T-M-POC
Camera Resolution  5 Megapixels
Lens  Fixed Lens
IR Distance  Up to 50m IR distance
Protocol  CVI
Built-in Mic.  Yes
POC  Yes
Style  Turret

The DHD50/28RW-T-M-POC turret style POC camera can achieve up to 50m IR distance, much more than standard eyeball domes. It comes with a built-in microphone so can utilise the audio over co-ax feature.

POC allows a compatible DVR to power a POC camera using the same cable as the video. This means less cabling is required saving you time and money. In this instance a single co-ax cable could transfer video, power the camera and carry an audio signal to a compatible DVR.

Audio over co-ax allows the camera to transmit audio picked up from its built-in microphone and transmit this over the came co-ax cable as the video transmission. An audio over co-ax compatible recorder is required to fully utilise this function and would allow audio on each channel an audio over co-ax camera is on.

*The DHD50/28RW-T-M-POC model is fully compatible with the DHDVR06-B4 / DHDVR12-B4-V2 & DHDVR24-B4-V2 recorders only.

Check out the SPRO video academy.

Specifications:
Model NumberDHD50/28RW-T-M-POC
Image Sensor1/3" CMOS
Effective Pixels2592(H)×1944(V), 5MP
Scanning SystemProgressive
Electronic Shutter Speed1/25~1/100000s
Min. Illumination0.03Lux/F1.9, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
Max. IR distanceUp to 50m
IR On/Off ControlAuto/ Manual
IR LEDs1
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length2.8mm
Max ApertureF1.9
Angle of ViewH:78°
Focus ControlN/A
Pan / Tilt / Rotation
Pan/Tilt/RotationPan:0°~360° / Tilt: 0° ~ 78° / Rotation: 0° ~ 360°
Video
Resolution5MP (2592x1944)
Frame Rate25@5MP, 25fps@1080P, 25fps@720P
Video Output1-channel BNC HD-CVI video output
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual
Interface
Audio InterfaceBuilt-in Mic (Directional)
General
Power SupplyDC12V±25%
Power ConsumptionMax 4.6W (12V DC, IR on)
Operating Conditions-40°C ~ +60°C / Less than 90% RH
Strorage Conditions-40°C ~ +60°C / Less than 90% RH
Ingress ProtectionIP67
CasingAluminium
DimensionsΦ106mm×93.7mm (Φ4.17"×3.69")
Gross Weight0.61kg
