SPRO 8MP HDCVI Fixed Lens Turret With Built-In Microphone

SPRO 8MP HDCVI Fixed Lens Turret With Built-In Microphone
  Zoom
SPRO 8MP HDCVI Fixed Lens Turret With Built-In MicrophoneSPRO 8MP HDCVI Fixed Lens Turret With Built-In MicrophoneSPRO 8MP HDCVI Fixed Lens Turret With Built-In Microphone
SPRO 8MP HDCVI Fixed Lens Turret With Built-In MicrophoneSPRO 8MP HDCVI Fixed Lens Turret With Built-In Microphone

Availability



In stock, immediate despatch

Deep Base, White
Wall Bracket, White
4 Way In-line PSU, Unearthed (for 8MP cameras)
Isolator

Part Number:  DHD80/28RW/50M-4-M
Camera Resolution  8 Megapixels
Lens  Fixed Lens
IR Distance  Up to 50m IR distance
Protocol  4in1: CVI, TVI, AHD & CVBS
Built-in Mic.  Yes
Starlight  Yes
Style  Turret

The DHD80/28RW/50M-4-M can capture 4k footage and offer up to 50m IR with a built-in microphone to utilise the audio over co-ax. Feature with compatible recorders.

Audio over co-ax allows the camera to transmit audio picked up from its built-in microphone and transmit this over the came co-ax cable as the video transmission. An audio over co-ax compatible recorder is required to fully utilise this function and would allow audio on each channel an audio over co-ax camera is on.

Due to the sensitivity of these cameras you may occasionally get some interference from the power supply. We recommend that you use either a 3amp ungrounded power supply or, if using a box power supply, one of the dedicated isolators.

Check out the SPRO video academy.

Specifications:
Model Number DHD80/28RW/50M-4-M
Image Sensor 1/2" CMOS
Effective Pixels 3840(H)×2160(V), 8MP
Scanning System Progressive
Electronic Shutter Speed 1/4s~1/100000s
Min. Illumination 0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
Max. IR distance Up to 50m
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Fixed lens
Mount Type Board-in
Focal Length 2.8mm
Max Aperture F1.6
Angle of View H:110.8°
Focus Control N/A
Close Focus Distance 1800mm
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan:0˚~360˚ / Tilt: 0° ~ 70° / Rotation: 0° ~ 360°
Video
Resolution 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440);
960H (960× 576/ 960 × 480)
Video Frame Rate CVI: 4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps;
AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
Interface
Audio Interface 1ch in & Built-in Mic (Directional)
General
Power Supply DC12V±30%
Power Consumption Max 8W (12V DC, IR on)
Operating Conditions -30°C ~ +60°C / Less than 90% RH
Strorage Conditions -30°C ~ +60°C / Less than 90% RH
Ingress Protection IP66
Casing Aluminium

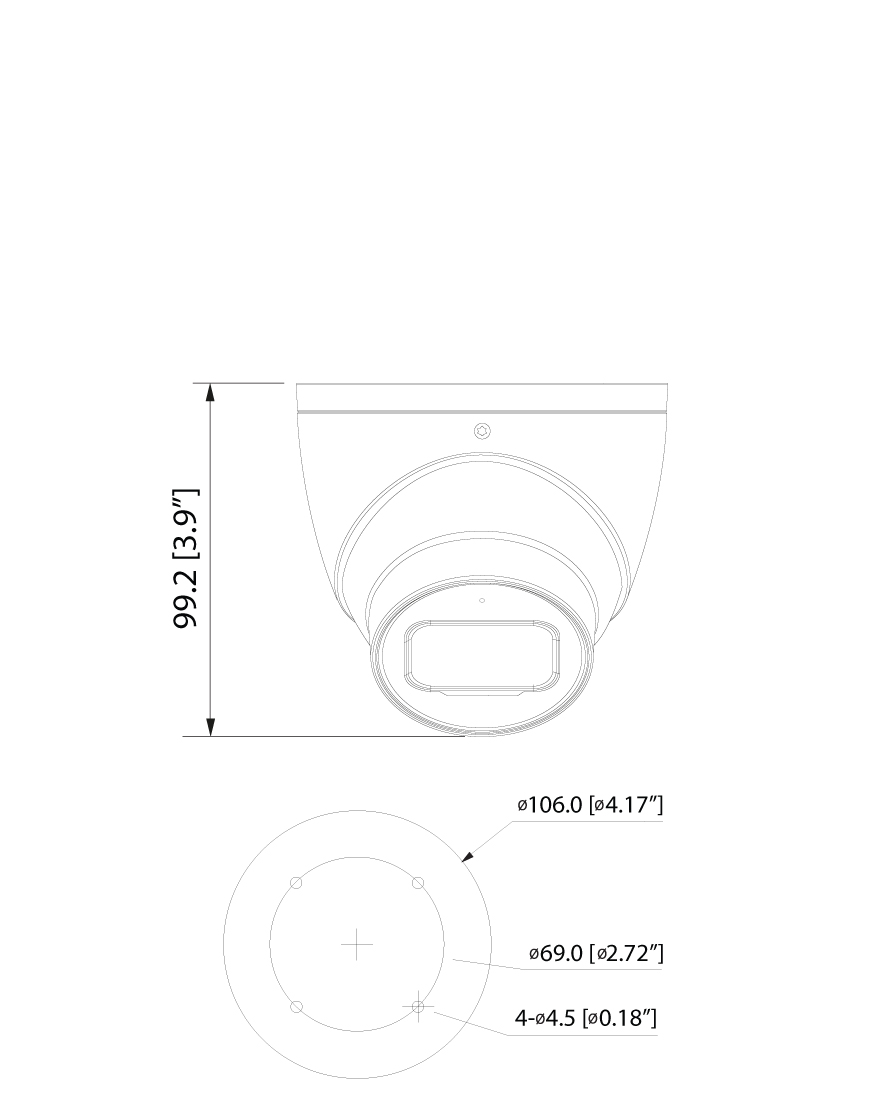

Dimensions Φ106mm×99.2mm (Φ4.17"×3.9")
Net Weight 0.5kg (1.10lb)
Gross Weight 0.62kg (1.37lb)
