POE Extender

Availability

In stock, immediate despatch

Part Number: POEEXTENDER-01

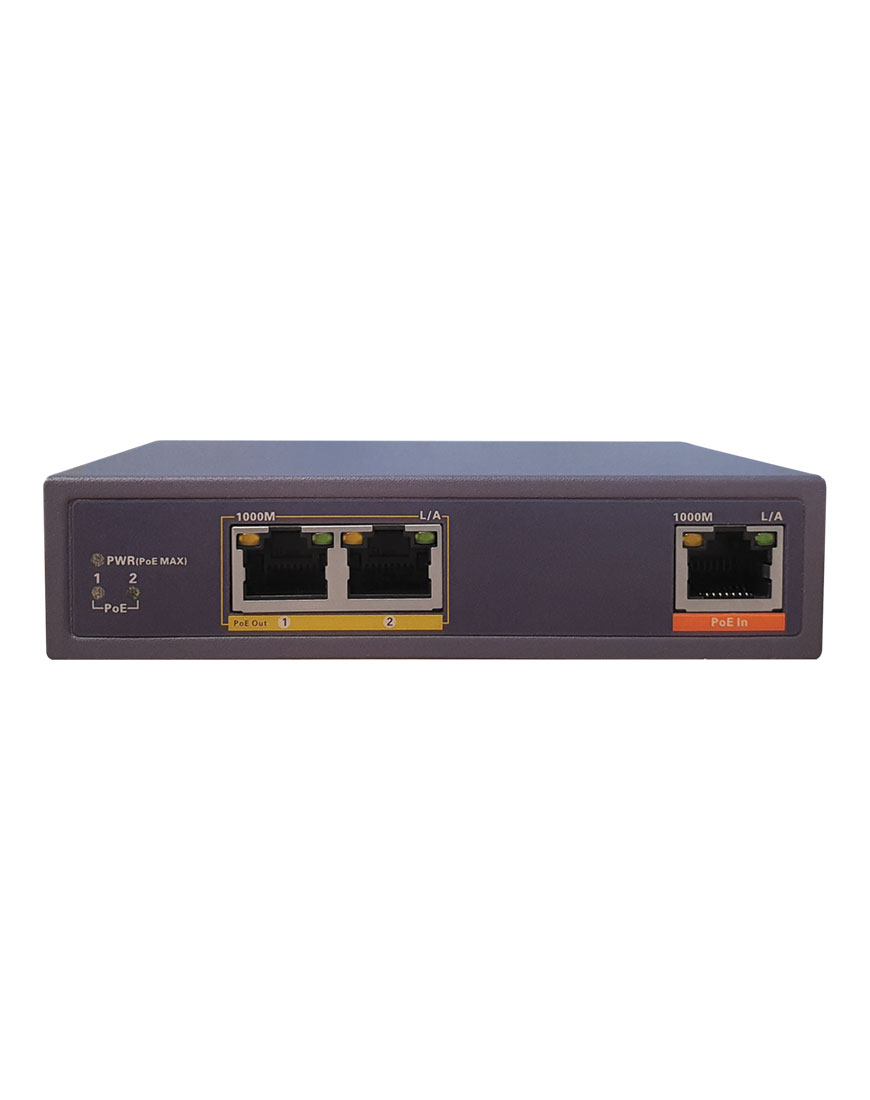

IP Accessories POE Extender

Information
Specifications
Delivery

• Up to 100 meter transmission distance
Ethernet and PoE connection
• Fully IEEE802.3af/IEEE802.3at compliant
• Plug & Play. No configuration required
• Support PoE power up to 15.4W
• Full-rate network throughout the whole
extended distance
• Dimensions: 11.8 (W) x 2.8 (H) x 8.5 (D)cm

Specifications:
Model Number	POEEXTENDER-01
Compliance	IEEE 802.3af, IEEE 802.3at, Support PoE power up to 15.4W
Processing types	Store-and-forward Half-duplex back pressure; IEEE802.3x full- duplex flow control .
Data Rate	10/100Mbps
Pin Definition	12/36 for power/45/78 for data
PoE Power Input	48V
PoE Power Output	48V
Network Standards	IEEE802.3i 10BASE-T ; IEEE802.3u 100BASE-TX IEEE802.3x Flow Control; IEEE 802.3af, IEEE 802.3at Power over Ethernet
LED Display	Yes
Operating Tem.	-10 °C to 50 °C
Storage Tem.	-20 °C to -70 °C
Operating Humidity	90% max relative humidity,non-condensing
Storage humidity	90% max relative humidity, non-condensing
Certification	CE,FCC,RoHs
