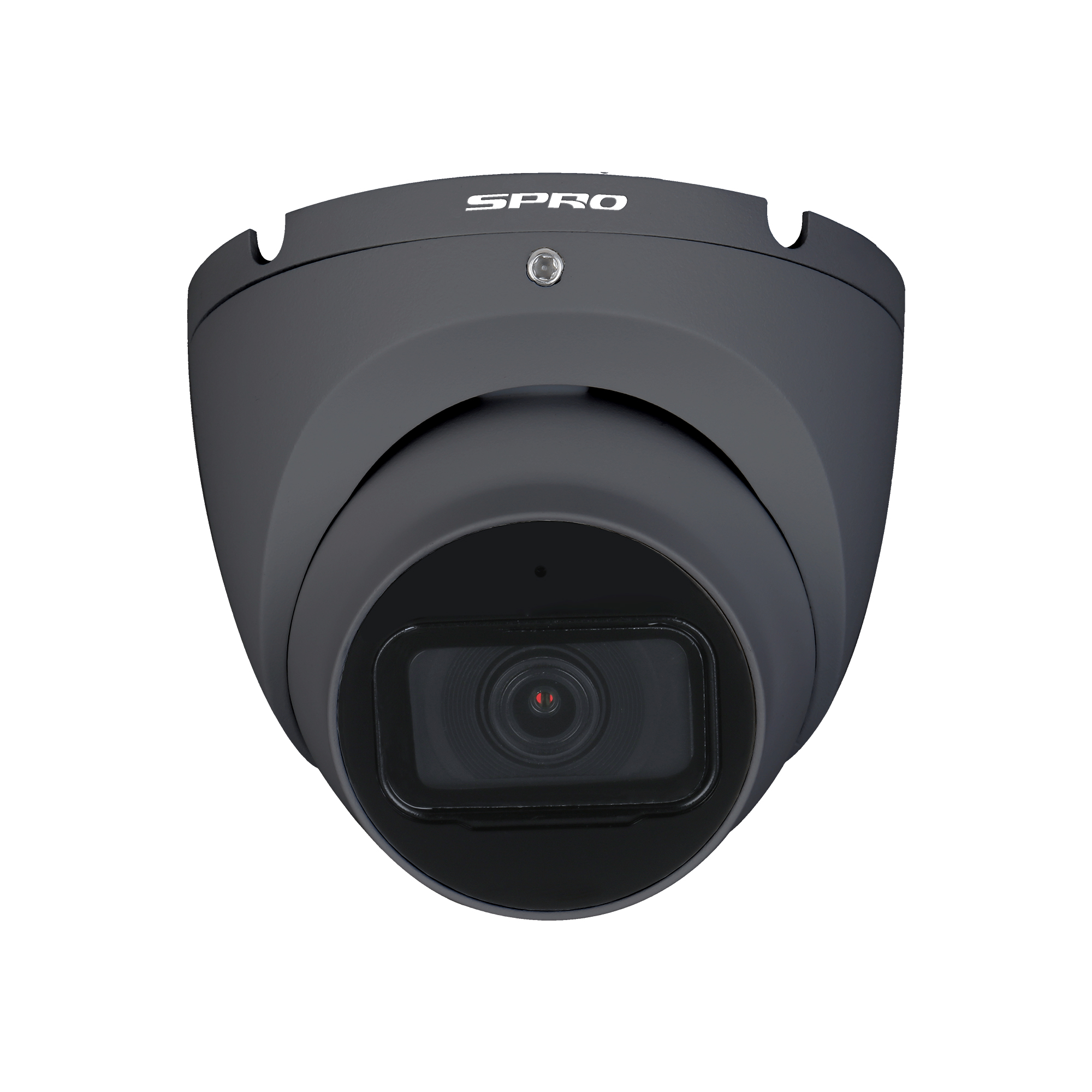

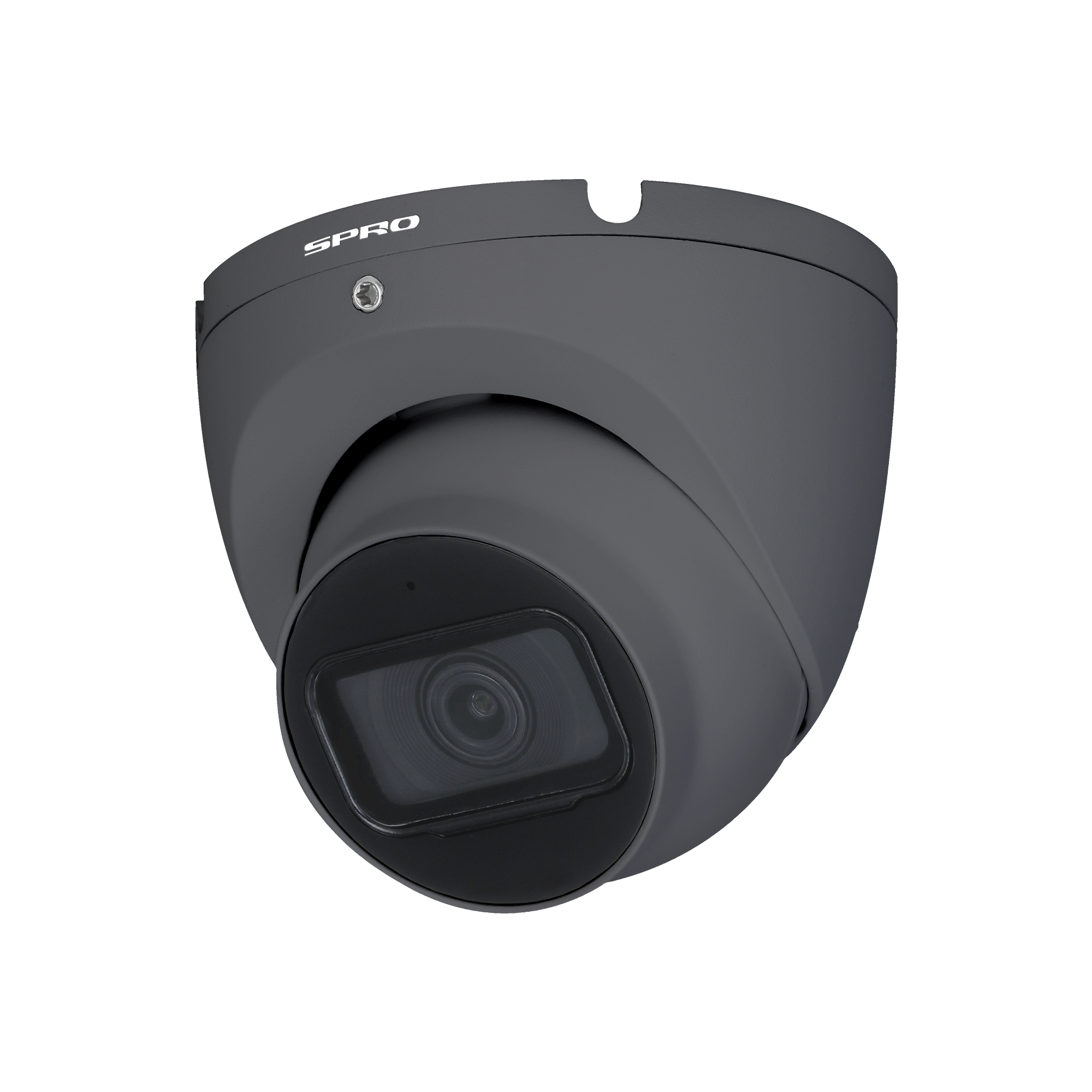

SPRO 5MP Fixed Lens Turret with Microphone Built-in

SPRO 5MP Fixed Lens Turret with Microphone Built-in
 SPRO 5MP Fixed Lens Turret with Microphone Built-inSPRO 5MP Fixed Lens Turret with Microphone Built-in
Pole Bracket
SPRO Wall Bracket, Grey
Deep Base, Grey

Part Number:  DHD50/28RG/30-4-M
Brand:  SPRO
Camera Resolution  5 Megapixels
Lens  Fixed Lens
IR Distance  Up to 30m IR distance
Protocol  4in1: CVI, TVI, AHD & CVBS
Built-in Mic.  Yes
Ingress Protection  IP67
Style  Turret


The SPRO 5MP Turret Camera boasts a 1/2.7" CMOS sensor for crisp 5MP images and comes with a built-in microphone.

Its progressive scan and adjustable shutter speed capture clear video under various lighting.

Low-light performance is robust, with a minimum illumination of 0.02Lux and IR night vision up to 30m. The camera includes 12 IR LEDs with auto/manual control, ensuring visibility in the dark.

Key Features

  • Image Sensor 1/2.7 inch CMOS
  • Effective Pixels 2592 (H) × 1944 (V), 5MP
  • Scanning System Progressive
  • Electronic Shutter Speed 1/25~1/100000s
  • Min. Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
  • S/N Ratio More than 65dB
  • Max. IR LEDs Length Distance up to 30m
Model Number DHD50/28RG/30-4-M
Image Sensor  5MP CMOS
Max. Resolution  2880 (H) x 1620 (V)
Pixel 5 MB
Scanning System Progressive
Electronic Shutter Speed PAL:1/25 s - 1/100000s
NTSC: 1/30s - 1/100000s
Min. Illumination 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
S/N Ratio >65dB
Illumination Distance 30m (98.4ft)
Illuminator On/Off control Auto/Manual
Illuminator Number 1 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens Type Fixed lens
Lens Mount M12
Focal Length 2.8mm
Max. Aperture F1.6
Field of View 2.8mm:H:111° V:58° D:132°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
DORI Distance

Detect: 63.6m

Observe: 25.4m

Recognize: 12.7m

Identify: 6.4m

Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps
TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps
CVBS: PAL: 960H; NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 ×1080); 960 H (960 × 576/960 × 480)
Day/Night Auto Switch by ICR
White Balance Auto; Area White Balance
Gain Control Auto; Manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4, EN62368-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Video Input One channel built-on mic
Power Supply 12 VDC ± 30%
Power consumption Max 3.2W (12V DC, IR on)
Operating Temperature –40°C to +60°C (-40°F to 140°F); < 95% (non-condensation)
Storage Temperature –40°C to +60°C (-40°F to 140°F); < 95% (non-condensation)
Protection IP67
Casing Metal
Product Dimensions φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.47 kg (1.04 lb)
