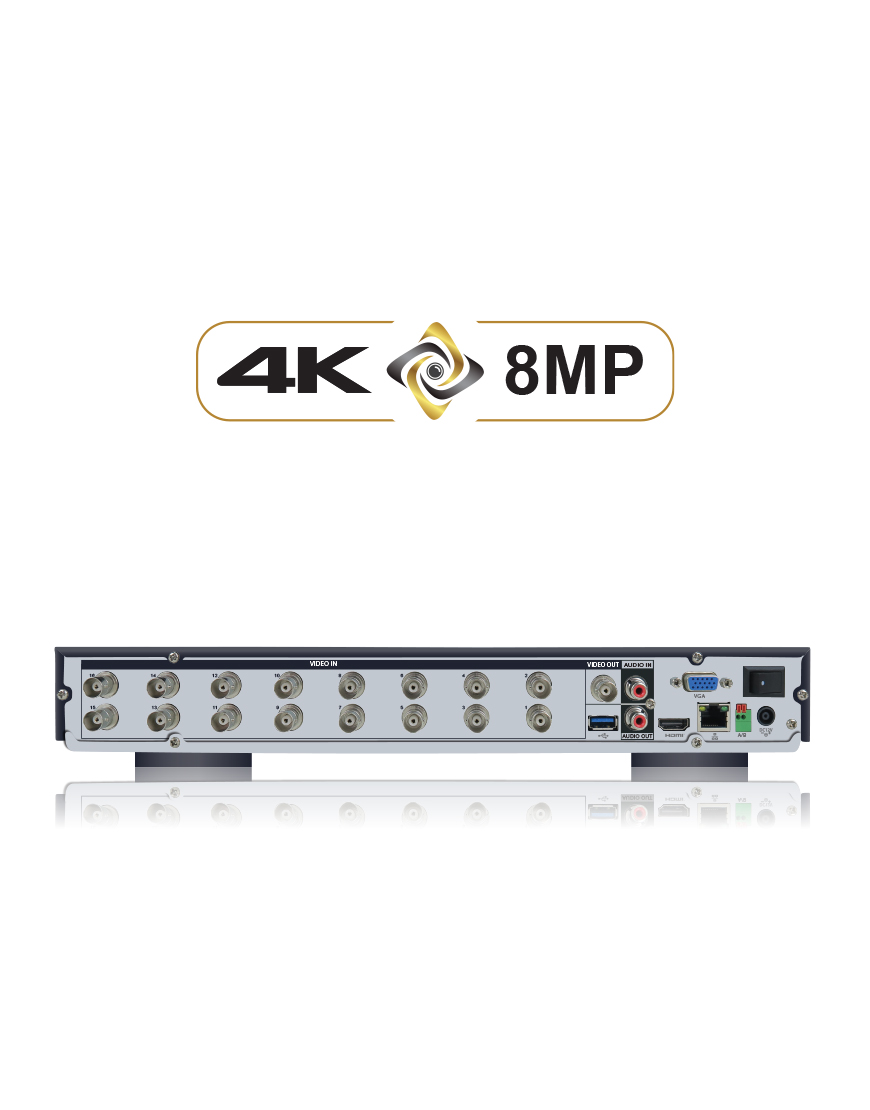

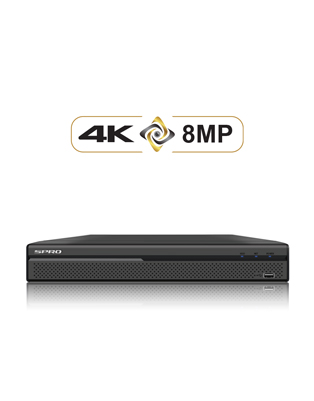

SPRO B4 8MP 16 Channels, POC

SPRO B4 8MP 16 Channels, POC
 SPRO B4 8MP 16 Channels, POCSPRO B4 8MP 16 Channels, POC

Part Number:  DHDVR24-B4-V2-0TB
Brand:  SPRO
Recorder Resolution  8MP
Audio over co-ax  On each channel
Tripwire  Yes
Intrusion  Yes
Face detection  Yes
BNC Channels  16 Channel
Extra IP Channels  8 Channel
POC  Yes
Smart Dual Illumination Supported  No


PLEASE NOTE: This POC DVR does not support BALUNS

The SPRO B4 range of DVRs are POC recorders. This means they are able to power POC compatible cameras through the same BNC cable that carries the video signal. This means a lot less time is spent cabling the unit, a lot less cables being run around a property also means a neater install for your customer.

As with other SPRO recorders, the B4 range also supports 4K video over co-ax, audio over co-ax, alarm over co-ax, PTZ control over co-ax and IP audio over CAT5e.

Key Features

  • 24 channel recording (16 channel BNC + 8 channel 8MP IP)
  • 5 IN 1 (CVI / TVI / AHD / ANALOGUE / IP)
  • P2P (no port forwarding requirement)
  • 8MP IP real-time recording
  • ONVIF 2.4 compatible
  • IP spot via network (no convertor required)
  • 16 channel playback at the same time
  • Max 24 channels IP camera input, each channel up to 8MP, Max 48Mbps Incoming Bandwidth
  • PTZ control over 1 co-ax cable (mouse control on DVR - area zoom & scroll zoom)
  • Instant playback on one channel when others are on live viewing
  • Smart search & email notification (snapshot)
  • Intelligent feature: Facial & Tripwire detection (BNC channel only)
  • Backup footage by video clip while viewing playback


Check out the SPRO video academy.

Model Number DHDVR24-B4-V2
Main Processor Embedded processor
Operating System Embedded LINUX
Video & Audio
Input 24 channel (16 x BNC + 8 x IP)
Standard - BNC 16 channel CVI/ TVI/ AHD/ ANALOGUE
Standard - IP 8 channel (up to 8 Megapxiel IP)
Analog Camera Input 16 Channel, BNC
HDCVI Camera 4K, 4MP, 1080P@25fps, 720P@50fps, 720P@25fps
AHD Camera 2MP@25fps, 720P@25fps
TVI Camera 2MP@25fps, 720P@25fps
IP Camera Input 8 Channel, each channel up to 8MP
Audio In/Out 1/1 RCA, Audio over co-ax supported on all BNC Channels
Two-way Talk Reuse audio in/out, RCA
Interface 1 HDMI, 1 VGA
HDMI Resolution 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768
VGA Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock,
Motion detection, Recording
Video Compression H.264+/H.264
Resolution 4K, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Record Rate - Main Stream 4K(7fps), 5MP(12fps), 4MP/3MP(15fps), 1080P/ 720P/ 960H/ D1/ CIF/ QCIF (25fps)
Record Rate - Extra Stream 960H (1~15fps), D1/ CIF/ QCIF (1~25fps)
Bit Rate 1~6144Kb/s
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1~60 min (default: 60 min),
Pre-record: 1~30 sec, Post-record: 10~300 sec
Audio Compression AAC (only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Video Detection
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,
Tampering and Diagnosis
Playback & Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,
Next camera, Previous camera, Full screen, Repeat, Shuffle,
Backup selection, Digital zoom
Backup Mode USB Device/ Network
Interface 1 RJ-45 port (100M)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP
Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search
Max. User Access 128 users
Smart Phone iPhone, iPad, Android Phone
Interoperability ONVIF 2.4
Internal HDD 2 SATA port, up to 6TB capacity for each disk
Auxiliary Interface
USB Interface 2 ports(1 Rear), 1 USB 3.0 & 1 USB 2.0
RS485 1 port, For PTZ Control
Power Supply DC54V/2.22A
Power Consumption <15W (without HDD)
Working Environment -10°C ~+45°C / 10%~90%RH
Dimensions 375mm(W) × 285mm(D) × 55mm(H)
Weight 2.35 KG (without HDD)

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.


Related Products

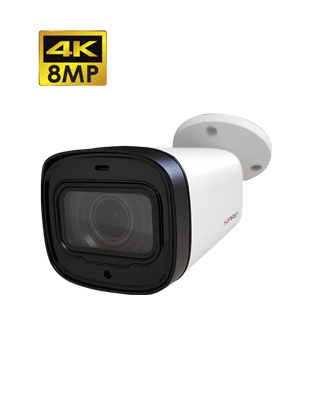

SPRO 8MP HDCVI Motorised Lens Bullet
