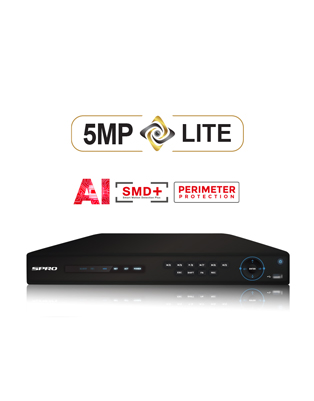

SPRO B5 5MP-Lite 32 Channels 5in1 with AI

Hard Drive

Part Number: DHDVR32-B5-0TB
Recorder Resolution 5MP-Lite
Audio over co-ax On each channel
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection 2.0 Yes
BNC Channels 32 Channel
Smart Dual Illumination Supported Yes

Information
Specifications
Delivery

The B5 range of DVRs can record at up to 5M-N recording giving your customers better than 1080p recording. This range allows both alarm and audio over co-ax to be installed on each channel as well as giving your customers having the ability to control compatible PTZ cameras using the same BNC cable as the video. As an added bonus, each of the DVRs in the B5 range allows for additional IP cameras to be installed and they work with the audio over co-ax feature allowing your customers to record audio on those cameras too (requires compatible cameras). As well as the extra IP channels the B5 range also accepts video signals in the CVI, TVI, AHD and CVBS formats, giving more flexibility in what cameras can be use on the installation.

Check out the SPRO video academy.

Specifications:
Model Number	DHDVR32-B5
Main Processor	Industrial-grade processor
Operating System	Embedded LINUX
Perimeter Protection	2 channels, 10 IVS for each channel
AI by Recorder
Perimeter Performance AI by Recorder (Number of Channels)	Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes	Gender, age groups, glasses, expressions, face mask, beard
Face Detection Performance of AI by Recorder (Number of Channels)	2 channels (up to 12 face images/s)
Face Recognition
Face Database Capacity	Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face picture
Face Recognition Performance of AI by Recorder	2 channels
SMD Plus
SMD Plus by Recorder	16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input	32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input	1. CVI: 5MP, 4 MP, 1080P@25/30 fps; 720P@50/60 fps; 720P@25/30 fps. 2. TVI: 5MP, 4MP, 3MP, 1080P@25/30 fps; 720P @25/30 fps. 3. AHD: 5MP, 4MP, 3MP, 1080P@25/30 fps, 720P @25/30 fps
IP Camera Input	Up to 32 channels of IPC access 32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
Encoding Capacity	Main stream: All channels 5M-N@(1fps–10fps); 4M-N/1080P@(1fps–15fps); 1080N; 720P; 960H; D1; CIF@(1fps–25/30fps) Sub stream: D1/CIF@(1fps–25/30fps)
Dual-stream	Yes
Video Frame Rate	PAL: 1 fps–25 fps. NTSC: 1 fps–30 fps
Video Bit Rate	32 kbps–6144 kbps per channel
Audio Sampling	8 kHz, 16 bit
Audio Bit Rate	64 kbps
Video Output	1 HDMI, 1 VGA, 1 TV HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display	1/4/8/9/16/25/36
Third-party Camera Access	Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Compression Standard
Video Compression	AI Coding; H.265+; H.265; H.264+;H.264
Audio Compression	G.711A; G.711u; PCM
Network
Network Protocol	HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access	iPhone, iPad, Android
Interoperability	ONVIF 16.12, CGI Conformant
Browser	Chrome, IE9 or later, Firefox
Network Mode	Single-address mode
Recording Playback
Record Mode	General, motion detection; intelligent; alarm; POS
Recording Playback	1/4/9/16
Backup Method	USB device and network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group	Yes
Alarm
General Alarm	Motion detection, video loss, tampering
Anomaly Alarm	No disk, storage error, low space, offline, IP conflict, MAC conflict
Intelligent Alarm	Face detection, face recognition, perimeter protection
Alarm Linkage	Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

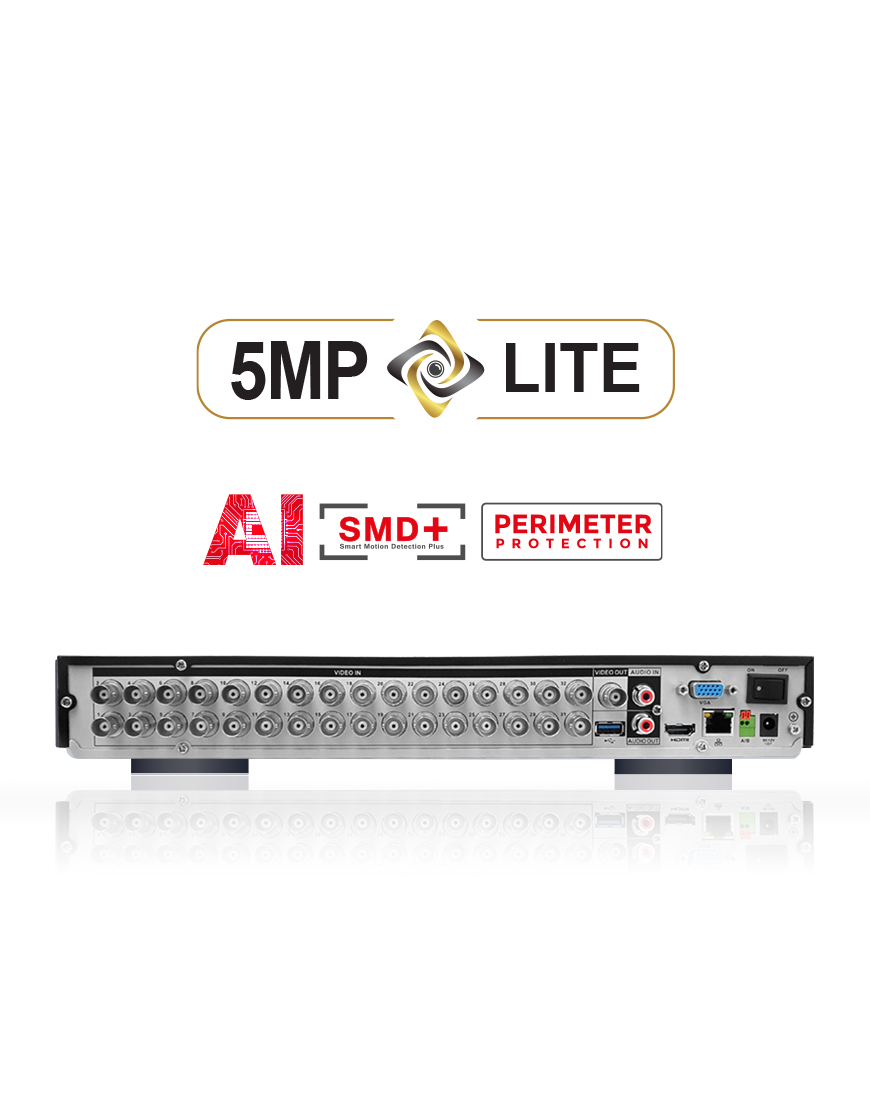

Ports
TV Output	1 channel
Audio Input	1-channel RCA (external) 32-channel BNC (coaxial audio)
Audio Output	1-channel RCA
Two-way Talk	Yes (share the same audio input with the first channel)
HDD Interface	2 SATA ports, up to 16 TB, the maximum HDD capacity varies with environment temperature
RS-485	1
USB	2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI	1
VGA	1
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply	12 VDC, 5 A
Power Consumption	Lower than 17W (without HDD)
Dimensions	375mm × 287mm × 53mm
Net Weight	1.98KG (without HDD)
Gross Weight	3.15KG (without HDD)
Working Environment	-10°C ~+55°C / 10%~90%RH
Storage Conditions	-20°C ~+70°C / 10%~90%RH
Certifications
Certifications	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
