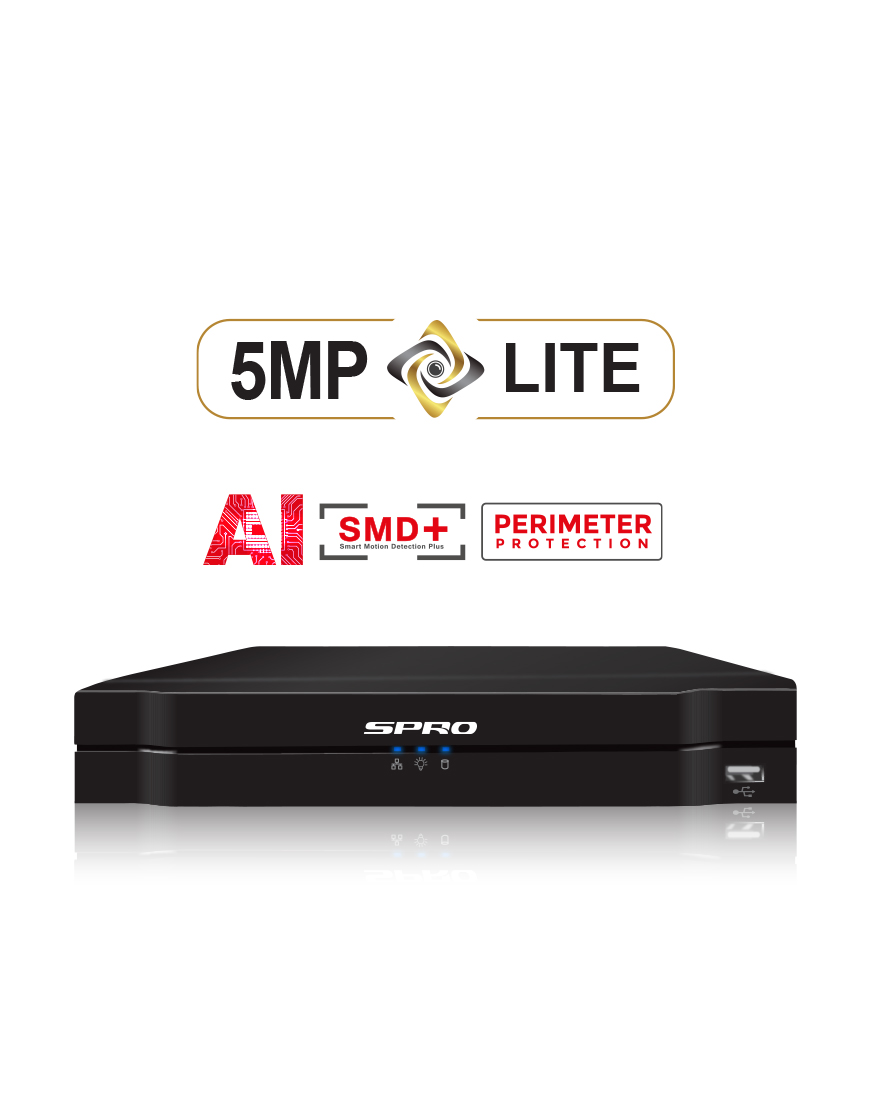

SPRO 5MP-Lite DVR with AI PRO technology

SPRO 5MP-Lite DVR with AI PRO technology
  Zoom
 SPRO 5MP-Lite DVR with AI PRO technologySPRO 5MP-Lite DVR with AI PRO technology

Part Number:  DHDVR24-B5-V3-0TB
Recorder Resolution  5MP-Lite
SMD (Smart Motion Detection)  Yes
Perimeter Protection  Yes
Tripwire  Yes
Intrusion  Yes
Face detection  Yes
Extra IP Channels  8 Channel
Smart Dual Illumination Supported  Yes

The SPRO 5MP Lite DVR combines advanced technology with a sleek design. Featuring AI PRO, Intrusion, Tripwire, Face Detection, Perimeter Protection, and Smart Motion Detection Plus all provide superior security and monitoring capabilities. With 16 BNC channels and the ability to add an additional 8 IP channels via the local network, it allows a total of 24 cameras to be displayed and recorded on the device.

Key Features

  • H.265 video compression
  • 5M-N recording@10fps, 1080P@15fps
  • Supports up to 5MP on extra IP channels
  • Supports “IP Audio over CAT5e” on extra IP channels (compatible cameras required)
  • P2P(no port forwarding required)
  • SMD PLUS (smart motion detection plus)
  • Perimeter protection- Intrusion & tripwire (human & vehicle classification)
  • Face detection 2.0- 2 way audio
  • Push notification
  • Spot monitoring via local network


Specifications:
Model Number DHDVR24-B5-V3
Main Processor  Embedded Processor
Operating System  Web; Local GUI
Perimeter Protection
Performance Advanced Model: 2 channel, 10 IVS for each channel
General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance
AI by Recorder
2 channels (up to 12 face images/s)
Face Recognition
Face Database Capacity Up to 10 face databases with 10000 face images in total.
Name, gender, birthday, address, certificate type, certificate No.,
countries & regions and state can be added to each face picture
Face Recognition Performance
AI by Recorder
2channels
SMD Plus
SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle SMD Plus,
reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analogue Camera Input 16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 fps.
3. AHD: 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 fps.
IP Camera Input Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analogue channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps);
1080N/720p/960H/D1/CIF (1 fps–25/30 fps)
Sub stream: Supported (D1/CIF (1 fps–15 fps)).
Dual-stream Yes
Video Frame Rate PAL: 1fps-25fps
NTSC: 1fps-30fps
Video Bit Rate 32Kbps-6144Kbps Per Channel
Audio Sampling 8KHz, 16 bit
Audio Bit Rate 64kbps
Video Output 1 HDMI ,1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when
Face or IVS&SMD is selected in AI Mode.
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression AI Coding / H.265+ / H.265 / H.264+ / H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Phone Access iPhone, iPad, Android
Interoperability ONVIF 21.03, CGI
Browser Chrome, IE9 or later, Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Record Playback 1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode
Backup Method USB Device / Network
Playback Mode Instant playback, general playback, event playback, tag playback,
smart playback (face and motion detection)
Alarm
General Alarm Motion detection; video loss; tampering; local alarm
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

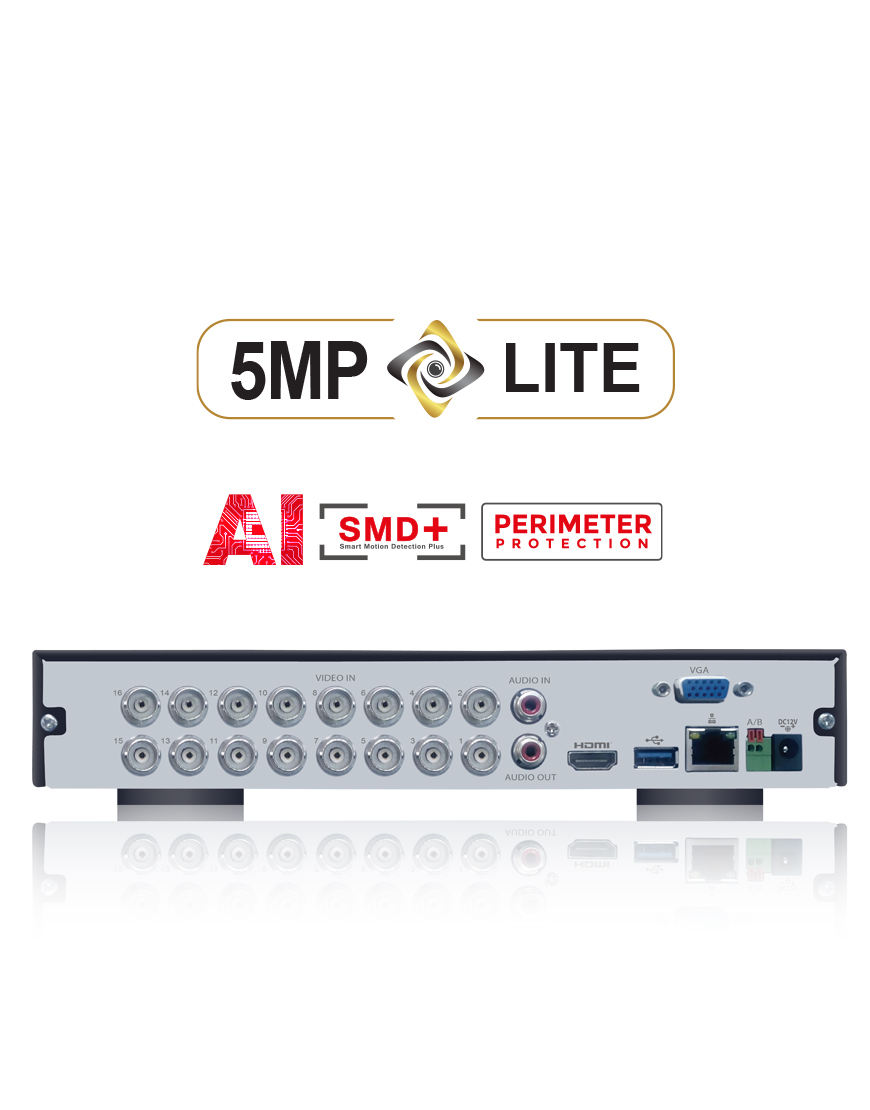

Ports
TV Output 1-channel RCA (external)
16-channel BNC (coaxial audio)
Audio Input 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA Port, up to 16TB, the maximum HDD capacity varies with environment temperature
RS-485  1 port, for PTZ control
USB 2 (1 front USB port, 1 rear USB 3.0 port)
HDMI
VGA
Network Port 1 (10/100/1000Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption Lower than 12 W
Net Weight 1.17 kg (2.58lb)
Gross Weight 1.57 kg (3.46lb)
Product Dimensions  Compact 1U, 260.0 mm × 237.9 mm × 47.6 mm
10.24" × 9.37" × 1.87" (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90%
Installation Desktop
Certification
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.

Related Products
SPRO Alarm Box for DVR / NVR (ALARMBOX01)
SPRO 5MP 4in1 Fixed Lens Turret with COLOUR NIGHT 2.0
SPRO 5MP 4in1 Fixed Lens Turret with COLOUR NIGHT 2.0

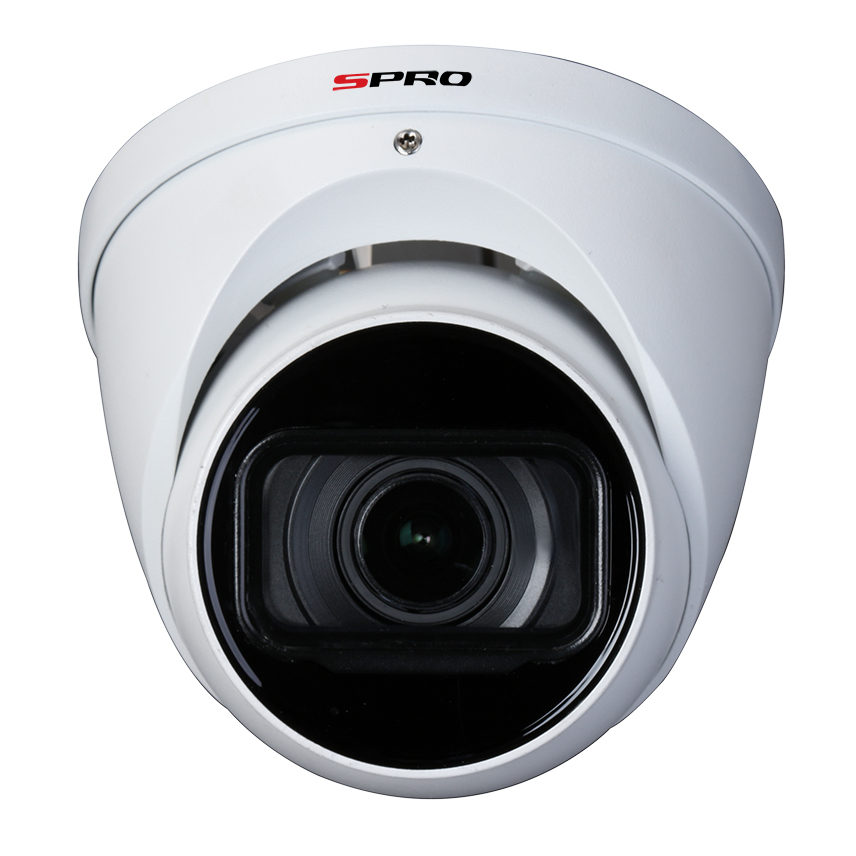

SPRO 5MP Turret Camera  With Motorised Lens
