SPRO 4MP IP Fixed Lens Vandal Resistant Dome

Zoom

Availability

In stock, immediate despatch

You may also like

Deep Base, Grey

Part Number: DHIPD40/28RV-G
Brand: SPRO
Camera Resolution 4 Megapixels
Lens Fixed Lens
Codec recording H.265
IR Distance Up to 30m IR distance
Tripwire Yes
Intrusion Yes
Style Vandal Resistant Dome

Information
Specifications
Delivery

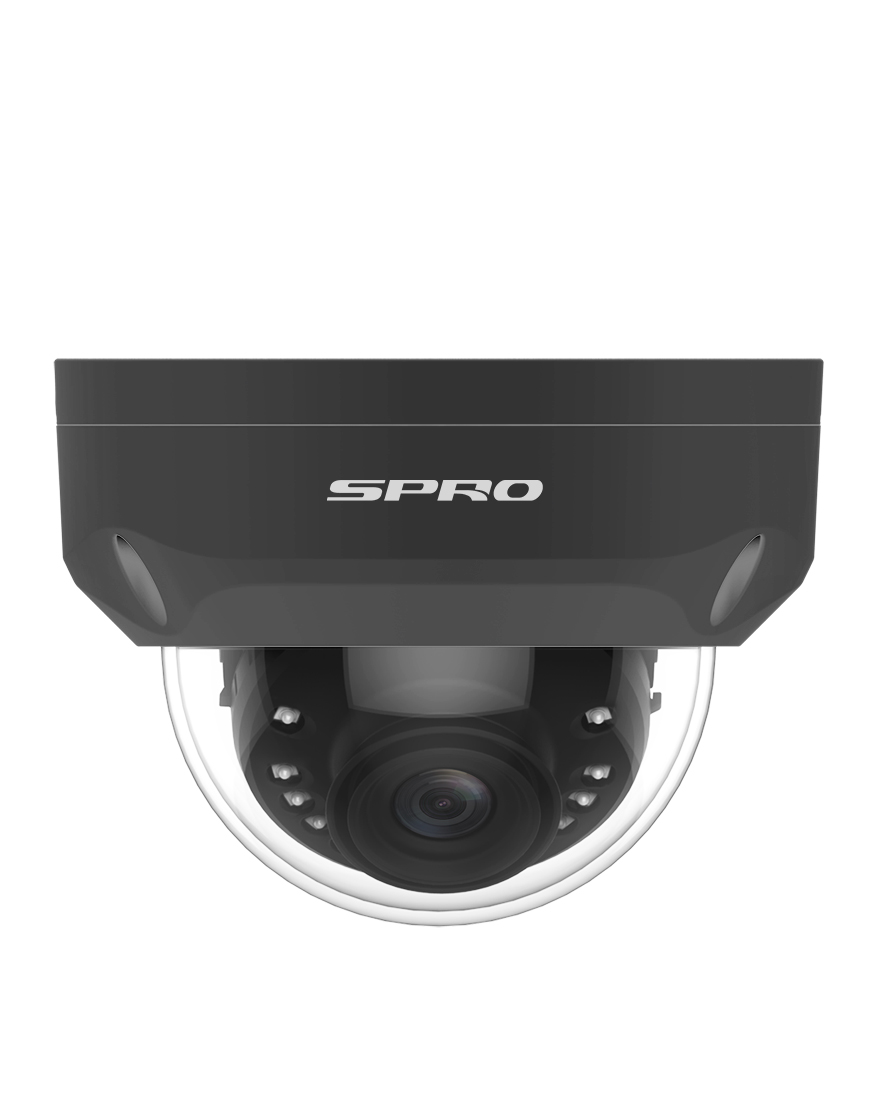

The SPRO 4MP IP Vandal Resistant Dome is a durable surveillance camera designed for outdoor and indoor use. It features IP66 waterproofing, IK10 resistance to impact, a fixed lens with 4MP resolution, and 30m IR for night vision. Its vandal-resistant design provides added protection against tampering.

Click the video below to learn more.

Check out the SPRO video academy.

Specifications:
Model Number	DHIPD40/28RV-G
Image Sensor	1/3" 4 Megapixel progressive scan CMOS
Effective Pixels	2688(H) x 1520(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~ 1/100000s
Min. Illumination	0. 1Lux/ F1.4 (Color), 0Lux/ F1.4 (IR on), 0Lux/ F2.0 (IR on)
S/N Ratio	More than 50dB
Max. IR LEDs Length	Distance up to 30m
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8mm
Max. Aperture	F2.0
Focus Control	Fixed
Angle of View	H:104°, V:57°
Intelligence
IVS	Tripwire, Intrusion
Event Trigger	Motion detection, Video tampering, Scene changing, Network, disconnection, Ip address conflict, Illegal access, Storage anomaly
Video
Compression	H.265/ H.264H/ MJPEG (Sub Stream)
Smart Codec	Support H.265+/ H.264+
Streaming Capability	2 Streams
Resolution	4M (2688x1520)/ 3M (2304×1296)/ 1080P (1920×1080)/ 720P (1280×720)/ VGA (640×480)/ D1 (704×576/ 704×480)/ CIF (352×288/ 352×240)
Frame Rate-Main Stream	4M (1 ~ 20fps)/ 3M (1 ~ 25fps)
Frame Rate-Sub Stream	D1 (1 ~ 25fps)
Bit Rate Control	CBR/ VBR
Bit Rate	H.265: 12K ~ 8448Kbps / H.264: 32K ~ 10240Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR (120dB)
White Balance	Auto/ Natural/ Street Lamp/ Outdoor/ Manual
Gain Control	Auto/ Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Smart IR	Support
Digital Zoom	16x°
Flip	0°/ 90°/ 180°/ 270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Accessr	10 Users
Edge Storage	Local PC for instant recording
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	SPRO CSS
Smart Phone	iPhone, iPad & Android
Interface
Audio Interface	N/A
General
Power Supply	DC12V, POE (IEEE 802.3af) (Class 0)
Power Consumption	< 5.5W
Working Environment	-30ºC ~ 60ºC / Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10
Casing	Metal
Dimensions	Φ109.9mm × 81mm (4.33" x 3.19")
Net Weight	0.34Kg
Gross Weight	0.47Kg
