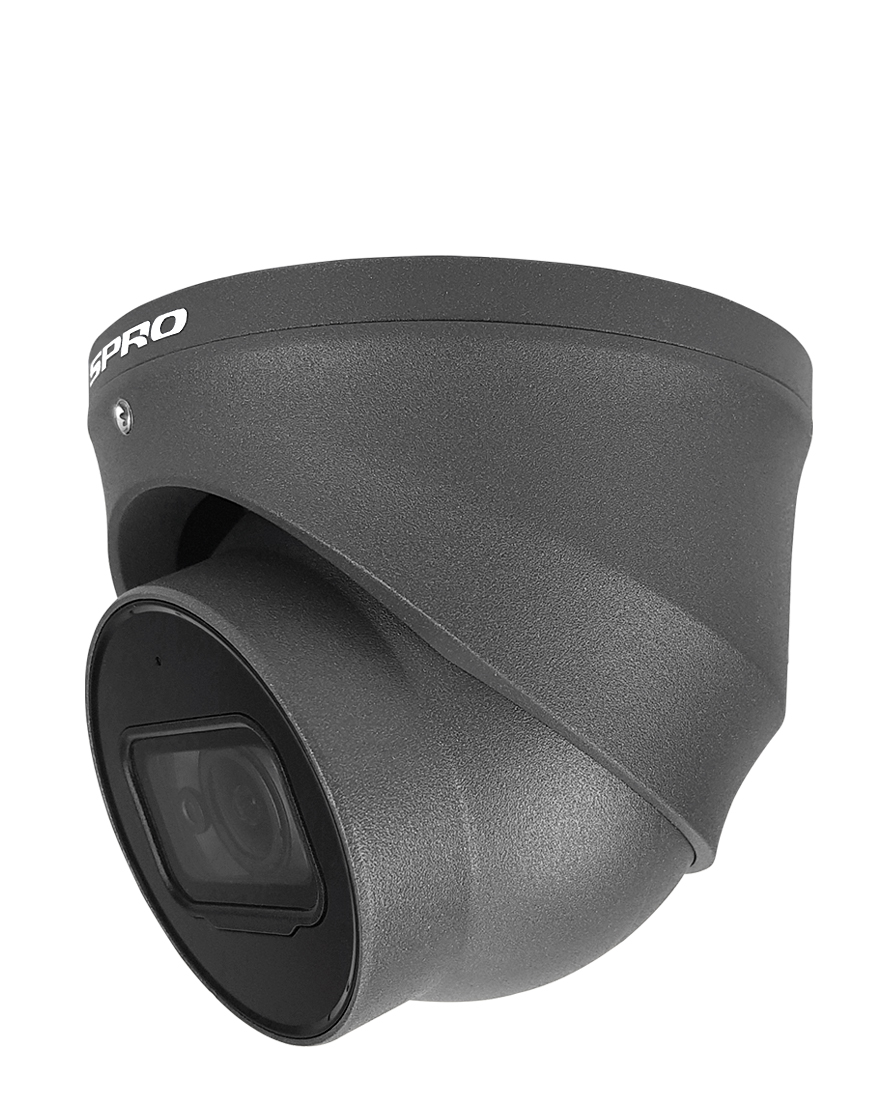

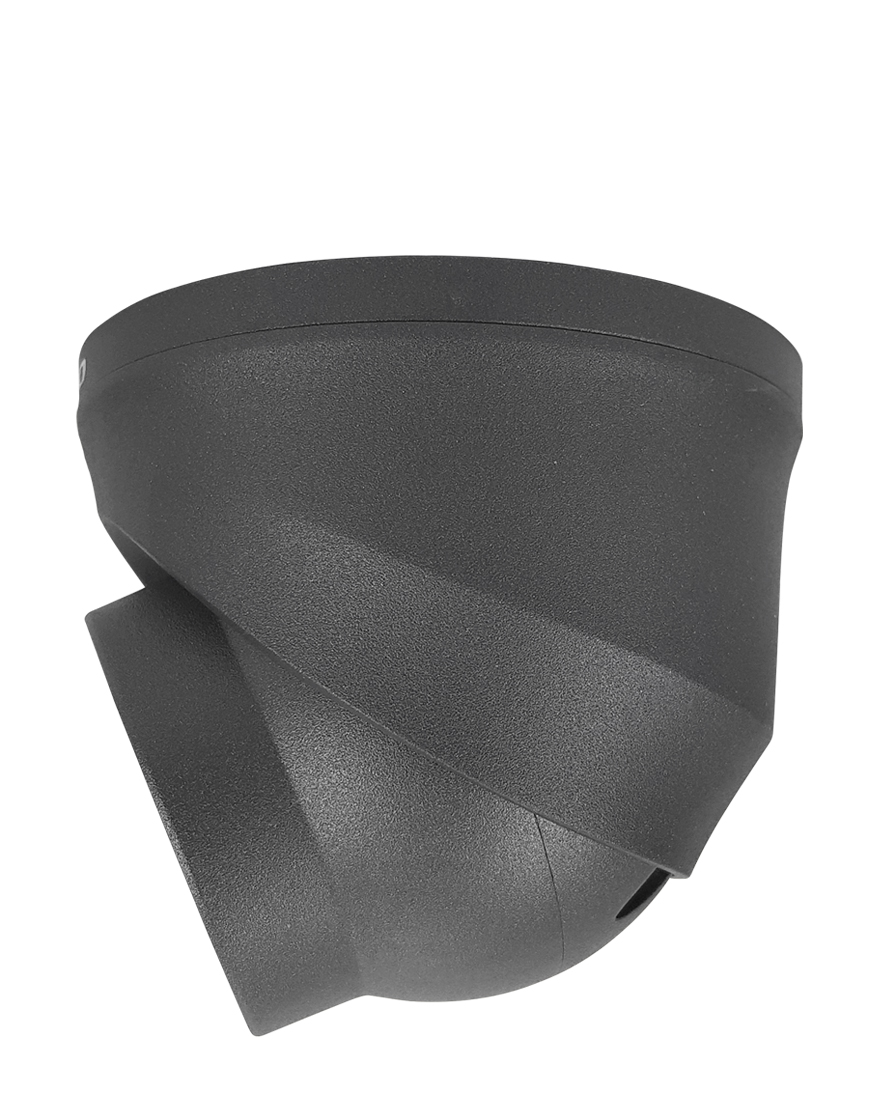

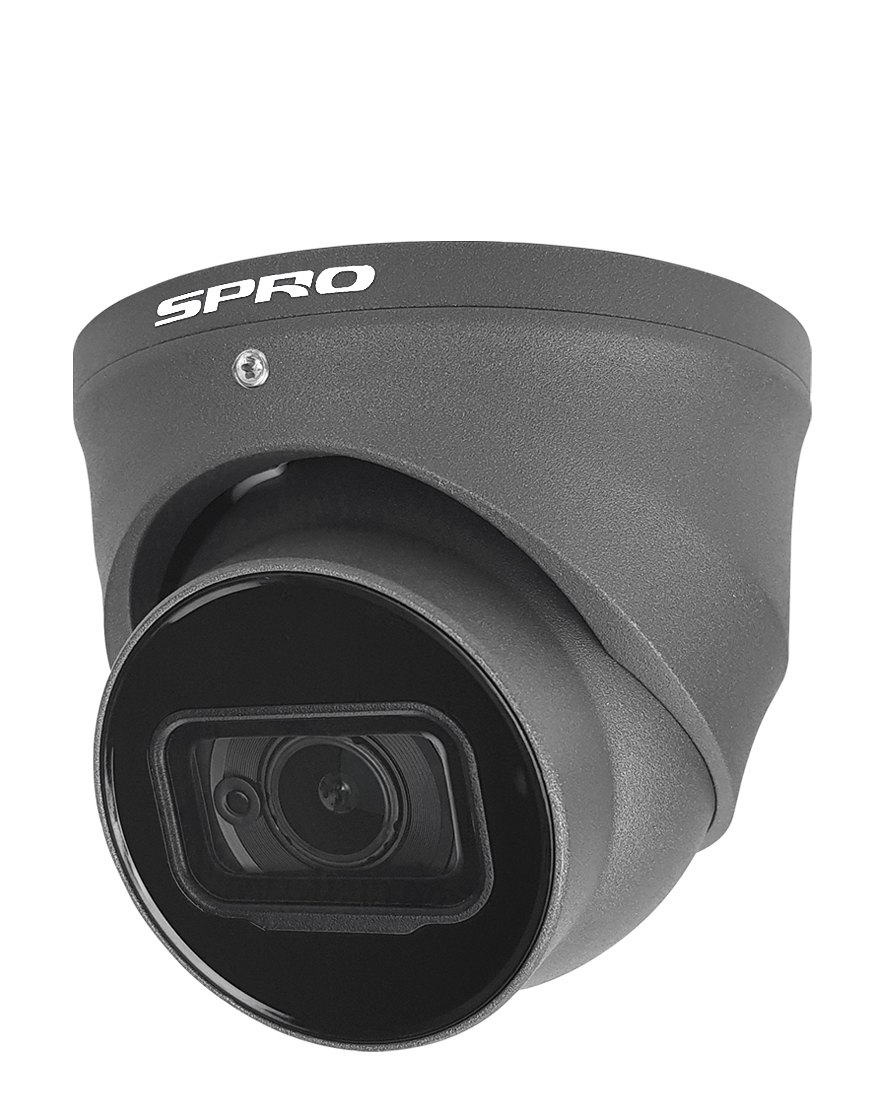

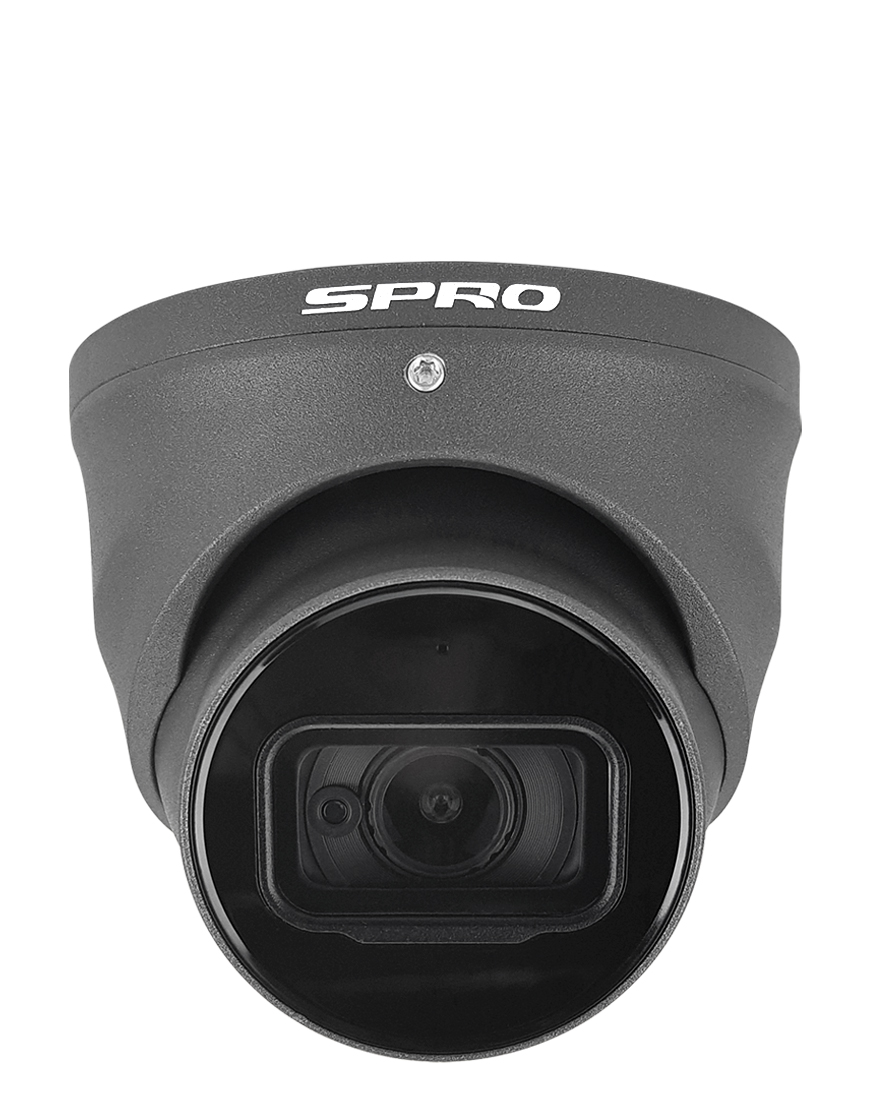

SPRO 8MP IP Fixed Lens Turret with Microphone

SPRO 8MP IP Fixed Lens Turret with Microphone
SPRO 8MP IP Fixed Lens Turret with MicrophoneSPRO 8MP IP Fixed Lens Turret with MicrophoneSPRO 8MP IP Fixed Lens Turret with MicrophoneSPRO 8MP IP Fixed Lens Turret with Microphone



In stock, immediate despatch

Part Number:  DHIPD80/28RG/30-M-E
Camera Resolution  8 Megapixels
Lens  Fixed Lens
Codec recording  H.265
IR Distance  Up to 30m IR distance
Built-in Mic.  Yes
Style  Turret

Standard 8MP turret camera with a fixed 2.8mm lens and up to 30m IR distance.
This camera comes in metal housing and can be installed indoors or outdoors as they are IP67 rated.

Check out the SPRO video academy.

Model Number DHIPD80/28RG/30-M-E
Image Sensor 1/2.7" CMOS
Effective Pixels 3840 (H) 2160 (V)
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~ 1/100000s
Min. Illumination 0.04 Lux@F2.0 (Color, 30 IRE)
0.004 Lux@F2.0 (B/W, 30 IRE)
0 Lux (Illuminator on)
S/N Ratio < 56 dB
Max. IR LEDs Length Distance up to 30m
IR On/Off Control Auto/ Manual
Lens Type Fixed
Mount Type M12
Focal Length 2.8mm
Max. Aperture F2.0
Field of View H:105, V:56, D:125
Iris Type Fixed
Focus Control 1.0 m (3.28 ft)
DORI Distance Detect: 74.7m | Observe: 29.9m | Recognize: 14.9m | Identify: 7.5m
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0 ~ 360 / Tilt: 0 ~ 90 / Rotation: 0 ~ 360
Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Streaming Capability 2 Streams
Resolution 3840 2160 (3840 2160); 3072 2048 (3072 2048); 3072 1728 (3072 1728); 2592 1944 (2592 1944); 2688 1520 (2688 1520); 3M (2048 1536); 2304 1296 (2304 1296); 1080p (1920 1080); 1.3M (1280 960); 720p (1280 720); D1 (704 576/704 480); VGA (640 480); CIF (352 288/352 240)
Frame Rate-Main Stream 3840 2160 (1 fps15 fps) 2688 1520 (1 fps25/30 fps)
Frame Rate-Sub Stream 704 576 (1 fps25 fps) 704 480 (1 fps30 fps)
*The values above are the max. frame rates of each
stream; for multiple streams, the values will be subjected
to the total encoding capacity.
Bit Rate Control CBR/VBR
Bit Rate H.264: 32 kbps8192 kbps
H.265: 12 kbps8192 kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode Yes
HLC Mode Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/ Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Yes (4 areas)
Smart IR Yes
Image Rotation 0/90/180/270 (Support 90/270 with 2688 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 Area
Built-in MIC Yes
Compression G.711a; G.711Mu; G.726; PCM
Alarm Event Network disconnection; IP conflict; illegal access; motion
detection; video tampering; audio detection; security
Ethernet RJ-45 (10/100Base-T)
SDK and API Yes
Cyber Security Video encryption; configuration encryption; Digest; WSSE;
account lockout; security logs; generation and importing
of X.509 certification; HTTPS; trusted boot; trusted
execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
Max. User Access 6 Users
Storage Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software SPRO CSS
Smart Phone iPhone, iPad & Android
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic: 2.3 W (12V DC); 3.1 W (PoE)
Max. (ICR + H.265 + max. resolution + main stream +
DWDR + IR intensity): 4.6 W (12V DC); 5.6 W (PoE)
Operating Temperature 40 C to +55 C (40 F to 131 F)
Operating Humidity ≤ 95%
Storage Temperature 40 C to +55 C (40 F to 131 F)
Ingress Protection IP67
Casing Metal
Dimensions 85.6 mm Φ94.0 mm
Net Weight 0.32 kg
Gross Weight 0.43 kg
