| Specifications: | |
| Model Number | DHIPD80/28RV-G-V2 |
| Image Sensor | 1/2.7” 8 Megapixel progressive scan CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~ 1/100000s |
| Min. Illumination | 0.009 Lux@F2.0 |
| S/N Ratio | < 56dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Angle of View | Horizontal 105° × Vertical 56° × Diagonal 125° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0m |
| DORI Distance | Detect:74.7 m, Observe:29.9m, Recognize:14.9m, Identify:7.5m |
| Smart Event | |
| IVS | Tripwire, Intrusion |
| Video | |
| Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate-Main Stream | 3840 × 2160 (1 fps–15 fps), 2688 × 1520 (1 fps–25/30 fps) |
| Video Frame Rate-Sub Stream | 704 × 576 (1 fps–25 fps), 704 × 480 (1 fps–30 fps) |
| Streaming Capability | 2 Streams |
| Resolution | 4K (3840×2160)/ 6M (3072×2048)/ 5M (2560×1920)/ 3M (2048x1536)/ 3M (2304×1296)
/1080P (1920×1080)/ 1.3M (1280x960)/ 720P (1280×720)/ D1 (704×576/ 704×480)
/VGA (640×480)/ CIF (352×288/ 352×240) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265:32kbps~ 8192Kbps / H.264: 12kbps ~ 8192Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB) |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor/ Manual |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/ 90°/ 180°/ 270° (Supports 90°/270° with 3840 × 2160 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| Max. User Accessr | 20 Users |
| Edge Storage | Micro SD Card (support max. 256 GB), Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Smart Phone | iPhone, iPad & Android |
| General | |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | < 6.2W |
| Working Temperature | -40ºC ~ 60ºC / Less than 95% RH |
| Storage Environment | -40ºC ~ 60ºC / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |

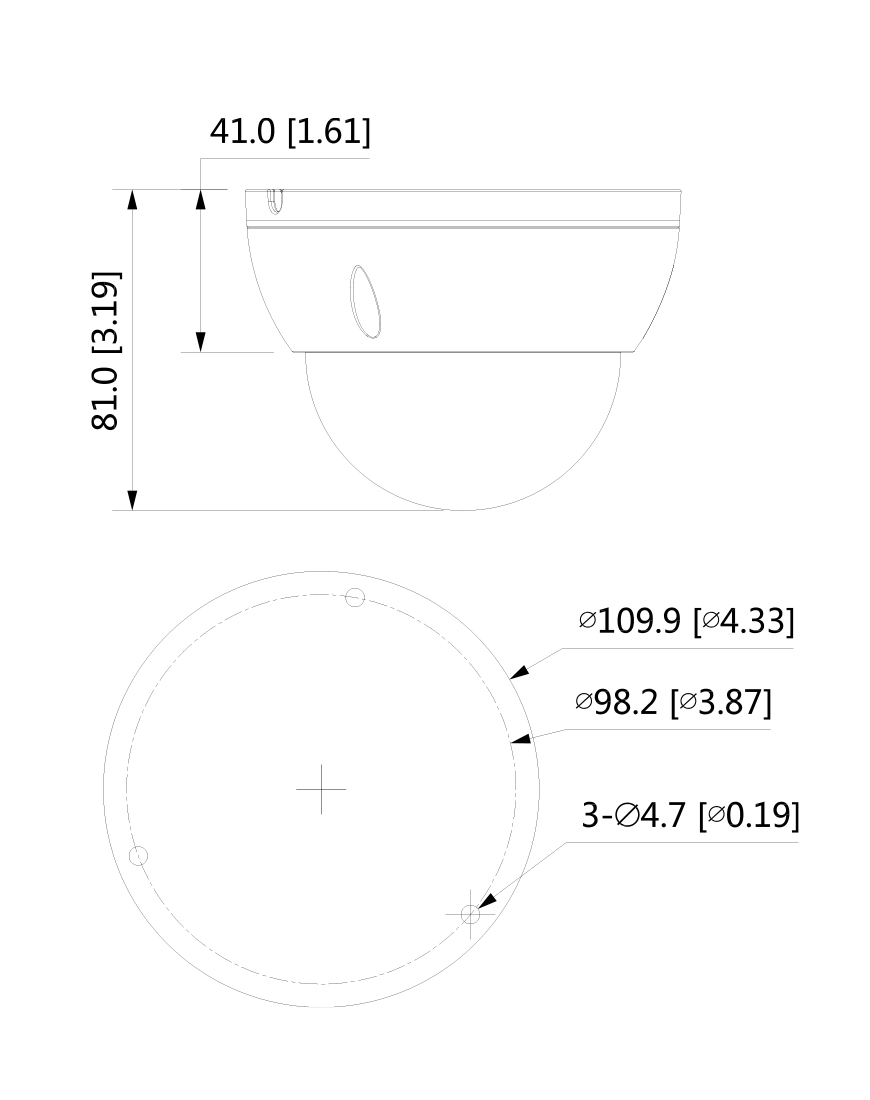

| Dimensions | 81 mm × Φ109.9 mm |
| Net Weight | 0.350 kg |
| Gross Weight | 0.491 kg |
