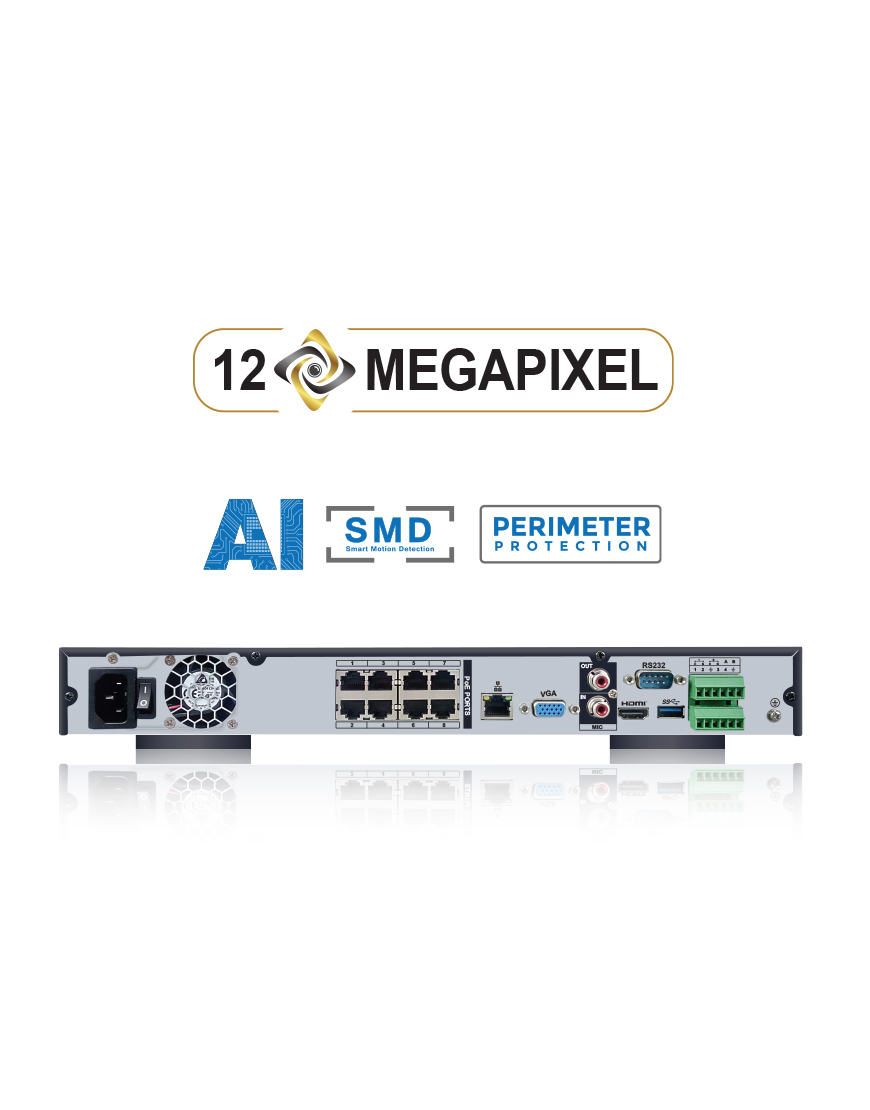

SPRO 4K 8 Channel 12MP IP NVR

SPRO 4K 8 Channel 12MP IP NVR
  Zoom
 SPRO 4K 8 Channel 12MP IP NVRSPRO 4K 8 Channel 12MP IP NVR
Hard Drive

Part Number:  DHIPNVR08-4K-V2-0TB
Recorder Resolution:  12 Megapixel
Channels:  8
Codec recording:  H.265
Audio over CAT5e:  Yes
Tripwire:  Yes
Intrusion:  Yes
Face detection:  Yes
Missing object:  Yes
Abandoned object:  Yes
Alarms:  4 Alarms

Specifications:
Model Number DHIPNVR08-4K-V2
Operating System Embedded LINUX
Display
Interface 1 HDMI (1 HDMI up to 3840x2160), 1 VGA
Resolution 3840x2160, 19201080, 12801024, 1280720, 1024768
Multi-screen Display 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection,Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 18), Video Loss and Tampering
Alarm input 4 Channel, Low Level Effective, Green Terminal Interface
Relay Output 2 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event N/A
Playback & Backup
Sync Playback 1/4/9
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/ Network/ Internal SATA burner
Storage
Internal HDD 2 SATA III Ports, up to 6TB capacity for each HDD
HDD Mode Single
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more.
Auxiliary Interface
Front Cover N/A
USB 2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 Playback 1 Port, for PTZ Control
Audio and Video
IP Camera Input 8 channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Intelligence
Intelligent Functions Tripwire, Intrusion, Face detection, Object Abandoned/Missing
Recording
Compression H.265/ H.264/ MJPEG/ MPEG4
Resolution 12Mp/ 8Mp/ 6Mp/ 5Mp/ 4Mp/ 3Mp/ 1080P/ 720P/ D1&etc.
Record Rate 320Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule, Motion Detection, Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Network
Interface 1 RJ-45 port (10/ 100/ 1000Mbps)
Ethernet 1 Independent 1000Mbps Ethernet Port
PoE 8 ports (IEEE802.3af/at)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
Max. User Access 128 users
Smart Phone iPhone, iPad & Android
Interoperability ONVIF 2.4, CGI Conformant
Electrical
Power Supply Single, AC 100~240V, 50/60 Hz
Power Consumption <14.5W (without HDD)
Environmental
Operating Conditions -10C ~ +55C (+14F ~ +131F), 86 ~ 106kpa
Storage Conditions -20C ~ +70C (-4F ~ +158F), 0 ~ 90% RH
Construction
Dimensions 1U, 375mm 327.5mm 53mm (14.8" x 12.9" x 2.1")
Net Weight 2.6kg (5.7lb) (without HDD)
Gross Weight 4kg (8.8lb) (without HDD)
