Specifications: | |

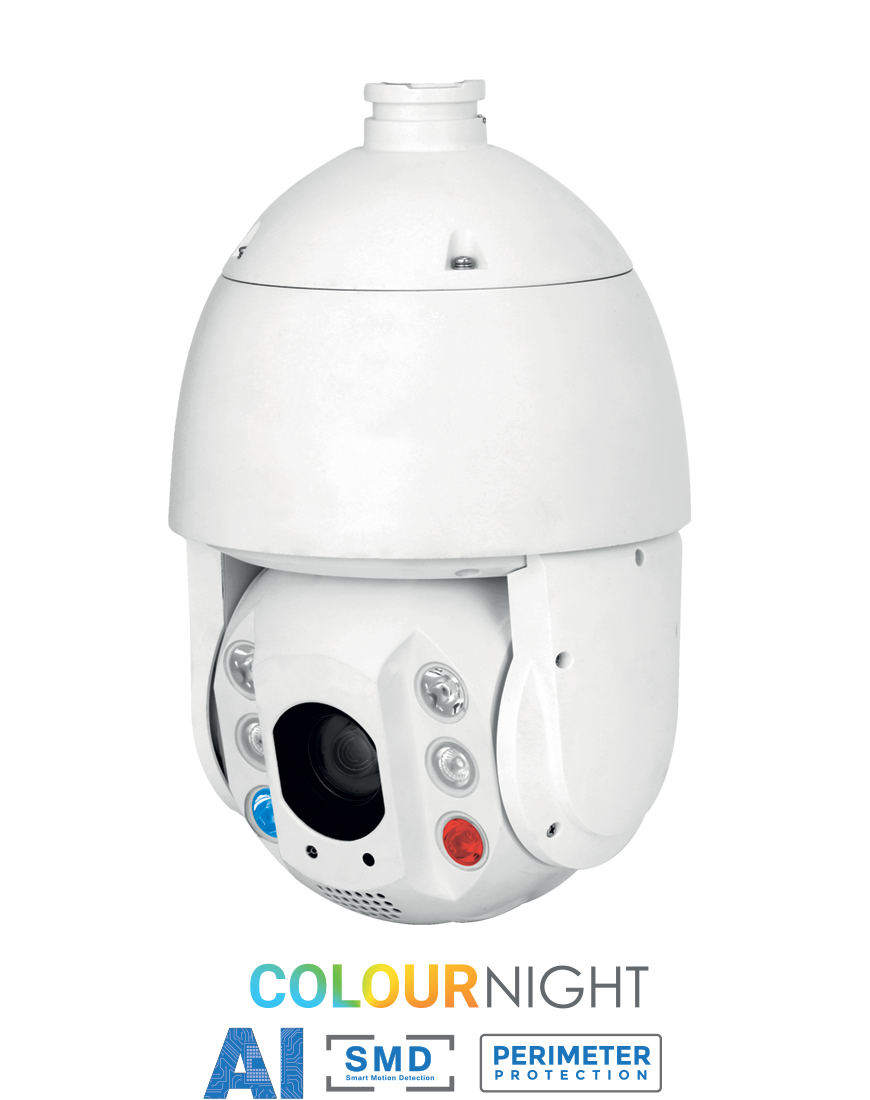

Model Number | DHIPPTZ40/25XLR-I-D |
Image Sensor | 1/2.8" STARVIS™ CMOS |
Effective Pixels | 2560(H) x 1440(V), 4 Megapixels |
Scanning System | Progressive |
Electronic Shutter Speed | 1/1 ~ 1/30,000s |
ROM | 4 GB |
RAM | 1 GB |
Min. Illumination | Color: 0.005 Lux@F1.6; B/W: 0.0005 Lux@F1.6; 0 Lux (IR light on) |
Illumination Distance | Distance up to 150m ( White light distance up to 50m) |
Illuminator Number | 2 (IR light) 2 (dual light fusion) |
Lens | |
Focal Length | 4.8mm~120mm |
Max Aperture | F1.6~ F3.5 |
Angle of View | H: 55.8°–2.9°; V: 31.6°–1.6°; D: 63.7°–3.3° |
Optical Zoom | 25x |
Focus Control | Auto / Semi-Auto / Manual |
Close Focus Distance | 0.8m~ 5.0m |
Iris Control | Auto; manual |
DORI Distance | Detect: 1.655 m Observe: 653 m Recognize: 331 m Identify: 165 m |
PTZ | |
Pan/Tilt/Rotation | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° |
Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s |
Preset Speed | Pan: 240° /s; Tilt: 150° /s |
Tour | 8 (up to 32 presets per tour) |
Pattern/ Scanning Number | 5 |
Power-off Memory | Support |
Idle Motion | Preset/ Tour/ Pattern/ Scanning |
Protocol | DH-SD, Pelco-P/D (auto recognition) |
General Intelligent | |
Video Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction. |
IVS (Perimeter Protection) | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
Face Detection | Yes |
SMD | Yes |
Auto Tracking | Yes |
Active Deterrence | |
Light Warning | Red and blue warning light Flash duration: 5 s–30 Flash frequency: High, medium, low |
Sound Warning | Sound warning alarm: Customizable |
Video | |
Video Compression | Smart H.265+; H.265; Smart H.264+; H.264B; H.264H; MJPEG |
Streaming Capability | 3 Streams |
Resolution | 4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x 1080); 1.3M (1280 x 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
Frame Rate - Main Stream | 4MP/ 3MP/ 1080P/ 1.3MP/ 720P (1–50fps) |
Frame Rate - Sub Stream1 | D1/ CIF(1 ~ 25fps) |
Frame Rate - Sub Stream2 | 1080P/ 1.3M/ 720P (1–25fps) |
Bit Rate Control | Variable Bit Rate (VBR) /Constant Bit Rate (CBR) |
Bit Rate | Default resolution of the main stream: H264: 2816 kbps–8192 kbps H265: 1024 kbps–7936 kbps |
Day/Night | Auto(ICR) / Color / B/W |
BLC | Support |
WDR | 120 dB |
HLC | Support |
White Balance | Auto; manual; tracking; indoor; outdoor; outdoor auto; sodium lamp; sodium lamp auto |
Gain Control | Auto/ Manual |
Noise Reduction | 2D NR; 3D NR |
Motion Detection | Support |
Region of Interest | Support |
Image Stabilization | EIS |
Defog | Electric |
Digital Zoom | 16x |
Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
S/N Ratiom | ≥ 55 dB |
Audio | |
Compression | G.711a; G.711Mu; G.726; G722.1; G.729; MPEG2-Layer2; G723; PCM |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS |
Max. User Access | 20 users (total bandwidth: 64 M) |
Interoperability | ONVIF Profile S&G&T |
Storage | FTP; Micro SD card (256 GB) |
Browser | IE 7 and later versions Chrome 42 and earlier versions Firefox 52 and earlier versions Safari |
Management Software | SPRO CSS |
Smart Phone | iPhone, iPad & Android |
Port | |
Audio Input | 1 (LINE IN; bare wire) |
Audio Output | 1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive)) |
Alarm Input | 2-ch, digital input (0–5 VDC) |
Alarm Output | 1-ch |
Alarm Linkage | Capture; preset; tour; pattern; recording; alarm digital input; send email |
Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
General | |
Power Supply | 24 VDC, 2.5 A (± 25%) (included) PoE+ (802.3at) |
Power Consumption | Basic: 13 W Max.: 23 W (illuminator + red and blue warning light+speaker + PTZ working) |
Working Environment | -40ºC ~ 70ºC / Less than 95% RH |
Ingress Protection | IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection |

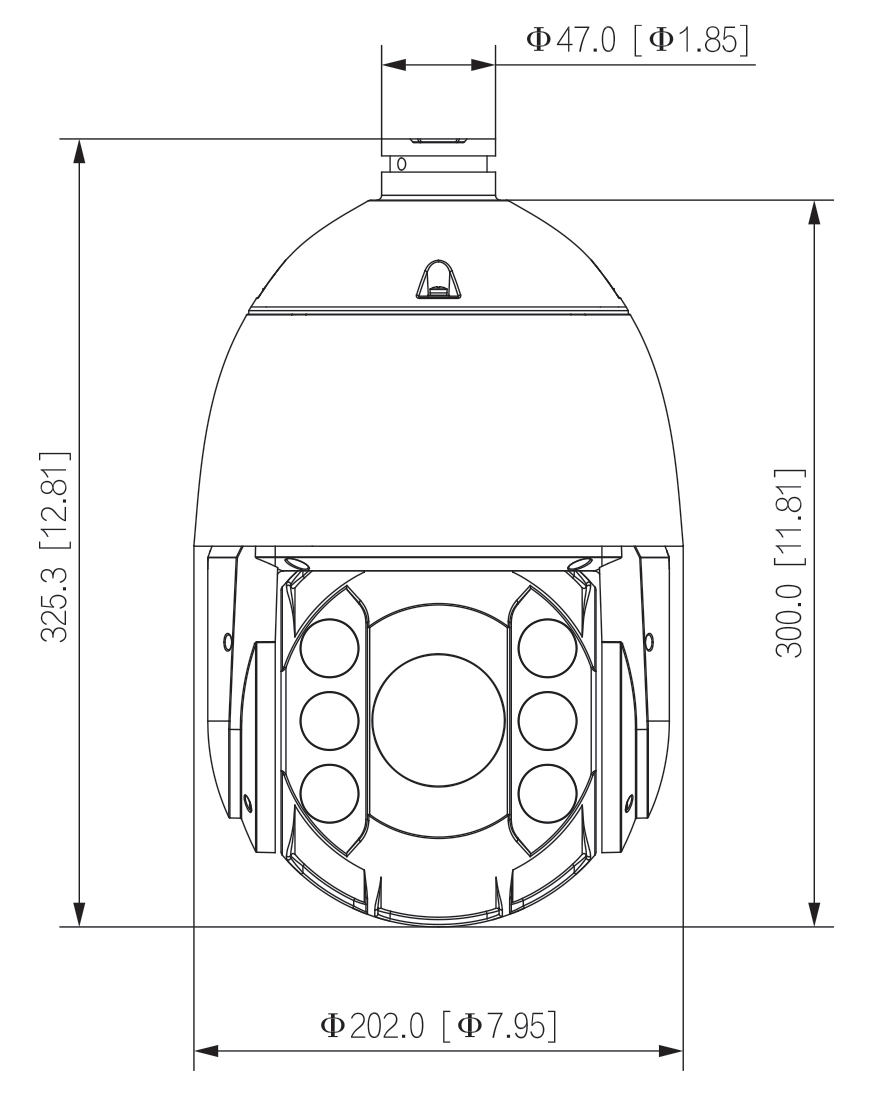

Dimensions | Ø325.3(mm) x 202.0(mm) (H × D) |
Net Weight | 4.6 kg |
Gross Weight | 9.1 kg |
