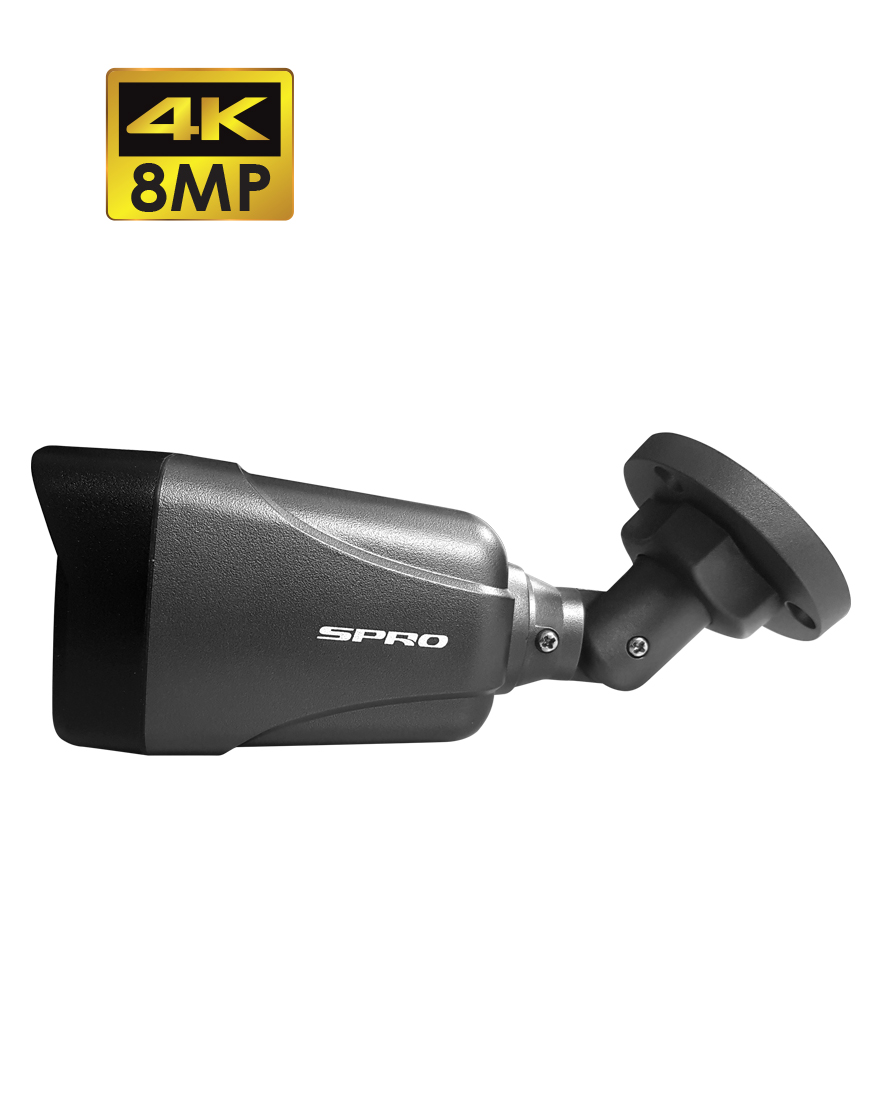

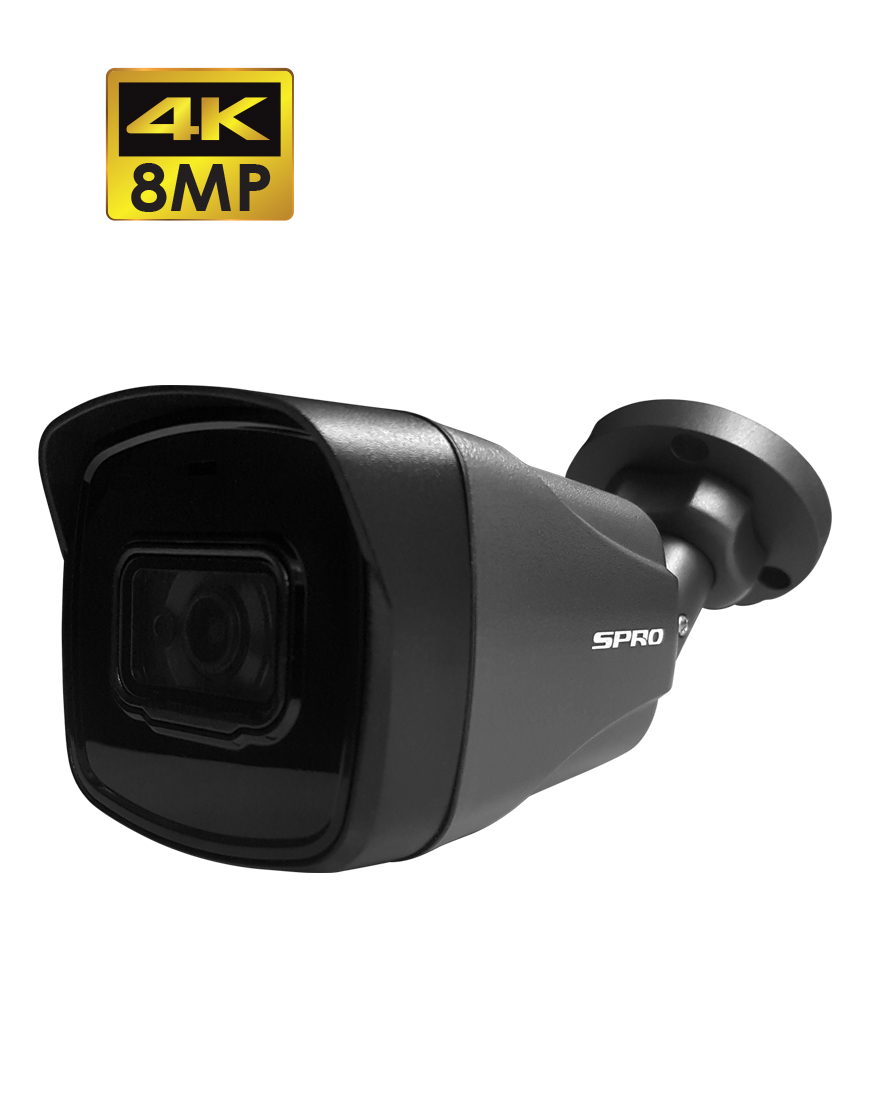

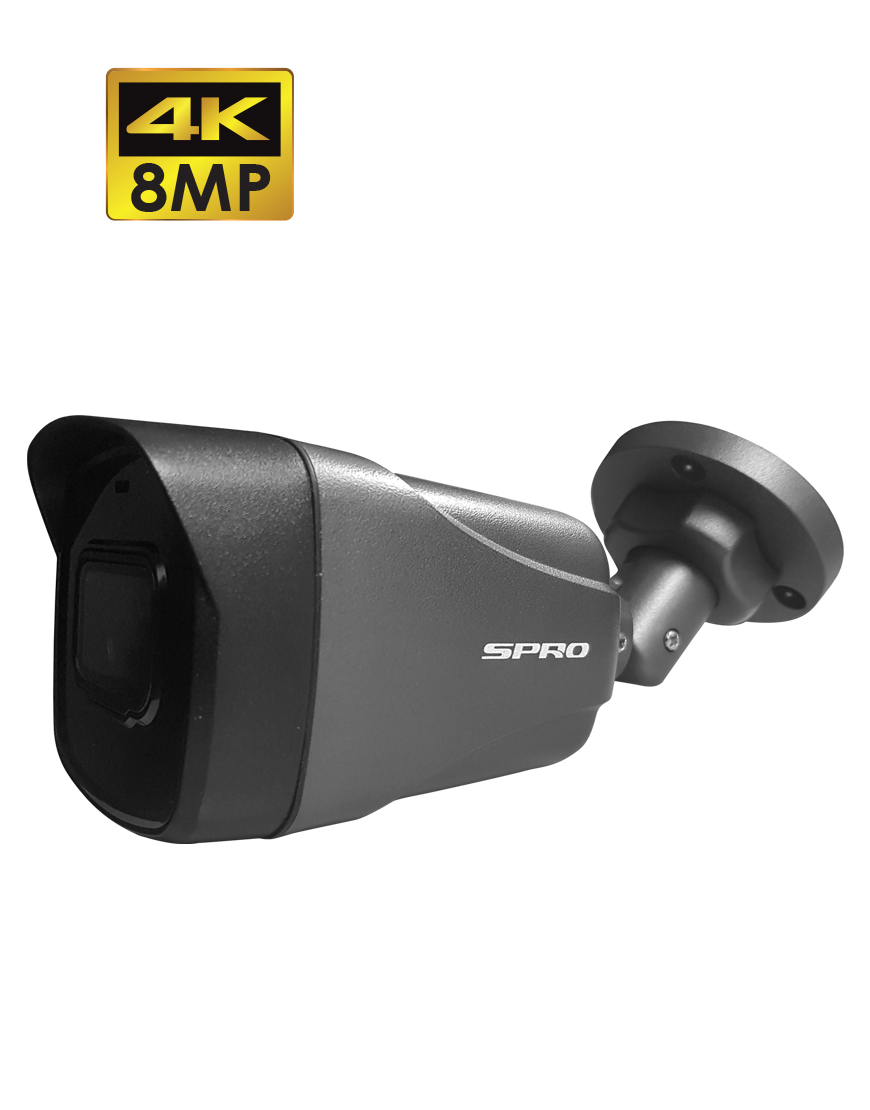

SPRO 8MP 4in1 Fixed Lens Bullet

SPRO 8MP 4in1 Fixed Lens Bullet
  Zoom
SPRO 8MP 4in1 Fixed Lens BulletSPRO 8MP 4in1 Fixed Lens BulletSPRO 8MP 4in1 Fixed Lens BulletSPRO 8MP 4in1 Fixed Lens Bullet

Availability:



In stock, immediate despatch

Deep Base, Grey (BASE05-G)
Pole Bracket
4 Way In-line PSU, Unearthed (for 8MP cameras)
Isolator

Part Number:  DHQ80/28RG/80M-4
Camera Resolution:  8 Megapixels
Lens:  Fixed Lens
IR Distance:  Up to 80m IR distance
Protocol:  4in1: CVI, TVI, AHD & CVBS
Style:  Bullet

Specifications:
Model Number DHQ80/28RG/80M-4
Image Sensor 1/2.7" CMOS
Effective Pixels 3840(H)×2160(V), 8MP
Electronic Shutter Speed 1/3s~1/100000s
Min. Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
Max. IR distance Up to 80m
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8mm
Max Aperture F2.0
Angle of View 125°×105°×56° (diagonal× horizontal× vertical)
Iris type Fixed Iris
Close Focus Distance 1m
DORI Distance Detect: 75m │ Observe: 30m │ Recognize: 15m │ Identify: 8m
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan:0˚~360˚ / Tilt: 0° ~ 90° / Rotation: 0° ~ 360°
Video
Resolution 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)
Frame Rate CVI: 4K@15fps; 5M@20fps; 4M@25fps, CVBS: PAL/NTSC
AHD: 4K@15fps; 5M@20fps; 4M@25fps
TVI: 4K@15fps; 5M@20fps; 4M@25fps
Day/Night Auto (ICR) / Manual
BLC Mode BLC / HLC / DWDR
WDR 120dB
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 2D & 3D NR
Smart IR Yes
Electronic Defog Yes
Digital Zoom 4x
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Port
Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
General
Power Supply DC12V±30%
Power Consumption Max 6.6W (12V DC, IR on)
Operating Conditions -30°C ~ +60°C / Less than 90% RH
Strorage Conditions -30°C ~ +60°C / Less than 90% RH
Ingress Protection IP67
Casing Metal front cover + plastic main body
Dimensions 244mm×90mm×90mm (9.61"×3.5"×23.5")
Net Weight 0.42kg (0.93lb)
Gross Weight 0.53kg (1.17lb)

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.

Related Products
Deep Base, Grey (BASE05-G)
Pole Bracket
POLEBRACKET01

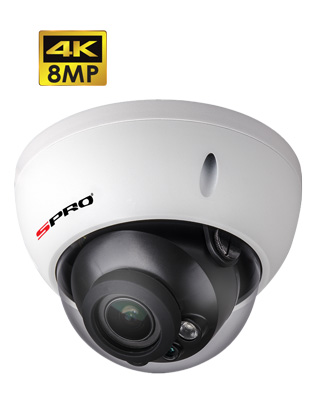

SPRO 8MP HDCVI Fixed Lens Vandal Resistant Dome
